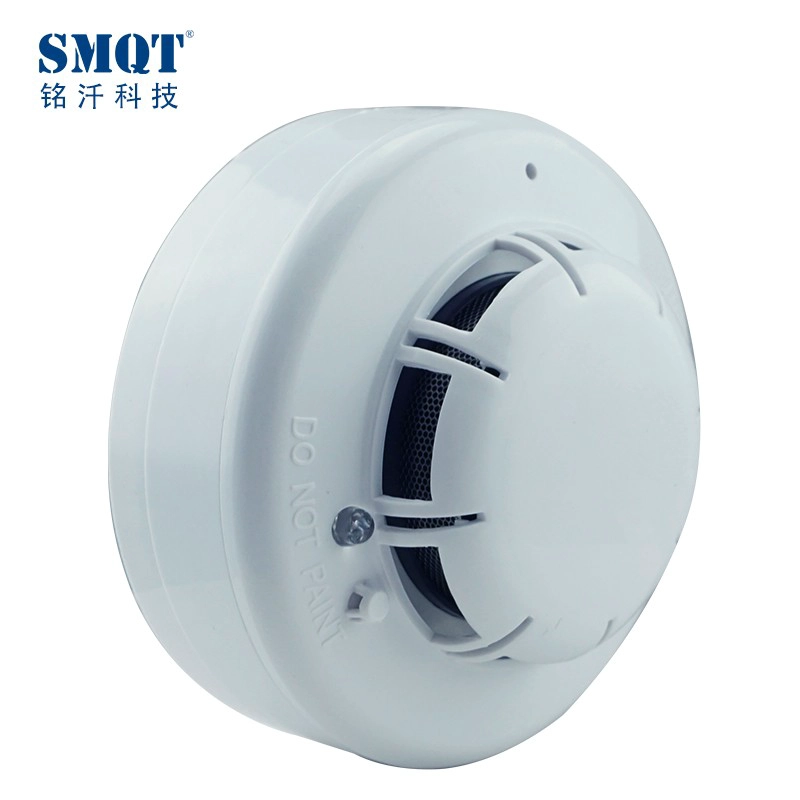

9-35v 4 wired fire smoke detector for fire panel and alarm system
- Product Name: 9-35v 4 wired fire smoke detector for fire panel and alarm system
- Model number: EB-117B
- Power supply: DC 9~35V

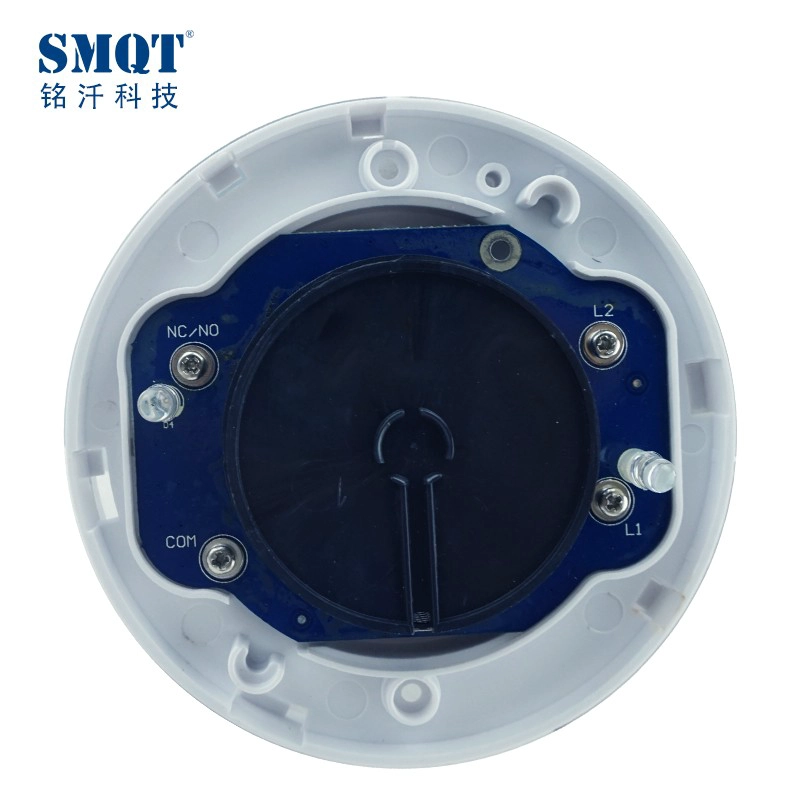

- Wire port: 4 port(Input power+, input power- ,Relay output(COM), Relay output(NO or NC)
- Size: 100 diameter*60(mm)
- Detecting area: 20 square meter
- Alarm indication Red LED light on
- Suitable for: Fire alarm panel system
- Installation way: Ceiling mounted
- Working temperature: -10 Degrees Celsius~ +50 Degrees Celsius
- Working humidity: 0~90%RH(no condensation )
- Weight: 0.18kg
- LED: 2 LED light
- Material: ABS housing+ PCB board
- Housing color: White
| Product Name: | 9-35v 4 wired fire smoke detector for fire panel and alarm system |
| Model number: | EB-117B |
| Power supply: | DC 9~35V |
| Wire port: | 4 port(Input power+, input power- ,Relay output(COM), Relay output(NO or NC) |
| Size: | 100 diameter*60(mm) |
| Detecting area: | 20 square meter |
| Alarm indication | Red LED light on |
| Suitable for: | Fire alarm panel system |
| Installation way: | Ceiling mounted |
| Working temperature: | -10 Degrees Celsius~ +50 Degrees Celsius |
| Working humidity: | 0~90%RH(no condensation ) |
| Weight: | 0.18kg |
| LED: | 2 LED light |
| Material: | ABS housing+ PCB board |
| Housing color: | White |
| OEM: | Welcome OEM |
What Features of our smoke detector?
IN-KIND SHOOTING

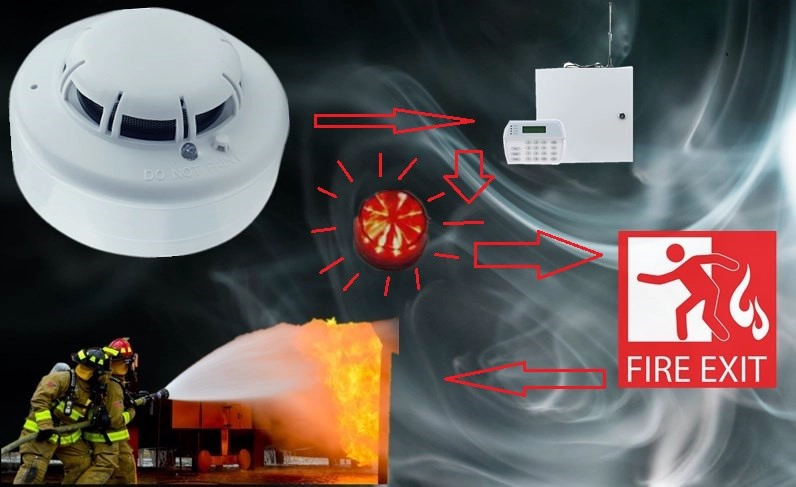

APPLICATION
