EB-138 Alarm door sensor for steel doorEB-138 Alarm door sensor for steel doorEB-138 Alarm door sensor for steel door

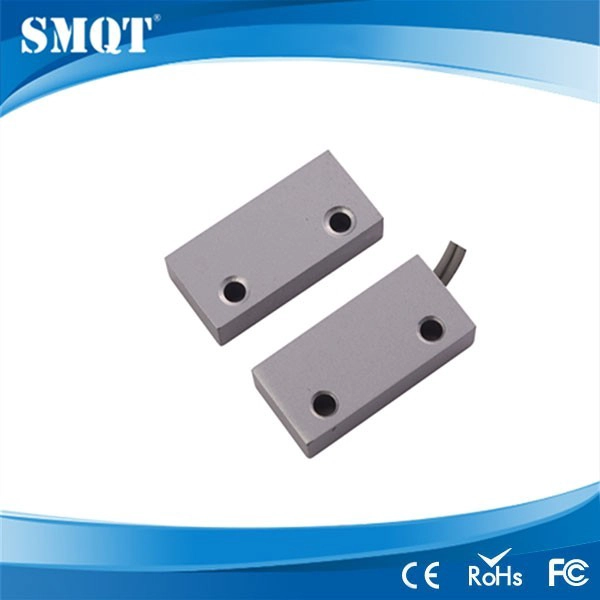

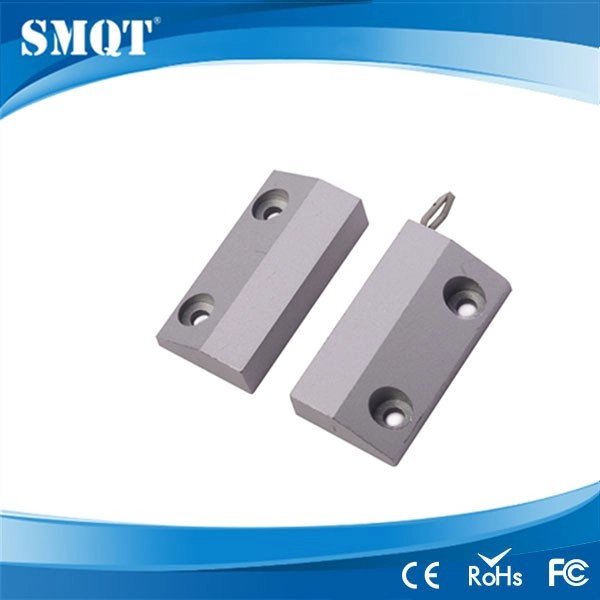

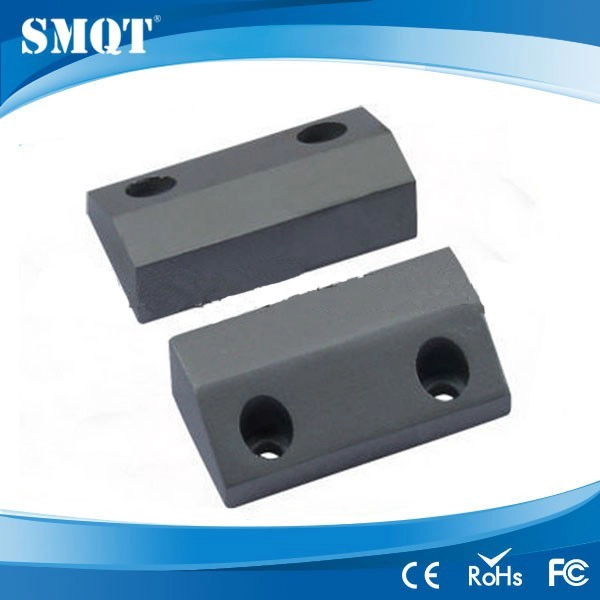

EB-138 Alarm door sensor for steel door

  • Model:EB-138A,EB-138B,EB-138C
  • Dimensions :46 * 21 * 12 (mm),47 * 17 * 7 (mm),30 * 13 * 6 (mm)
  • Connection:Normally: open / normally closed
  • Operating distance :50 ± 10 (mm)
  • Maximum pressure :≤100VDC
  • Working Power: ≤10W
  • Housing Material: Zinc Alloy
  • Scope : Iron door or window
  • Load current : ≤500mA
  • product weight :150g

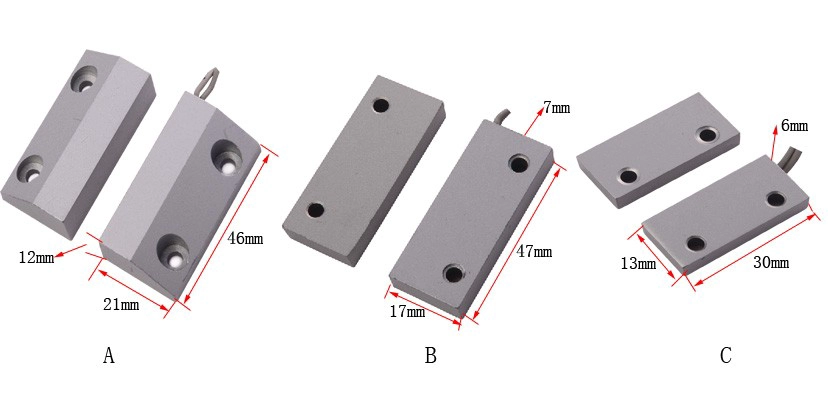

Model EB-138A EB-138B EB-138C
Dimensions  46 * 21 * 12 (mm)  47 * 17 * 7 (mm)  30 * 13 * 6 (mm)
Connection Normally open / normally closed Normally open / normally closed  Normally open / normally closed
Operating distance  50 ± 10 (mm) 50 ± 10 (mm) 50 ± 10 (mm)
Maximum pressure  ≤100VDC  ≤100VDC   ≤100VDC
Working Power  ≤10W  ≤10W
≤10W
Housing Material  Zinc Alloy  Zinc Alloy  Zinc Alloy
Scope  Iron door or window  Iron door or window  Iron door or window
Load current  ≤500mA  ≤500mA  ≤500mA
product weight  150g  100g  50g






Magnetic door access control system and door security alarm system also can use with this door contact sensor
alarm device.
