EB-853 16 Wired & 29 Wireless anti intruder Alarm Control PanelEB-853 16 Wired & 29 Wireless anti intruder Alarm Control PanelEB-853 16 Wired & 29 Wireless anti intruder Alarm Control PanelEB-853 16 Wired & 29 Wireless anti intruder Alarm Control PanelEB-853 16 Wired & 29 Wireless anti intruder Alarm Control PanelEB-853 16 Wired & 29 Wireless anti intruder Alarm Control Panel

EB-853 16 Wired & 29 Wireless anti intruder Alarm Control Panel

  • Metal case dimension:256×236×69(mm)
  • Keypad size:159mm×138mm×33mm
  • Power supply :220V AC±10%/ 50Hz
  • Static current:≤50mA(when not charging)
  • Alarm current:≤200mA
  • Output power:12v~15vDC/≤1.5A
  • Siren output:12v ≤400mA
  • GSM Frequency :850/900/1800/1900Mhz
  • Wired and Wireless zones:16 wireless zones and 16 wired zones
  • Distance  between Metalcase and wired keypad:≤30m
  • Working temperature:-10℃~+70℃
  • Working humidty :<97%
  • System Wireless Frequency:315Mhz/433Mhz(2262 coding chip)(optional)
  • Communicating format:ADMCO4+2,CID
  • Recording Time:10~20s
  • Material:Steel box and ABS Keypad
  • Wired Alarm Input NO/NC

EB-853 16 Wired & 29 Wireless anti intruder Alarm Control Panel

Product Description
852
Specification
Model

EB-853

Metal case dimension

256×236×69(mm)

Keypad size

159mm×138mm×33mm

Power supply  220V AC±10%/ 50Hz
Static current ≤50mA(when not charging)
Alarm current

≤200mA

Output power 12v~15vDC/≤1.5A
Siren output 12v ≤400mA
GSM Frequency  850/900/1800/1900Mhz
Wired and Wireless zones 16 wireless zones and 16 wired zones
Distance  between Metalcase and wired keypad ≤30m
Working temperature -10~+70℃
Working humidty  <97%
System Wireless Frequency 315Mhz/433Mhz(2262 coding chip)(optional)
Communicating format ADMCO4+2,CID
Recording Time 10~20s
Material Steel box and ABS Keypad
Wired Alarm Input NO/NC



Product Feature



what features of our 16 Wired & 29 Wireless anti intruder Alarm Control Panel?

853-6_

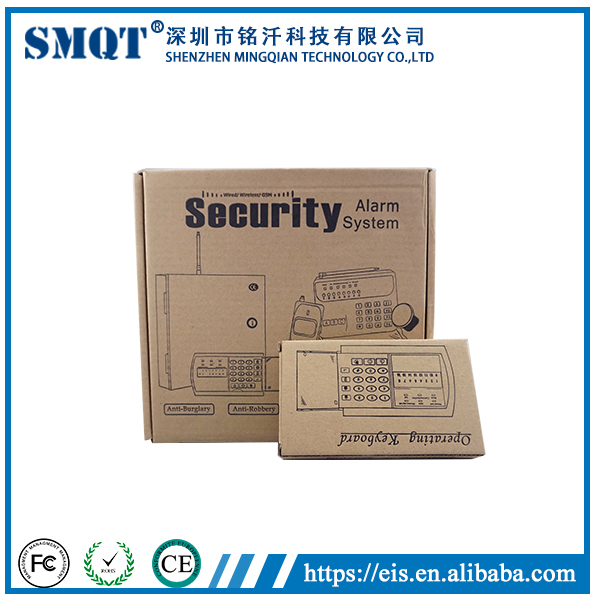

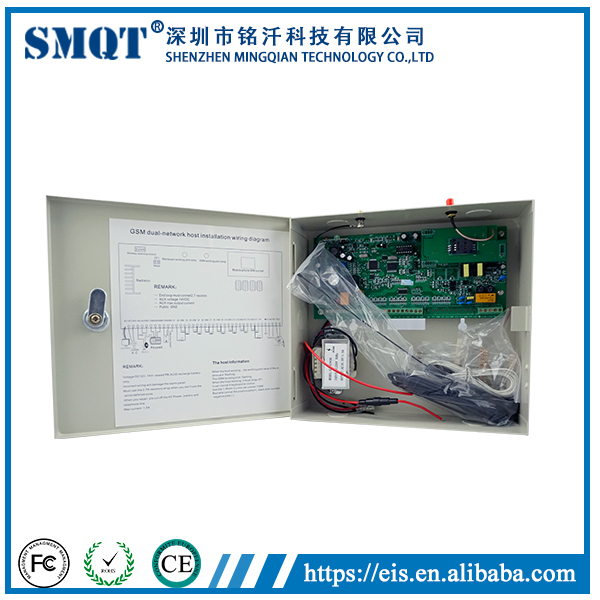

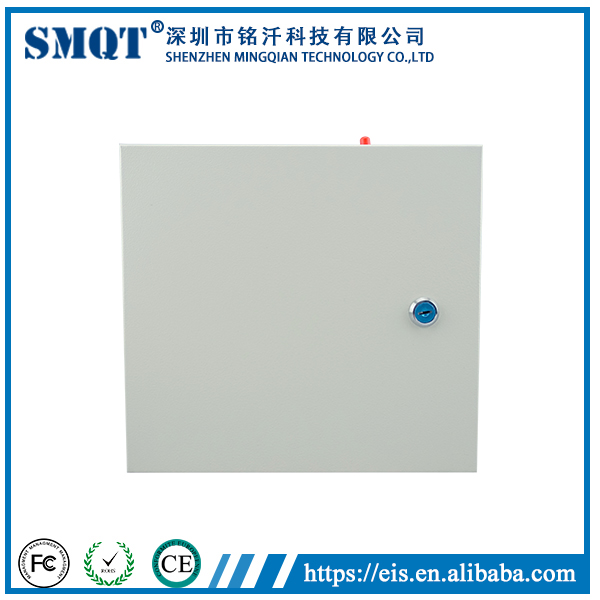

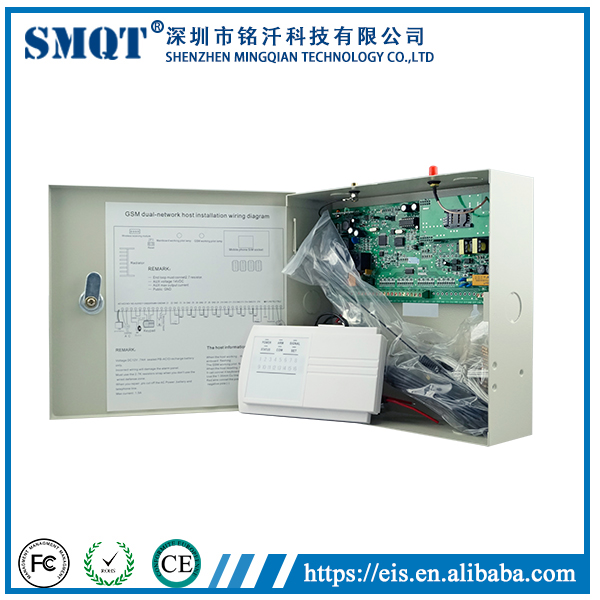

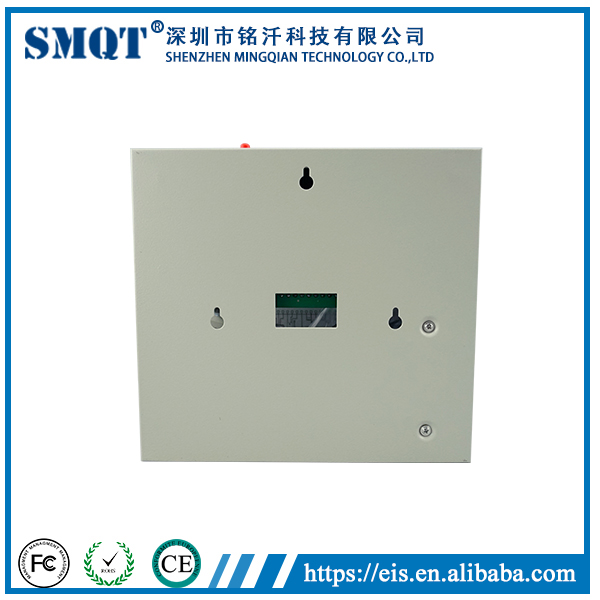

Product Display



IN-KIND SHOOTING

852_07



Application



APPLICATION

85288529853INSTAL

Show Cases



SHOW CASES

abt

Company Information

OFFICE SHOW

1zong

CUSTOMERS

3zong

EXHIBITION

4zong

CERTIFICATION



2

Our Services

HOW TO COOPERATE

How to coperation

FAQ



Q:Can I have a sample order?

A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.

Q:What is the lead time?

A:Sample needs 1-3 working days, mass production time needs 10-15 working days.

Q:What is your MOQ?

A:No MOQ limit.The more quantity the more discounts.

Q:How do you ship the goods and how long does it take arrive?

A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.

Q:How will we proceed the order if I have logo to print?

A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
