Four door access controller attendance system card systemFour door access controller attendance system card systemFour door access controller attendance system card systemFour door access controller attendance system card systemFour door access controller attendance system card systemFour door access controller attendance system card system

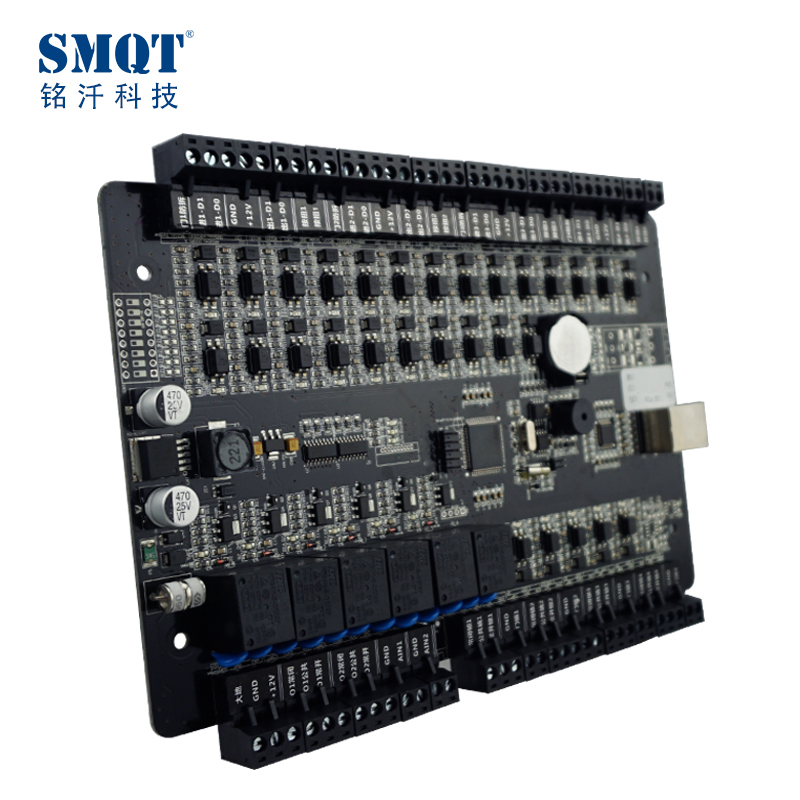

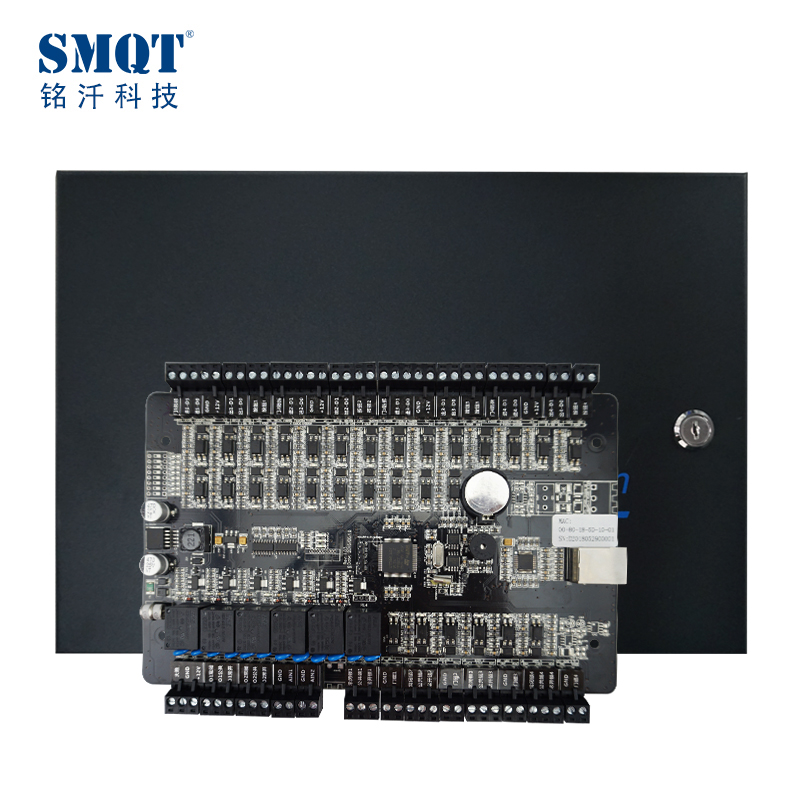

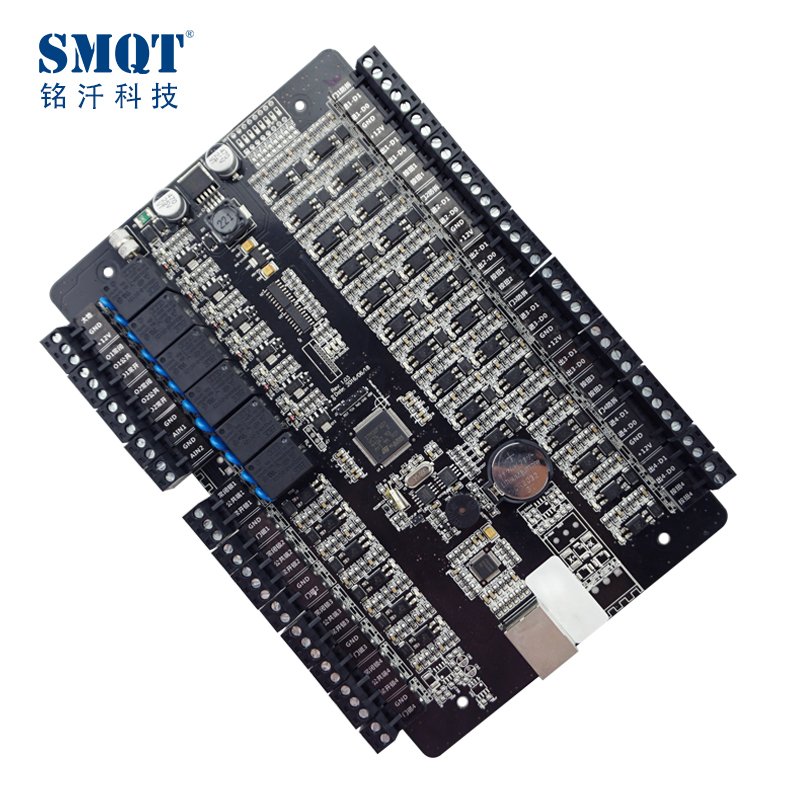

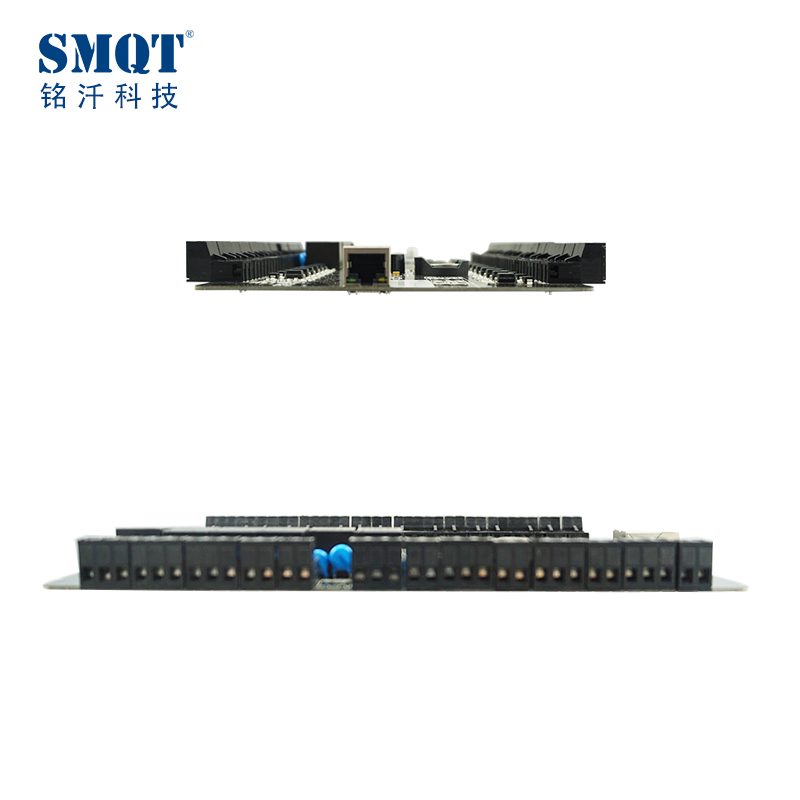

Four door access controller attendance system card system

  • Model:EA-814
  • Communication way:TCP/IP / Rs485 optional
  • Software:Free PC software
  • Size:221*140*17mm
  • Suitable for:Access control system /Burglar alarm system/Fire alarm system
  • Material:PCB board
  • Color:Black
  • Weight: 0.8kg

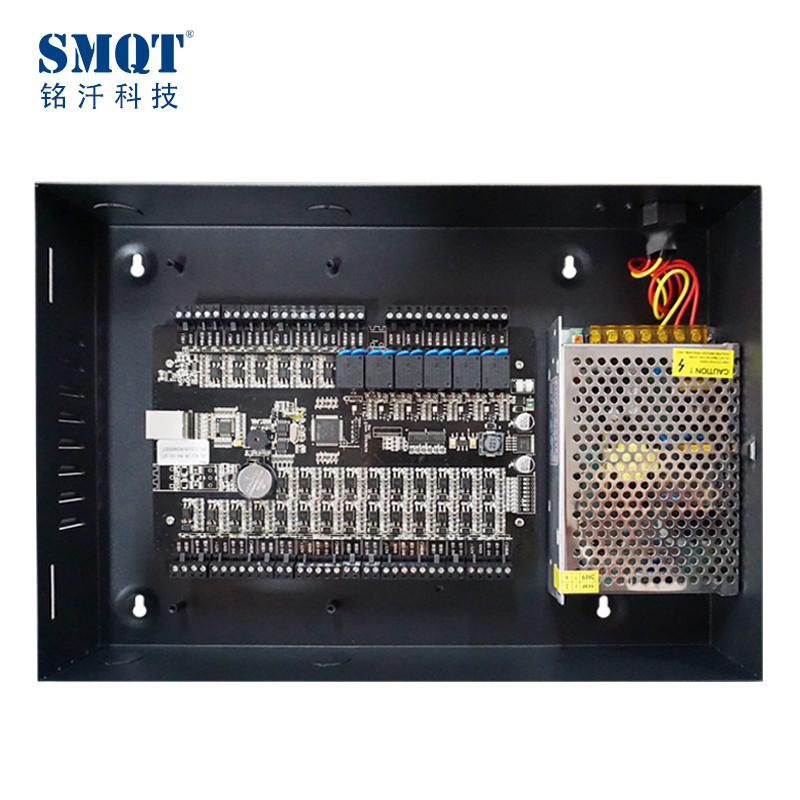

  • Optional accessories:Metal box power supply
  • Warranty:2 years warranty
  • OEM:Welcome OEM

TCP/IP four door access controller with fire alarm port and burglar alarm port and  SDK free offered


EA-814'S MAIN PARAMETER

Product Name: TCP/IP four door access controller with fire alarm port and burglar alarm port and  SDK free offered
Model number: EA-814
Working voltage: 9~14V DC
Working current: <350mA
User capacity: 20000 user capcity
Record capacity: 1000,000 event records (can record card, alarm, exit switch, door magnet, system action information, etc.)

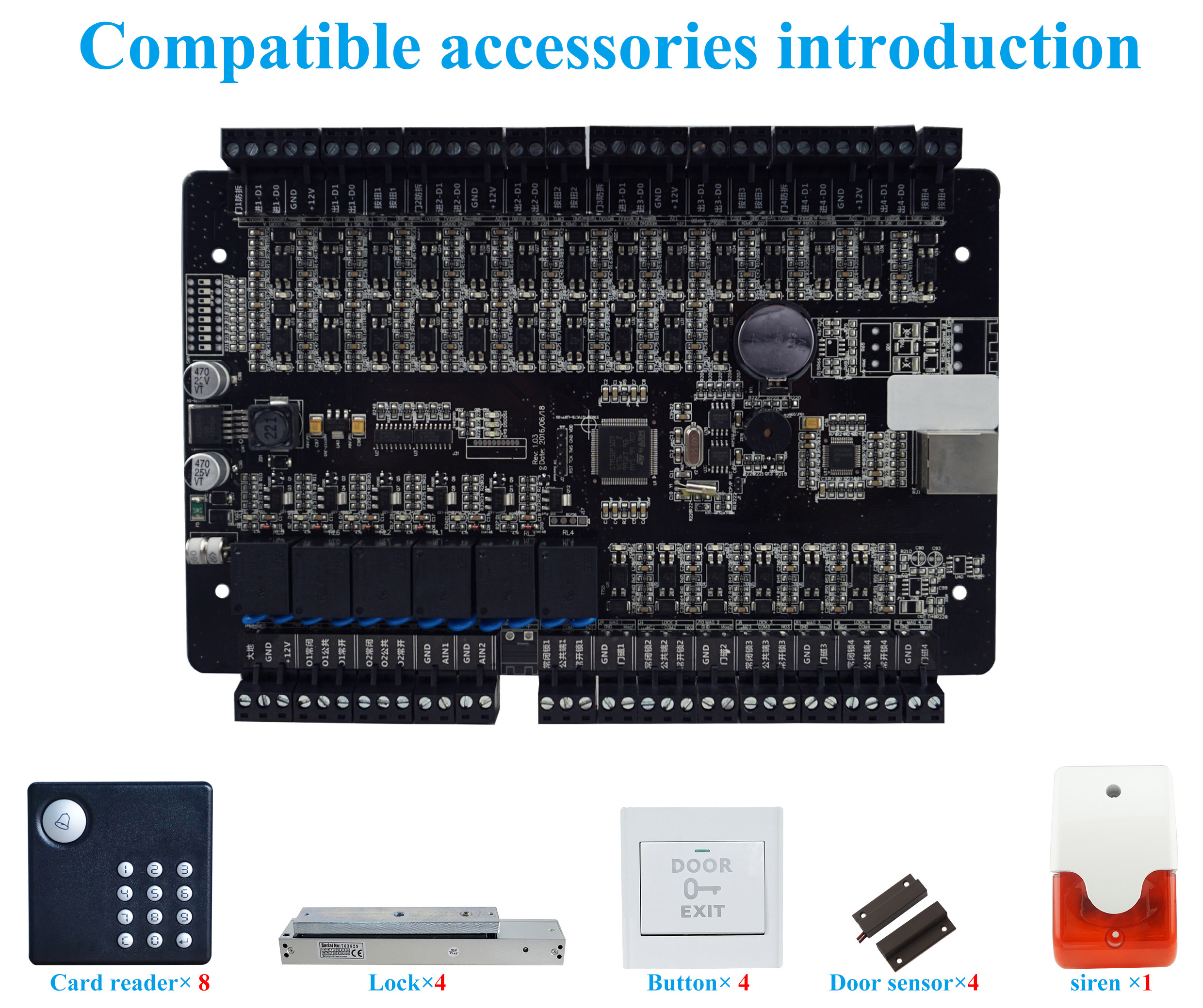

Interface:

Card reader×8pcs(WG26 or WG 34)

Lock×4pcs

Door release button×4pcs

Door sensor×4pcs

Alarm relay×1pcs

RS485×1pcs(optional)

TCP/IP×1pcs

Communication way:

TCP/IP / Rs485 optional

Software:

Free PC software

Size:

221*140*17mm

Suitable for: Access control system /Burglar alarm system/Fire alarm system
Material: PCB board
Color: Black
Weight:

0.8kg

Optional accessories:

Metal box power supply

Warranty: 2 years warranty
OEM: Welcome OEM

WHAT FEATURES EA-814 HAVE?






HOW ABOUT OTHER CHOICE?


TCP/IP four door access controller with fire alarm port and burglar alarm port and  SDK free offered

TCP/IP four door access controller with fire alarm port and burglar alarm port and  SDK free offered

TCP/IP four door access controller with fire alarm port and burglar alarm port and  SDK free offered
