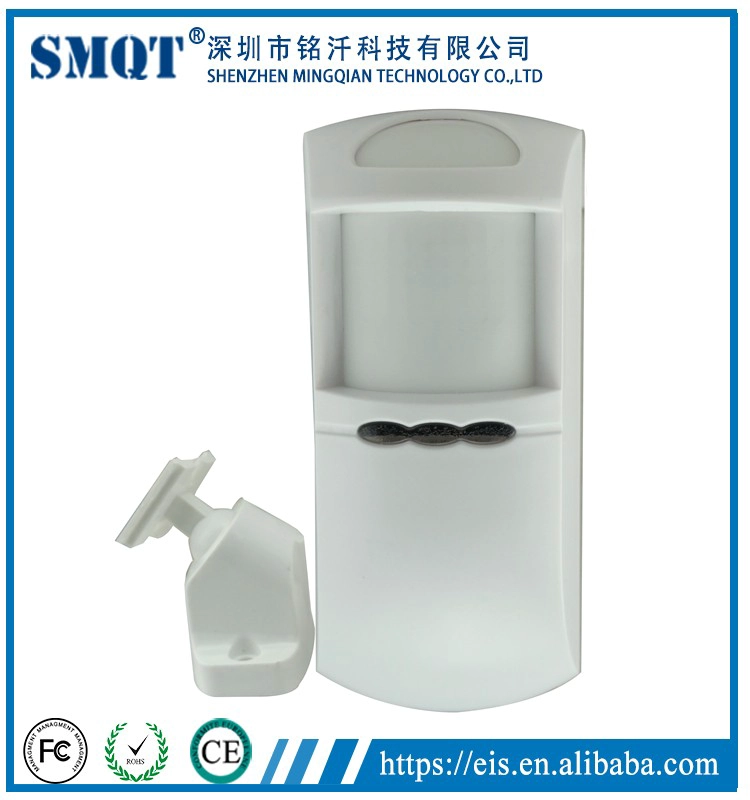

Outdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector EB-177
- Model:EB-177
- Size:135*58*40(mm)
- Working voltage:12V DC
- Working Current:Max 62MA
- Detecting angle:110°
- Working temperature:-20℃~50℃
- Detecting speed:0.2~7m/sec
- Install Height:2.4~4.8m
- Storage temperature:-25℃~65℃
- Sensitivity:Adjustable
- PIR Feature
- Infrared sensro type :Dual elements PIR sensor
- Auto temperature compensation:NIC compensation
- Detecting distance:10m
- Detecting angle:110°
- Microwave feature
- Microwave antenna type:Flat strip microwave antennea with FET oscillator
- Frequency:FCC&DOC10.525GHz
- Detecting method:Doppler(effect)move
- Theiries:Dopper(effect)+Energies nalysis
- Digital filter:50/60Hz
- Self-test:Microwave self-test function
- MCU type:8 bit microchip
- Alarm indicator:Red LED Light(close if need)
- Alarm output:NC,25V DC,125mA
- Anti-tamper switch:NC,25V DC,125mA
- Operating humidity:95%
- Color:White
- Weight:0.2kg
| Specification | |
| Product name | Outdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector |
| Model | EB-177 |
| Size | 135*58*40(mm) |
| Working voltage | 12V DC |
| Working Current | Max 62MA |
| Detecting angle | 110° |
| Working temperature | -20℃~50℃ |
| Detecting speed | 0.2~7m/sec |
| Install Height | 2.4~4.8m |
| Storage temperature | -25℃~65℃ |
| Sensitivity | Adjustable |
| PIR Feature |
Infrared sensro type :Dual elements PIR sensor Auto temperature compensation:NIC compensation Detecting distance:10m Detecting angle:110° |
| Microwave feature |
Microwave antenna type:Flat strip microwave antennea with FET oscillator Frequency:FCC&DOC10.525GHz Detecting method:Doppler(effect)move Theiries:Dopper(effect)+Energies nalysis Digital filter:50/60Hz Self-test:Microwave self-test function MCU type:8 bit microchip |
| Alarm indicator | Red LED Light(close if need) |
| Alarm output | NC,25V DC,125mA |
| Anti-tamper switch | NC,25V DC,125mA |
| Operating humidity | 95% |
| Color | White |
| Weight | 0.2kg |
Features
1.This detector adopts the dual-micro outdoor intruding detector which includes energy-pile-up logical process,logic dynamic time split technology. It is the best choice of outdoor intruding detector for finance industry ,business and garden resident.
2.The detector’s PIR part adopts sophisticate columnar FRESNEL technology, advanced radian design to improve the efficiency of energy receiving. And combine the MW and PIR technology. MW detecting area and the PIR detecting area are overlap. High sensitivity but do not have any fault alarming. The MW Part can caculate out the moving objects’s speed and volume and so on.
3.Cooperatiogn with the advanced patent software technology can help make the accurate judgement between the real intruder and some other ingerference resulting in fault alarming.
Have a supper high performance of detecting and anti-fault alarming
What features of Outdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector EB-177?

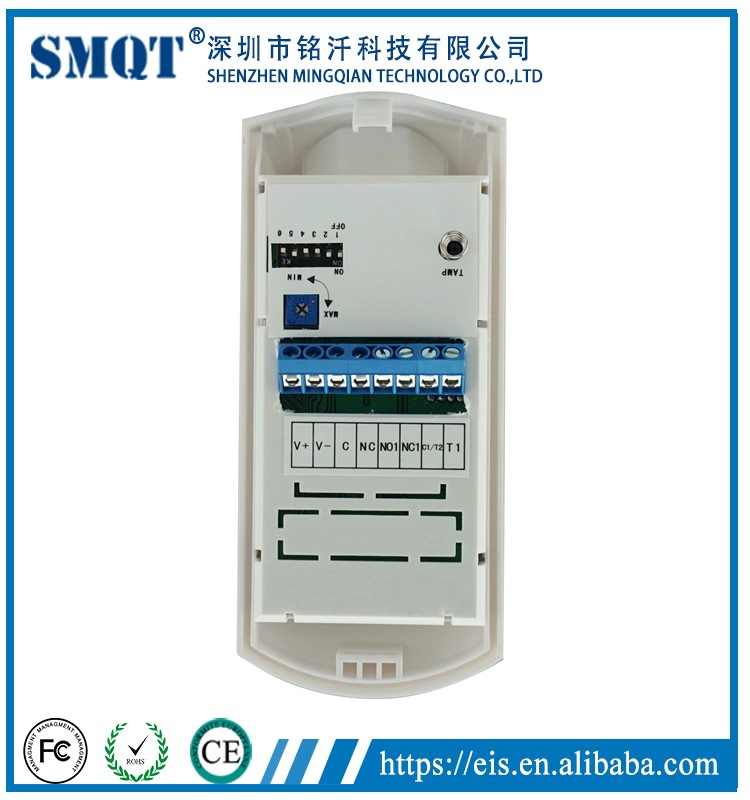

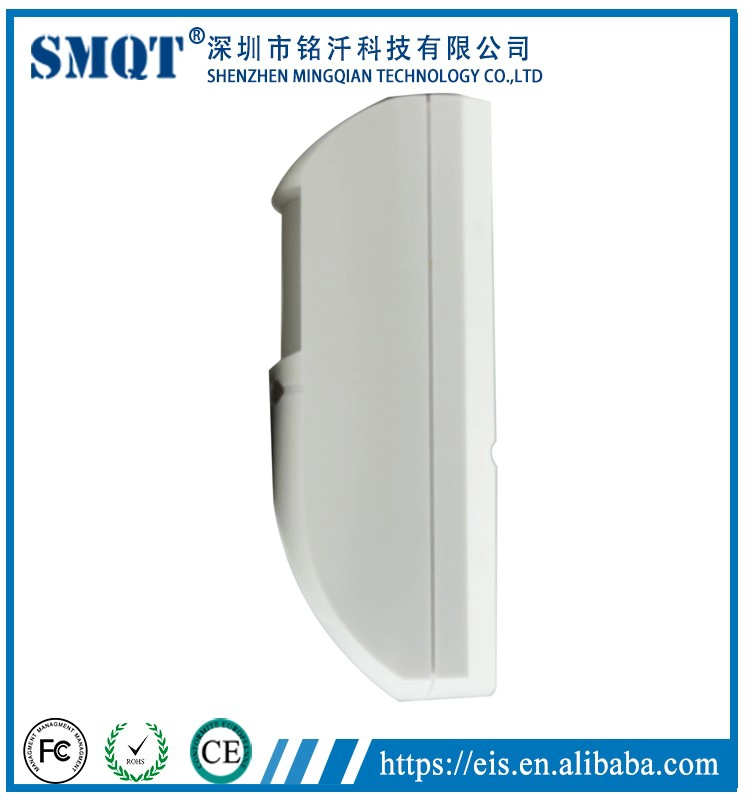

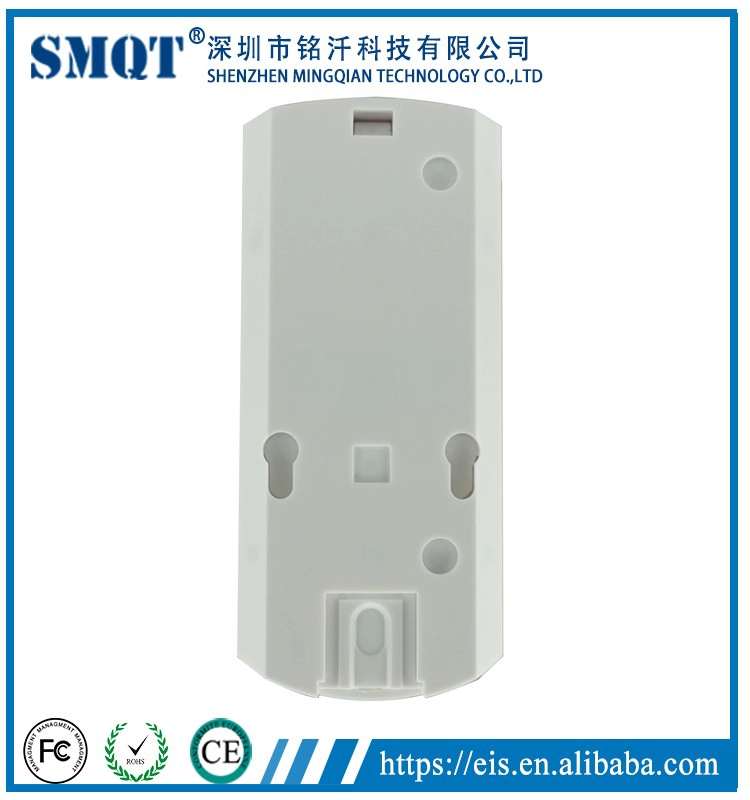

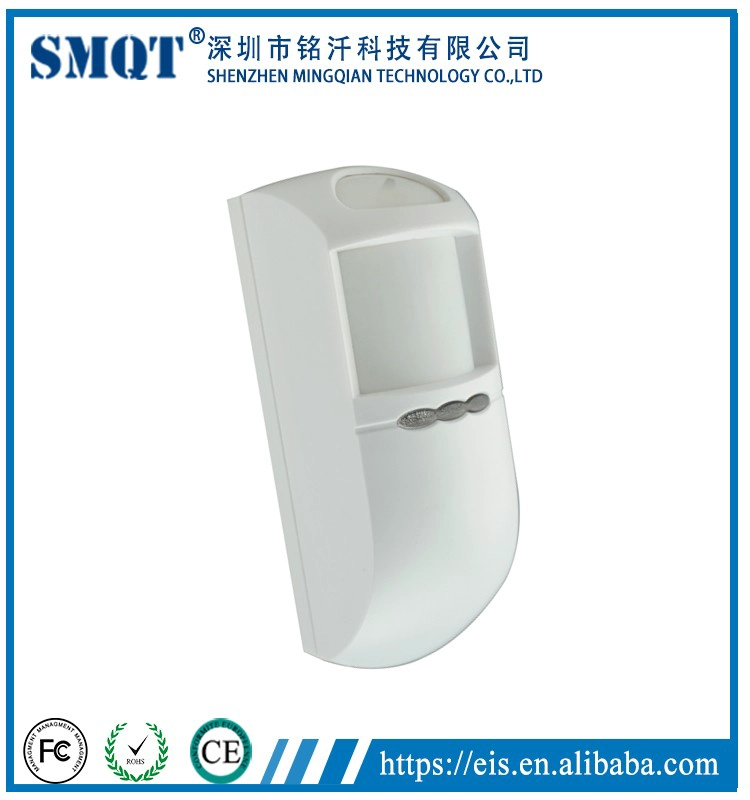

WHAT IS THE EB-177 LOOK LIKE?

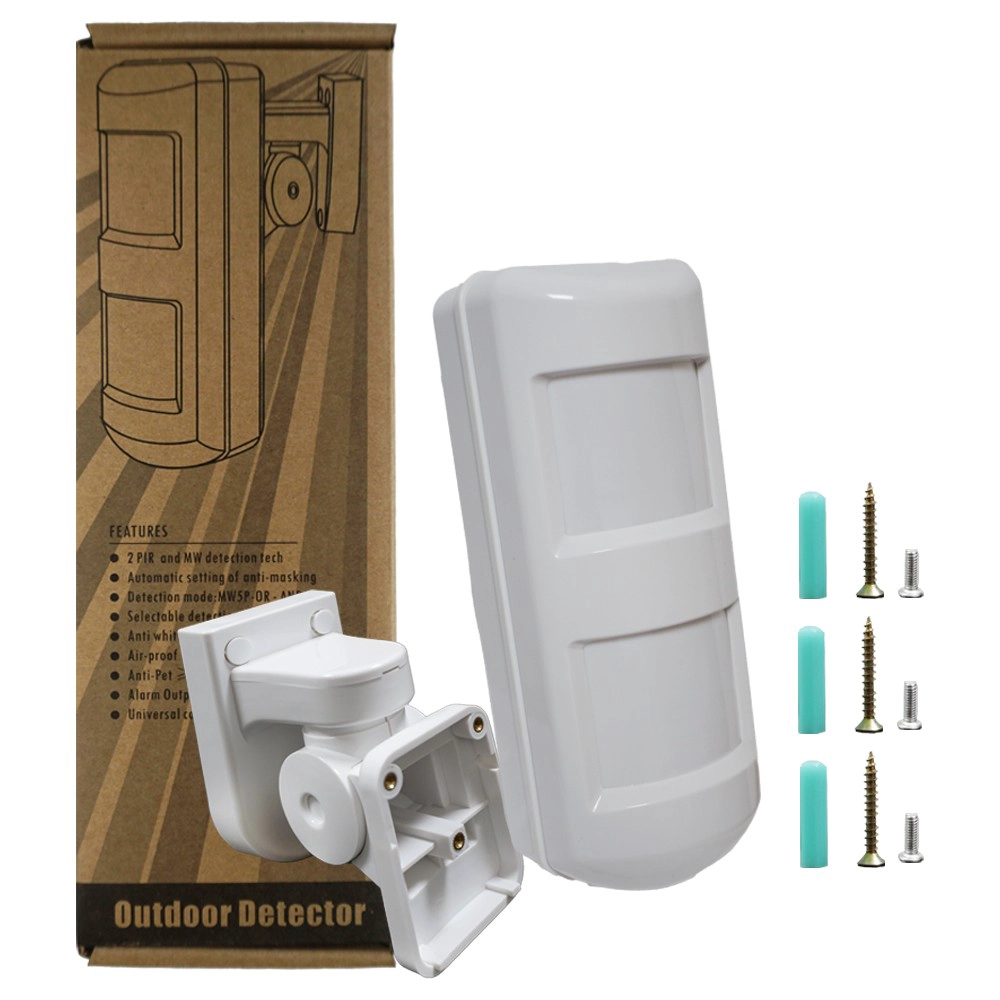

EB-177's STANDARD PACKAGE
HOW TO USE EB-177?
HOW ABOUT OTHER CHOICE?
HOW ABOUT OUR COMPANY?
CUSTOMER
EXHIBITION
CERTIFICATE
HOW TO COPERATION?
FAQ
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples areacceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit, the more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your
second confirmation before mass production.
SOutdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector
Outdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector
Outdoor waterproof Wired Alarm System Intelligent PIR & MW Intrusion Detector
