Special wired Infrared 12v pir sensor ceiling, small pir sensor alarmSpecial wired Infrared 12v pir sensor ceiling, small pir sensor alarmSpecial wired Infrared 12v pir sensor ceiling, small pir sensor alarmSpecial wired Infrared 12v pir sensor ceiling, small pir sensor alarmSpecial wired Infrared 12v pir sensor ceiling, small pir sensor alarmSpecial wired Infrared 12v pir sensor ceiling, small pir sensor alarm

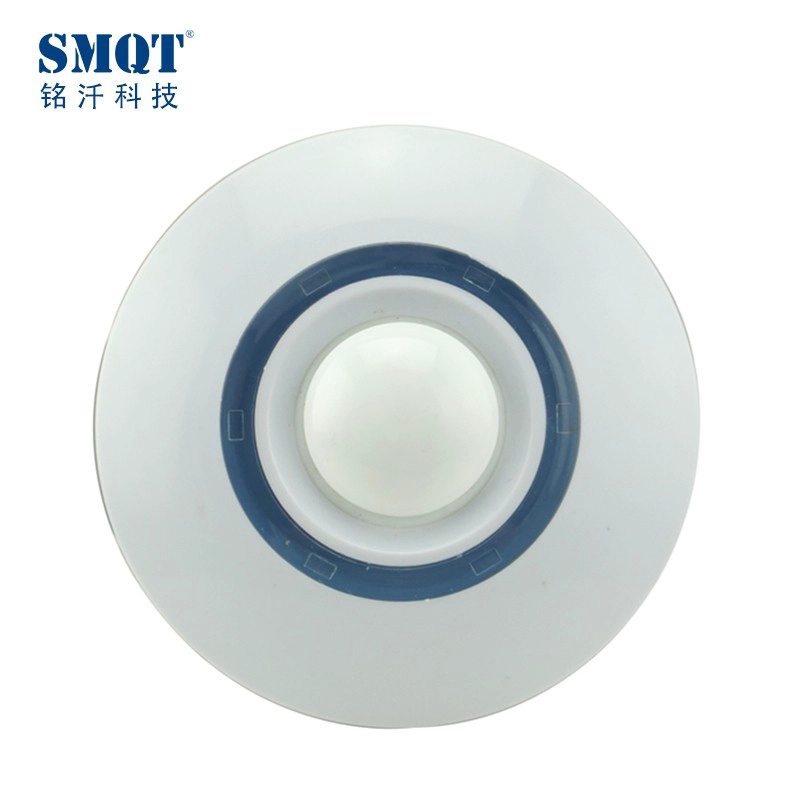

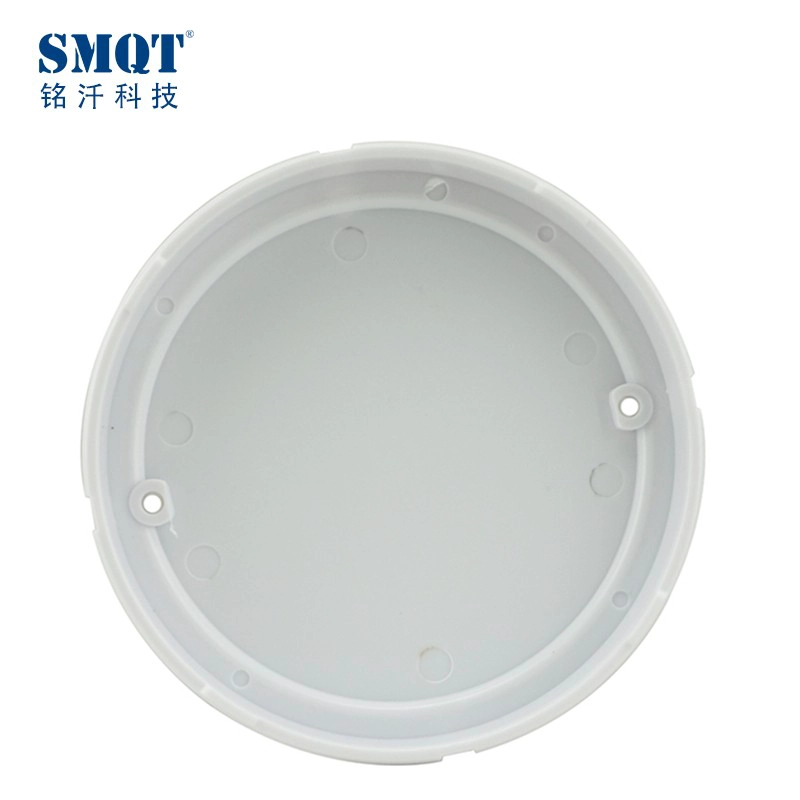

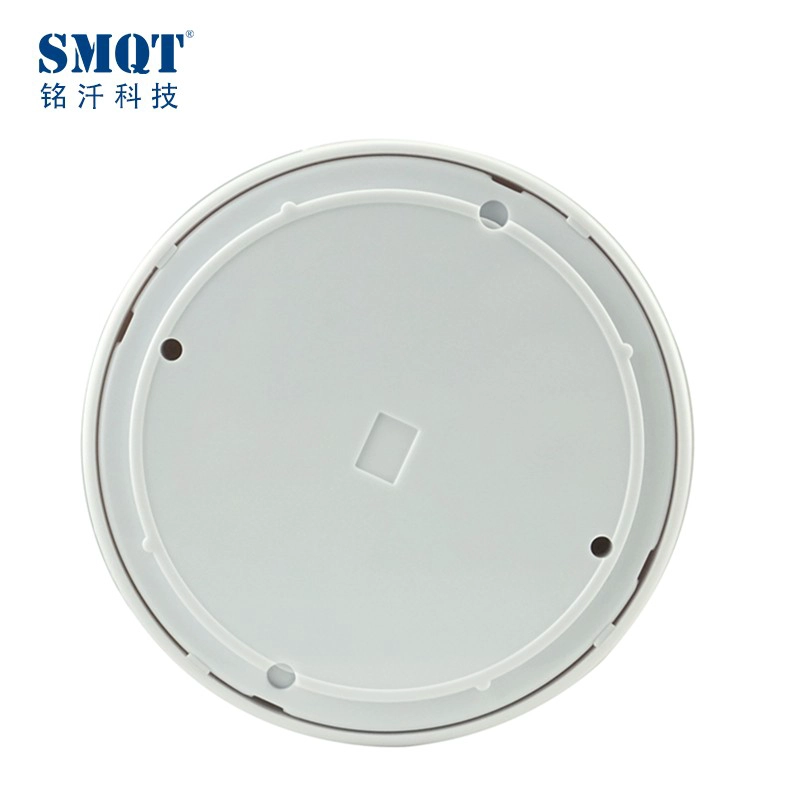

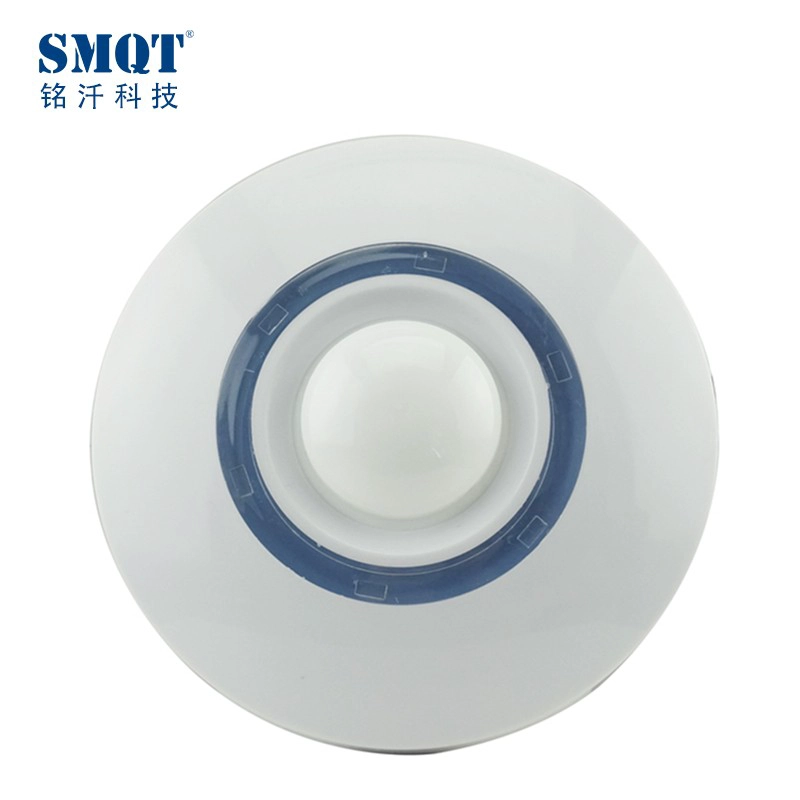

Special wired Infrared 12v pir sensor ceiling, small pir sensor alarm

  • Product name: Special wired Infrared 12v pir sensor ceiling, small pir sensor alarm
  • Model: EB-175
  • Size: ∅135 * 30(mm)
  • Working voltage: 12~24V DC
  • Working Current: 18mA(DC12V)
  • Detecting angle: 360°
  • Self-testing time: 60S
  • Working temperature : -10℃~50℃
  • Detecting speed : 0.2~7m/sec
  • Install Height: 2.2~6m
  • Storage temperature: -25℃~65℃
  • PIR Feature:
  • Infrared sensro type :Dual elements PIR sensor
  • Auto temperature compensation:NIC compensation
  • Detecting distance:8~10m
  • Detecting angle:360°
  • Alarm indicator: Red LED Light(close if need)
  • Alarm output: NC ,12V DC,100mA
  • Anti-tamper switch: NC ,12V DC,100mA
  • Operating humidity: 95%
  • Color: White
  • Weight :0.1kg

Special wired Infrared 12v pir sensor ceiling, small pir sensor alarm



175



Specification
Product name Special wired Infrared 12v pir sensor ceiling, small pir sensor alarm
Model EB-175
Size ∅135 * 30(mm)
Working voltage 12~24V DC
Working Current 18mA(DC12V)
Detecting angle 360°
Self-testing time 60S
Working temperature   -10℃~50℃
Detecting speed   0.2~7m/sec
Install Height   2.2~6m
Storage temperature   -25℃~65℃
PIR Feature

Infrared sensro type :Dual elements PIR sensor

Auto temperature compensation:NIC compensation

Detecting distance:8~10m

Detecting angle:360 °

Alarm indicator   Red LED Light(close if need)
Alarm output NC ,12V DC,100mA
Anti-tamper switch NC , 12 V DC, 100m A
Operating humidity 95%
Color   White
Weight   0.1kg



Product Features

What Features of our pir sensor ceiling?

1754









Product Picture

IN-KIND SHOOTING

1750











APPLICATION

1755



Company Information

OFFICE SHOW

1zong

CUSTOMER

photobank (4)

EXHIBITION

4zong

CERTIFICATE

2

HOW TO COOPERATION

How to coperation

FAQ

FAQ

Q:Can I have a sample order?

A: Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.



Q: What is the lead time?

A: Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 5000pcs.



Q: Do you have any MOQ limit?

A: EXW MOQ is 100pcs under blank box.



Q: How do you ship the goods and how long does it take arrive?

A: The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time  depends on the shipping service.



Q:How will we proceed the order if I have logo to print?

A: Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would  make sampling firstly from silk print factory and take picture for your second confirmation before  mass production.



Q:  Does alarm panel work with any sensor?

A: The alarm panel can work with all dry contact wired detectors and wireless detector, including almost all

of the wireless sensors from Chinese manufacturers. The wireless encode and decode is EV1527 or  our wireless sensors.
