红外感应开门按钮EA-21红外感应开门按钮EA-21红外感应开门按钮EA-21红外感应开门按钮EA-21红外感应开门按钮EA-21红外感应开门按钮EA-21
Infrared induction door release button,door release button,infrared induction door switch button,door open buttonInfrared induction door release button,door release button,infrared induction door switch button,door open buttonInfrared induction door release button,door release button,infrared induction door switch button,door open buttonInfrared induction door release button,door release button,infrared induction door switch button,door open buttonInfrared induction door release button,door release button,infrared induction door switch button,door open buttonInfrared induction door release button,door release button,infrared induction door switch button,door open button

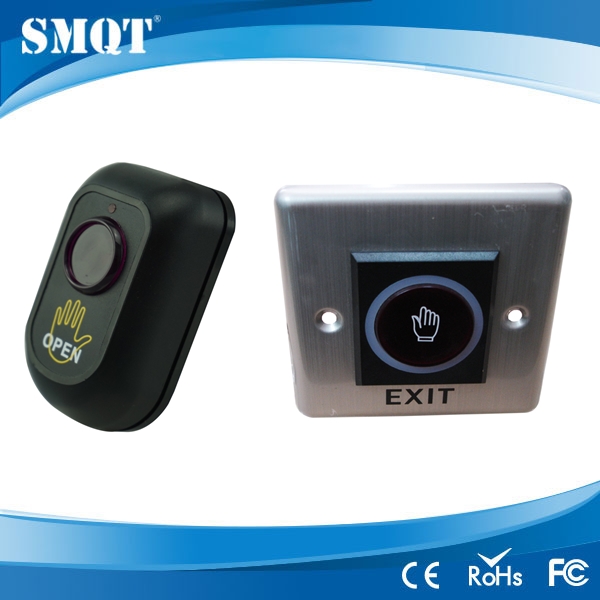

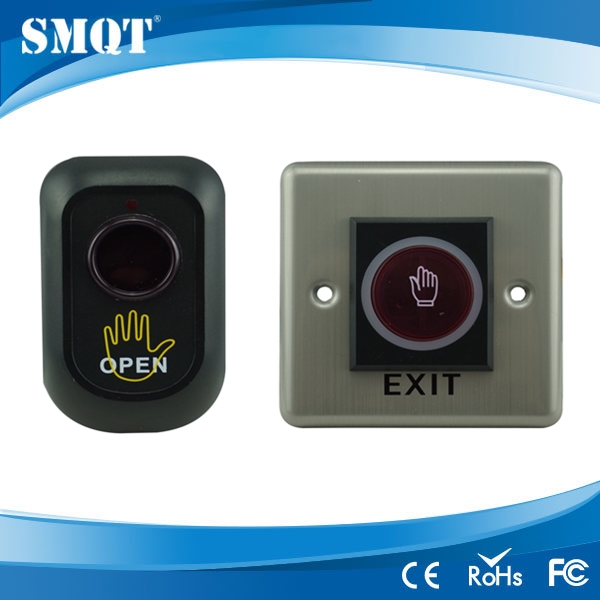

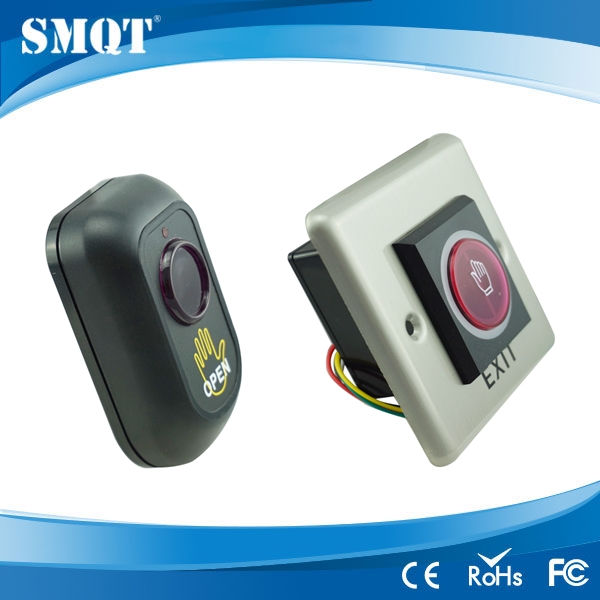

红外感应开门按钮EA-21

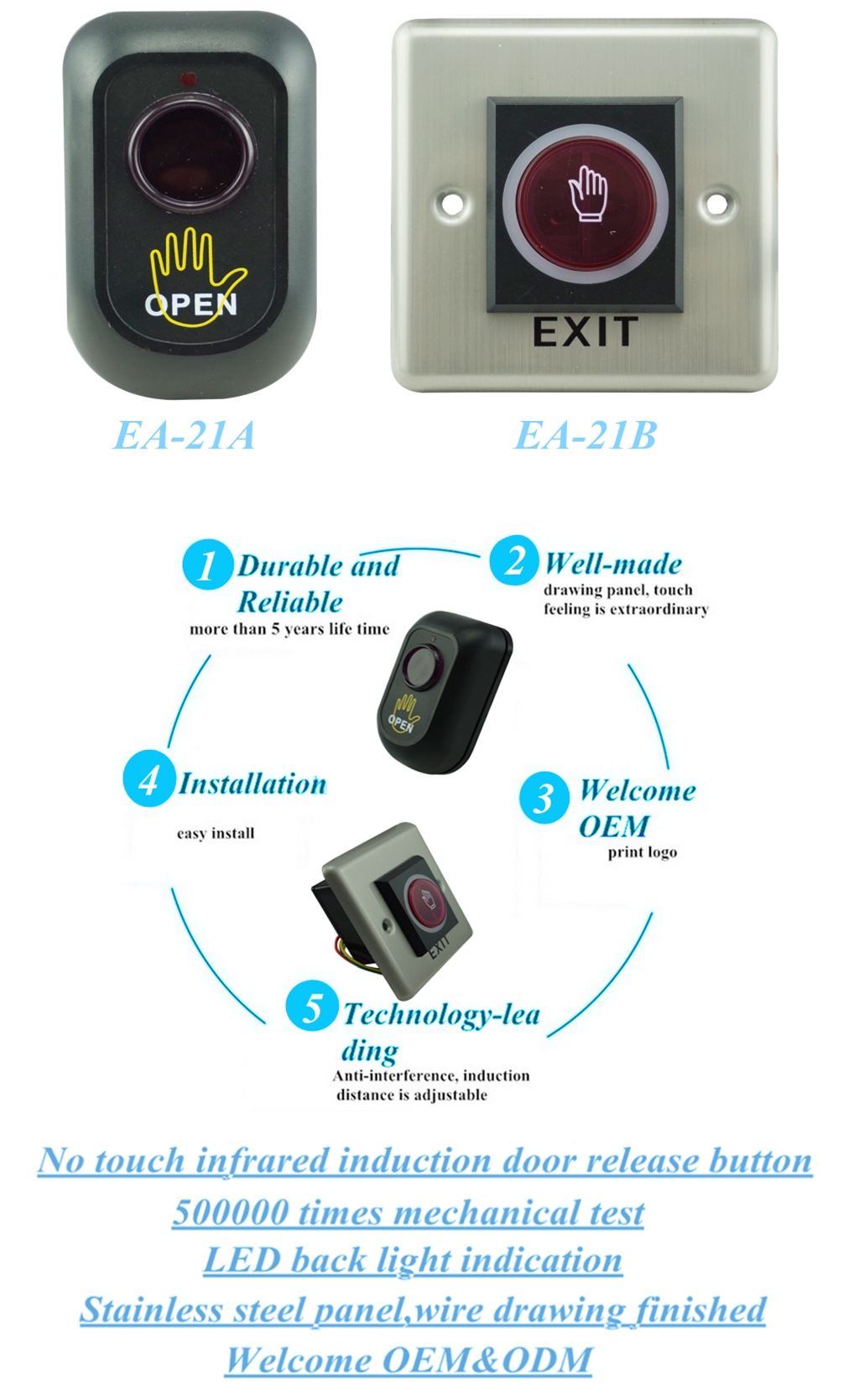

  • 型号:EA-21A / EA-21B
  • 尺寸:EA-21A:85×52×25(mm)EA-21B:86×86×39(mm)
  • 输入电压:DC 12V
  • 感应角:<115°
  • 功率容量:<4W
  • 感应距离:10〜20cm

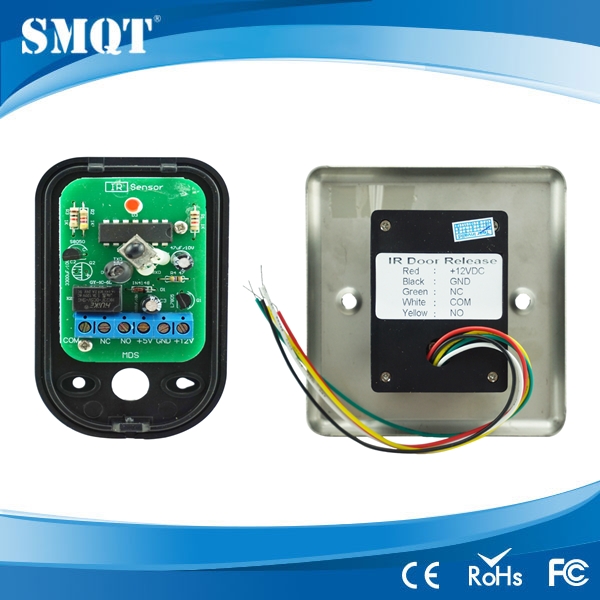

  • 触点输出:NO / NC / COM
  • 机械试验:500.000次试验
  • 适用范围:门禁系统
  • 颜色:灰色/黑色
  • 用途:门禁系统和门禁系统
  • 相对湿度:0〜95%
  • 环境温度-20℃-50℃
  • 净重:EA-21A:0.046kg EA-21B:0.106kg

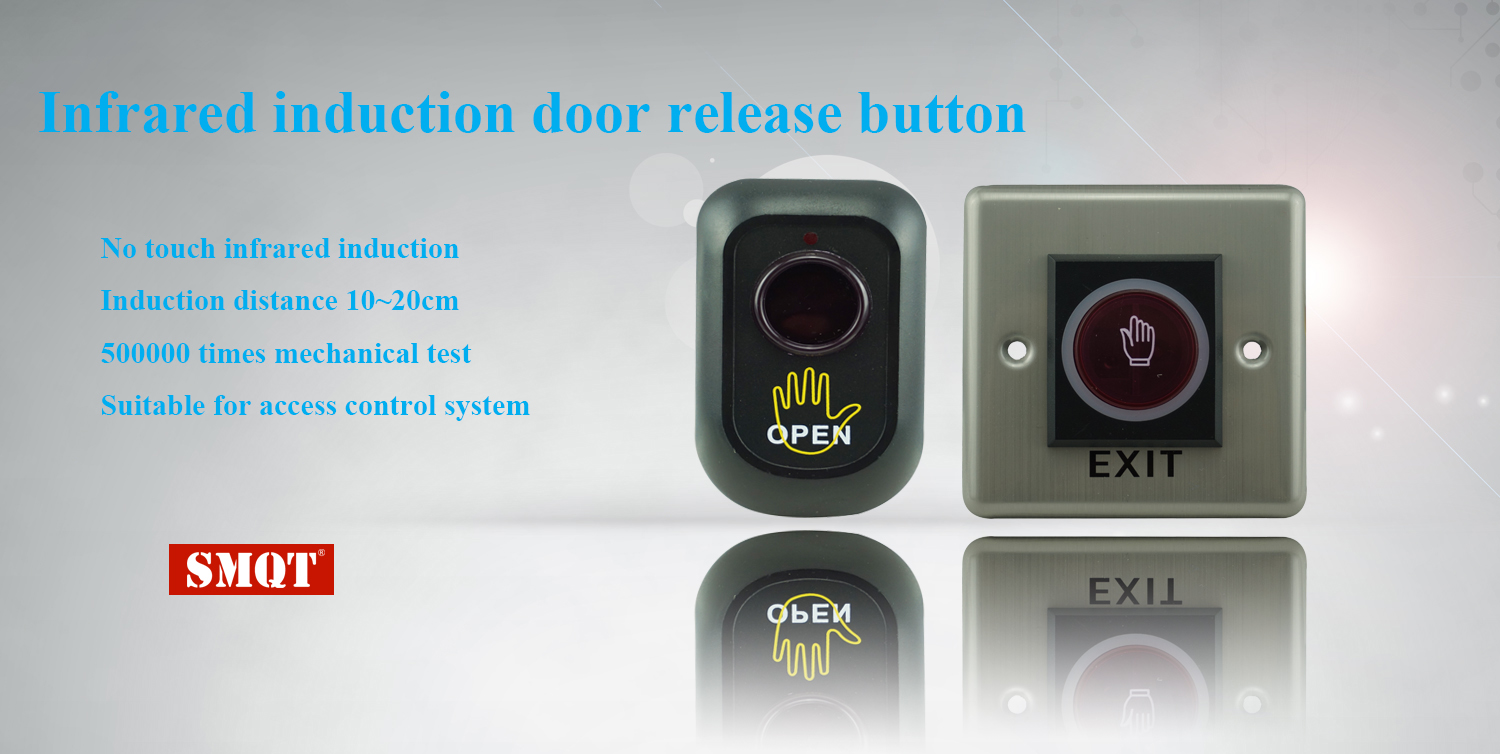

Infrared induction  door switch button

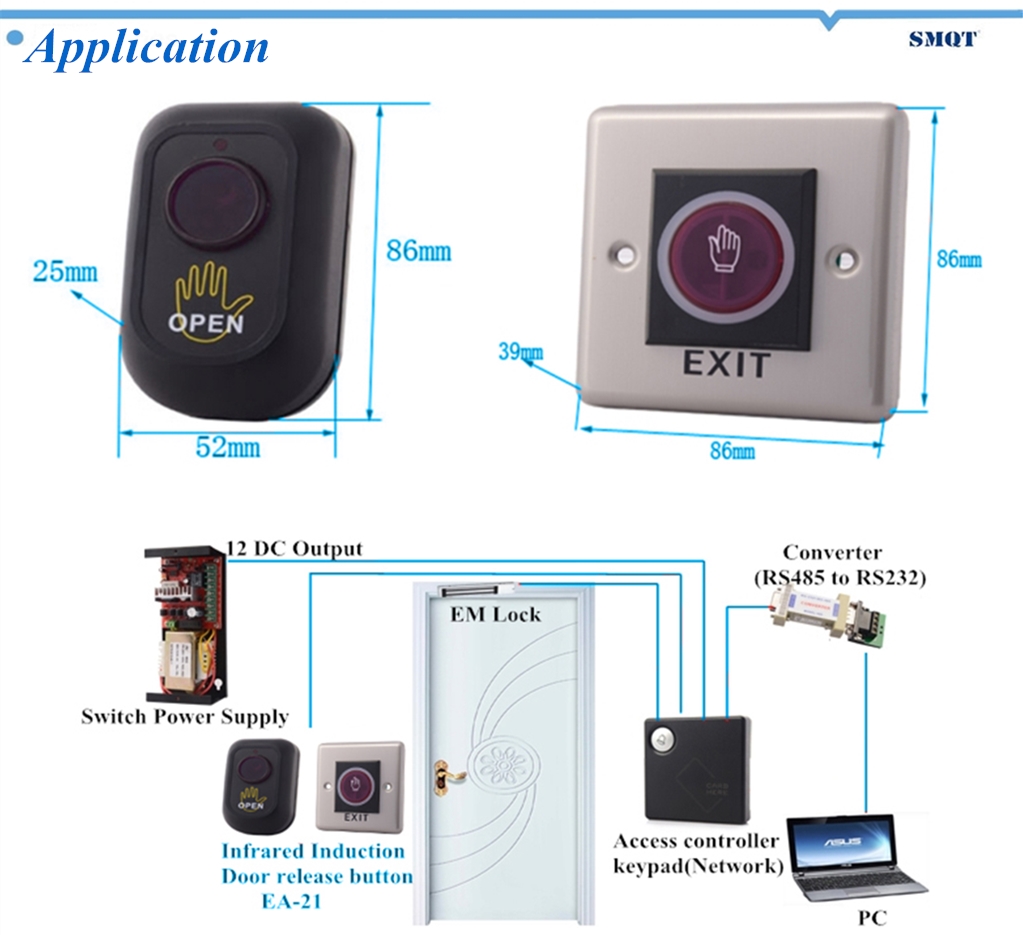

Infrared induction  door switch button

参数

产品名称

红外感应开门按钮

模型

EA-21A / EA-21B

尺寸

 EA-21A:85×52×25(mm)EA-21B:86×86×39(mm)

输入电压

DC 12V

感应角

<115°

电源容量

< 4W

感应 距离

10〜20cm

触点输出

NO / NC / COM

机械试验

500.000次试验

适用范围

门禁系统

颜色

灰黑色

用法

门禁和楼宇系统

相对湿度

0〜95%

环境 温度

-20℃-50℃

净重

EA-21A:0.046kg    EA-21B:0.106kg

Infrared induction  door switch button

 LED back light door switch button

Infrared induction  door switch button

Infrared induction  door switch button


Infrared induction door switch button


 包装清单
 产品名称 EA-21 红外感应门开关按钮
数量  每箱100个
纸箱尺寸  37 * 30 * 29(cm)
重量  12kg
Infrared induction door switch button

Infrared induction door switch buttonInfrared induction door switch button

Infrared induction door switch button

Infrared induction door switch button
