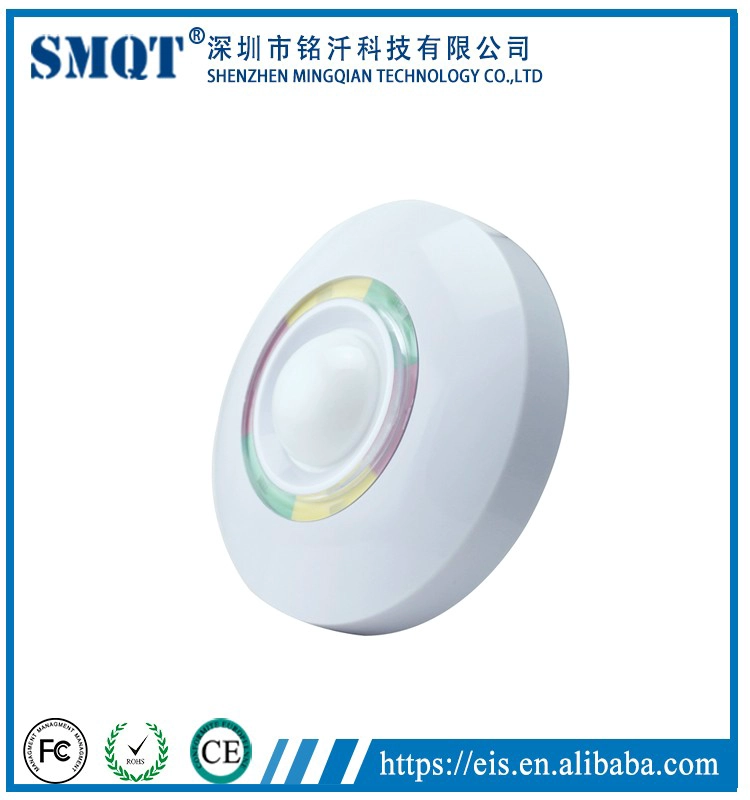

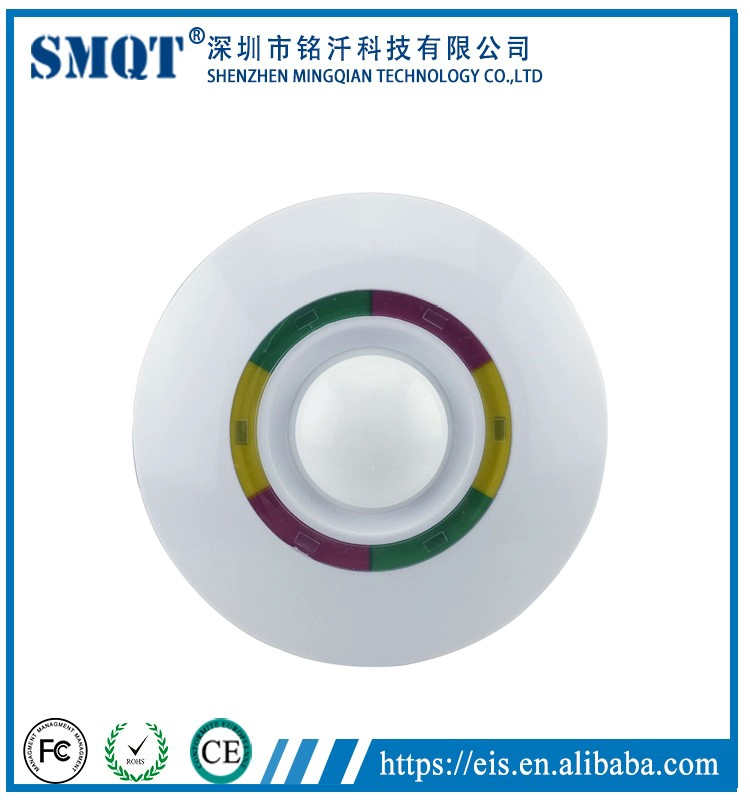

Dual Technology Infrared+Microwave Ceiling Mounted PIR Motion SensorDual Technology Infrared+Microwave Ceiling Mounted PIR Motion SensorDual Technology Infrared+Microwave Ceiling Mounted PIR Motion SensorDual Technology Infrared+Microwave Ceiling Mounted PIR Motion SensorDual Technology Infrared+Microwave Ceiling Mounted PIR Motion SensorDual Technology Infrared+Microwave Ceiling Mounted PIR Motion Sensor

Dual Technology Infrared+Microwave Ceiling Mounted PIR Motion Sensor

  • Product name Dual Technology Infrared+Microwave Ceiling Mounted PIR Motion Sensor
  • Model EB-176
  • Size ∅135*30(mm)
  • Working voltage 9~16V DC
  • Working Current 15MA
  • Detecting angle 360°
  • Working temperature  -20℃~50℃
  • Detecting speed  0.2~7m/sec
  • Install Height  2.4~4.8m
  • Storage temperature  -25℃~65℃
  • Sensitivity  Adjustable
  • PIR Feature
  • Infrared sensro type :Dual elements PIR sensor
  • Auto temperature compensation:NIC compensation
  • Detecting distance:10m
  • Detecting angle:360°
  • Alarm duration:PULSE1:10sec. PULSE2:30 sec
  • Microwave feature
  • Microwave antenna type:Flat strip microwave antennea with FET oscillator
  • Frequency:FCC&DOC10.525GHz
  • Detecting method:Doppler(effect)move
  • Theiries:Dopper(effect)+Energies nalysis
  • Digital filter:50/60Hz
  • Self-test:Microwave self-test function
  • MCU type:8 bit microchip
  • Alarm indicator  Red LED Light(close if need)
  • Alarm output NC,28V DC,0.15A
  • Anti-tamper switch NC,28V DC,0.15A
  • Operating humidity 95%
  • Color  White
  • Weight  0.15kg

Dual Technology Infrared+Microwave Ceiling Mounted PIR Motion Sensor

Product Description



176
Specification
Product name Dual Technology Infrared+Microwave Ceiling Mounted PIR Motion Sensor
Model EB-176
Size ∅135*30(mm)
Working voltage 9~16V DC
Working Current 15MA
Detecting angle 360°
Working temperature  -20℃~50℃
Detecting speed  0.2~7m/sec
Install Height  2.4~4.8m
Storage temperature  -25℃~65℃
Sensitivity  Adjustable
PIR Feature

Infrared sensro type :Dual elements PIR sensor

Auto temperature compensation:NIC compensation

Detecting distance:10m

Detecting angle:360°

Alarm duration:PULSE1:10sec. PULSE2:30 sec

Microwave feature

Microwave antenna type:Flat strip microwave antennea with FET oscillator

Frequency:FCC&DOC10.525GHz

Detecting method:Doppler(effect)move

Theiries:Dopper(effect)+Energies nalysis

Digital filter:50/60Hz

Self-test:Microwave self-test function

MCU type:8 bit microchip

Alarm indicator  Red LED Light(close if need)
Alarm output NC,28V DC,0.15A
Anti-tamper switch NC,28V DC,0.15A
Operating humidity 95%
Color  White
Weight  0.15kg



Product Feature



What features of our Infrared+Microwave Ceiling Mounted PIR Sensor ?


1.Intelligent PIR & MW Ceiling Mounting Intrusion Detector is a digital micro-processing dual-tech detector adopting the technology of DMF (Digital Memory Focus), DMT (Dynamic Matrixing Time). It is with novel appearance, fluent lines, and dynamic LED display, which well assorts with modern household decoration and inosculates with the background subtly. The PIR parts adopt nice Fresenel lens to increase the effect of energy-receiving.
2.The MW parts adopt advanced plane antenna microwave transmission and four-layered screening technology, which has increased the control of MW detection range. In the way, high sensitivity can be reached from the distance o f 0.5 met er (1.8 f eet) to 10 meters 33 feet). The advanced technology of DMF DMT can help to give an exact estimation of true intruder or other interference that will easily trigg er wrong alarm. Its advanced anti-pets function can prevent wrong alarm to a 20 KG pet or 8 cats, insects, mice or birds etc.
3.EB-176 has overcome the interference that common detector can't prevent, and it won't trigger wrong alarm or miss alarm so it is far excellent in function than common detectors. It is the first option for household life and office decoration nowadays!Microwave&Passive infrared Motion detector, with perfect streamline surface design.
4.Adopted dual elementts infrared sensor, microwave sensor, digital processing technology.
5.High reliability from perfect technical stableness and design.

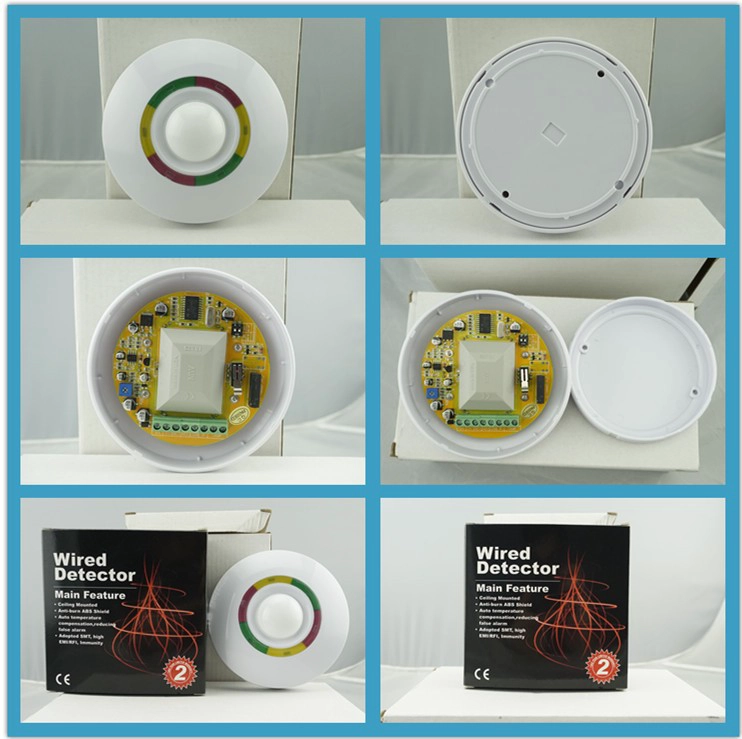

Product Display



IN-KIND SHOOTING


Application



APPLICATION

1764

Packaging & Shipping

PACKAGING&SHIPPING

1762

 1(4)





Show Cases



SHOW CASES

1741



Company Information

OFFICE SHOW

1zong

CUSTOMERS

3zong

EXHIBITION

4zong

CERTIFICATION



2

FAQ



FAQ

Q:Can I have a sample order?

A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.

Q:What is the lead time?

A:Sample needs 1-3 working days, mass production time needs 10-15 working days.

Q:What is your MOQ?

A:No MOQ limit.The more quantity the more discounts.

Q:How do you ship the goods and how long does it take arrive?

A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.

Q:How will we proceed the order if I have logo to print?

A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
