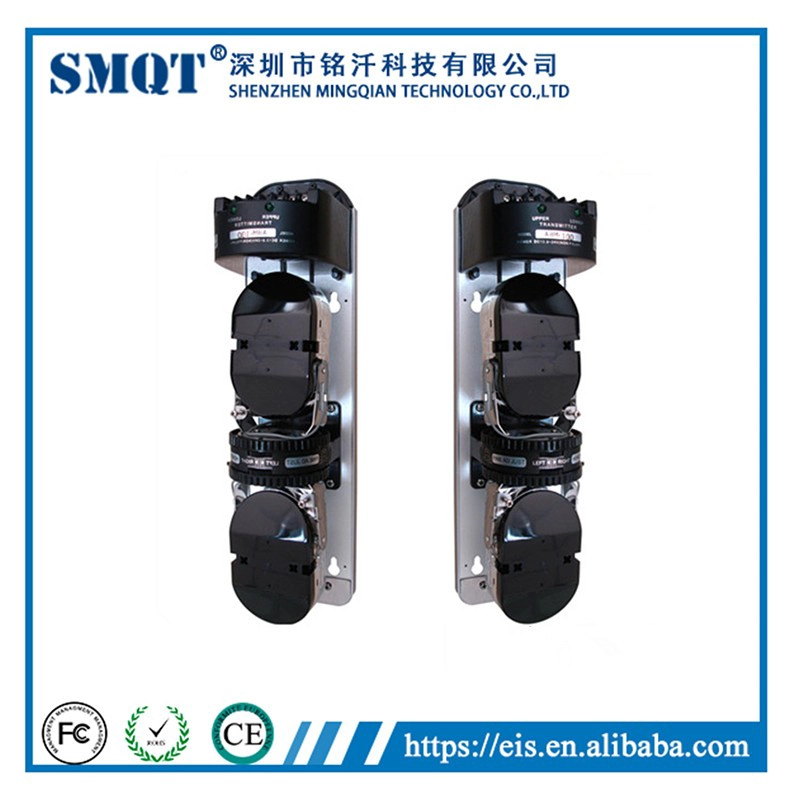

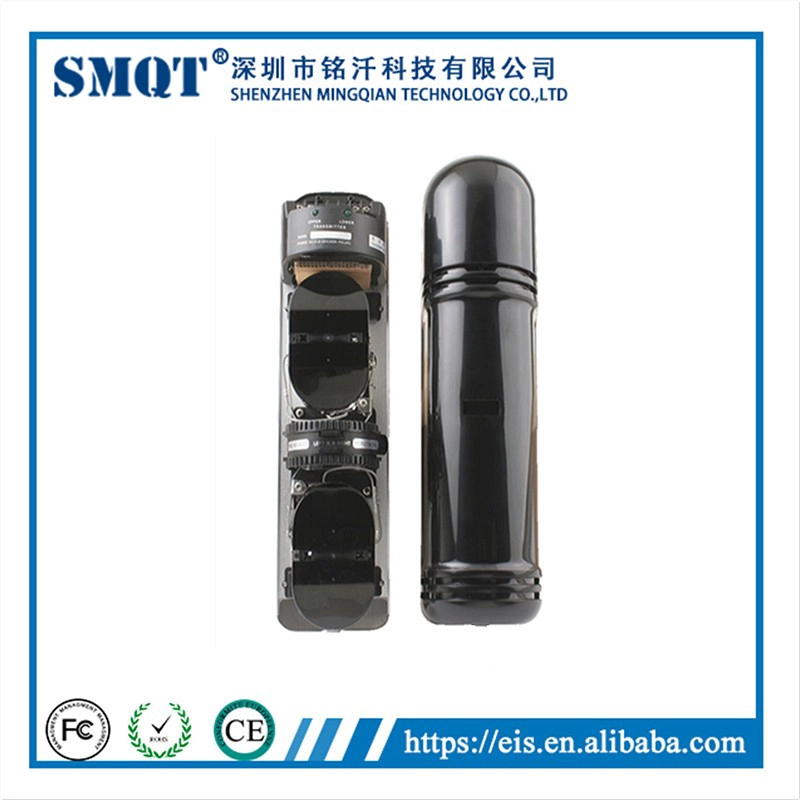

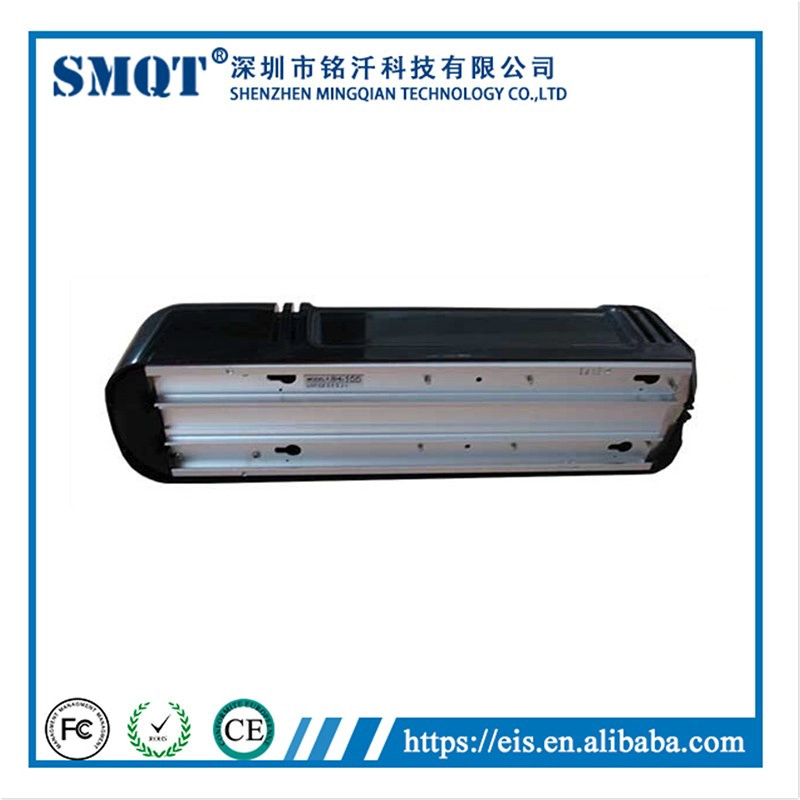

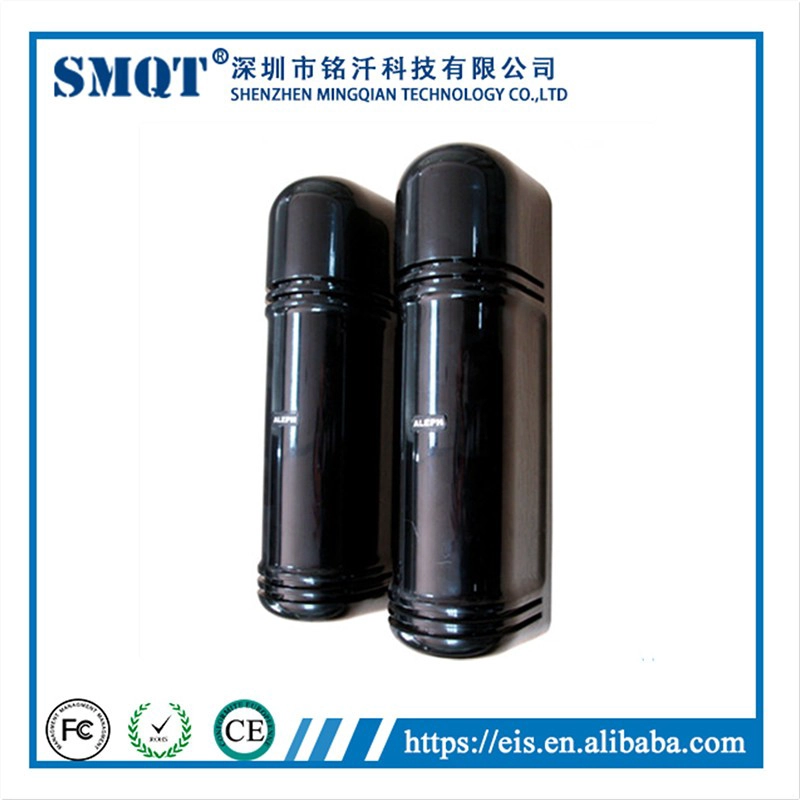

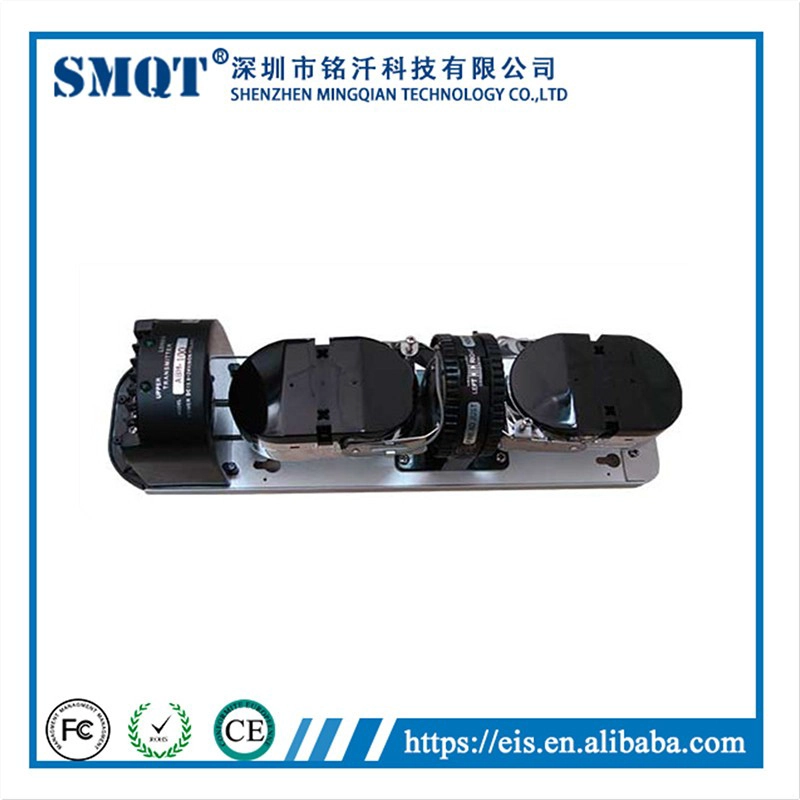

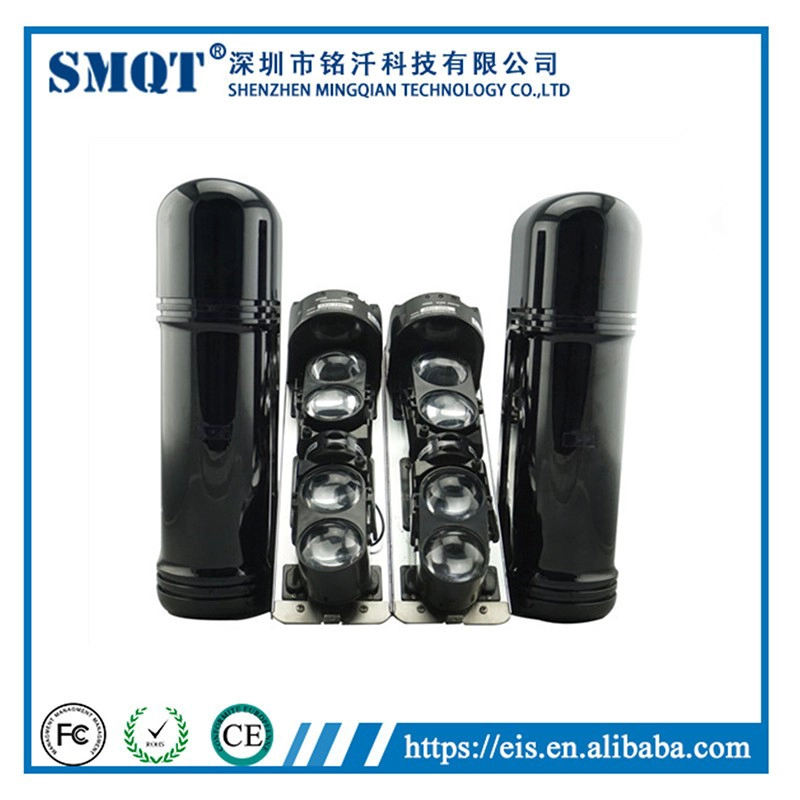

High quality waterproof laser beam outdoor/indoor active infrared 4 beams detector
- Model:ABH
- Detecting distance:Indoor :150m 300m 450m 600m 750m
- Outdoor:50m 100m 150m 200m 250m(optional)
- Operating voltage:13.8~24VDC 11~28VAC
- Operating current:40-65mA
- Indication speed:50~700m/sec
- Anti-demolition output:NC
- Environment temperature :-20℃~+50℃
- Alarm output:NO/NC
- Level adjustment:180°±90°
- Vertocal adjustment :±10°
- Color:Black
- Material:PC resin
High quality waterproof laser beam outdoor/indoor active infrared 4 beams detector
| Specification | |
| Name | High quality waterproof laser beam outdoor/indoor active infrared 4 beams detector |
| Model |
ABH |
| Detecting distance |
Indoor :150m 300m 450m 600m 750m Outdoor:50m 100m 150m 200m 250m(optional) |
| Operating voltage |
13.8~24VDC 11~28VAC |
| Operating current | 40-65mA |
| Indication speed |
50~700m/sec |
| Anti-demolition output | NC |
| Environment temperature | -20℃~+50℃ |
| Alarm output | NO/NC |
| Level adjustment | 180°±90° |
| Vertocal adjustment | ±10° |
| Color | Black |
| Material | PC resin |
what features of our waterproof laser beam outdoor/indoor active infrared 4 beams detector?
IN-KIND SHOOTING
APPLICATION
SHOW CASES
OFFICE SHOW
CUSTOMERS
EXHIBITION
CERTIFICATION
HOW TO COOPERATE
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit.The more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
How to contact us?
Click the enter send us inquiry below.
Tel.:+8613326796950
Makipag-ugnay sa tao:Tracy Lin
PDF Show.:PDF
