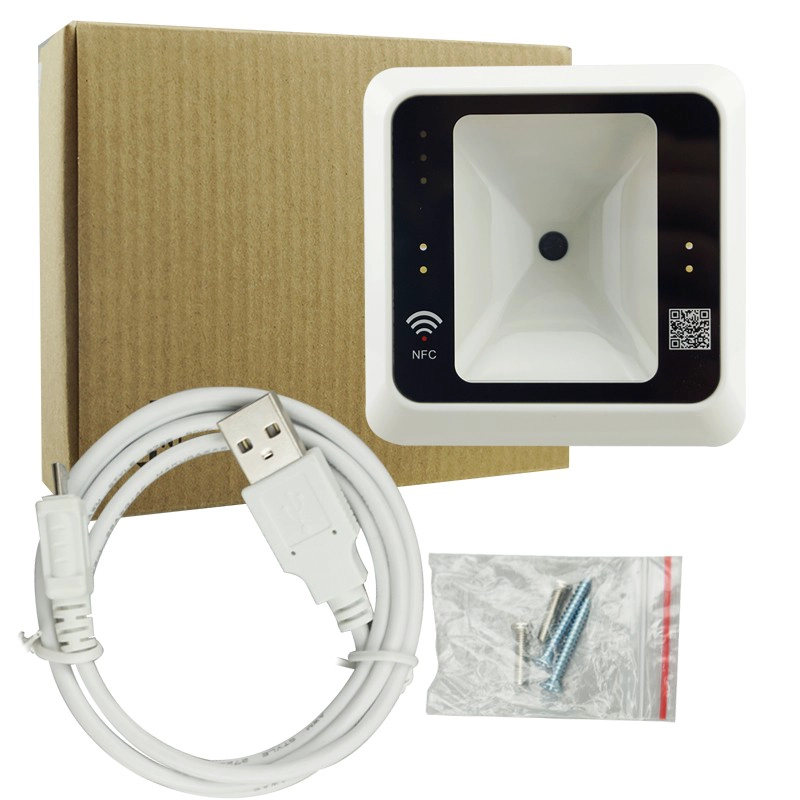

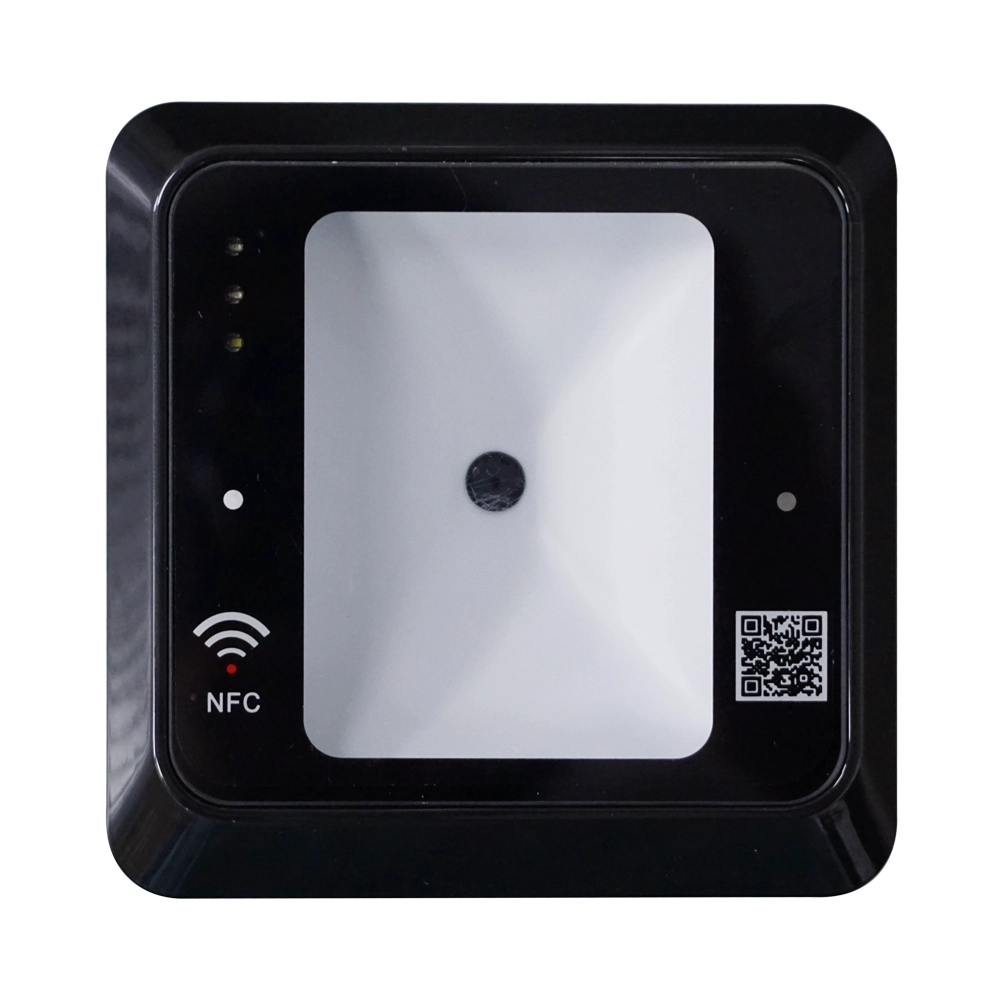

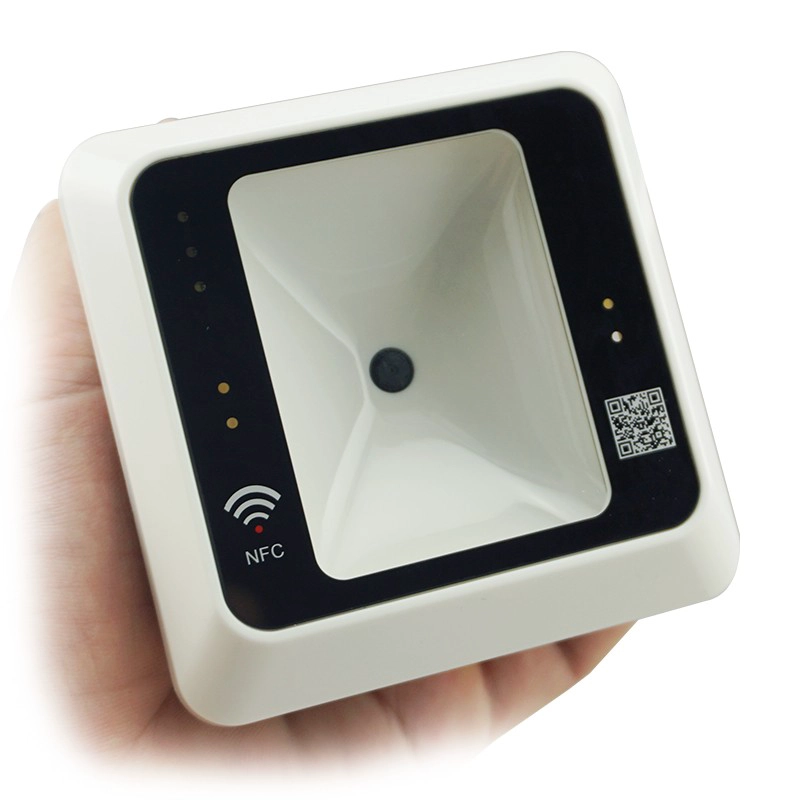

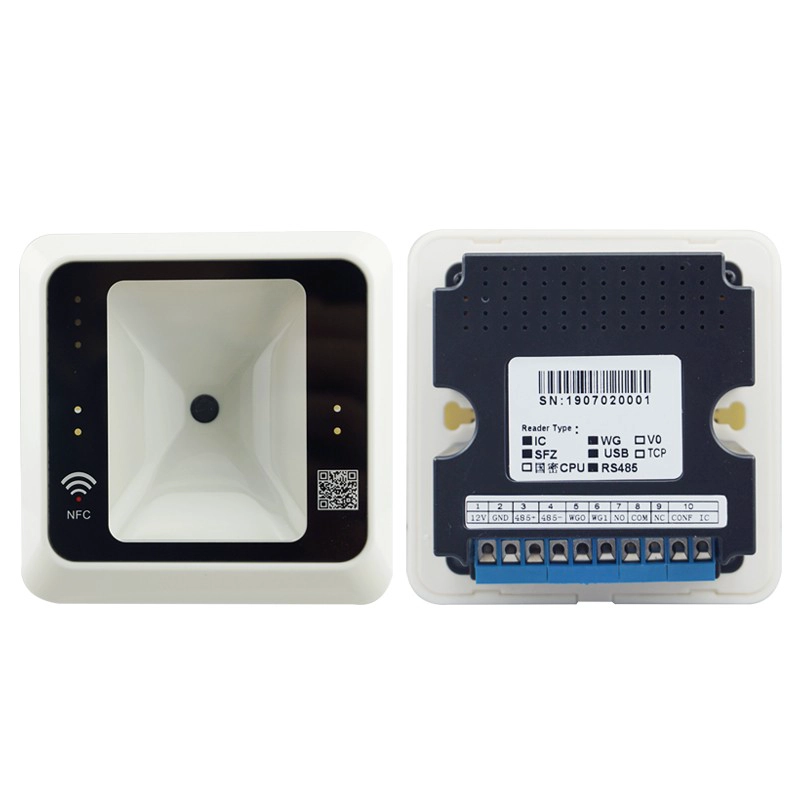

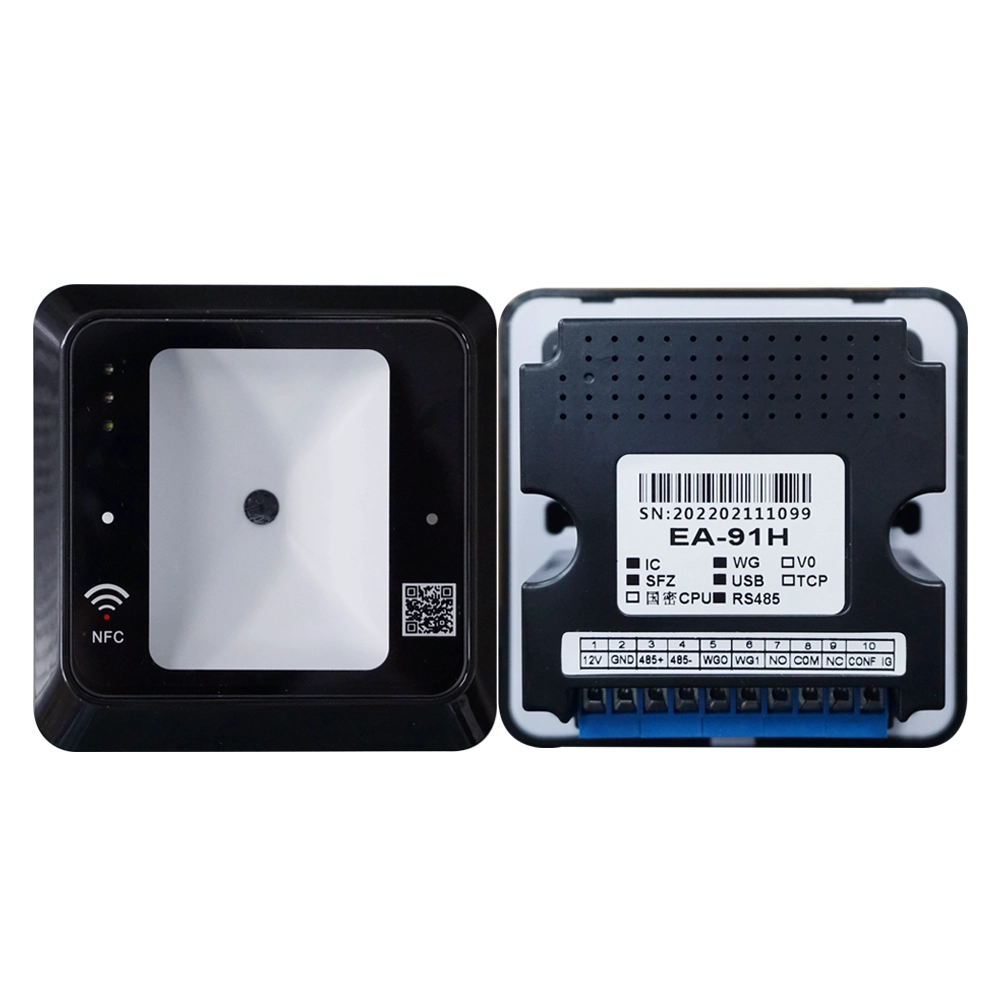

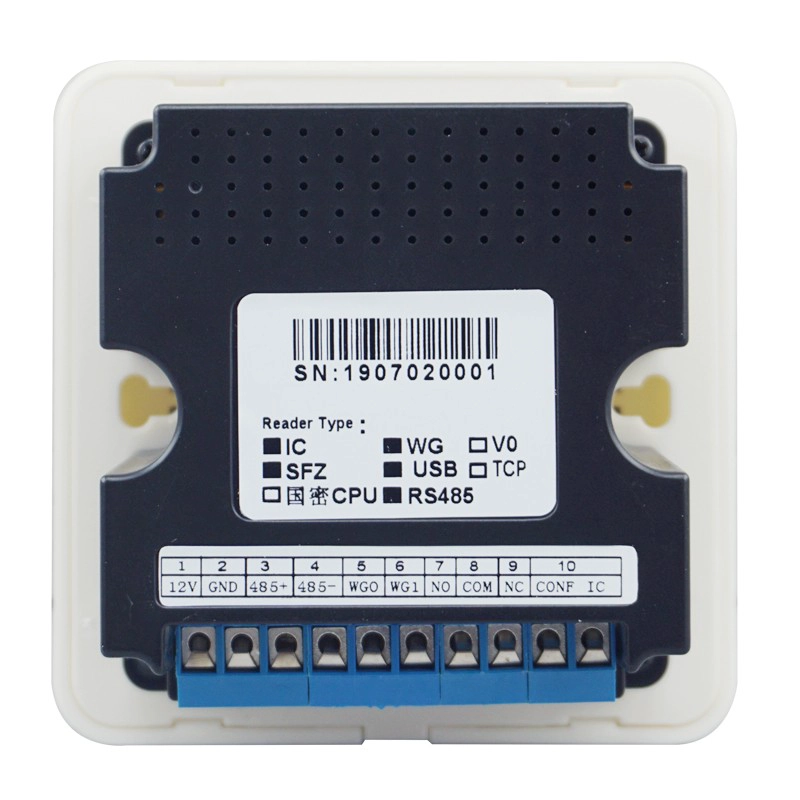

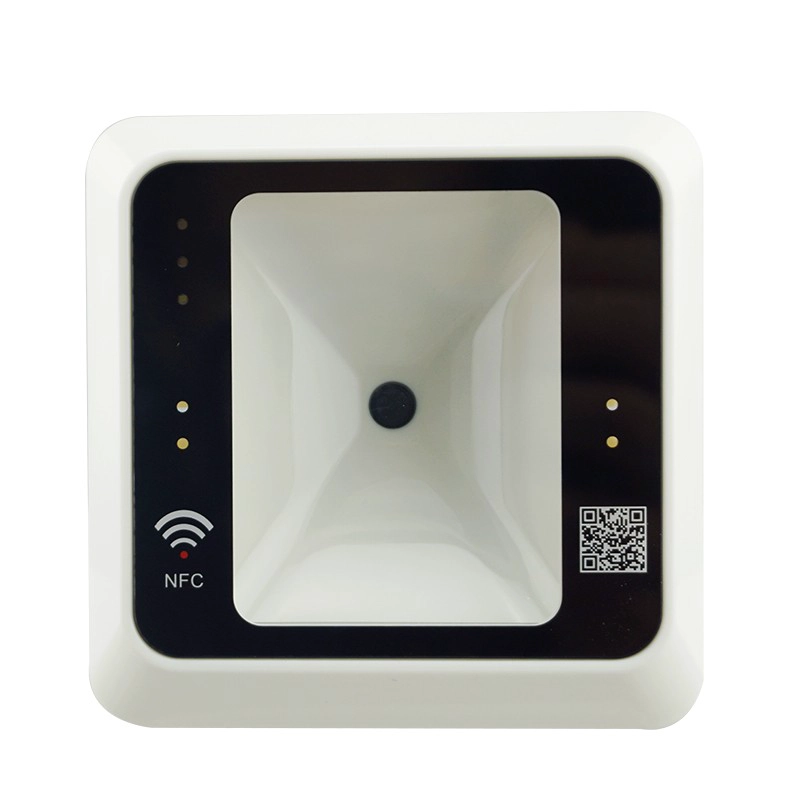

SMQT new QR Code&RFID 13.56Mhz Card reader for access control system
- Model number:EA-91H
- Recognisable bar code:QR Code,Data Matrix,PDF417,GS1 Databar, Code 128/EAN128,UPC/EAN,Codebar,Code39/Code93 etc
- Reading Angle:Rotate 360 °, tilt ± 65 °, deflection ± 60 °
- Reading distance:5.0-30.0cm, the actual distance depends on the barcode size, scanning angle and ambient light intensity
- Scanning angle: 34 ° (horizontal), 26 ° (vertical)
- Resolution:648 (horizontal) × 488 (vertical)
- Reading speed:80ms (average)
- Support Cards:Ultralight, MF1 (S50, S70), DESFire EV1, NTag, NFC (analog card), CPU,other ISO / IEC14443A cards, 15693 protocol cards
- Card frequency:13.56MHz
- Power supply:DC12V
- Working current:260mA
- WG output format:WG34
- Reading distance:0-5.0cm, the actual distance is related to the IC card used and the application environment
- Communication interface:WG,RS485,USB
- Dimension:86*86*50(mm)
- Suitable for:Door access control system/Access control system
- Material:PC+ PCB board
- Housing color Black +White
- Weight: 0.25kg
- Warranty:1 years warranty
- OEM:Welcome OEM
2D Barcode Scanner QR code&NFC RFID Reader with wiegand and USB output port for Turnstile, Kiosk, Payment Terminal
EA-91H's main parameter
| Product Name: | 13.56MHz IC Smart Card RFID Reader Wiegand26/34 QR Code Door Access Control QR reader |
| Model number: | EA-91H |
| Recognisable bar code: | QR Code,Data Matrix,PDF417,GS1 Databar, Code 128/EAN128,UPC/EAN,Codebar,Code39/Code93 etc |
| Reading Angle: | Rotate 360 °, tilt ± 65 °, deflection ± 60 ° |
| Reading distance: | 5.0-30.0cm, the actual distance depends on the barcode size, scanning angle and ambient light intensity |
| Scanning angle: | 34 ° (horizontal), 26 ° (vertical) |
| Resolution: | 648 (horizontal) × 488 (vertical) |
| Reading speed: | 80ms (average) |
| Support Cards: | Ultralight, MF1 (S50, S70), DESFire EV1, NTag, NFC (analog card), CPU,other ISO / IEC14443A cards, 15693 protocol cards |
| Card frequency: | 13.56MHz |
| Power supply: | DC12V |
| Working current: | 260mA |
| WG output format: | WG34 |
| Reading distance: | 0-5.0cm, the actual distance is related to the IC card used and the application environment |
| Communication interface: | WG,RS485,USB |
| Dimension: | 86*86*50(mm) |
| Suitable for: | Door access control system/Access control system |
| Material: | PC+ PCB board |
| Housing color | Black +White |
| Weight: | 0.25kg |
| Warranty: | 1 years warranty |
| OEM: | Welcome OEM |
What features EA-91H have?
How about other choice?
13.56MHz IC Smart Card RFID Reader Wiegand26/34 QR Code Door Access Control QR reader
13.56MHz IC Smart Card RFID Reader Wiegand26/34 QR Code Door Access Control QR reader
13.56MHz IC Smart Card RFID Reader Wiegand26/34 QR Code Door Access Control QR reader
