9-35v 4 wired fire smoke detector for fire panel and alarm system9-35v 4 wired fire smoke detector for fire panel and alarm system9-35v 4 wired fire smoke detector for fire panel and alarm system9-35v 4 wired fire smoke detector for fire panel and alarm system9-35v 4 wired fire smoke detector for fire panel and alarm system9-35v 4 wired fire smoke detector for fire panel and alarm system

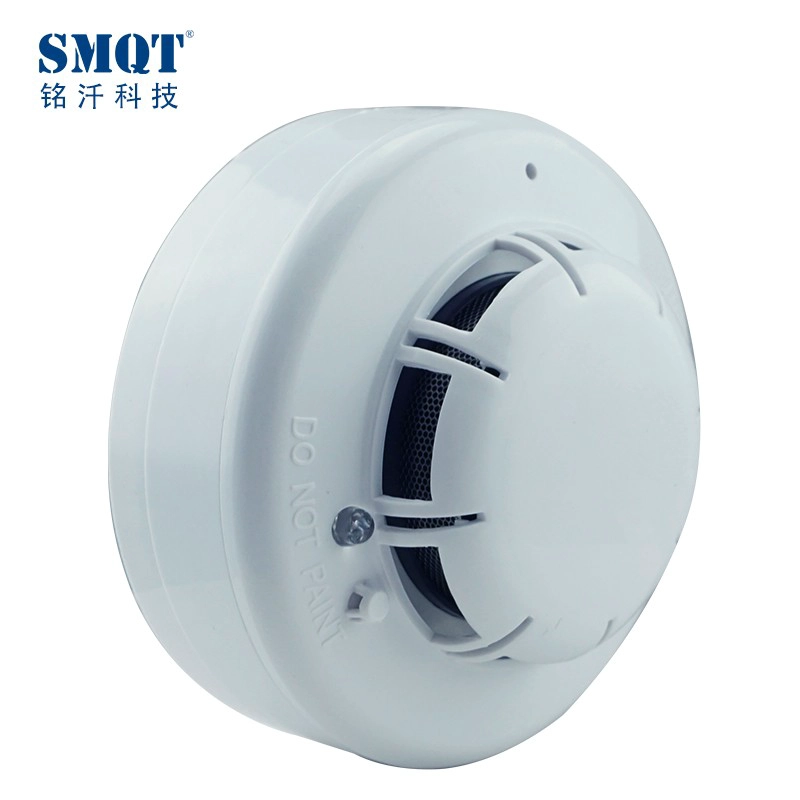

9-35v 4 wired fire smoke detector for fire panel and alarm system

  • Product Name: 9-35v 4 wired fire smoke detector for fire panel and alarm system
  • Model number: EB-117B
  • Power supply: DC 9~35V
  • Wire port: 4 port(Input power+, input power- ,Relay output(COM), Relay output(NO or NC)
  • Size: 100 diameter*60(mm)
  • Detecting area: 20 square meter
  • Alarm indication Red LED light on
  • Suitable for: Fire alarm panel system
  • Installation way: Ceiling mounted
  • Working temperature: -10 Degrees Celsius~ +50 Degrees Celsius
  • Working humidity: 0~90%RH(no condensation )
  • Weight: 0.18kg
  • LED: 2 LED light
  • Material: ABS housing+ PCB board
  • Housing color: White




Product Name: 9-35v 4 wired fire smoke detector for fire panel and alarm system
Model number: EB-117B
Power supply: DC 9~35V
Wire port: 4 port(Input power+, input power- ,Relay output(COM), Relay output(NO or NC)
Size: 100 diameter*60(mm)
Detecting area: 20 square meter
Alarm indication Red LED light on
Suitable for: Fire alarm panel system
Installation way: Ceiling mounted
Working temperature: -10 Degrees Celsius~ +50 Degrees Celsius
Working humidity: 0~90%RH(no condensation )
Weight: 0.18kg
LED: 2 LED light
Material: ABS housing+ PCB board
Housing color: White
OEM: Welcome OEM



What Features of our smoke detector?





 117b1



IN-KIND SHOOTING





 117b2

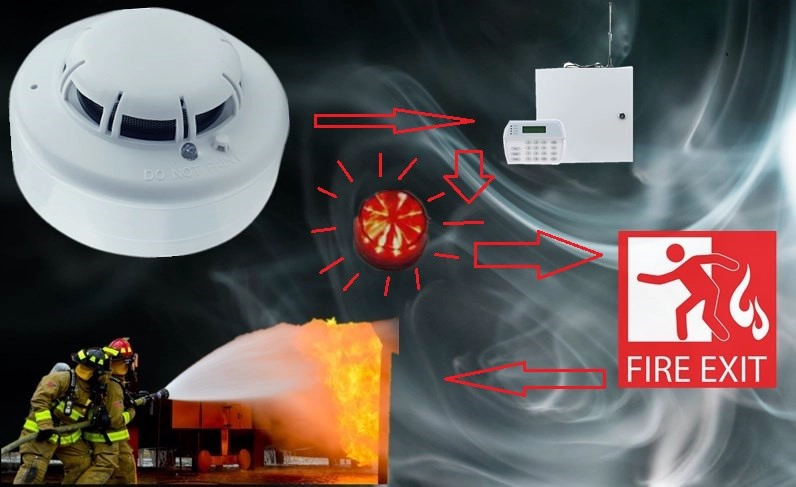

APPLICATION
