Black metal box Concise Switch Power supply for access control systemBlack metal box Concise Switch Power supply for access control systemBlack metal box Concise Switch Power supply for access control systemBlack metal box Concise Switch Power supply for access control systemBlack metal box Concise Switch Power supply for access control system

Black metal box Concise Switch Power supply for access control system

  • Model:EA-37A
  • Dimension:210×166×70(mm)
  • Input voltage:AC220V
  • Input frequency:50Hz
  • Output voltage: 12V DC
  • Ouput Current:3A
  • Output contact:12v/GND/PUSH/NO/GND/NC/+PHSH/CONTROL
  • Protection:Built-in output short-circut protection,Anti-interernce
  • Time relay: 0~15 seconds

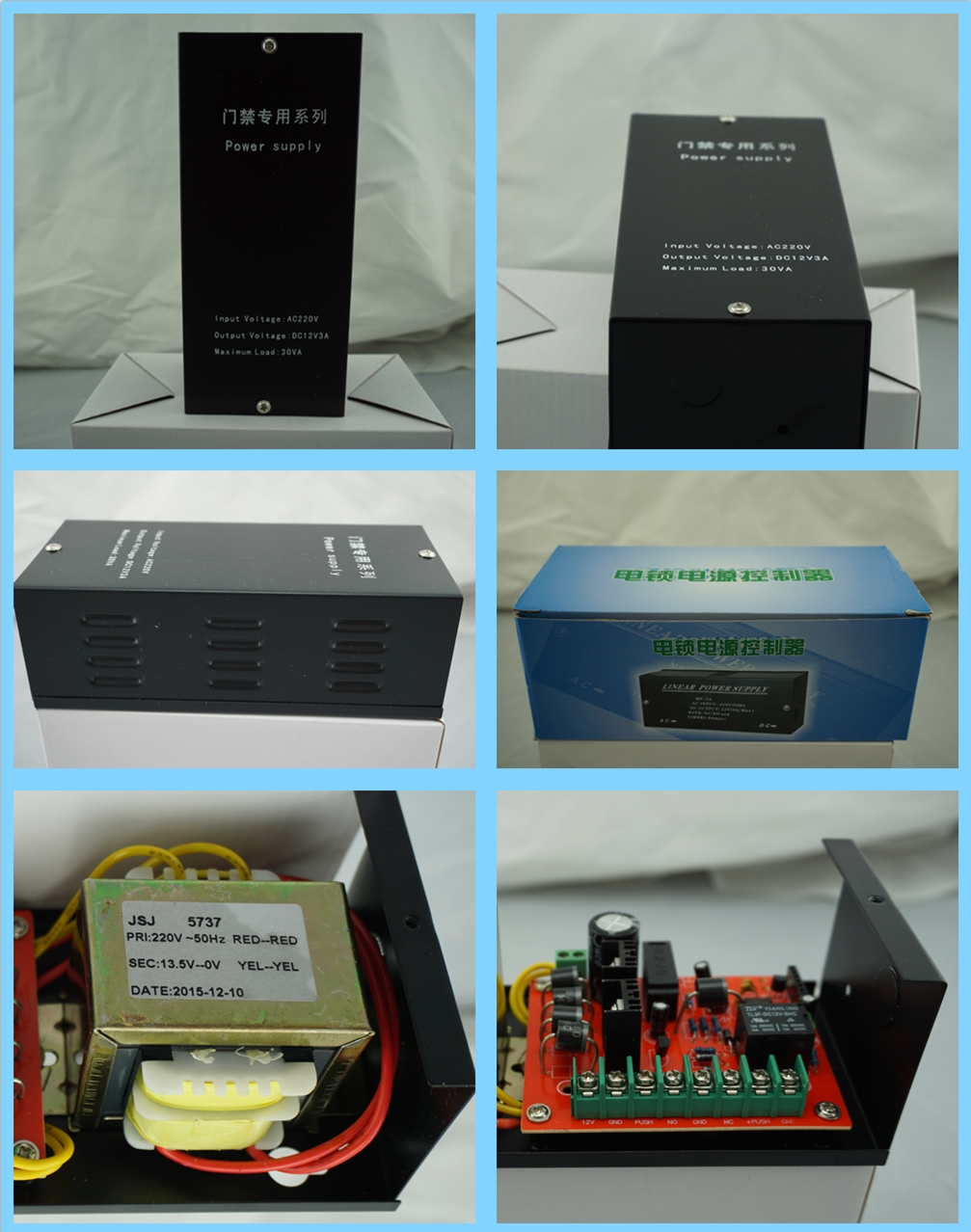

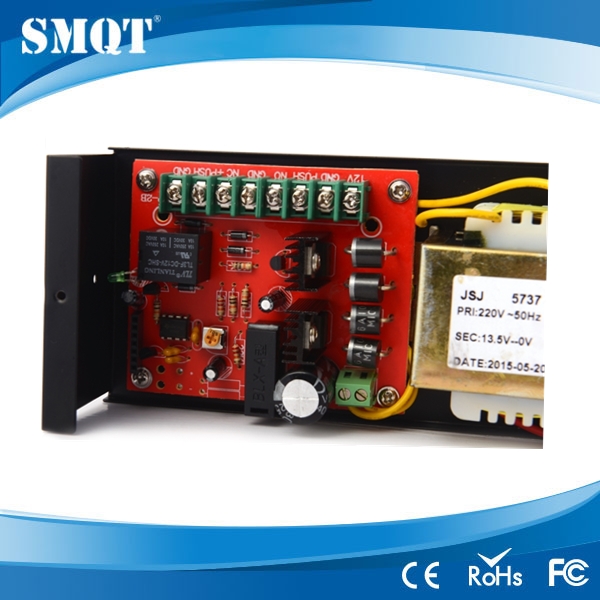

  • Special design:Pure black color,Double face PC Board,Pure copper Transformer,Metal shell
  • Color:Black

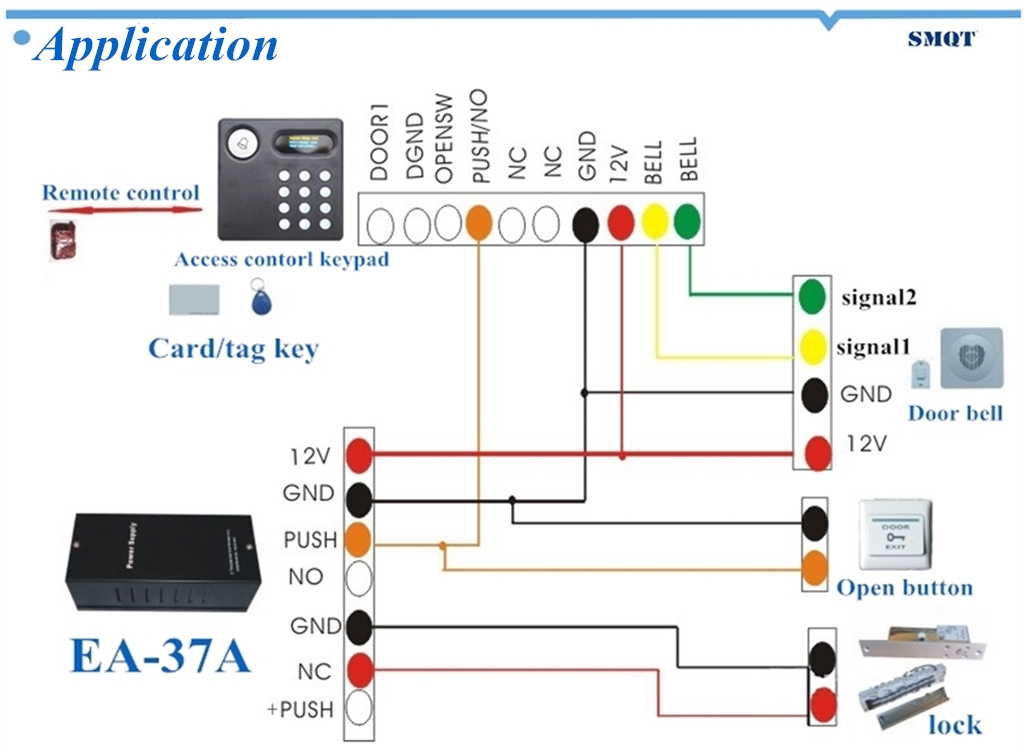

  • Suit for:Access control sysetm and doorphone system
  • Environment temprature: -20 ℃~61 ℃
  • Net weight:1.25kg
  • Optionals:Remote control

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

Parameter

Product name

Black metal box Concise Switch Power supply for access control system

Model

EA-37A

Dimension

210×166×70(mm)

Input voltage

AC220V

Input frequency

50Hz

Output voltage

12V DC

Ouput Current

3A

Output contact

12v/GND/PUSH/NO/GND/NC/+PHSH/CONTROL

Protection

Built-in output short-circut protection

Anti-interernce

Time relay

0~15 seconds

Special design

Pure black color

Double face PC Board

Pure copper Transformer

Metal shell

Color

Black

Suit for

Access control sysetm and doorphone system

Environment temprature

-20 ℃~61 ℃

Net weight

1.25kg

Optionals

Remote control

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

 EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply


 Packaging list
 Product name EA-37A
Qty  20 pcs per carton
Carton size  45*32*32(cm)
Weight  15kg
EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supplyEA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply

EA-37A,access control power supply,switch power supply, DC 12V,3A power supply,220V power supply
