Compatible with alarm panel systems Wired Infrared Motion Detector EB-181Compatible with alarm panel systems Wired Infrared Motion Detector EB-181Compatible with alarm panel systems Wired Infrared Motion Detector EB-181Compatible with alarm panel systems Wired Infrared Motion Detector EB-181Compatible with alarm panel systems Wired Infrared Motion Detector EB-181Compatible with alarm panel systems Wired Infrared Motion Detector EB-181

Compatible with alarm panel systems Wired Infrared Motion Detector EB-181

  • Model:EB-181
  • Size:89×52.5×38.5(mm)
  • Working voltage:9~16V DC
  • Static current:18mA(Under 12V DC power supply)
  • Alarm output:NO or NC DC28V max 100mA
  • Installation height:1.7~2.5m
  • Alarm time:2.2s min
  • Detecting distance:12m
  • Detecting angle 110°
  • Working temperature:-10℃~50℃
  • Storage temperature:-25℃~65℃
  • Color:White
  • Weight:0.1kg


Parameter
Product name Compatible with alarm panel systems Wired Infrared Motion Detector
Model EB-181
Size 89×52.5×38.5(mm)
Working voltage 9~16V DC
Static current 18mA(Under 12V DC power supply)
Alarm output NO or NC DC28V max 100mA
Installation height  1.7~2.5m
Alarm time 2.2s min
Detecting distance 12m
Detecting angle 110°
Working temperature  -10℃~50℃
Storage temperature  -25℃~65℃
Color  White
Weight  0.1kg

Features
EB-181 is passive infrared detector with high stability. It has adopted advanced technology in signal processing and provided super high detection ability and anti error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement, The product si suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

What features of Compatible with alarm panel systems Wired Infrared Motion Detector EB-181?

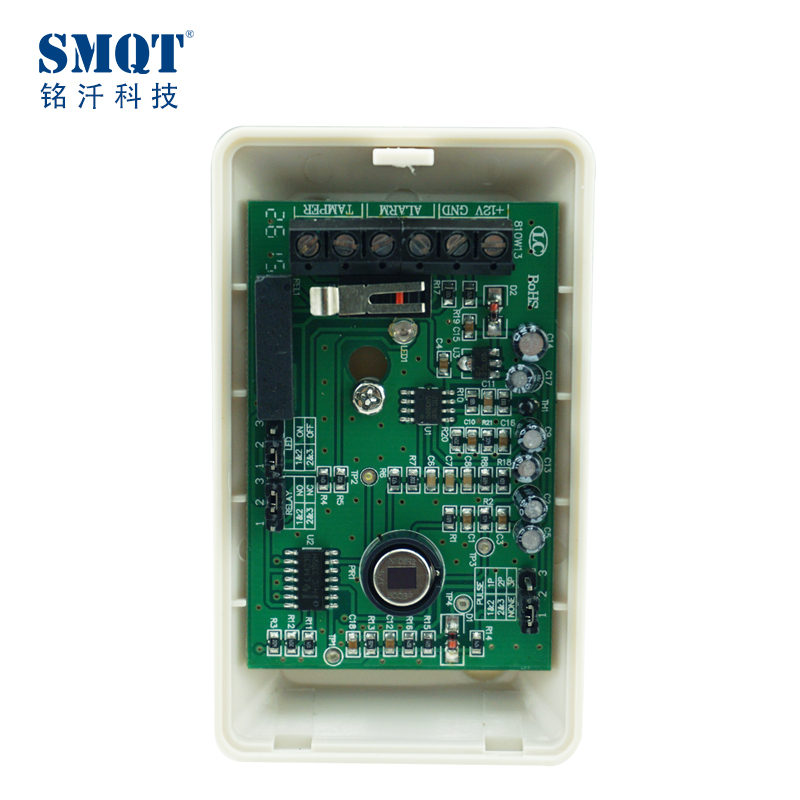

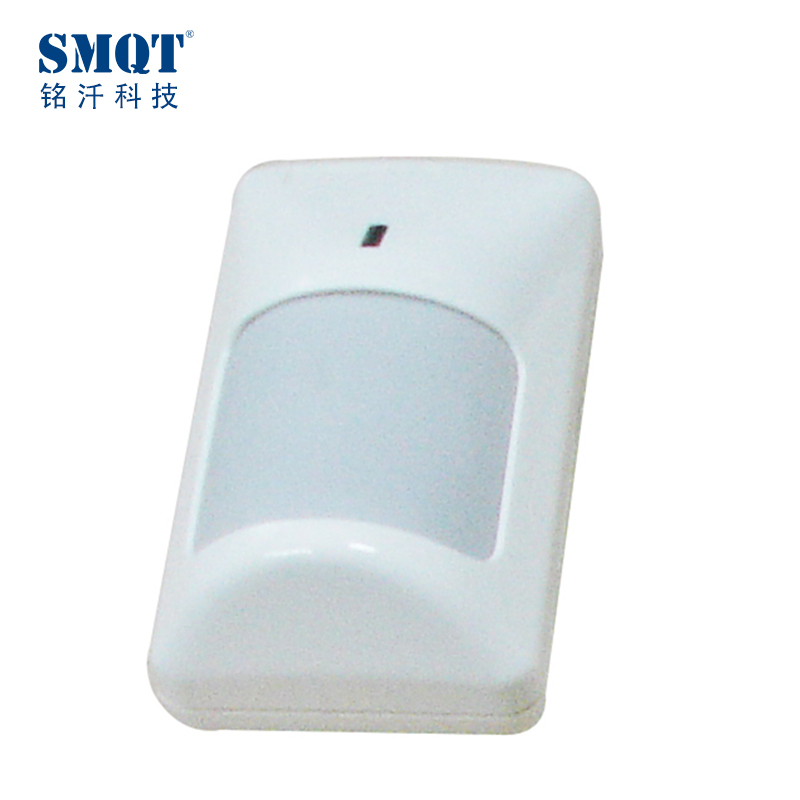

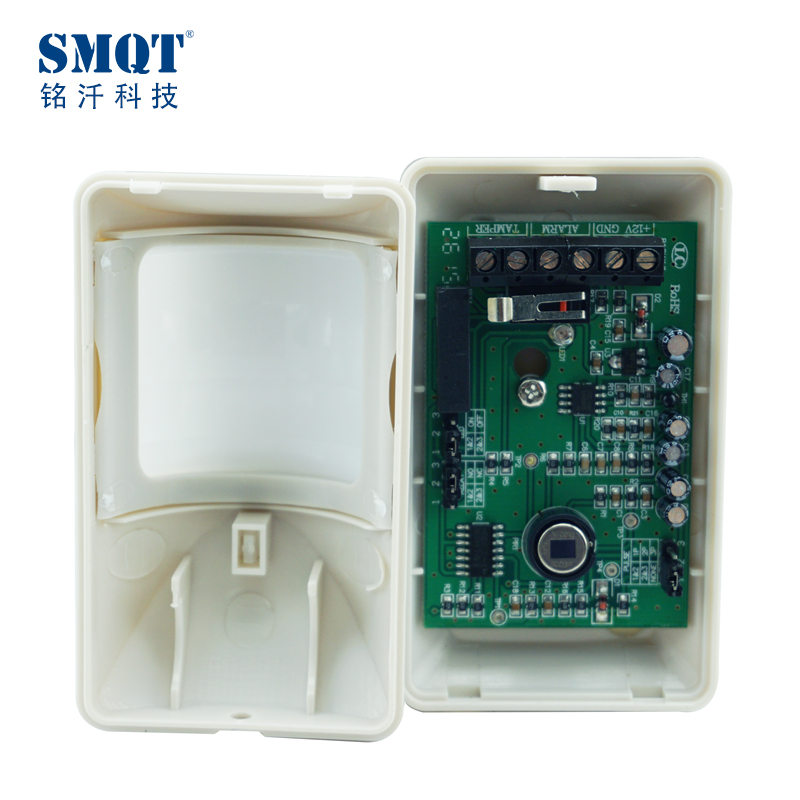

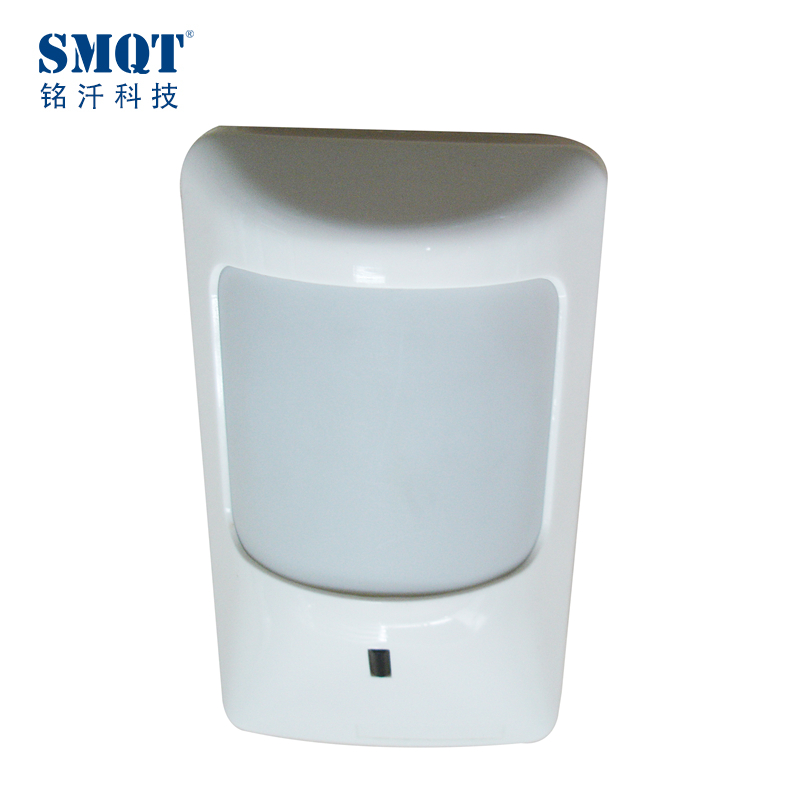

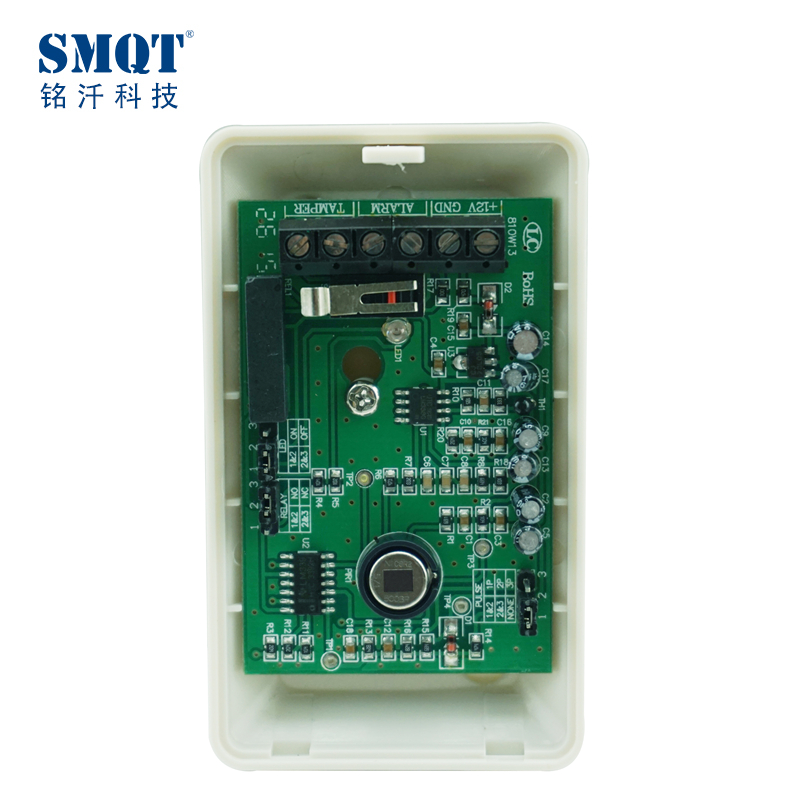

WHAT IS THE EB-181 LOOK LIKE?


HOW TO USE IT?


HOW ABOUT OTHER CHOICE?


HOW ABOUT OUR COMPANY?


CUSTOMER


EXHIBITION




CERTIFICATE


HOW TO COPERATION?

How to coperation.jpg

FAQ

Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples areacceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit, the more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
