Concealed type normal close magnetic contact door sensorConcealed type normal close magnetic contact door sensorConcealed type normal close magnetic contact door sensorConcealed type normal close magnetic contact door sensorConcealed type normal close magnetic contact door sensorConcealed type normal close magnetic contact door sensor

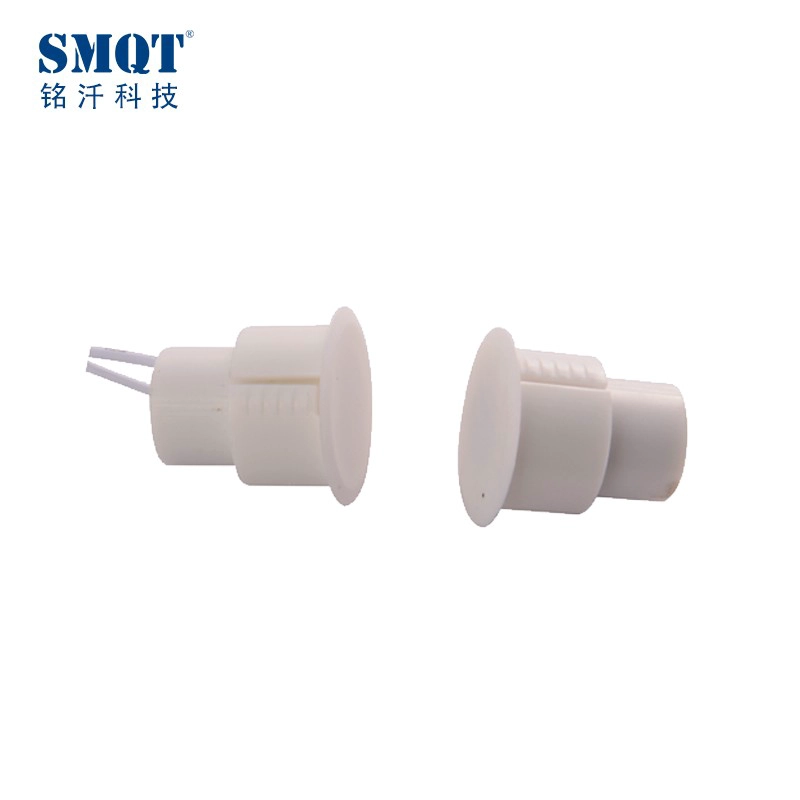

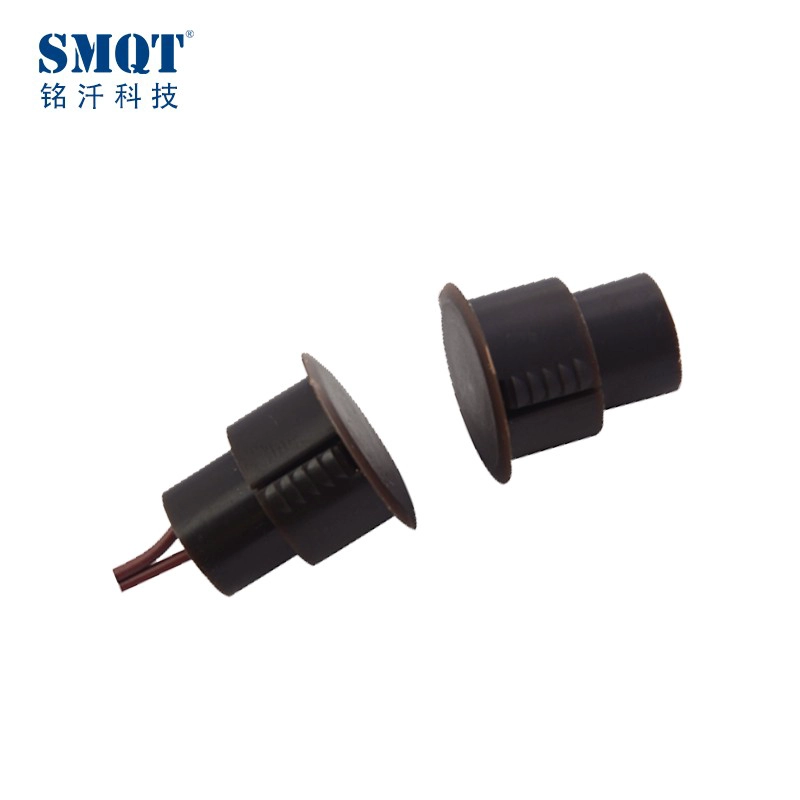

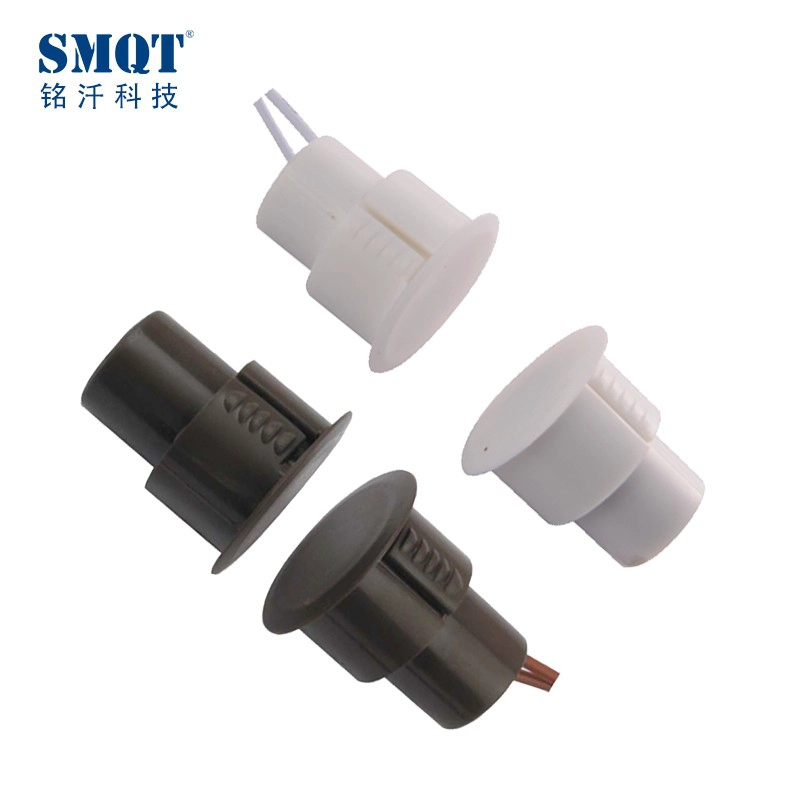

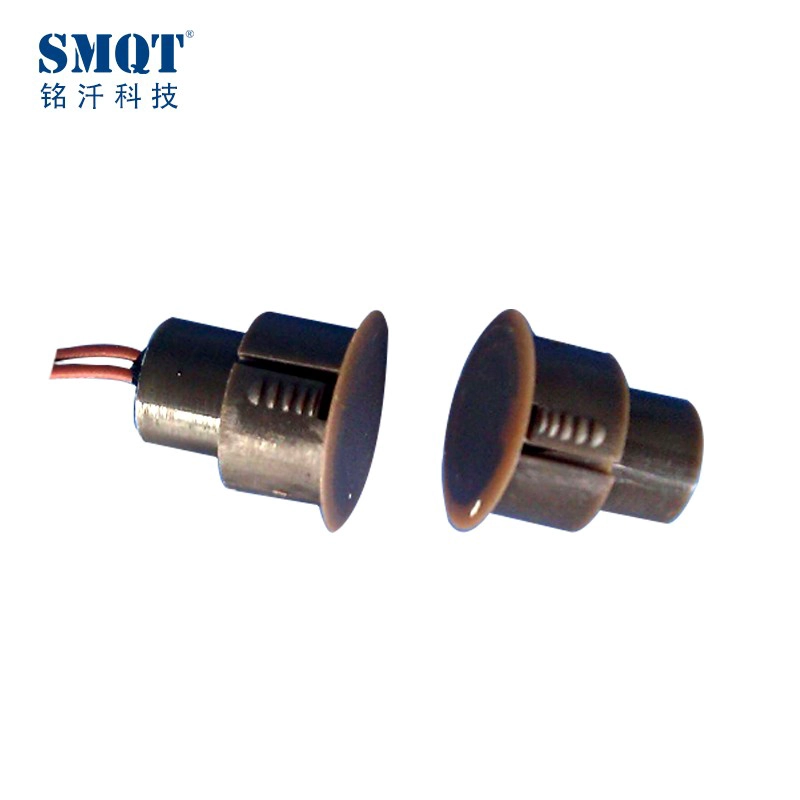

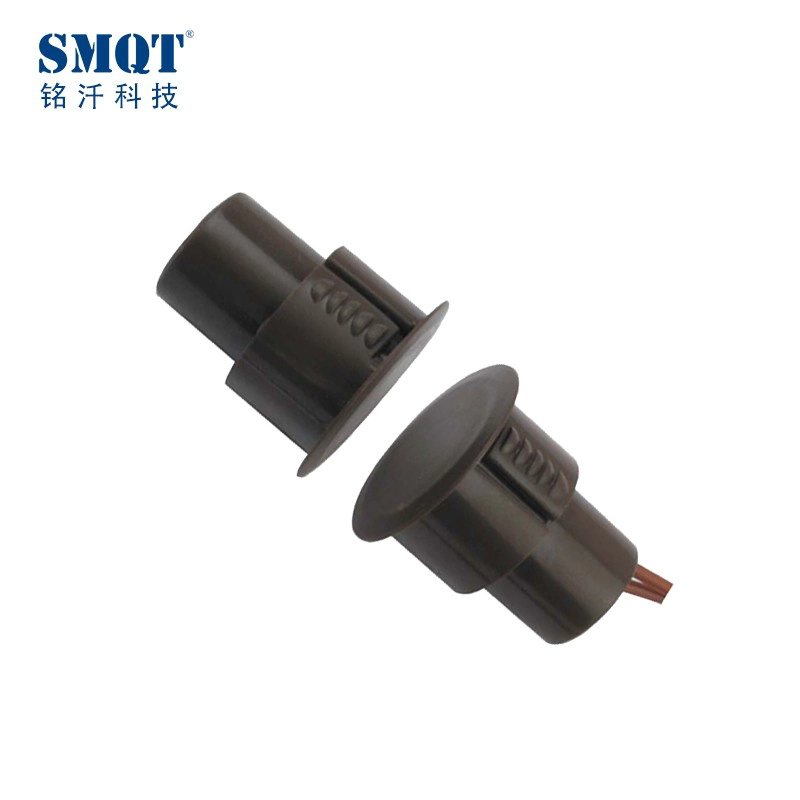

Concealed type normal close magnetic contact door sensor

  • Model number:EB-136
  • Working voltage:Max DC 100V
  • Working current:Max 0.5A
  • Power consumption:10W
  • Interface port:NC/COM
  • Induction gap:20~30mm
  • Size:Reed part:19(Diameter)*25(H)(mm)
  •      Magnet part:19(Diameter) *25(H)(mm)
  • Installation way:Embedded installation
  • Suitable for:All kinds of door access control system and burglar alarm system
  • Material:ABS housing+ PCB board+Reed switch
  • Housing color:White/Brown(optional)
  • Weight:Unit weight:20g
  •        10 pairs per bag, per bag weight 220g
  • Warranty:2 years warranty
  • OEM:Welcome OEM

Concealed type normal close magnetic contact door sensor

136 (2).jpg

EB-136'S MAIN PARAMETER

Product Name: Concealed type normal close magnetic contact door sensor
Model number: EB-136
Working voltage: Max DC 100V
Working current: Max 0.5A
Power consumption: 10W
Interface port: NC/COM
Induction gap: 20~30mm
Size:

Reed part:19(Diameter)*25(H)(mm)

Magnet part:19(Diameter) *25(H)(mm)

Installation way: Embedded installation
Suitable for: All kinds of door access control system and burglar alarm system
Material: ABS housing+ PCB board+Reed switch
Housing color: White/Brown(optional)
Weight:

Unit weight:20g

10 pairs per bag, per bag weight 220g

Warranty: 2 years warranty
OEM: Welcome OEM

EB-136'S FEATURE SHOW

1360 (2).jpg



1361 (2).jpg
