DC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box access control switch power supply

  • Model:EA-38B

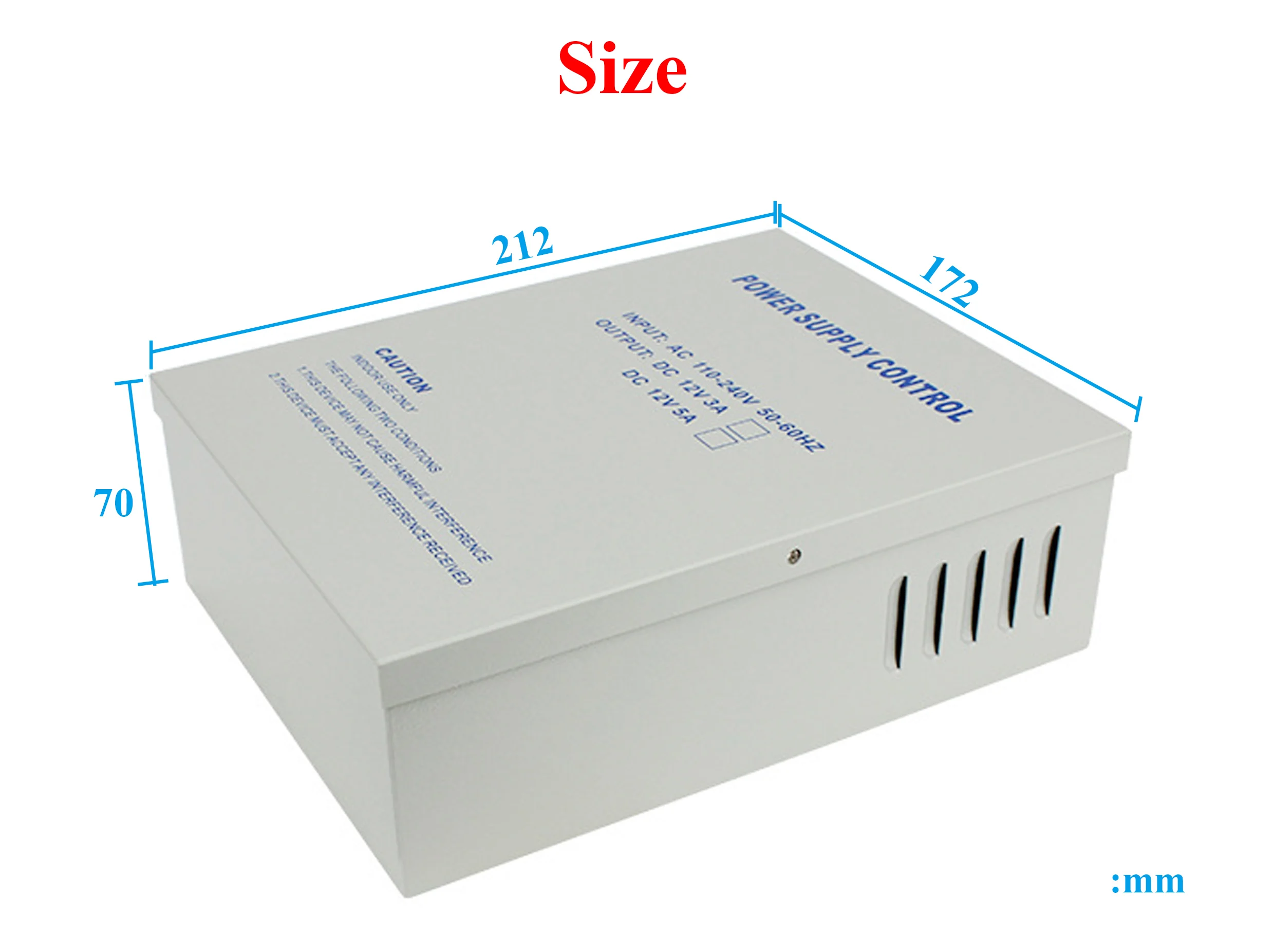

  • Dimension:205×165×74(mm)
  • Input voltage: AC220V
  • Input frequency:50Hz
  • Output voltage:12V DC
  • Ouput Current:5A
  • Output Power: 60W
  • Protection:Built-in output short-circut protection,Anti-interernce
  • Time relay:0~15 seconds

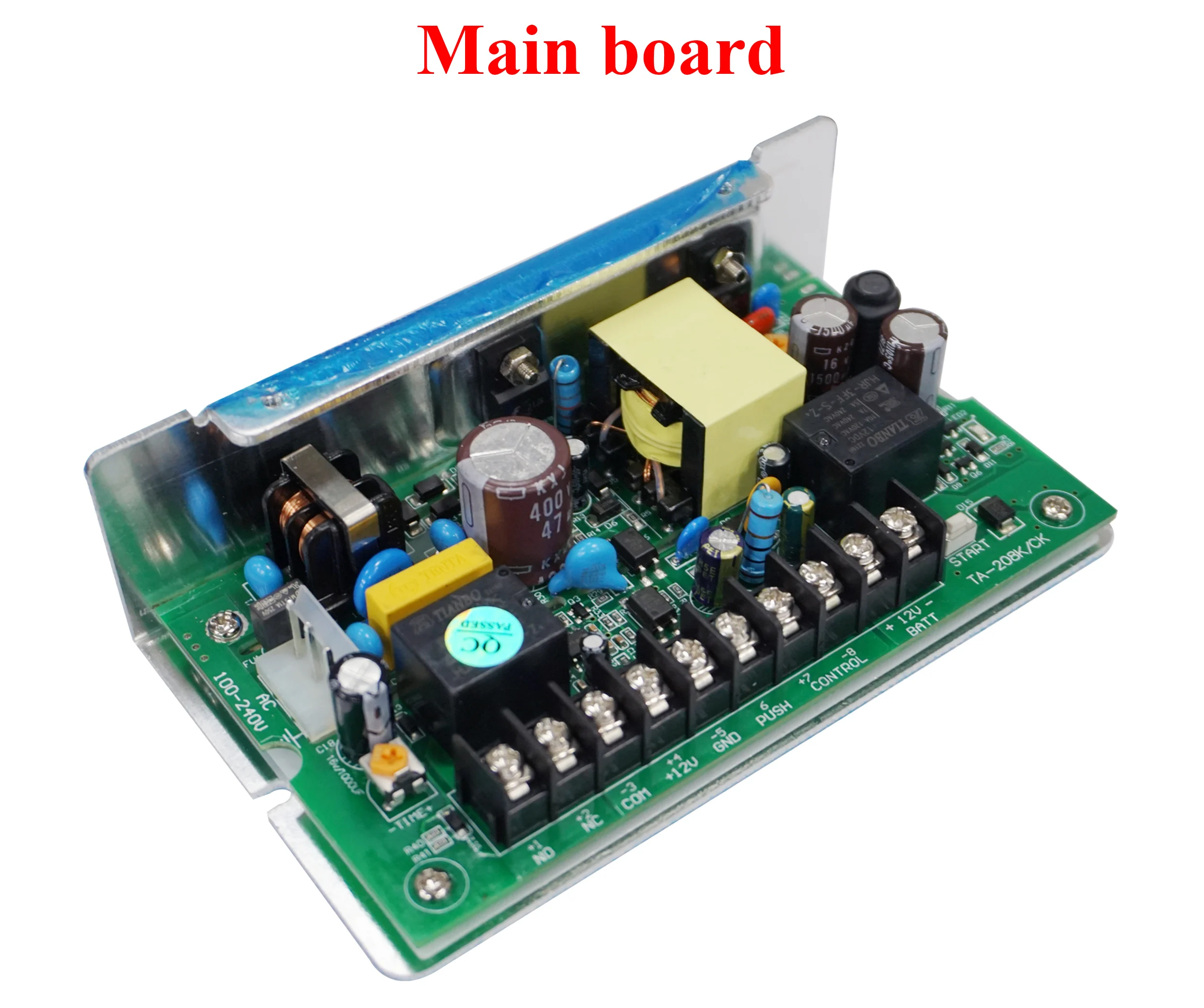

  • Special design:Double face PC Board,Pure copper Transformer,Metal shell
  • Color;White box
  • Suit for:Access control sysetm and doorphone system
  • Environment temprature:-20 ℃~61 ℃
  • Net weight:2.5kg
  • Optionals:Remote control(remote distance is 80m in open air),Backup battery(12V 7ah)

DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply

Parameter

Product name

DC 12V 5A metal box  access control switch power supply

Model

EA-38B

Dimension

205×165×74(mm)

Input voltage

AC220V

Input frequency

50Hz

Output voltage

12V DC

Ouput Current

5A

Output Power

60W

Protection

Built-in output short-circut protection

Anti-interernce

Time relay

0~15 seconds

Special design

Double face PC Board

Pure copper Transformer

Metal shell

Color

White

Suit for

Access control sysetm and doorphone system

Environment temprature

-20 ℃~61 ℃

Net weight

2.5kg

Optionals

Remote control(remote distance is 80m in open air)

Backup battery(12V 7ah)

DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply

 DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply


 Packaging list
 Product name EA-38B DC 12V 5A metal box  access control switch power supply
Qty  10 pcs per carton
Carton size  50*42*27(cm)
Weight  25kg
DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supplyDC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply

DC 12V 5A metal box  access control switch power supply
