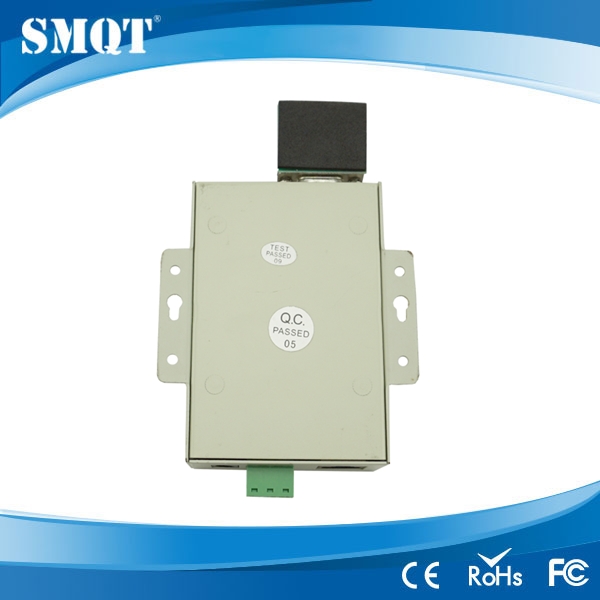

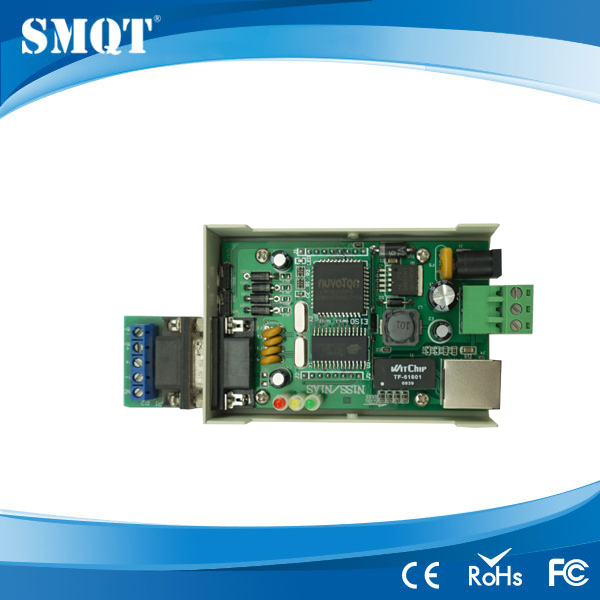

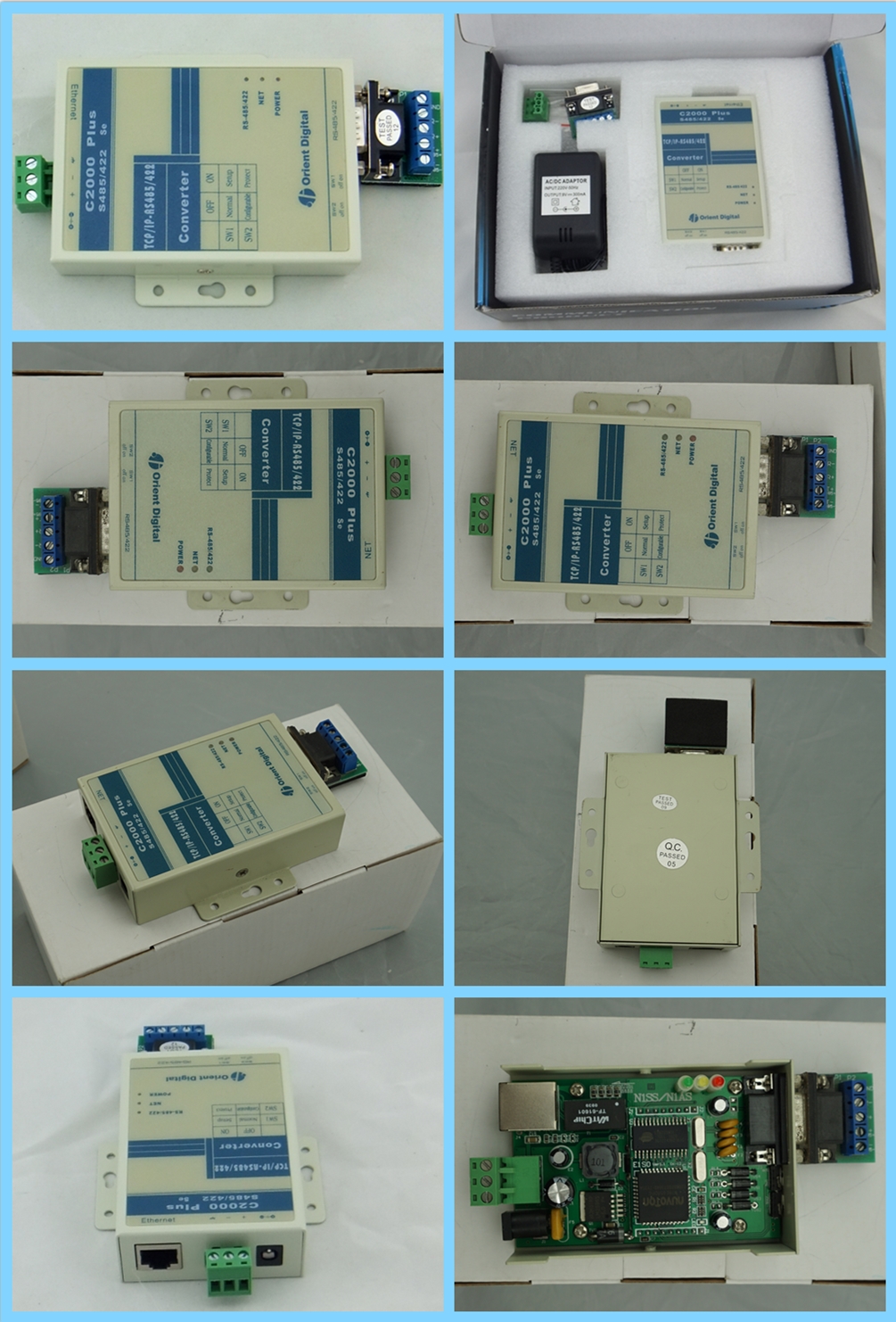

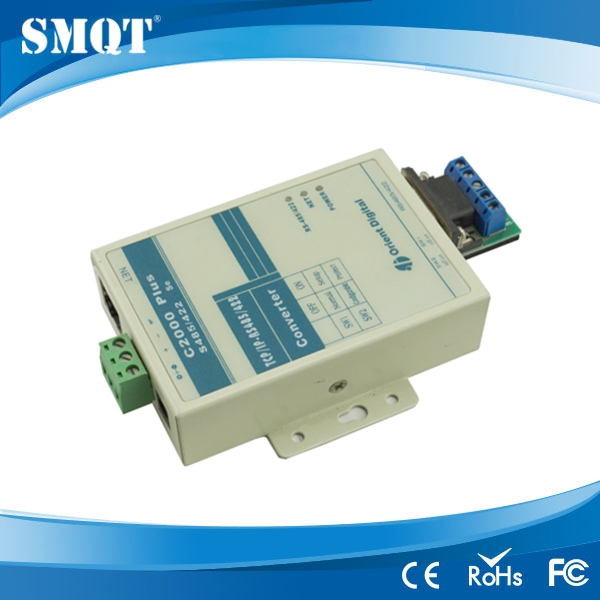

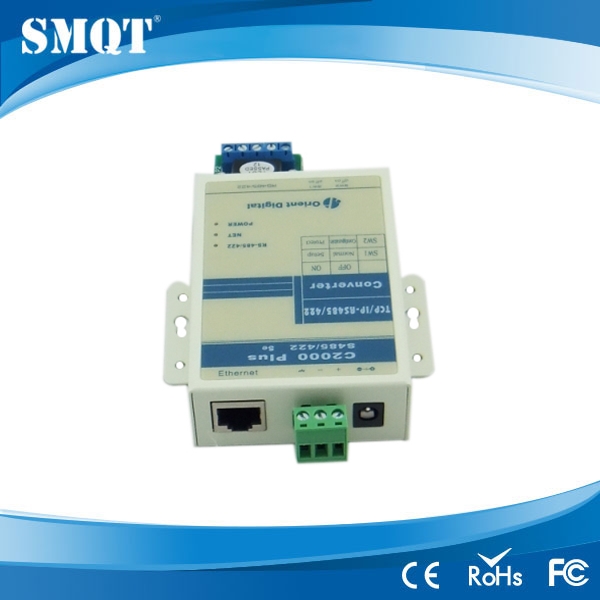

Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06

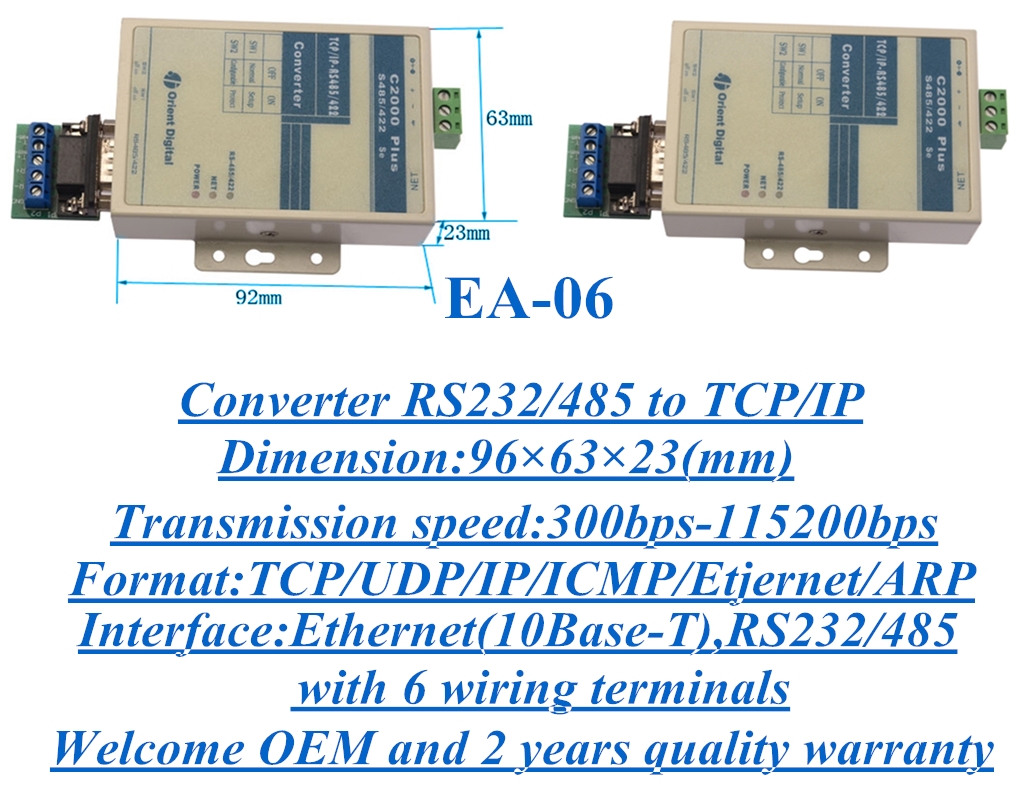

Data transmission converter RS232/485 to TCP/IP EA-06

  • Model:EA-06
  • Dimension:92L * 63W * 23H (mm)
  • External power supply:DC4.5V ~ 5.5V
  • Serial protocol:TCP / UDP / IP / ICMP, Ethernet, ARP
  • Communication Interface:Ethernet (10Base-T), RS232 / 485 with terminal switch
  • Signal indication:Three signal lights TXD RXD POWER
  • Transmission medium:Shielded twisted pair wire
  • Transmission rate:300bps ~ 115200bps
  • Isolation:3500VRMS
  • Color:grey
  • Usage:Access control system
  • Relative Humidity:5%~95%
  • Environment temprature:0 ℃ ~ 50 ℃
  • Net weight:0.624kg
Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

Parameter

Product name

Data transmission converter RS232/485 to TCP/IP

Model

EA-06

Dimension

92L * 63W * 23H (mm)

External power supply

DC4.5V ~ 5.5V

Serial protocol

TCP / UDP / IP / ICMP, Ethernet, ARP

Communication Interface

Ethernet (10Base-T), RS232 / 485 with terminal switch

Signal indication

Three signal lights TXD RXD POWER

Transmission medium

Shielded twisted pair wire

Transmission rate

300bps ~ 115200bps

Isolation

3500VRMS

Color

grey

Usage

Data transmission

Relative Humidity

5%~95%

Environment temprature

0 ℃ ~ 50 ℃

Net weight

0.624kg

Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

 Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

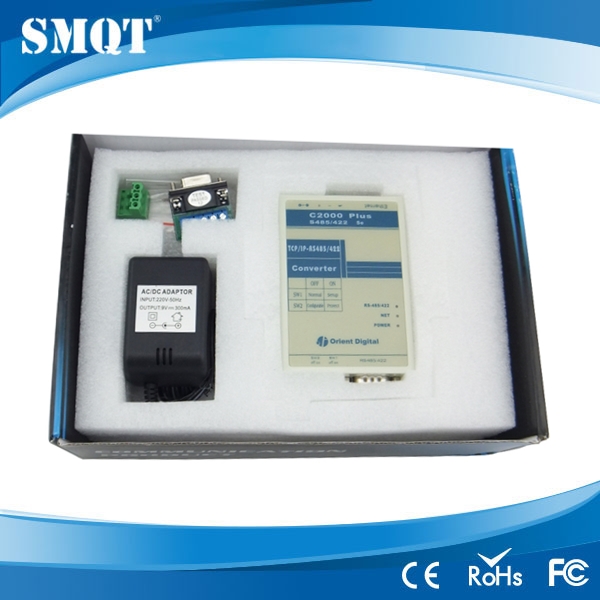

 Packaging list
 Product name Data transmission converter RS232/485 to TCP/IP EA-06
Qty  20 pcs per carton
Carton size  43*30*37(cm)
Weight  15kg
Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06

Data transmission converter RS232/485 to TCP/IP EA-06
