Drilling installation magnetic contact sensor with NC outputDrilling installation magnetic contact sensor with NC outputDrilling installation magnetic contact sensor with NC outputDrilling installation magnetic contact sensor with NC outputDrilling installation magnetic contact sensor with NC outputDrilling installation magnetic contact sensor with NC output

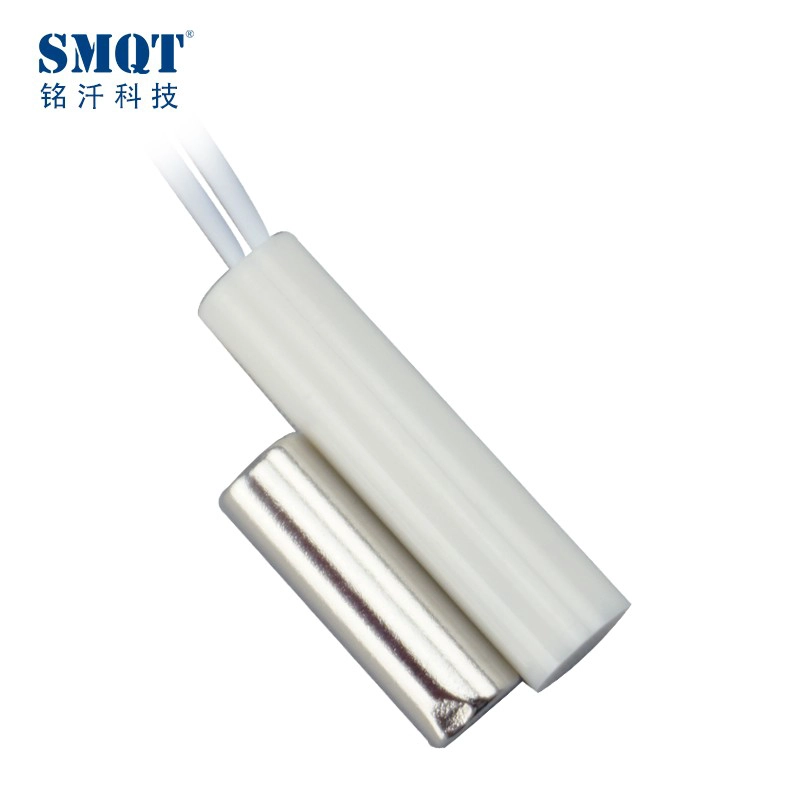

Drilling installation magnetic contact sensor with NC output

  • Model number:EB-135D
  • Working voltage:Max DC 100
  • Working current:Max 0.5A
  • Power consumption:10W
  • Interface port: NC/COM
  • Induction gap:15~25mm
  • Size:
  • Reed part:10(Diameter)*25(H)(mm)
  • Magnet part:7(Diameter)*15(H)(mm)
  • Insatallation way:Embedded installation

Drilling installation magnetic contact sensor with NC output


EB-135D'S MAIN PARAMETER

Product Name: Drilling installation magnetic contact sensor with NC output
Model number: EB-135D
Working voltage: Max DC 100
Working current: Max 0.5A
Power consumption: 10W
Interface port: NC/COM
Induction gap: 15~25mm
Size:

Reed part:10(Diameter)*25(H)(mm)

Magnet part:7(Diameter)*15(H)(mm)

Insatallation way: Embedded installation
Suitable for: All kinds of door access control system and burglar alarm system
Material: Copper housing+ PCB board+Reed switch
Housing color: White and silver
Weight:

Unit:8.5g

40 pairs per bag, per bag weight 340g

Warranty: 2 years warranty
OEM: Welcome OEM

EB-135D'S FEATURE SHOW
