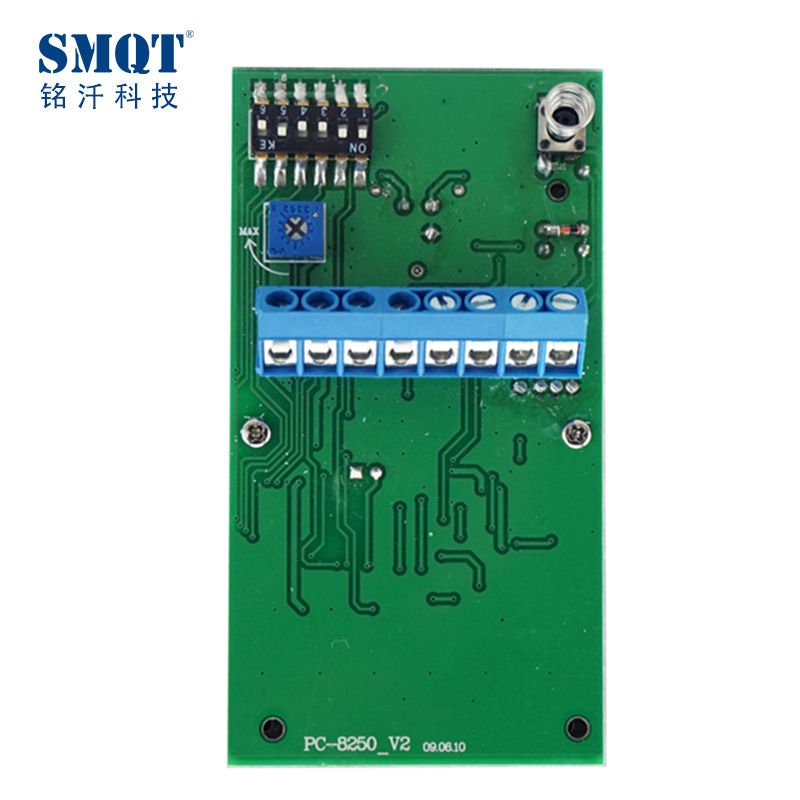

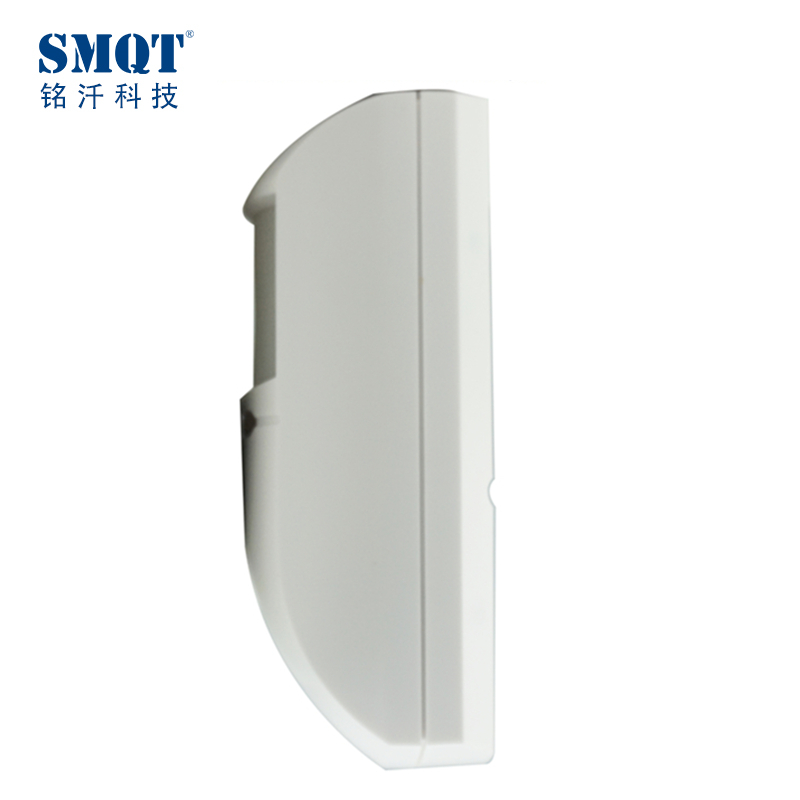

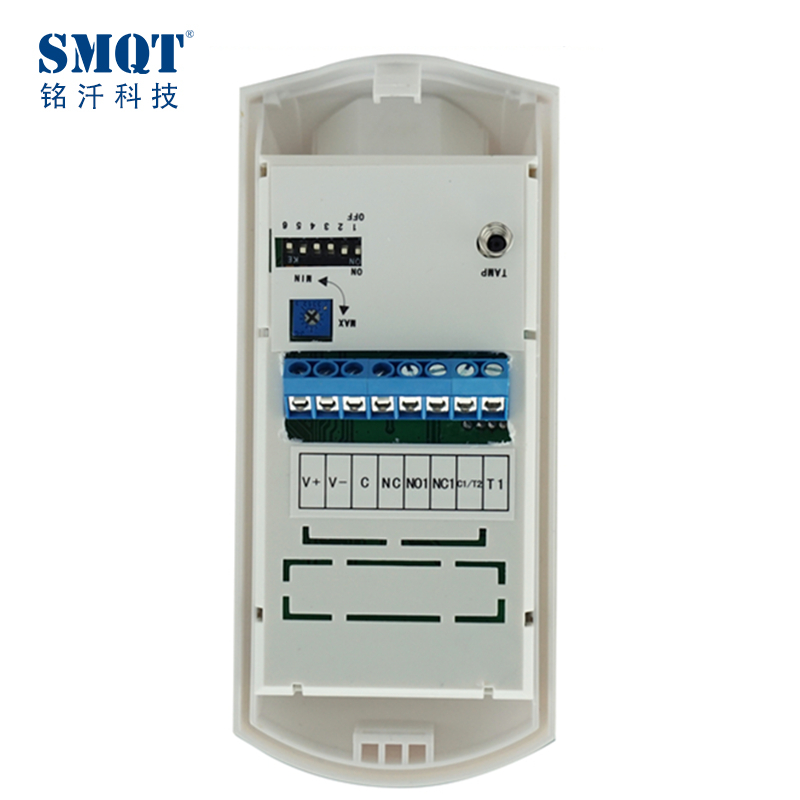

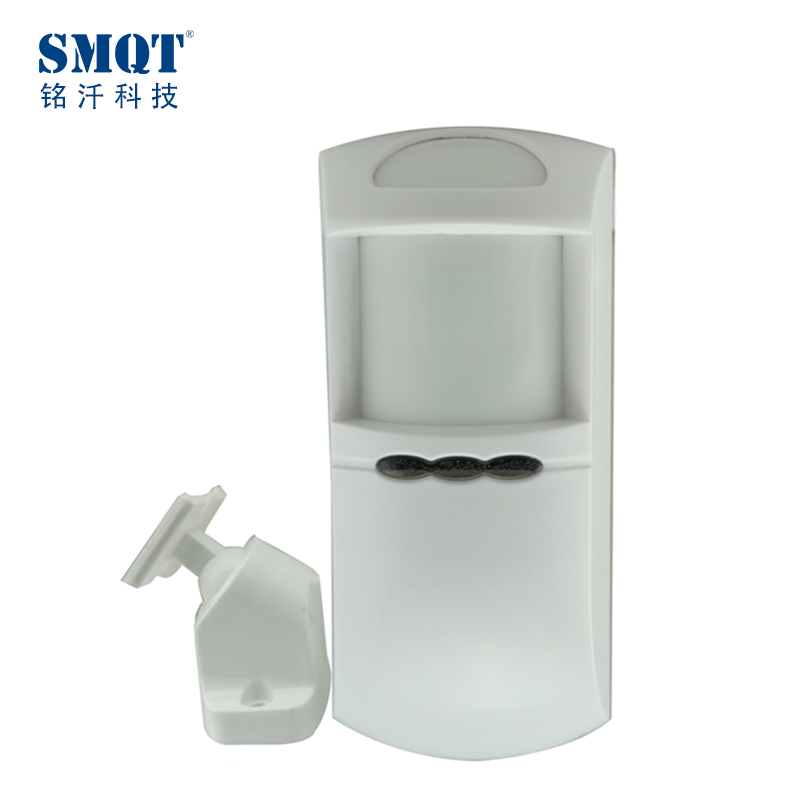

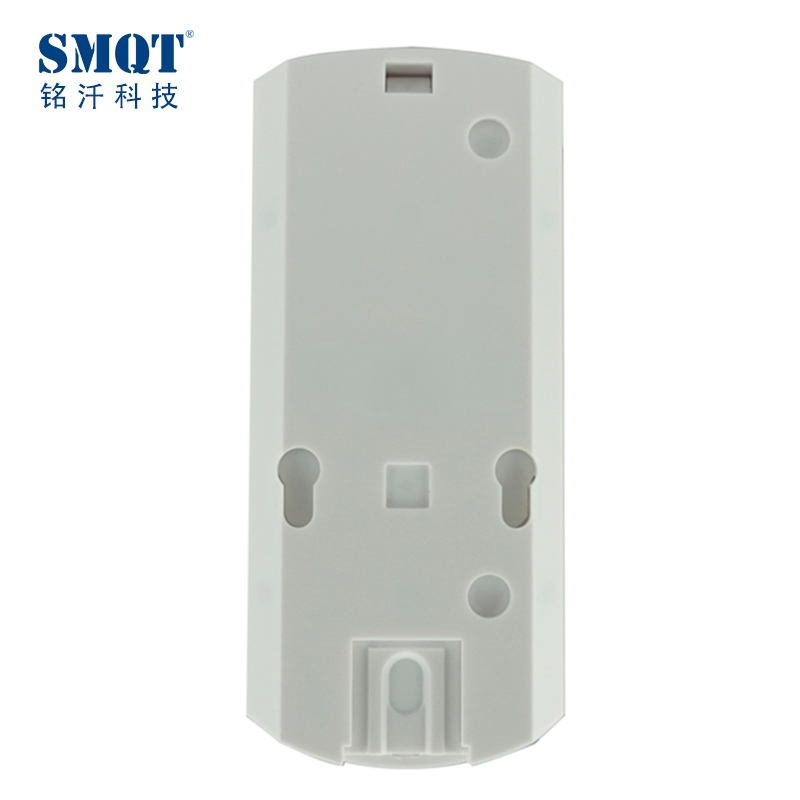

Dual detect Outdoor sensor, Infrared detector,Microwave sensor pir
- Product name: Dual detect Outdoor sensor, Infrared detector,Microwave sensor pir
- Model:EB-177
- Size: 135*58*40(mm)
- Working voltage: 12V DC
- Working Current Max :62MA
- Detecting angle: 110°
- Working temperature : -20℃~50℃
- Detecting speed : 0.2~7m/sec
- Install Height : 2.4~4.8m
- Storage temperature : -25℃~65℃
- Sensitivity : Adjustable
- PIR Feature
- Infrared sensro type :Dual elements PIR sensor
- Auto temperature compensation:NIC compensation
- Detecting distance:10m
- Detecting angle:110°
- Microwave feature
- Microwave antenna type:Flat strip microwave antennea with FET oscillator
- Frequency:FCC&DOC10.525GHz
- Detecting method:Doppler(effect)move
- Theiries:Dopper(effect)+Energies nalysis
- Digital filter:50/60Hz
- Self-test:Microwave self-test function
- MCU type:8 bit microchip
- Alarm indicator : Red LED Light(close if need)
- Alarm output: NC,25V DC,125mA
- Anti-tamper switch: NC,25V DC,125mA
- Operating humidity: 95%
- Color: White
- Weight : 0.2kg
Dual detect Outdoor sensor, Infrared detector,Microwave sensor pir
| Specification | |
| Product name | Dual detect Outdoor sensor, Infrared detector,Microwave sensor pir |
| Model | EB-177 |
| Size | 135*58*40(mm) |
| Working voltage | 12V DC |
| Working Current | Max 62MA |
| Detecting angle | 110° |
| Working temperature | -20℃~50℃ |
| Detecting speed | 0.2~7m/sec |
| Install Height | 2.4~4.8m |
| Storage temperature | -25℃~65℃ |
| Sensitivity | Adjustable |
| PIR Feature |
Infrared sensro type :Dual elements PIR sensor Auto temperature compensation:NIC compensation Detecting distance:10m Detecting angle:110° |
| Microwave feature |
Microwave antenna type:Flat strip microwave antennea with FET oscillator Frequency:FCC&DOC10.525GHz Detecting method:Doppler(effect)move Theiries:Dopper(effect)+Energies nalysis Digital filter:50/60Hz Self-test:Microwave self-test function MCU type:8 bit microchip |
| Alarm indicator | Red LED Light(close if need) |
| Alarm output | NC,25V DC,125mA |
| Anti-tamper switch | NC,25V DC,125mA |
| Operating humidity | 95% |
| Color | White |
| Weight | 0.2kg |
What Features of our Microwave sensor pir?
Infrared sensro type :Dual elements PIR sensor
Auto temperature compensation:NIC compensation
Detecting distance:10m
Detecting angle:110°
Microwave antenna type:Flat strip microwave antennea with FET oscillator
Frequency:FCC&DOC10.525GHz
Detecting method:Doppler(effect)move
Theiries:Dopper(effect)+Energies nalysis
Digital filter:50/60Hz
Self-test:Microwave self-test function
MCU type:8 bit microchip
IN-KIND SHOOTING
APPLICATION
SHOW CASE
OFFICE SHOW
CUSTOMER
EXHIBITION
CERTIFICATE
HOW TO COOPERATION
FAQ
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q: What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 5000pcs.
Q: Do you have any MOQ limit?
A:EXW MOQ is 100pcs under blank box.
Q: How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time depends on the shipping service.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
Q: Does alarm panel work with any sensor?
A:The alarm panel can work with all dry contact wired detectors and wireless detector, including almost all
of the wireless sensors from Chinese manufacturers. The wireless encode and decode is EV1527 or our wireless sensors.
