EA-06 Converter RS485/RS422 to TCP/IP

EA-06 Converter RS485/RS422 to TCP/IP

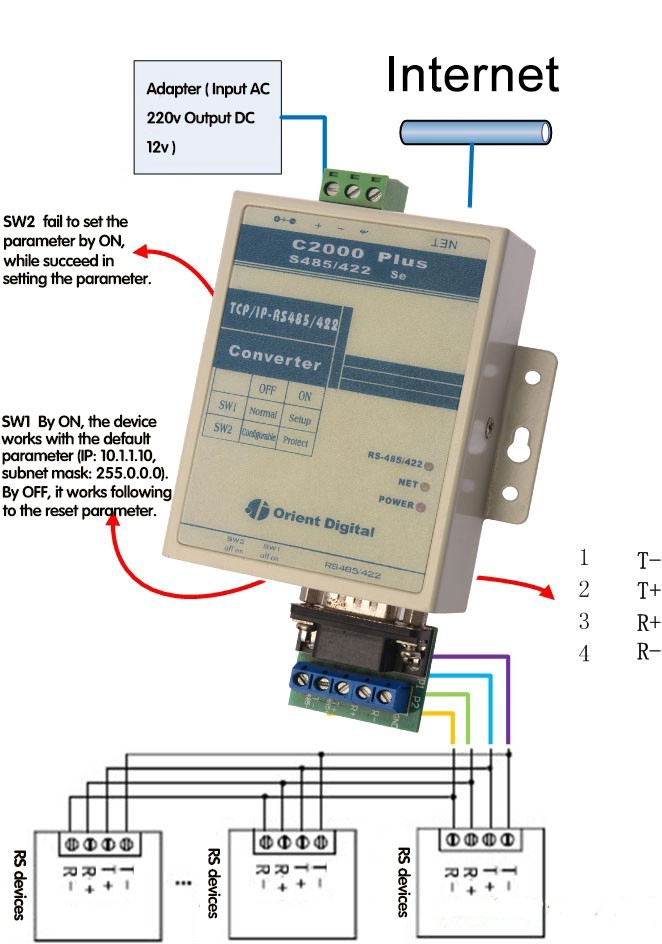

  • EA-06 is a reliable, high-performance industrial grade serial device server that provides RS485 / 422 to TCP / IP network and TCP / IP network to the RS485 / 422 data transparent transmission, it can have a RS485 / 422 serial ports the device has now linked into TCP / IP networks.
  • EA-06 offers up 10 / 100M Ethernet interface, down to provide a standard RS485 / 422 serial port communication parameters can be set in various ways. It can be widely used in PLC control and management, access control, medical, building automation, industrial automation, measurement instruments and environmental dynamics monitoring system, information appliances, LED information display equipment and CNC management.

Dimension 92L*63W*23H (mm)
Power supply DC 4.5v ~ 5.5v
Transmission rate  300bps ~ 115200bps
Serial protocol  TCP/UDP/IP/ICMP, Ethernet, ARP
Communication interface  Ethernet (10Base-T), RS232/485 with terminal switch

Having TCP Server, TCP Client, UDP, virtual serial, point to point connections five operating modes;
User network-based software does not require any modification can communicate with the C2000 N2A1;
By installing our free software virtual serial port, serial port user-based software does not require any modifications can communicate
with the C2000 N2A1;
The need for the development of user software, we provide free communication dynamic library, set dynamic library or OCX controls
Browser, or set up a dynamic set of software libraries to set parameters;
Low-power design, no heatsink
Dual Watchdog design, high stability
Power supply has over-current protection and anti-reverse function






QTY 20pcs/CTN
Carton dimension 42.8L*36.6W*29.8H(cm)
Gross weight 13.22kg
