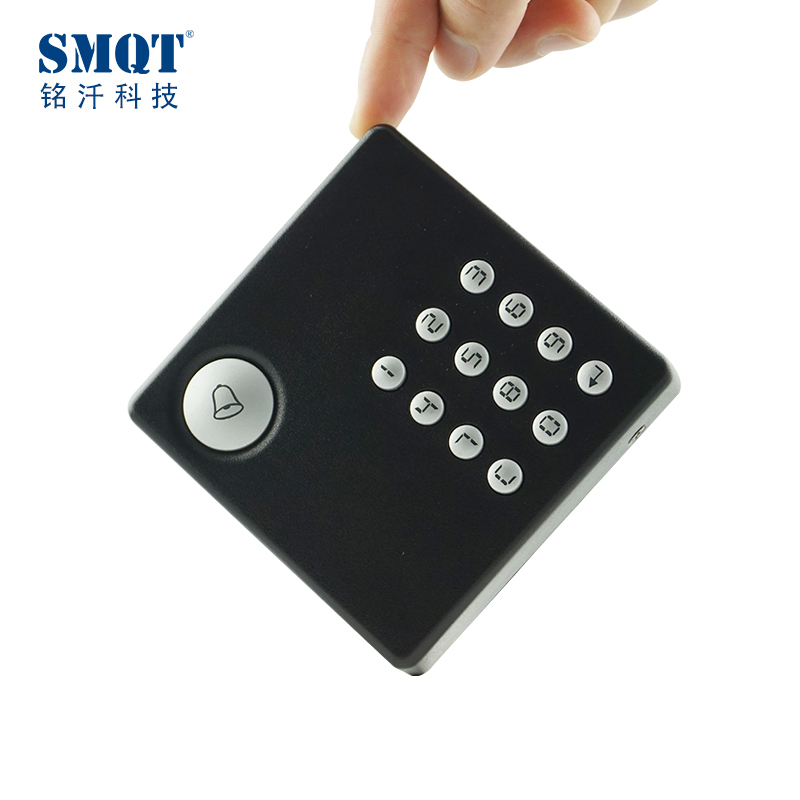

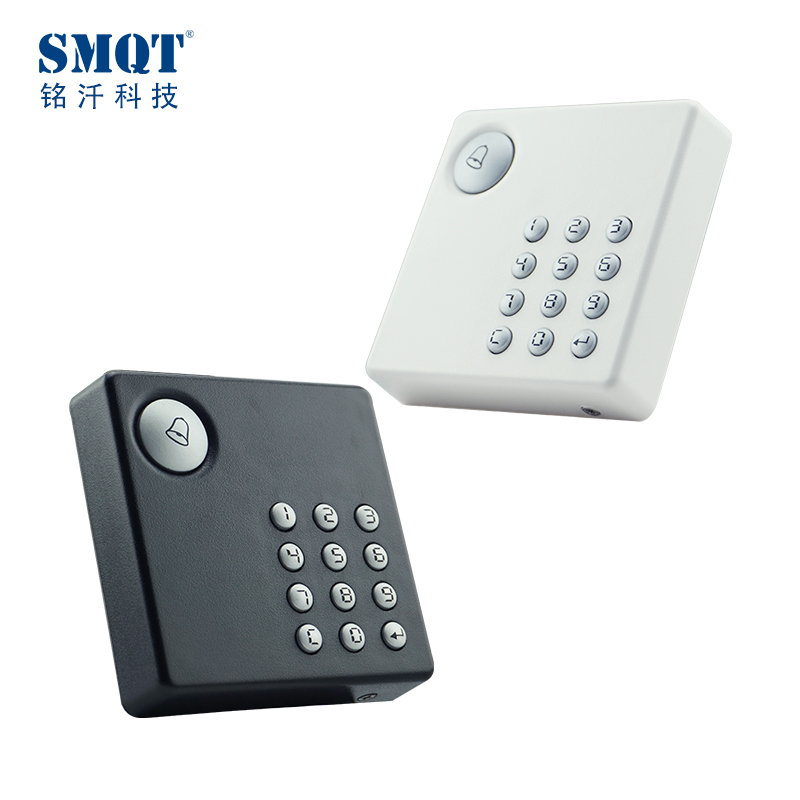

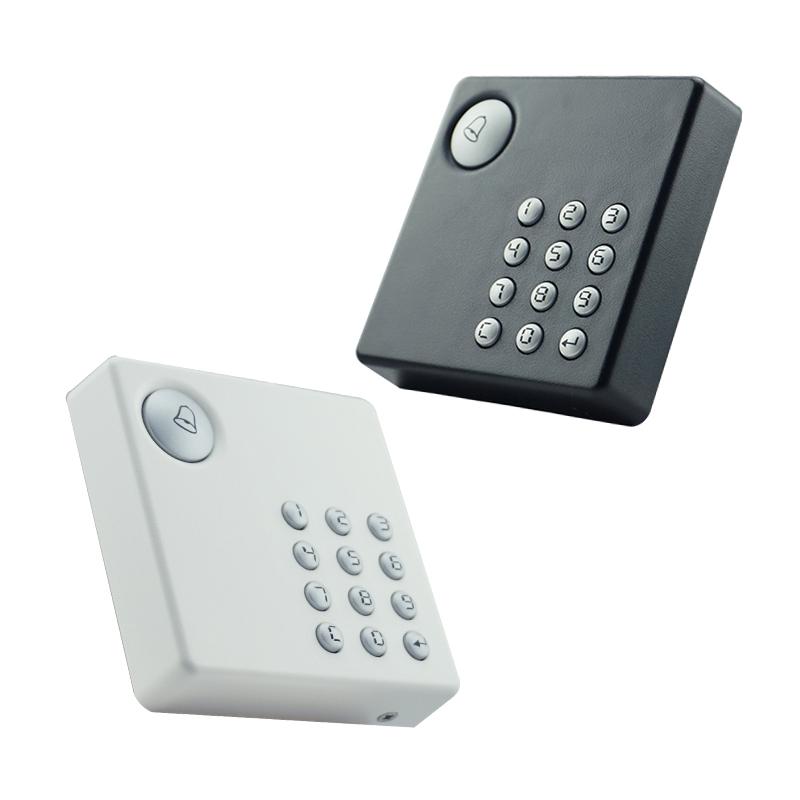

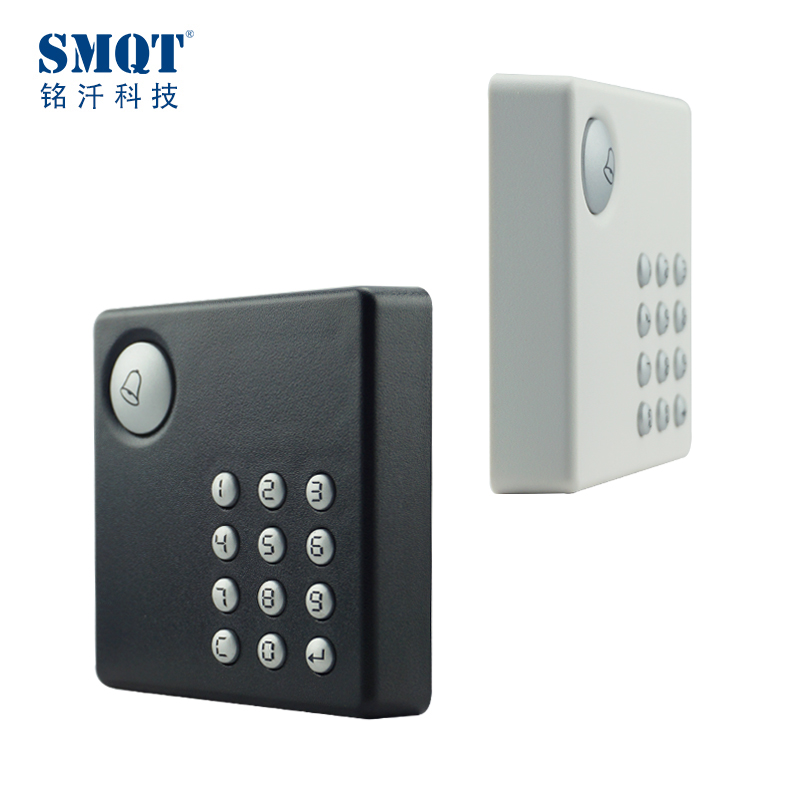

EA-82K single door access one machine can be networked
- Product number: EA-82K (Optional black and white reader)
- Operating Voltage:DC12V ± DC3V
- Power consumption:<2W
- Card Type:125KHZ ID
- Reading distance:60mm
- Store records:10000
- registered user:10000
- communication method:RS485
- Transmission rate: 9600bps (N, 8,1)
- Storage memory : 4MbitsFLASHMemory
- Dimensions:96L * 96W * 22H (mm)
- Housing Material:PC
- Operating temperature:-30 ℃ ~+ 65 ℃
- Open the door: Credit card/Card + password/UID + password/Public Password
Waterproof IP66 single door access control keypad reader with RFID frequency IC/ID optional
EA-82K'S MAIN PARAMETER
| Product Name: | Waterproof IP66 single door access control keypad reader with RFID frequency IC/ID optional |
| Model number: | EA-82K |
| Working voltage: | 9~15V DC |
| Power consumption: | <1W |
| Size: | 96×96×22(mm) |
| User capacity: | 10000 user |
| RFID card type: | ID(125Khz) |
| Card reading distance: | 3~5cm |
| Wire port: | Lock, Door button,WG card reader,Door bell, Door sensor |
| Keyboard: | Wear-resisting keypad button |
| Application: | Single door access control system |
| Suitable for: | Office, Apartment, hosptial access control system project |
| Material: | ABS frame+ PCB board |
| Weight: |
270g |
| Packaging: |
Netural paper box and paper carton 1 pcs per box,37boxes per carton |
| Working environment temperature: | -35℃~65℃ |
| Working humidity: | 20%~80% |
| Warranty: | 1 years warranty |
| OEM: | Welcome OEM |
