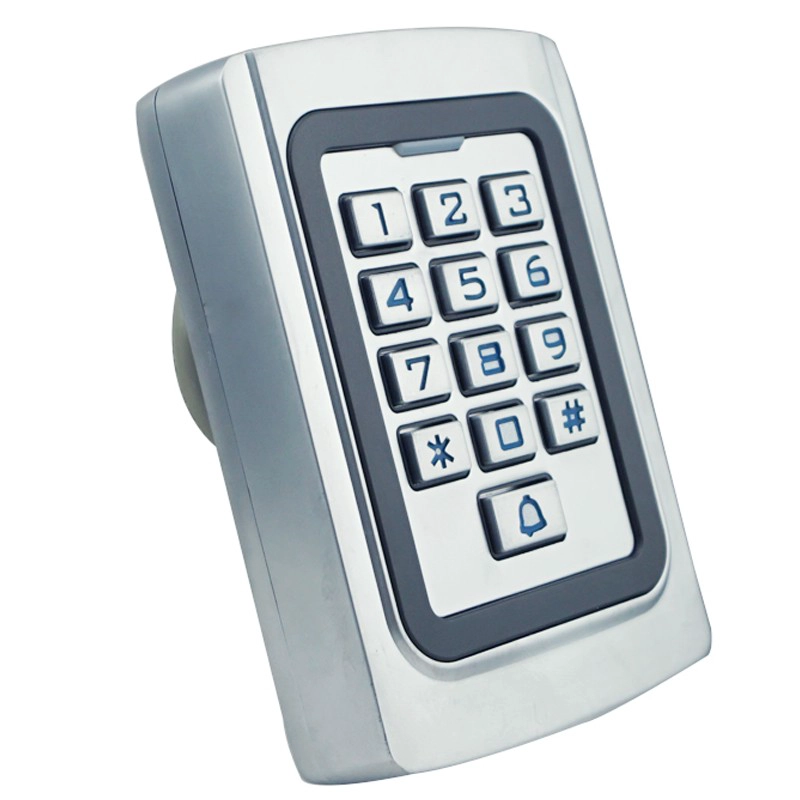

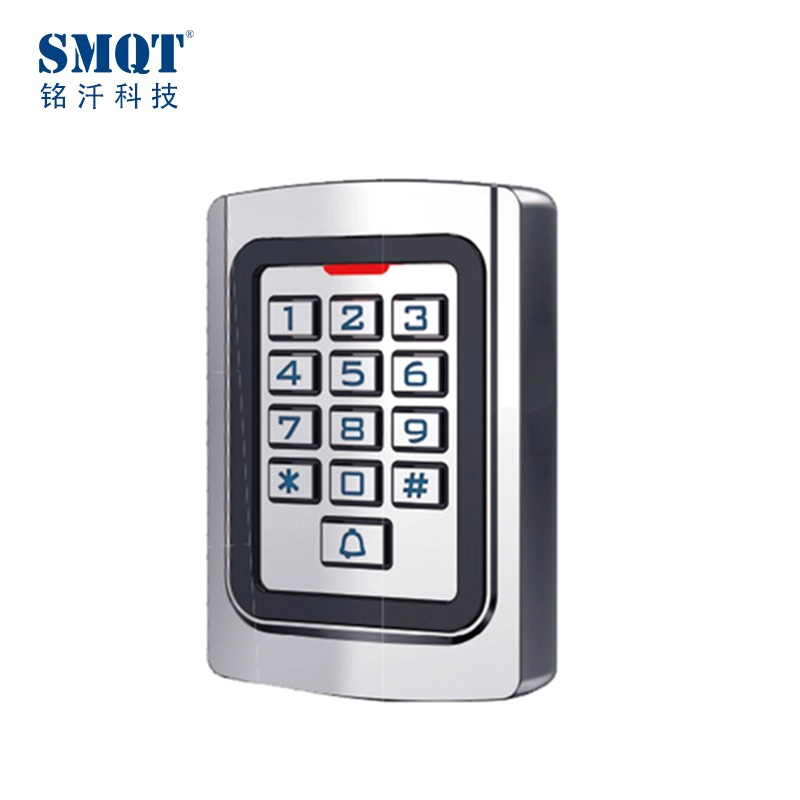

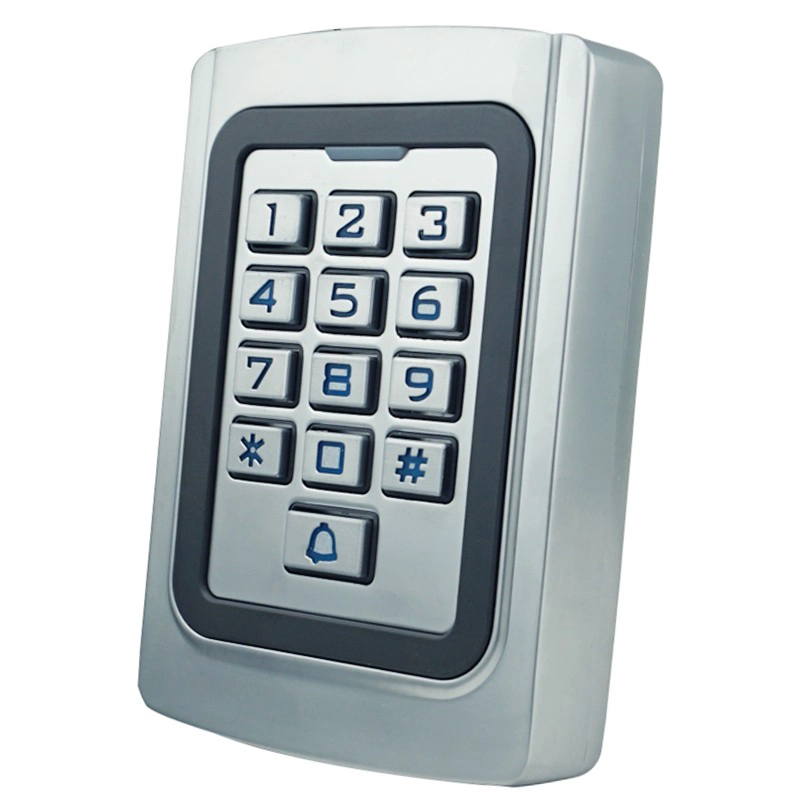

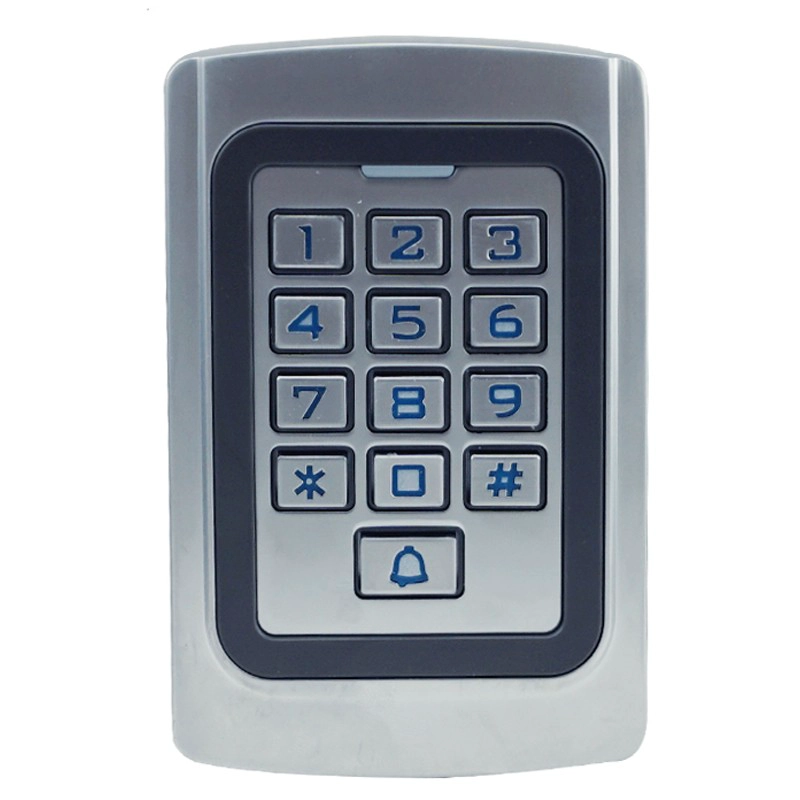

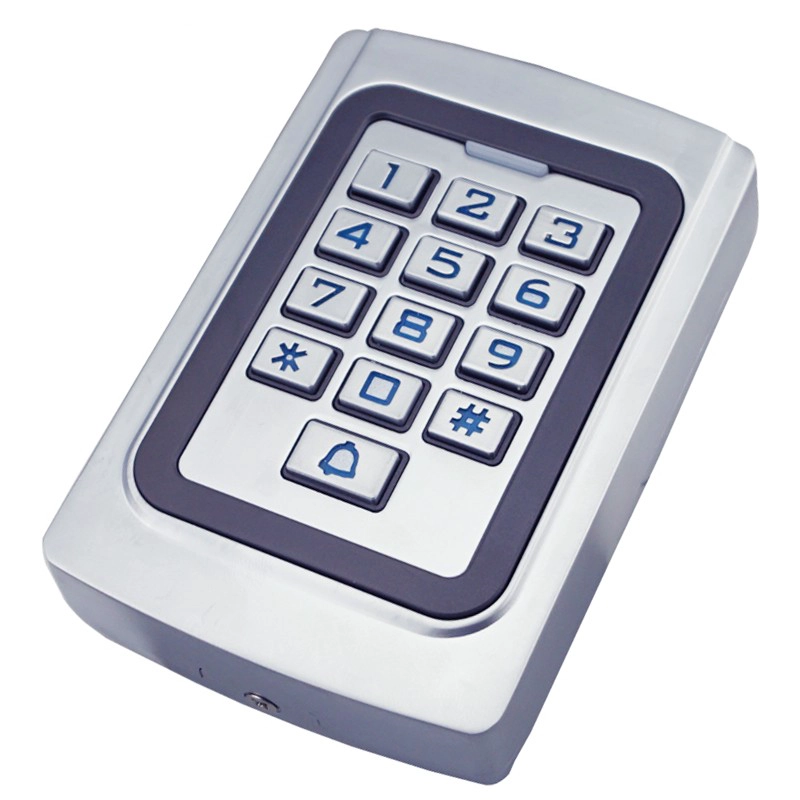

EA-87B single door access control waterproof reader

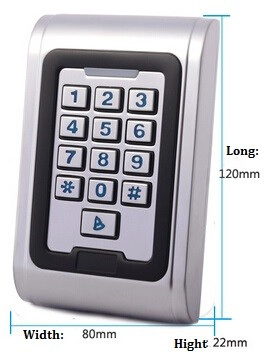

- Product Size:120L * 80W * 22H (mm)
- Working current: <60mA
- Card Capacity:2000
- Reading distance: 5-8cm 3-6cm ID card IC card
- Open delay :0 ~ 99 seconds adjustable
- Output contact: Magnetic / Button / door / alarm / tamper
- waterproof level: IP68
- environment humidity:10% to 90%
The single door access controller with the degital back light function.It is the waterproof reader have ID and IC long range rfid reader.

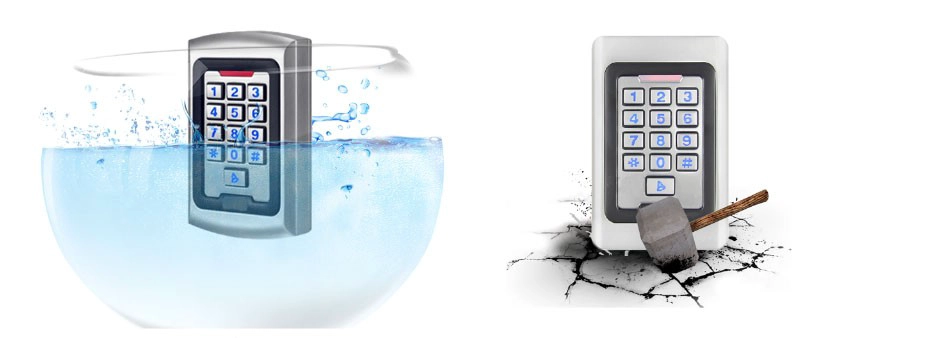

New exterior design, Mercedes-Benz style, luxury, atmosphere, stable and safe.Metal shell, waterproof anti-smashing design.
PC plastic sealed, fully sealed waterproof design.
Protection rating of IP68.
Key backlight, easy to use.
Low power consumption: standby current of less than 30mA.
Backlit Keyboard: Night door more convenient.
Independent Open Code: You can only use a password to open the door.
User Change Password: Users can modify their own password.
Search speed: credit card to open the door in less than 0.1S.
Output short circuit protection: electric lock or alarm output short circuit 100us automatically shut down output.
Wiegand output: with Wiegand output interfaces, and can output Wg26 card number or Wg key number.
Usable keyboard delete card number: After card is lost usable keyboard delete card number, the total elimination of security risks.
Tamper alarm: Illegal disassemble built after the alarm buzzer alarm sounds.
Doorbell button interface: buttons and circuit isolation, you can add any doorbell.
Backlit Keyboard: Night door more convenient.
Independent Open Code: You can only use a password to open the door.
User Change Password: Users can modify their own password.
Search speed: credit card to open the door in less than 0.1S.
Output short circuit protection: electric lock or alarm output short circuit 100us automatically shut down output.
Wiegand output: with Wiegand output interfaces, and can output Wg26 card number or Wg key number.
Usable keyboard delete card number: After card is lost usable keyboard delete card number, the total elimination of security risks.
Tamper alarm: Illegal disassemble built after the alarm buzzer alarm sounds.
Doorbell button interface: buttons and circuit isolation, you can add any doorbell.
| Product Size | 120L * 80W * 22H (mm) |
| Working current | <60mA |
| Card Capacity | 2000 |
| Reading distance | 5-8cm 3-6cm ID card IC card |
| Open delay | 0 ~ 99 seconds adjustable |
| Output contact | Magnetic / Button / door / alarm / tamper |
| waterproof level | IP68 |
| environment humidity | 10% to 90% |

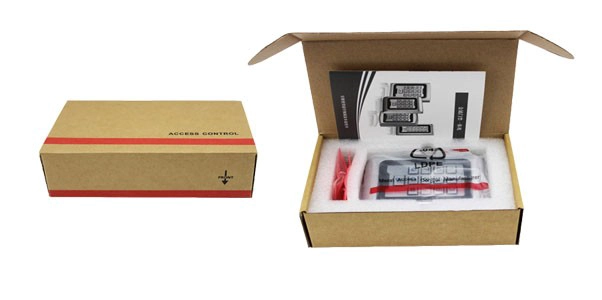

| Qty | 22 / box |
| Packing Specifications | 52L * 29W * 12H (cm) |
| Packing weight | 12.32kg |
