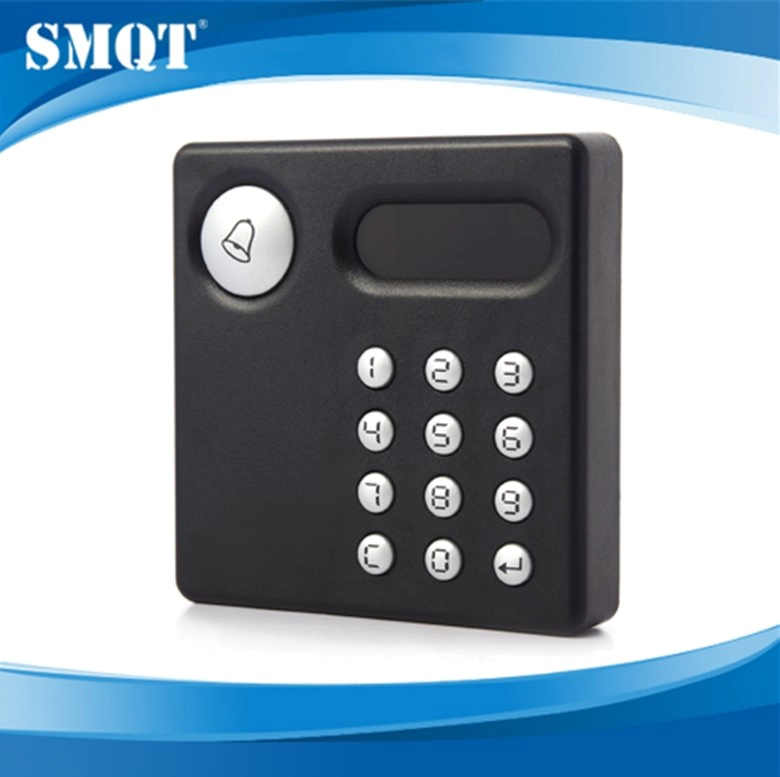

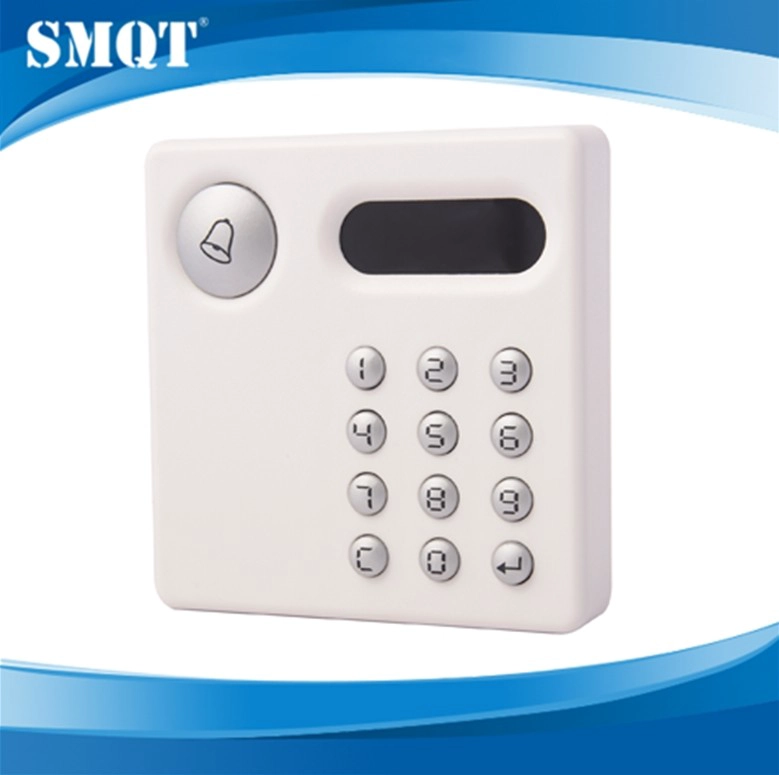

EA-92DK RFID Card reader (WG) with kepadEA-92DK RFID Card reader (WG) with kepad

EA-92DK RFID Card reader (WG) with kepad

  • rfid reader
  • Product number : EA-92DK (black and white optional)
  • Operating Voltage : DC12V ± DC3V
  • Power consumption : <1W
  • Card Type : 125KHZ ID
  • Reading distance : 60mm
  • Communication range : 150m
  • communication method : WG26 / 34
  • Transmission rate: 1bit / ms
  • Keyboard Out : 4bit / 8bit
  • Dimensions : 96L * 96W * 22H (mm)
  • Housing Material : PC
  • Operating temperature: -30 ℃ ~ + 65 ℃

Product number  EA-92DK (black and white optional)
Operating Voltage  DC12V ± DC3V
Power consumption  <1W
Card Type  125KHZ ID
Reading distance  60mm
Communication range  150m
communication method  WG26 / 34
Transmission rate  1bit / ms
Keyboard Out  4bit / 8bit

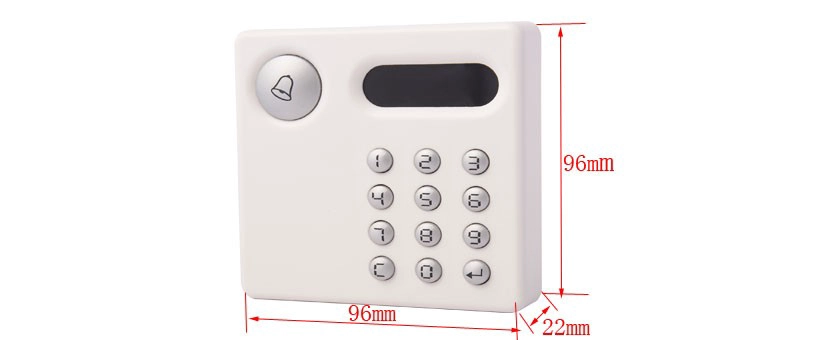

Dimensions  96L * 96W * 22H (mm)
Housing Material  PC
Operating temperature  -30 ℃ ~ + 65 ℃



The access control reader keypad is RFID card key access control system for door.It with Weigant
26/34 output.

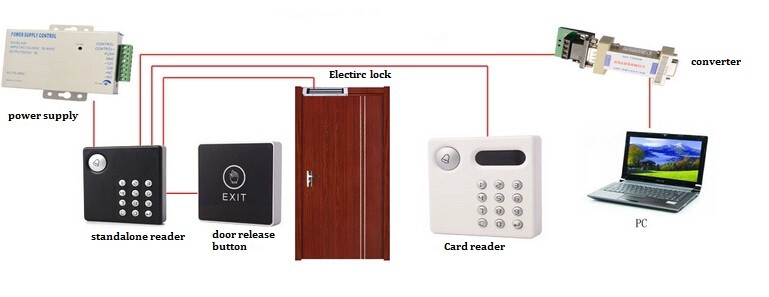

This is the installation for the whole door access control system with our reader connection:

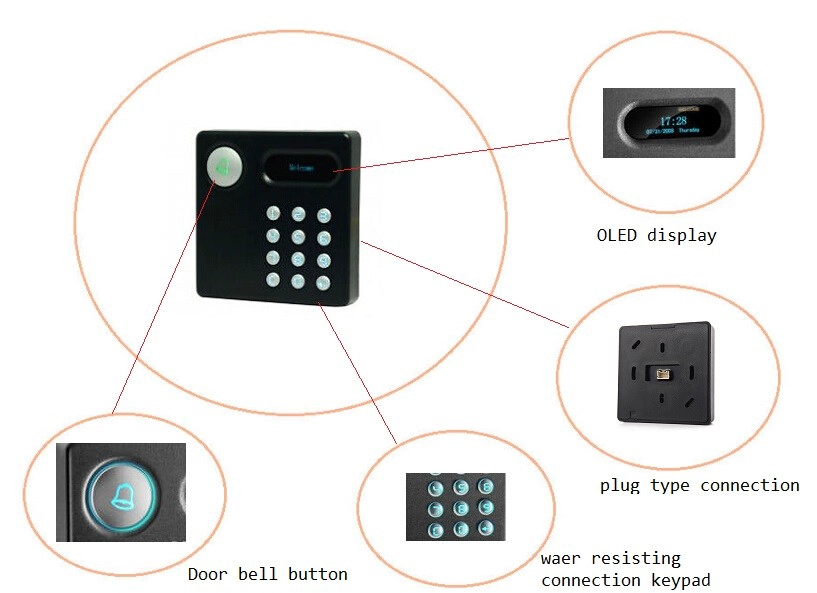

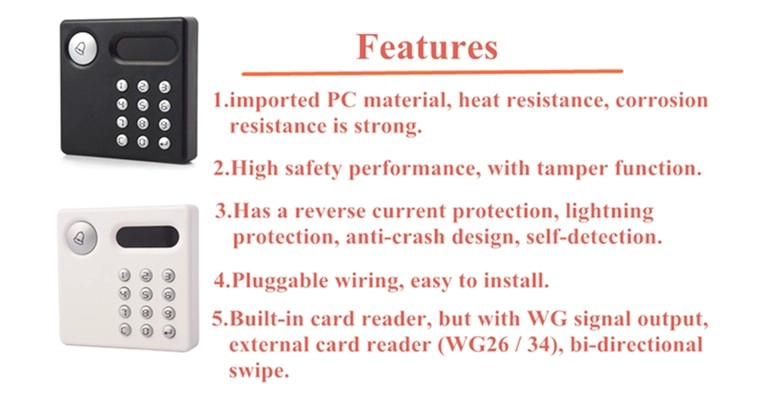

Unique design (patent appearance), the shell with a matte treatment, feel comfortable; with OLED
screen, not reflective in the bright light and the screen with a perpetual calendar (set directly on the reader).
Using laser engraving technology, wear on the digital keyboard, prolonged use will not fall; more stylish
keyboard with energy-saving background light, packed doorbell button appears.
Communication WG26 / 34, can be converted by software.
High safety performance, with reverse current protection, tamper, lightning protection.
In line with European / Asian back box size fashion design, easy wiring.
The wg26 card reader with the rfid security system and time attendance system.This is the id card reader
with the 125khz and 13.56mhz frequency.









These are our office picture showed:

We have taken part in many exhibiton during these year.The picture showed as follow:
