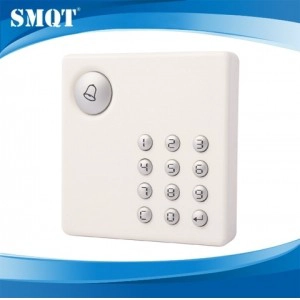

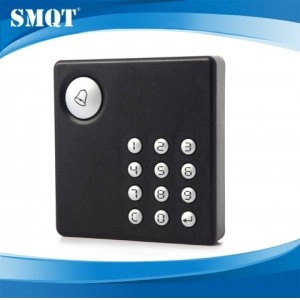

EA-92K Wiegant Card ReaderEA-92K Wiegant Card Reader

EA-92K Wiegant Card Reader

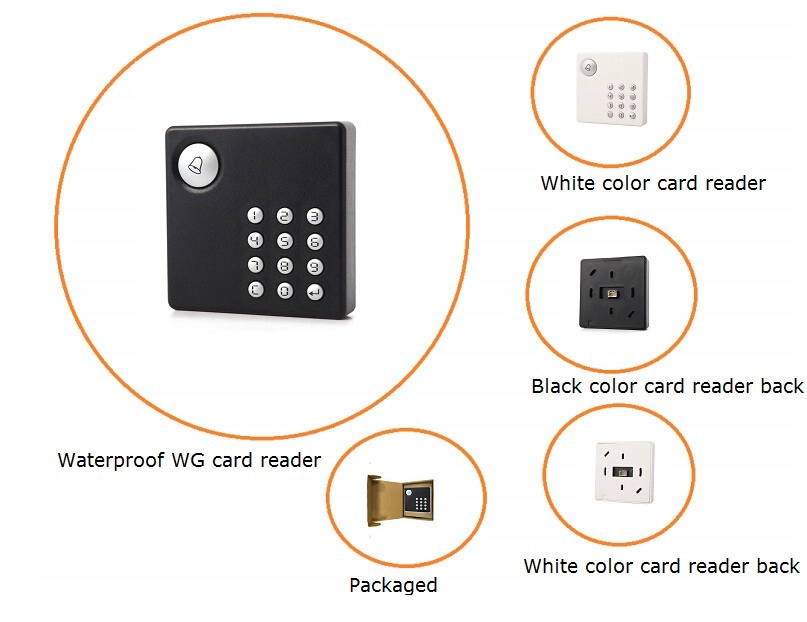

  • Product number: EA-92K (black and white optional)
  • Operating Voltage:DC12V ± DC3V
  • Power consumption: & Lt; 1W
  • Card Type : 125KHZ ID
  • Reading distance: 60mm
  • Communication range:150m
  • communication method: WG26 / WG34
  • Transmission rate: 1bit / ms
  • Keyboard Out: 4bit / 8bit

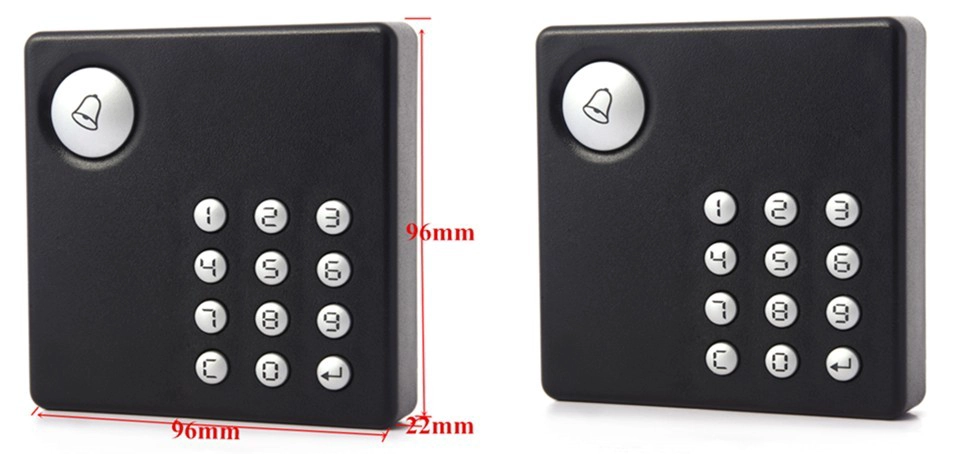

  • Dimensions : 96L * 96W * 22H (mm)
  • Housing Material: PC
  • Operating temperature:-30 ℃~+ 65 ℃
Product number  EA-92K (black and white optional)
Operating Voltage DC12V ± DC3V
Power consumption  & Lt; 1W
Card Type   125KHZ ID
Reading distance  60mm
Communication range  150m
communication method  WG26 / WG34
Transmission rate  1bit / ms
Keyboard Out  4bit / 8bit
Dimensions   96L * 96W * 22H (mm)
Housing Material  PC
Operating temperature -30 ℃~+ 65 ℃




The card reader proximity outdoor with 125khz keypad rfid reader modeule software.













Unique (patent appearance) design shell is made of frosted, feel comfortable.
Using laser engraving technology, wear on the digital keyboard, prolonged use will not fall, saving keyboard with backlight, Takeout doorbell button, even more stylish.
Communication WG26 / 34, can be converted by software.

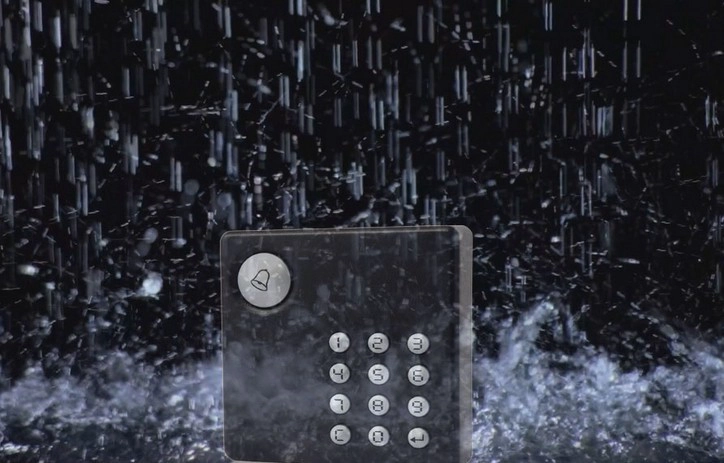

High safety performance, waterproof (IP66), reverse current protection, tamper, lightning protection.

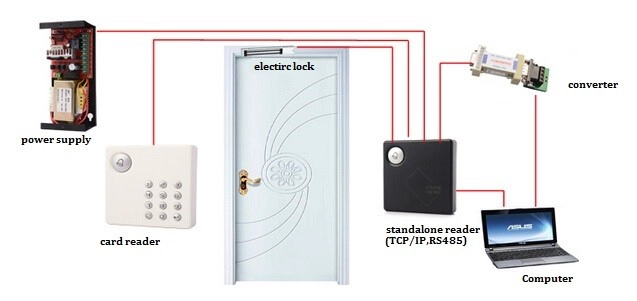

In line with European / Asian back box size installation design, easy wiring.
Access control rfid Weigant card reader with frequency 125khz and 13.56mhz.The smart card reader with the WG output.
