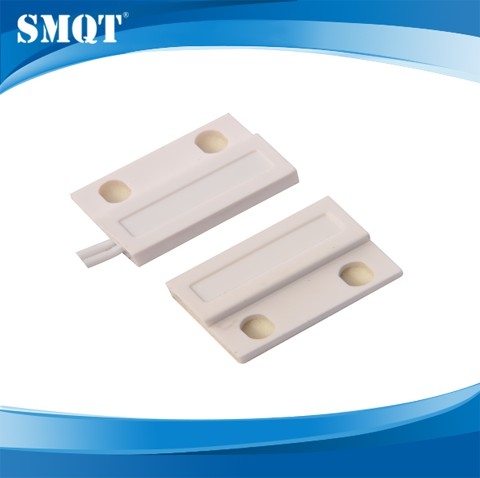

EB-133 Magnetic contact sensor
- Door sensor

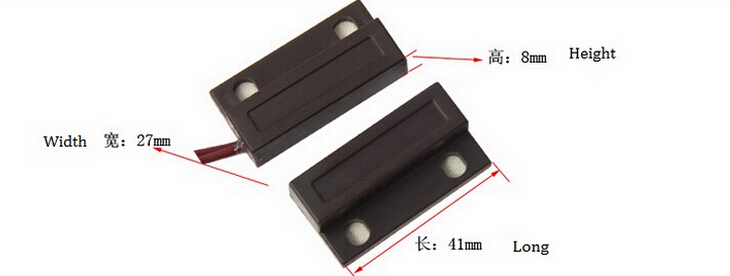

- Dimensions : 41L * 27W * 8 (mm)
- Connection : Normally open / normally closed
- Operating distance : 20 ± 5 (mm)
- Maximum pressure : ≤100VDC
- Load current: ≤500mA
- Working Power: ≤10W
- Housing Material: ABS fireproof material

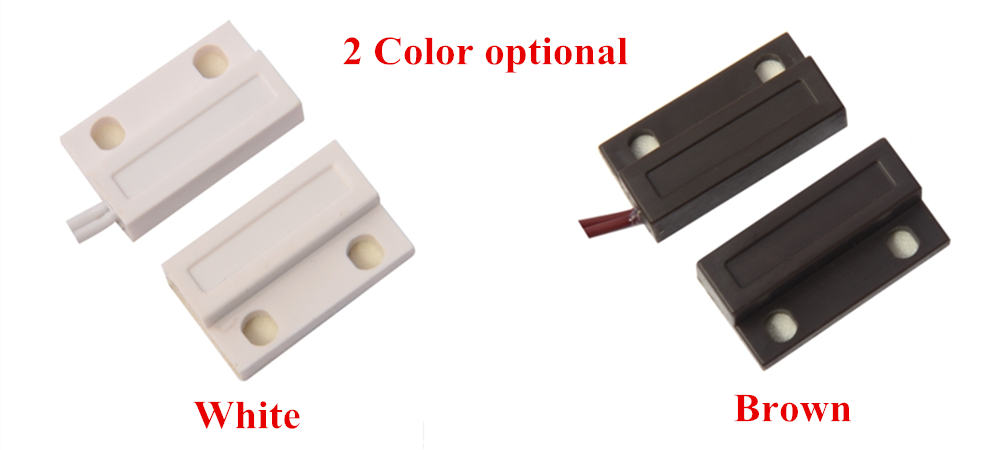

- Shape color: Brown / White
- Scope: Non-ferrous door or window
- product weight : 12g
| Dimensions | 41L * 27W * 8 (mm) |
| Connection | Normally open / normally closed |
| Operating distance | 20 ± 5 (mm) |
| Maximum pressure | ≤100VDC |
| Load current | ≤500mA |
| Working Power | ≤10W |
| Housing Material | ABS fireproof material |
| Shape color | Brown / White |
| Scope | Non-ferrous door or window |
| product weight | 12g |

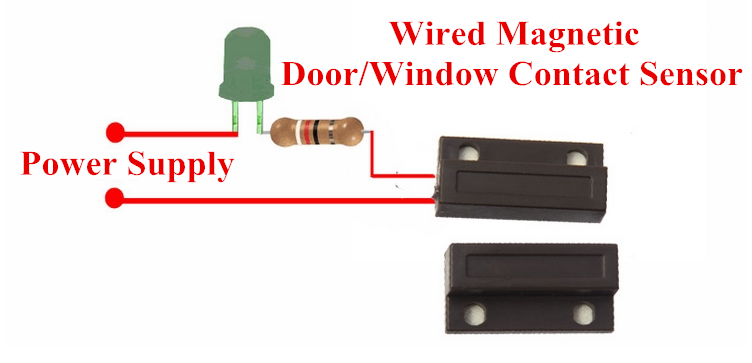

The window and door security is the alarm sensor with wire.The automatic door sensor like
the door magnetic contact detector connect the alarm system to work.
