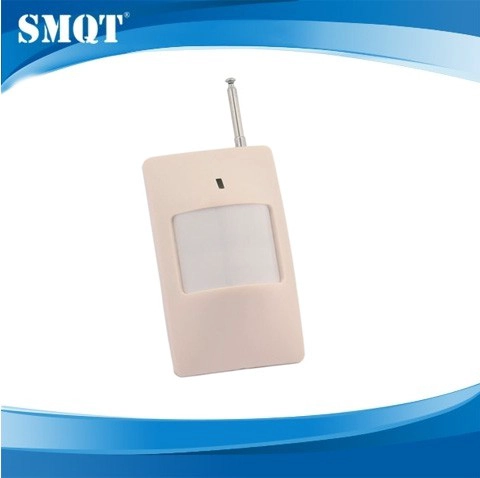

EB-187 Wireless PIR DetectorEB-187 Wireless PIR Detector

EB-187 Wireless PIR Detector

  • Wireless PIR Detector

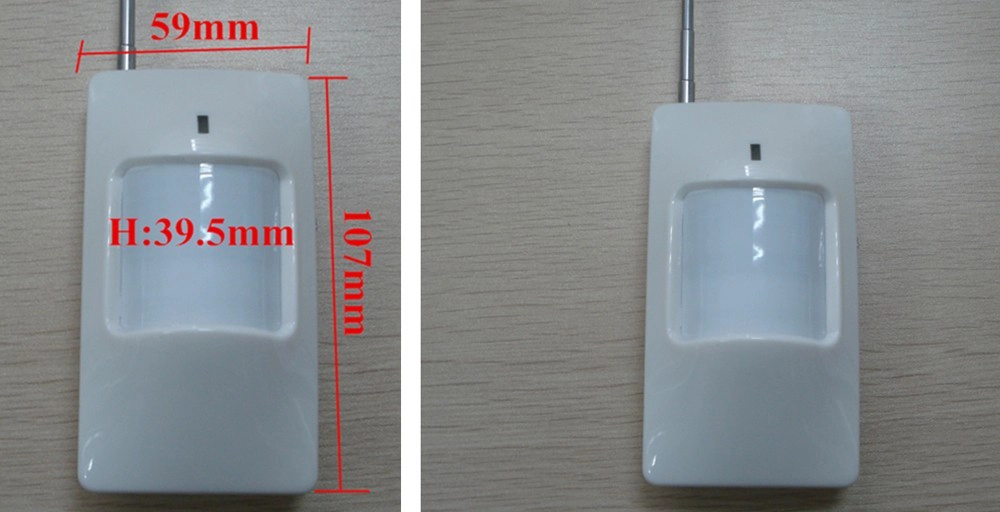

  • Dimension: 107×59×39.5(mm)
  • Operating voltage: 3V DC(2AA battery)
  • Static current: ≤25uA
  • Alarm current: ≤15mA

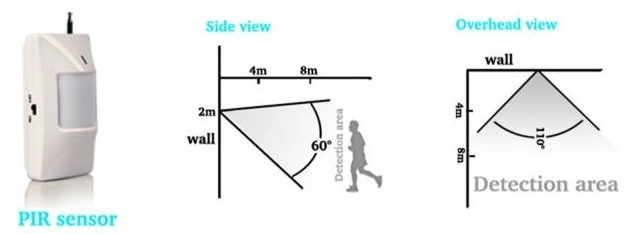

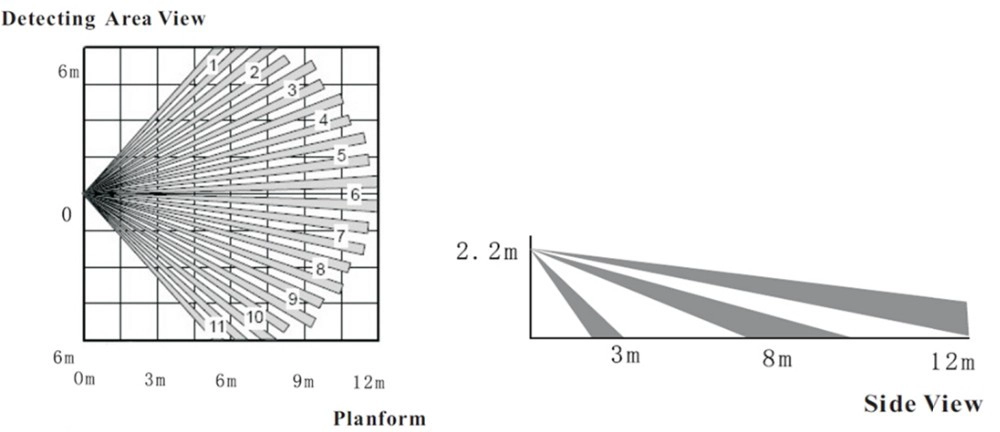

  • Detecting distance: 12m
  • Detecting angle: 110°
  • Transmitting frequency: 315MHz /433MHz (2262 coding chip )(optional)
  • Transmitting distance:200m(in open area)
  • Installation height:about 2.2m
  • Installation Mode: wall mounted
  • Material:fireproof ABS housing




  Name  Wireless PIR Detector
Model  EB-187
 Dimension:   107×59×39.5(mm)
 Operating voltage:   3V DC(2AA battery)
 Static current:
 ≤25uA
 Alarm current:   ≤15mA
 Detecting distance:   12m
 Detecting angle:
 110°
 Transmitting frequency:   315MHz /433MHz (2262 coding chip )(optional)
 Transmitting distance:  200m(in open area)
 Installation height:  about 2.2m
 Installation Mode:   wall mounted
 Material:  fireproof ABS housing

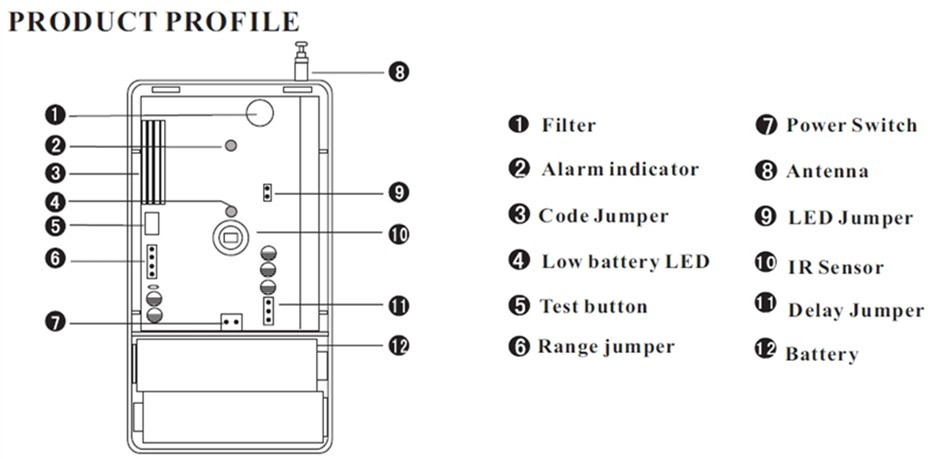

The wireless pir motion sensor is passived infrared detector.The sensor with 12v DC voltage battery operated.













1.ASIC Adopted.
2.Auto temperature compensation.
3.Send alarm signal by RF.
4.Adjustable detecting distance.
5.Low battery indication.
6.SMT design adopted.







î

 QTY:  100 pieces/carton
 Packing Specification:  0.55*0.41*0.29 m
 Packing Weight:  16.5kg /carton














Shenzhen MINGQIAN Technology Co., LTD.

Tel:+8613530583035

Contact Person:Helen Li

PDF Show:PDF
