EB-190 Wireless PIR DetectorEB-190 Wireless PIR DetectorEB-190 Wireless PIR DetectorEB-190 Wireless PIR Detector

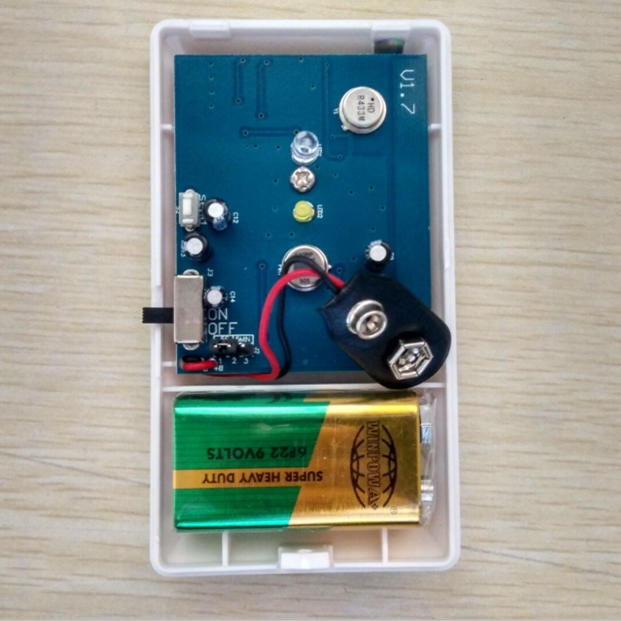

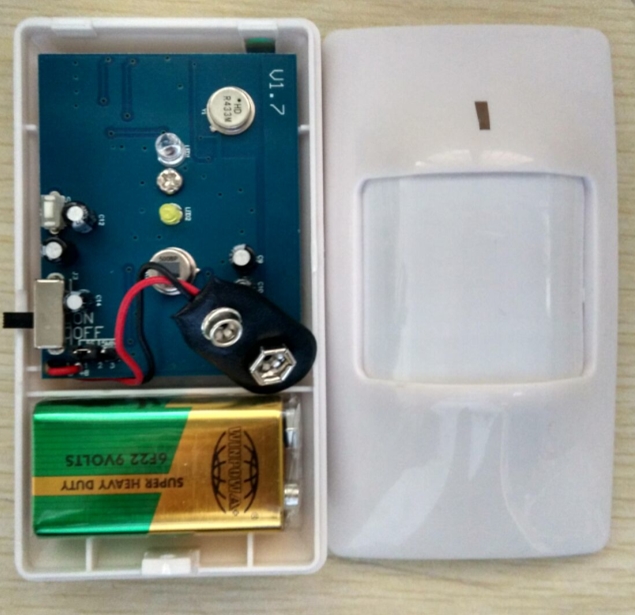

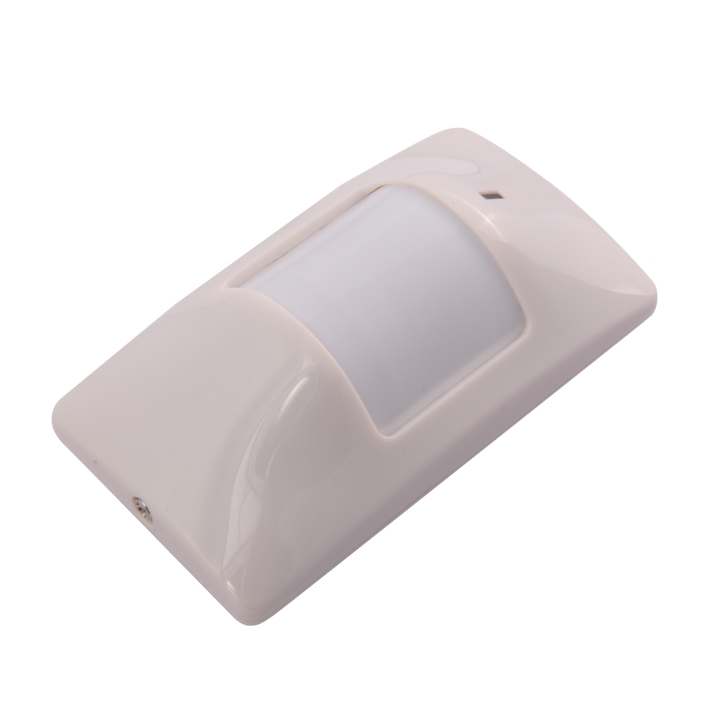

EB-190 Wireless PIR Detector

  • EB-190 Wireless PIR Detector
  • Operating power:9V alkaline battery
  • Transmitting frequency:433Mhz (1527 coding chip)
  • Emiting distance:≥100m ( in open area )
  • Detecting distance:110°,10m×10 m
  • Service life:≤1 year.
  • Installation height:2~2.4m .
  • LED on/off indication .
  • Installation mode:wall-mounted

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Specification

Product name

Wireless PIR Detector

Model

EB-190

Dimension

107×59×40(mm)

Operating voltage

9V DC(allaline battery)

Static current

<=25uA

Alarm current

<=15mA

Detecting Distance

10m

Detecting angle

110°

Transmitting frequency

433Mhz/868Mhz(1527 coding chip)(optional)

Transmitting distance

150m(in open area)

Installation height

2~2.4m

Installation mode

Wall mounted

Color

White shell

Usage

Home alarm system

Material

fireproof ABS housing

Net weight

0.15kg

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

http://sc01.alicdn.com/kf/HTB1bg65LpXXXXX2XXXX760XFXXXf/200461249/HTB1bg65LpXXXXX2XXXX760XFXXXf.png

1.Mainly monitor and control indoor stereoscopic spaces, generally set as Motion Zone.
2. Sends alarm signal to the matched alarm host if any movement detected.

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

 Packaging List
Product name  Wireless Pir Detector

Qty

100pcs/Carton

Carton size

55 ×42×29(cm)

Weight

17kg

 Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor

Wireless PIR Detector,Wireless PIR sensor,Wireless motion sensor,infrared motion detector,Alarm motion sensor,Anti- Burglar motion sensor
