IP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypadIP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypadIP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypadIP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypadIP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypadIP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypad

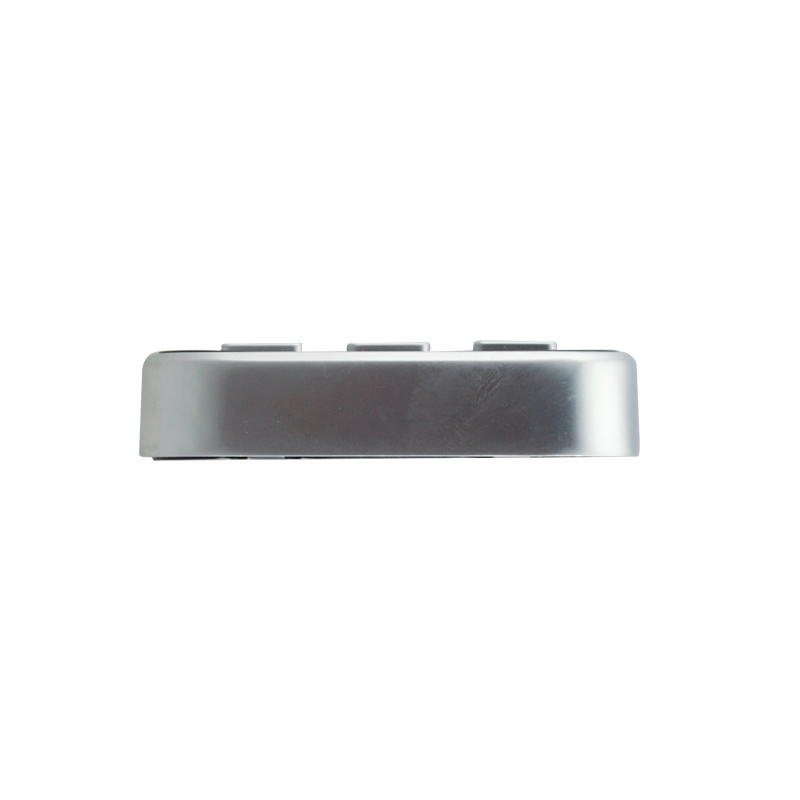

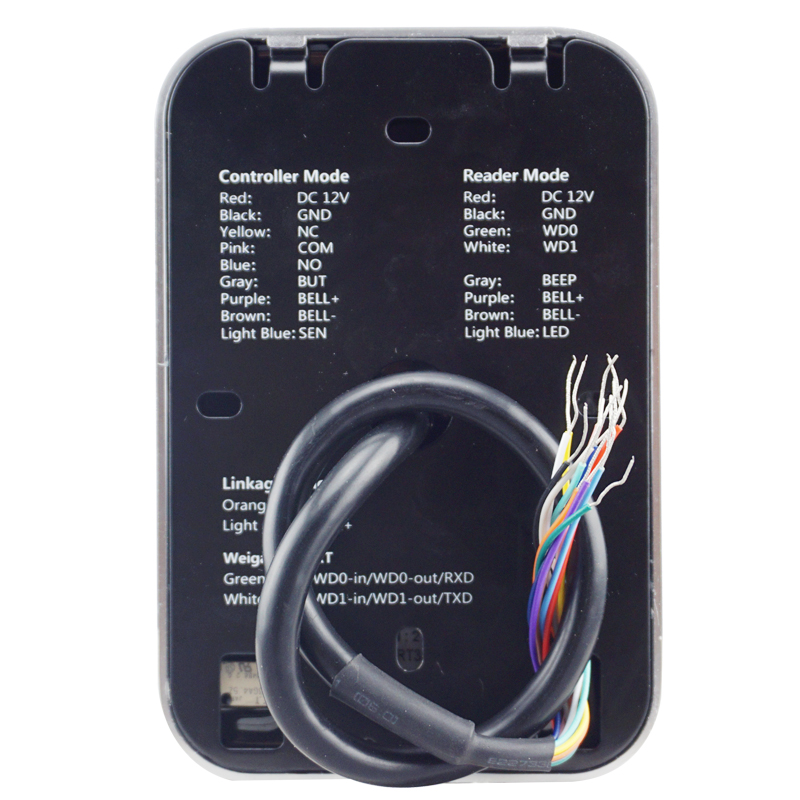

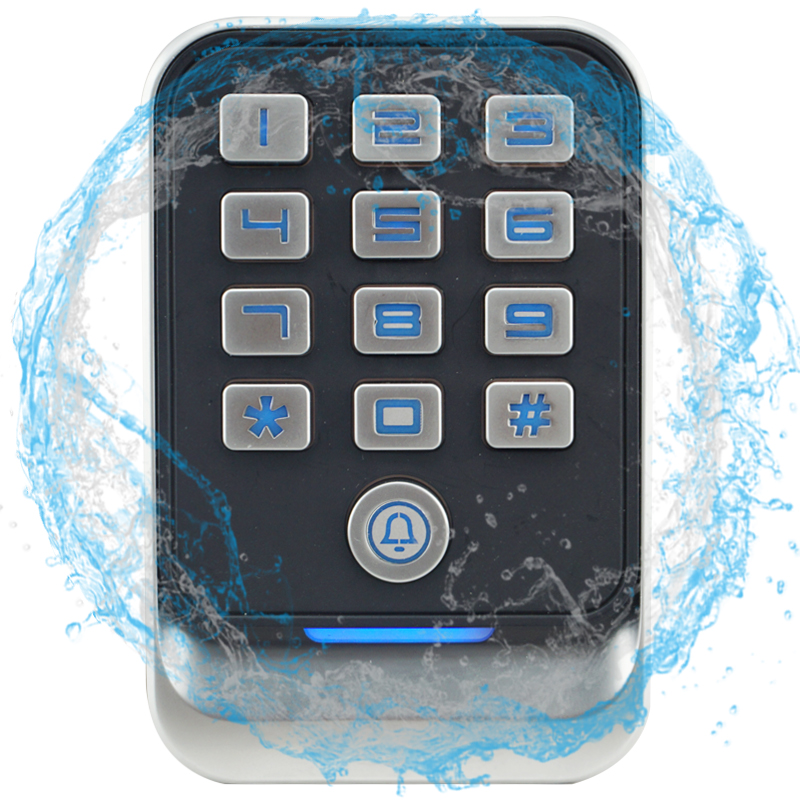

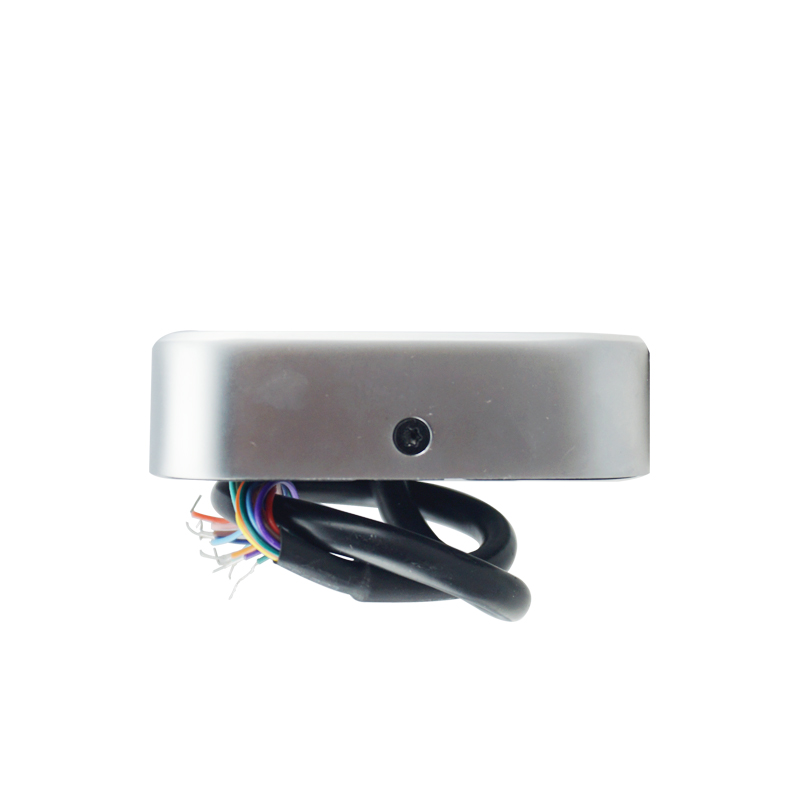

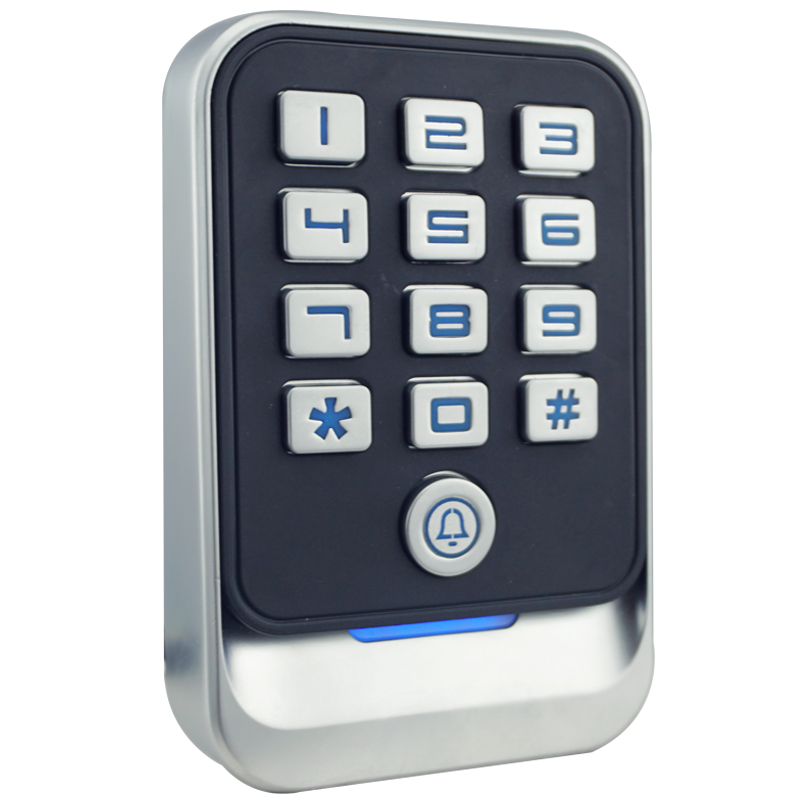

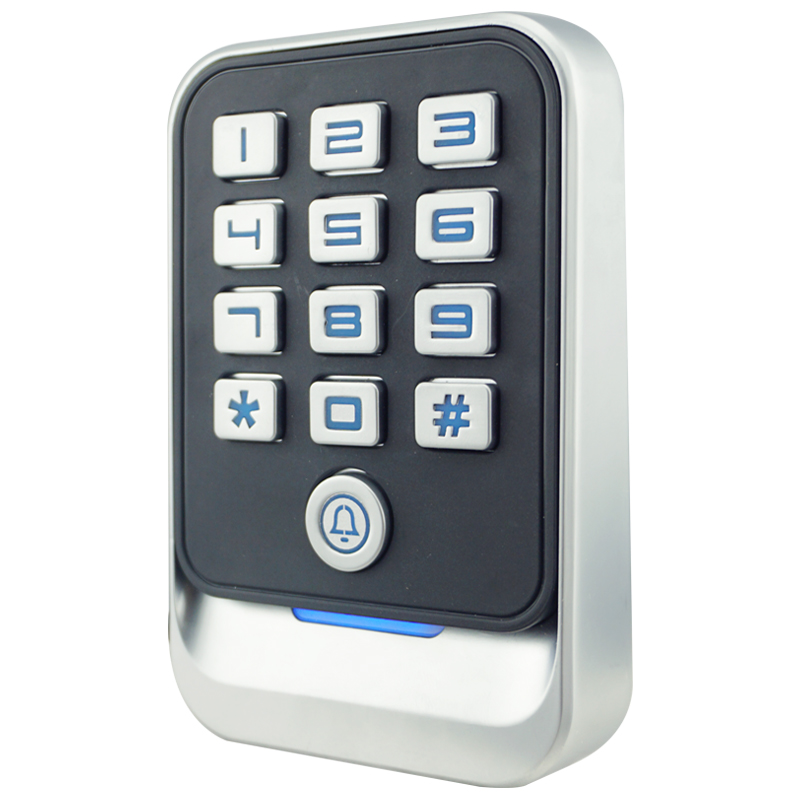

IP67 Waterproof Metal Access Control/Wiegand Reader for Single Door access control keypad

  • Model:MQ-806C/MQ-806D
  • RFID frequency:IC(13.56Mhz)/ID(125Khz)
  • Reading distance:0~3cm
  • User capacity: 5000
  • Power supply: DC 12V
  • Working mode:Access control mode/ WG card reader mode(adjustable)
  • Working current:≤200mA
  • Static current: ≤150mA
  • Door open time:0~99s(adjustable)
  • Working temperature:-20℃~60℃
  • Working humidity:20%~80%
  • Storage temperature:-20℃~60℃
  • Dimension:120x80x22mm (error ± 3mm)
  • Color:Silver
  • Weight:0.458kg

Metal IP67 13.56MHz/125Khz Access Controller Keypad for Harsh Environment with WG output


MQ-806's main parameter

Product name: IP67 Waterproof Metal Keypad Access Control/Wiegand Reader for Single Door  with 5000 user capacity
Model: MQ-806C MQ-806D
RFID frequency: IC(13.56Mhz) ID(125Khz)
Reading distance: 0~3cm
User capacity: 5000
Power supply: DC 12V
Working mode: Access control mode/ WG card reader mode(adjustable)
Working current: ≤200mA
Static current: ≤150mA
Door open time: 0~99s(adjustable)
Working temperature: -20℃~60℃
Working humidity: 20%~80%
Storage temperature:   -20℃~60℃
Dimension: 120x80x22mm (error ± 3mm)
Color: Silver
Weight: 0.458kg

What feateurs MQ-806 have?








How about other choice?


Metal IP67 13.56MHz/125Khz Access Controller Keypad for Harsh Environment with WG output

Metal IP67 13.56MHz/125Khz Access Controller Keypad for Harsh Environment with WG output

Metal IP67 13.56MHz/125Khz Access Controller Keypad for Harsh Environment with WG output
