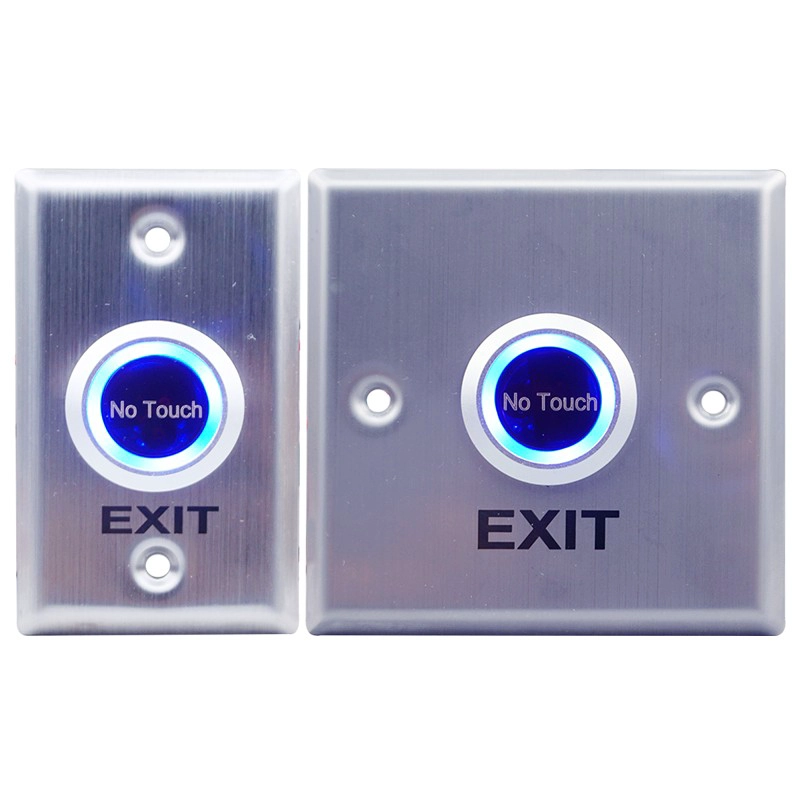

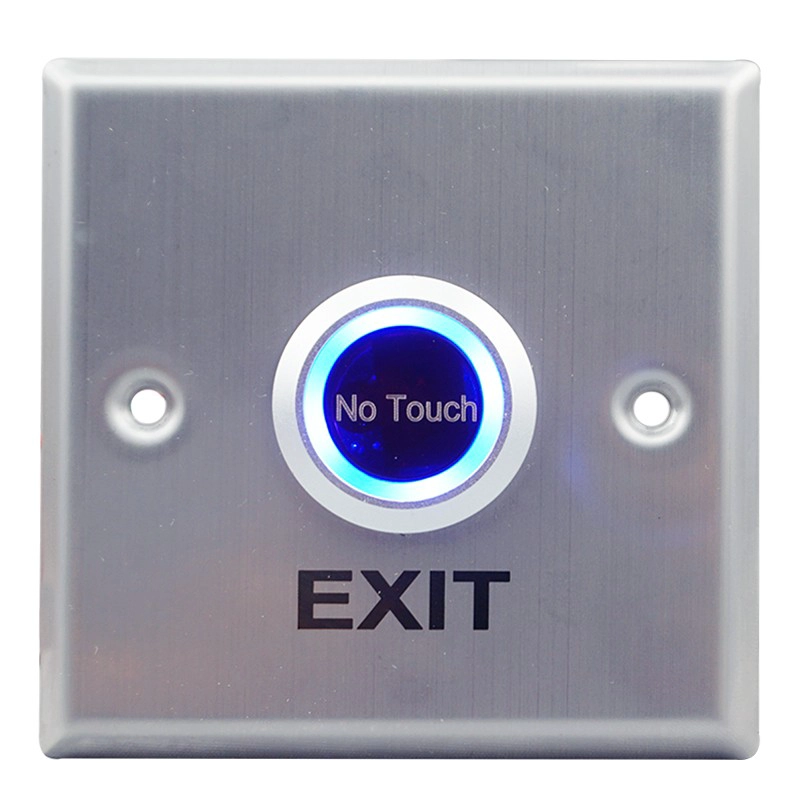

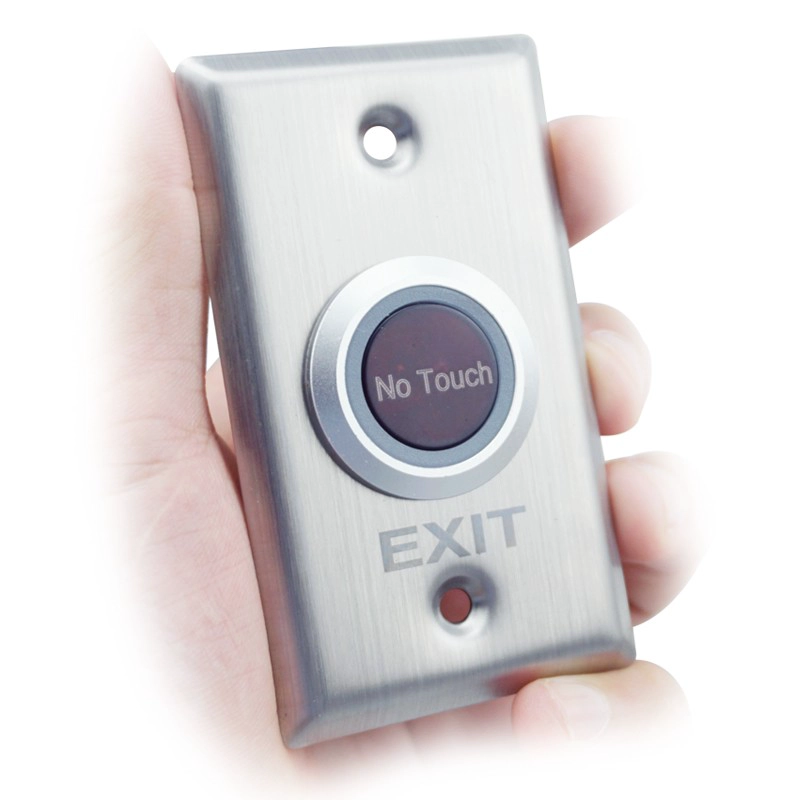

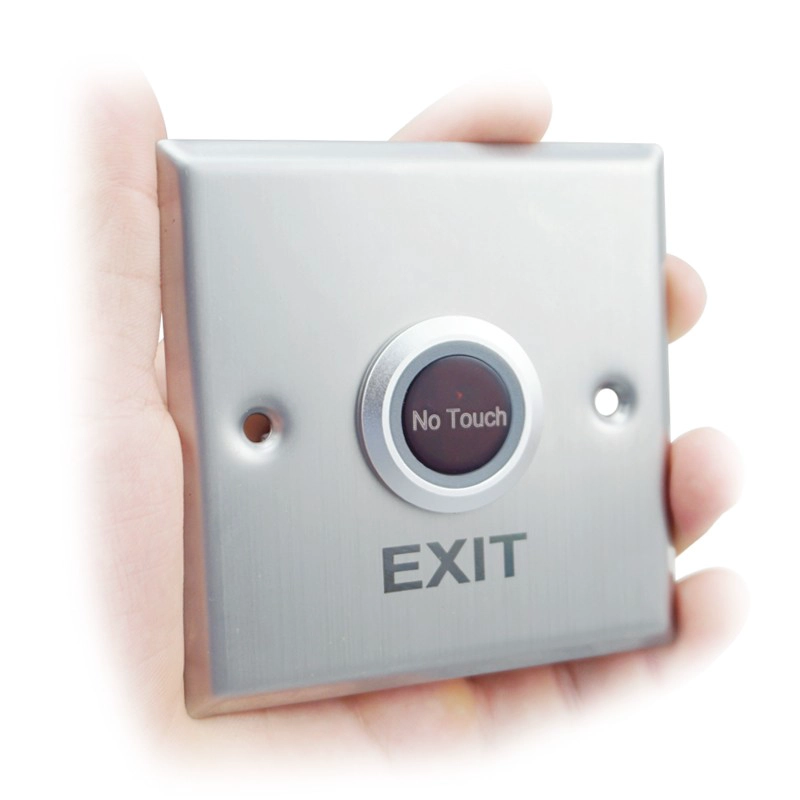

LED Indication No Touch Contactless Infrared induction Door Release Exit Button for access control system
- Model:EA-21C EA-21D
- Size:86*50*25mm 86*86*25mm
- Weight: 0.08kg 0.1kg
- Power supply: DC 12V
- Working mode:Touch infrared induction
- Application:Door access control system
- Wires: 5 wires

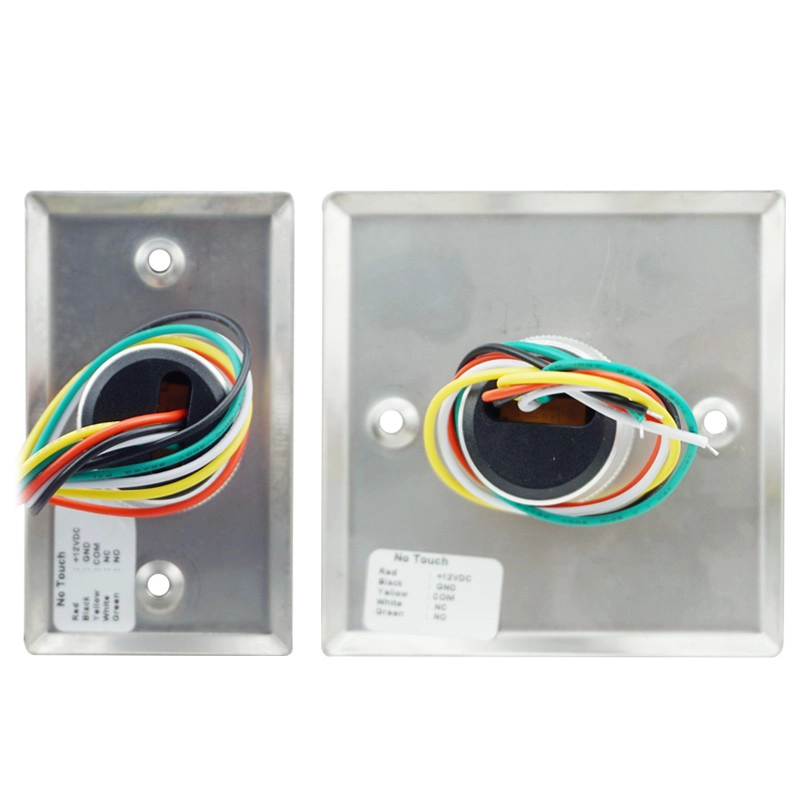

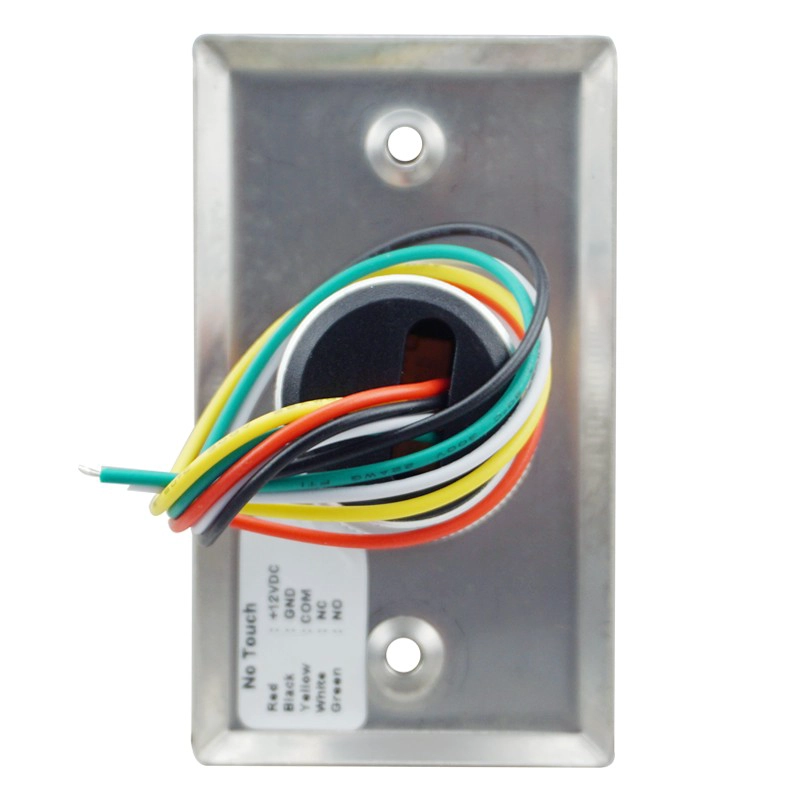

- Wire port introduciton:
- Red wire: DC 12V input
- Black wire: GND
- Yellow wire: COM
- White wire: NC
- Green wire: NO
- Material:Stainless panel+ PCB board
- Working temperature:-20℃~50℃
- Warranty:1 Years
LED Indication No Touch Contactless Infrared induction Door Release Exit Button for access control system
EA-21C/D's main parameter
| Product name: | 2020 SMQT LED Indication Touch Door Release Infrared Exit Button for access control system | |
| Model: | EA-21C | EA-21D |
| Size: | 86*50*25mm | 86*86*25mm |
| Weight: | 0.08kg | 0.1kg |
| Power supply: | DC 12V | |
| Working mode: | Touch infrared induction | |
| Application: | Door access control system | |
| Wires: | 5 wires | |
| Wire port introduciton: |
Red wire: DC 12V input Black wire: GND Yellow wire: COM White wire: NC Green wire: NO |
|
| Material: |
Stainless panel+ PCB board |
|
| Working temperature: | -20℃~50℃ | |
| Warranty: | 1 Years | |
What feateurs EA-21C/D have?
How about other choice?
LED Indication No Touch Contactless Infrared induction Door Release Exit Button for access control system
LED Indication No Touch Contactless Infrared induction Door Release Exit Button for access control system
LED Indication No Touch Contactless Infrared induction Door Release Exit Button for access control system
