Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34

Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34

  • Model number:EA-63
  • Power supply:DC 12V
  • Working current:<100mA
  • Card type:IC card(13.56MHz)
  • Communication format:WG26/WG34(adjustable)
  • Reading distance:5~15cm
  • Communication distance:>80m(between card reader and controller)
  • Waterproof:IP66(suitable for outdoor use)
  • Dimension:85*45*18(mm)
  • Wires:6 wires

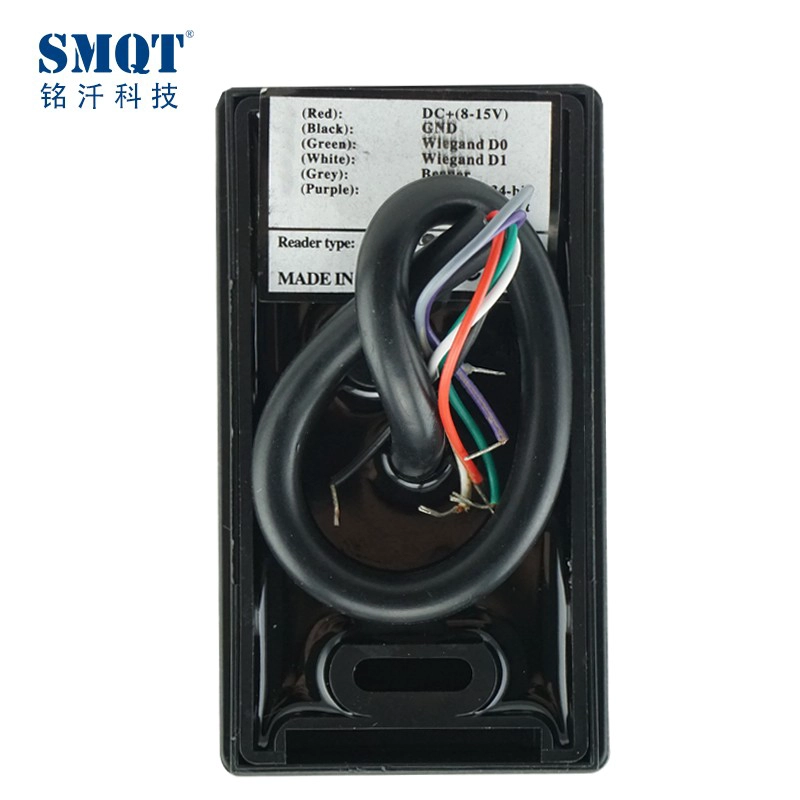

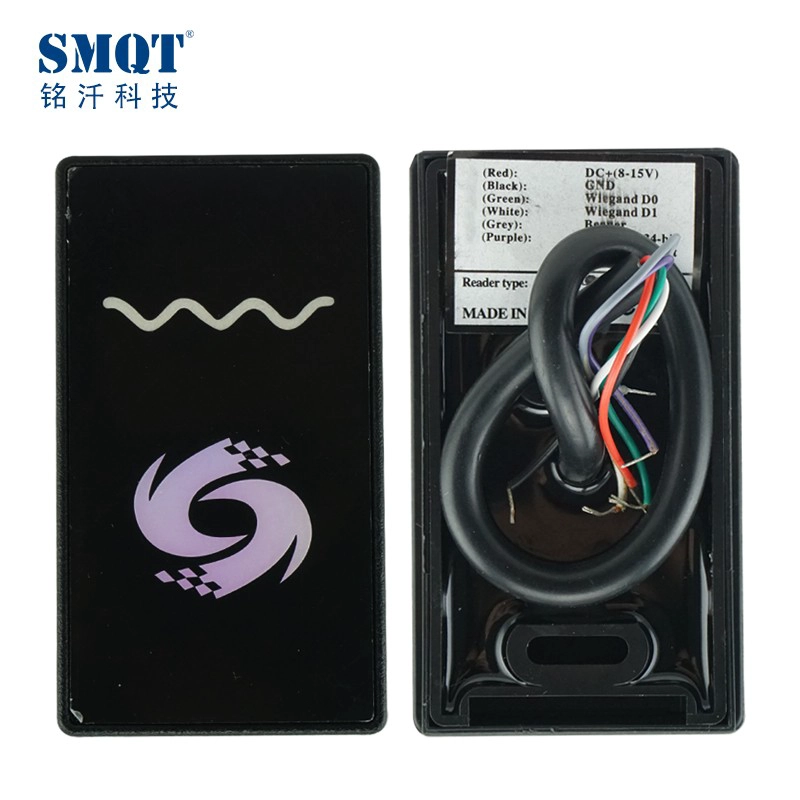

  • Contact output:12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White)/LED(Grey)/WG(Purple)
  • Suitable for:IC Card door access control system
  • Material:ABS housing+Plexiglass panel+ PCB board
  • Housing color:Black
  • Weight: 0.1kg
  • Warranty:2 years warranty
  • OEM:Welcome OEM

Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34

63 (2).jpg

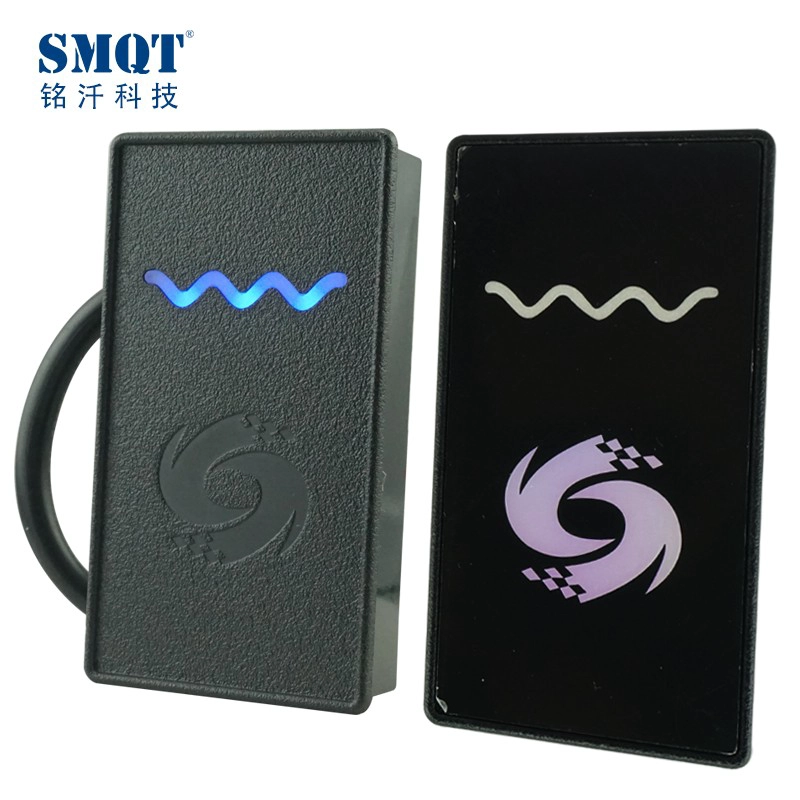

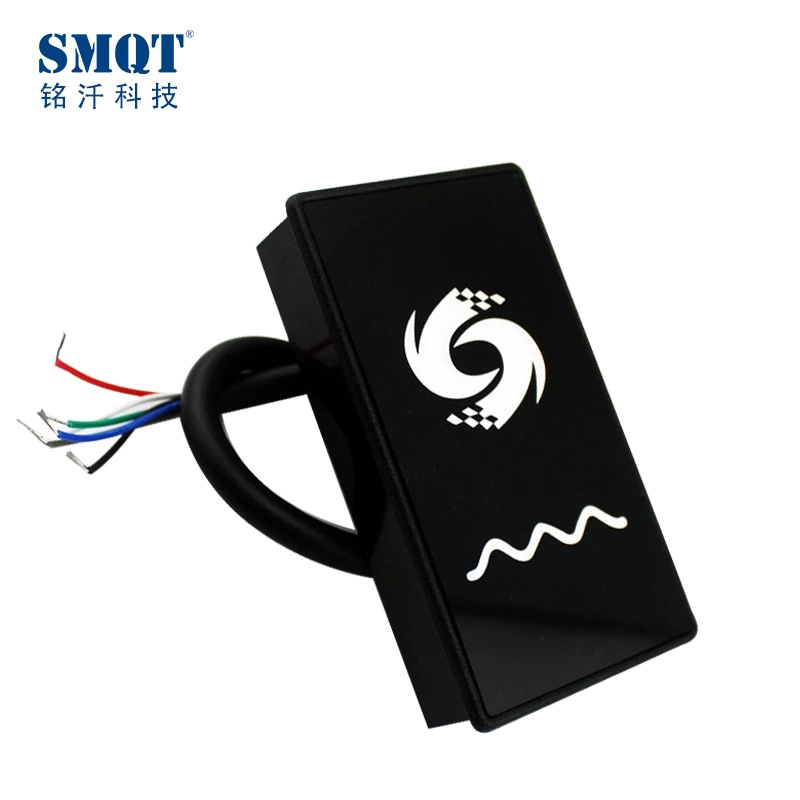

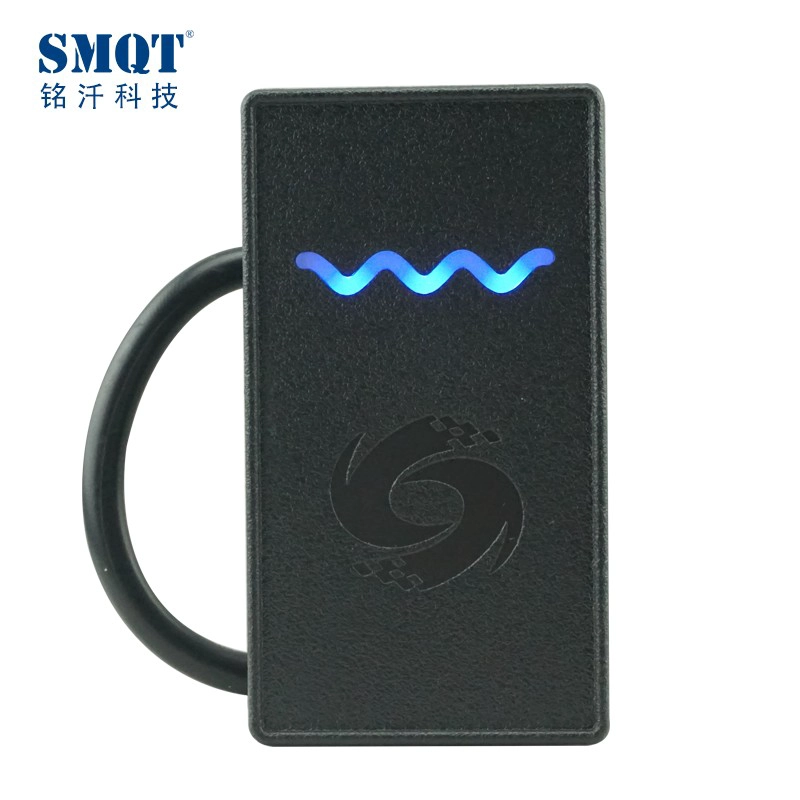

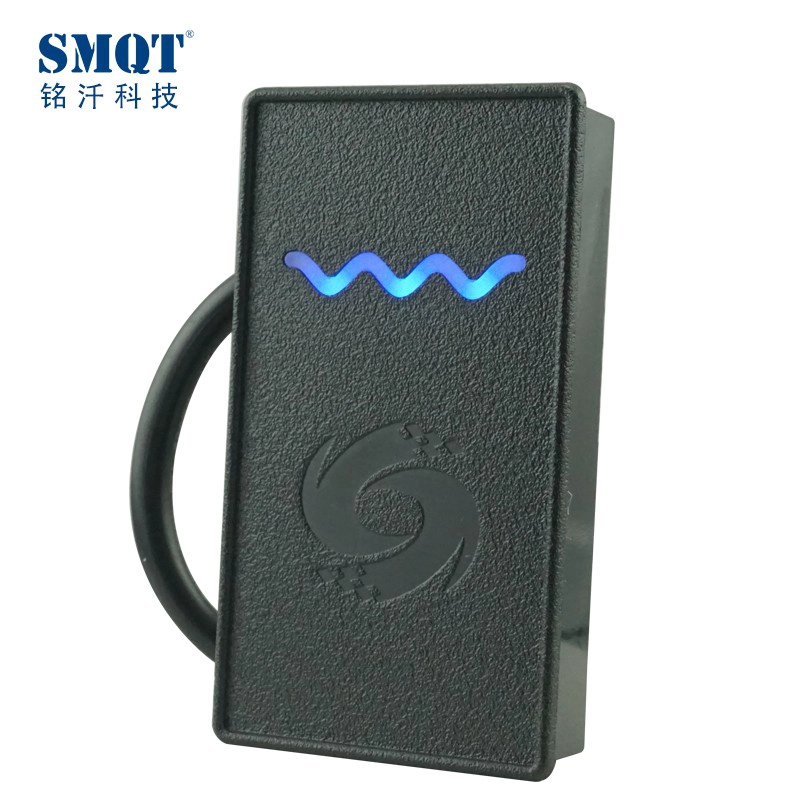

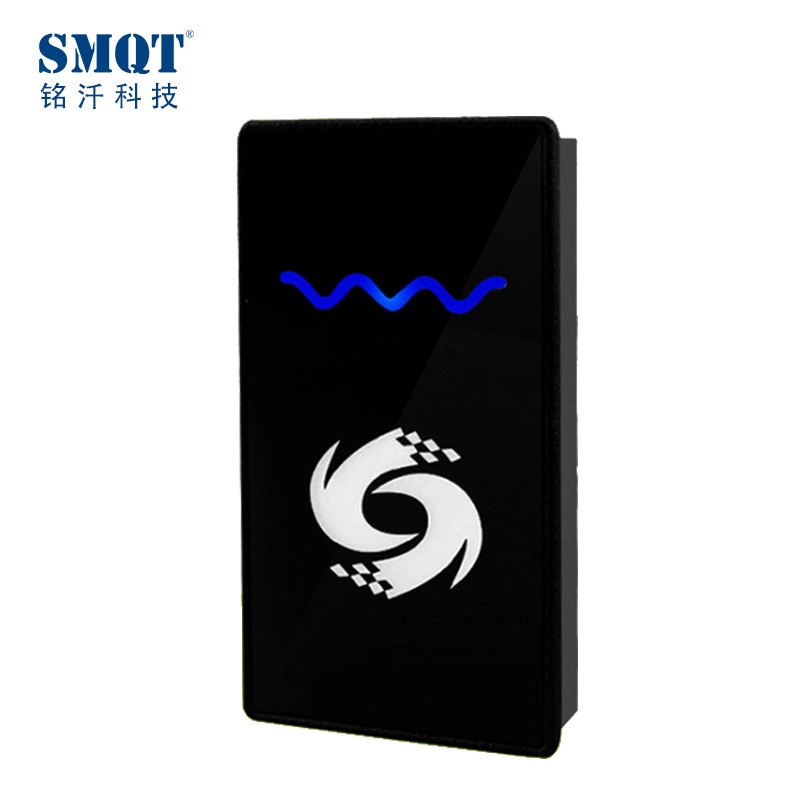

WHAT DOES EA-63  LOOK LIKE ?

632 (2).jpg

EA-63'S MAIN PARAMETER

Product Name: Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34
Model number: EA-63
Power supply: DC 12V
Working current: <100mA
Card type: IC card(13.56MHz)
Communication format: WG26/WG34(adjustable)
Reading distance: 5~15cm
Communication distance: >80m(between card reader and controller)
Waterproof: IP66(suitable for outdoor use)
Dimension: 85*45*18(mm)
Wires: 6 wires
Contact output: 12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White)/LED(Grey)/WG(Purple)
Suitable for: IC Card door access control system
Material: ABS housing+Plexiglass panel+ PCB board
Housing color: Black
Weight: 0.1kg
Warranty: 2 years warranty
OEM: Welcome OEM

WHAT FEATURES EA-63 HAVE?

630 (2).jpg

HOW ABOUT THE EA-63'S STANDARD PACKAGING?


WHERE IS THE EA-63 SUITABLE FOR INSTALLATION?

631 (2).jpg

HOW ABOUT OTHER CHOICE?


Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34

Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34

Outdoor RFID 13.56MHz Proximity Card Access Control Reader with Wiegand 26 and 34
