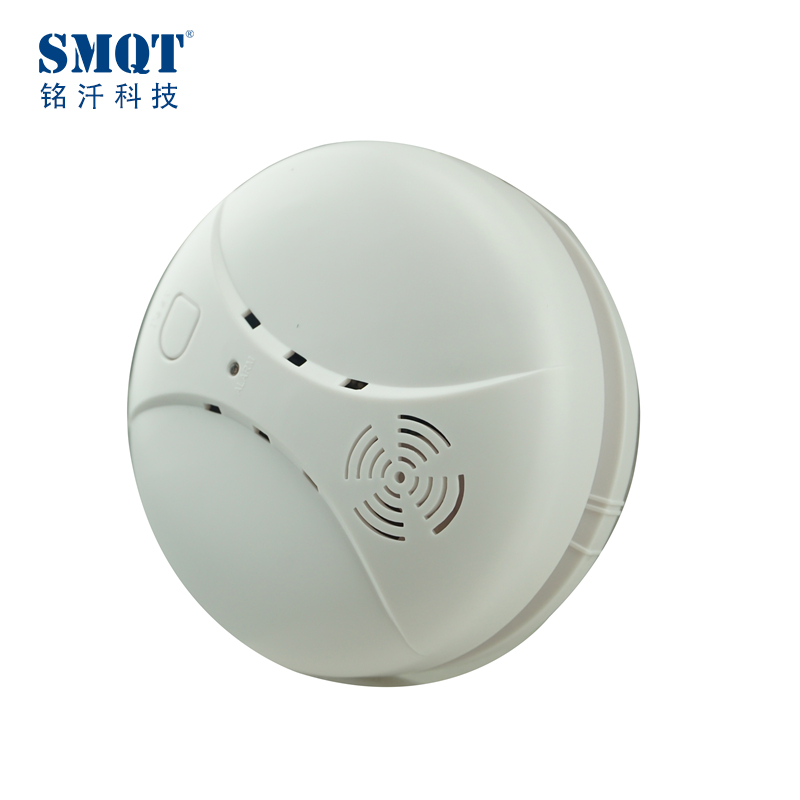

SMQT New Wireless 433MHz/Standalone photoelectric smoke detector with 9V battery for home alarm system

  • Model:EB-117w-1
  • box case dimension:Ø113*45(mm)
  • Power supply:9V carbon-zinc/alkaline battery
  • Static current:≤10uA
  • Alarm current:≤35mA
  • Buzzer volume:80dB
  • Wireless frequency:433MHz(1527 chip code)/315MHz(2262 chip code)
  • Wireless emission distance:≤100m(open air)
  • Smoke detecting sensitivity:II Grade
  • Working temperature:-10℃~+55℃
  • Working humidty:<80%
  • Battery life time:<1 year
  • Feature:Wireless working or standalone working both ok
  • Color:White
  • Weight: 0.21kg

SMQT New Wireless 433MHz/Standalone photoelectric smoke detector with 9V battery for home alarm system


Parameter
Product name:

SMQT New Wireless 433MHz/Standalone photoelectric smoke detector with 9V battery for home alarm system

Model:

EB-117w-1

box case dimension:

Ø113*45(mm)

Power supply:  9V carbon-zinc/alkaline battery
Static current: ≤10uA
Alarm current:

≤35mA

Buzzer volume: 80dB
Wireless frequency: 433MHz(1527 chip code)/315MHz(2262 chip code)
Wireless emission distance: ≤100m(open air)
Smoke detecting sensitivity: II Grade
Working temperature: -10℃~+55℃
Working humidty: <80%
Battery life time: <1 year
Feature: Wireless working or standalone working both ok
Color: White
Weight: 0.21kg

WHAT FEATURE OF THE EB-117W-1?

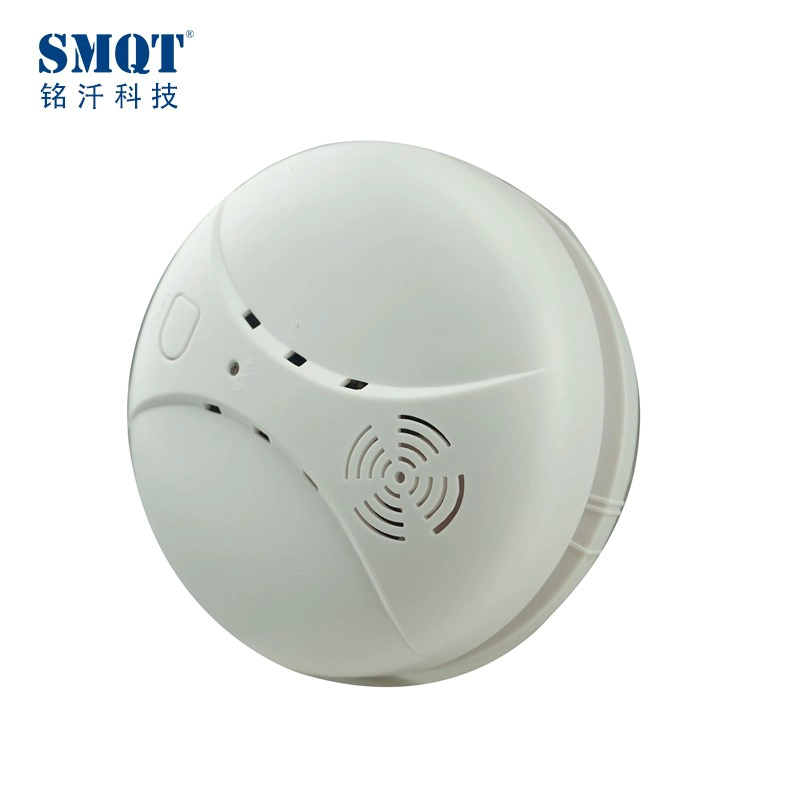

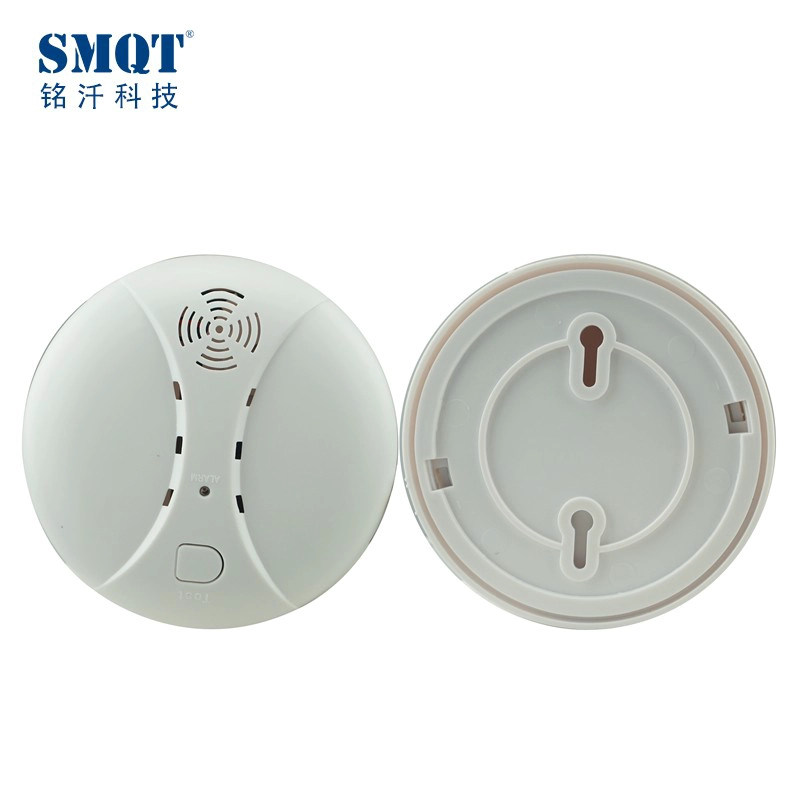

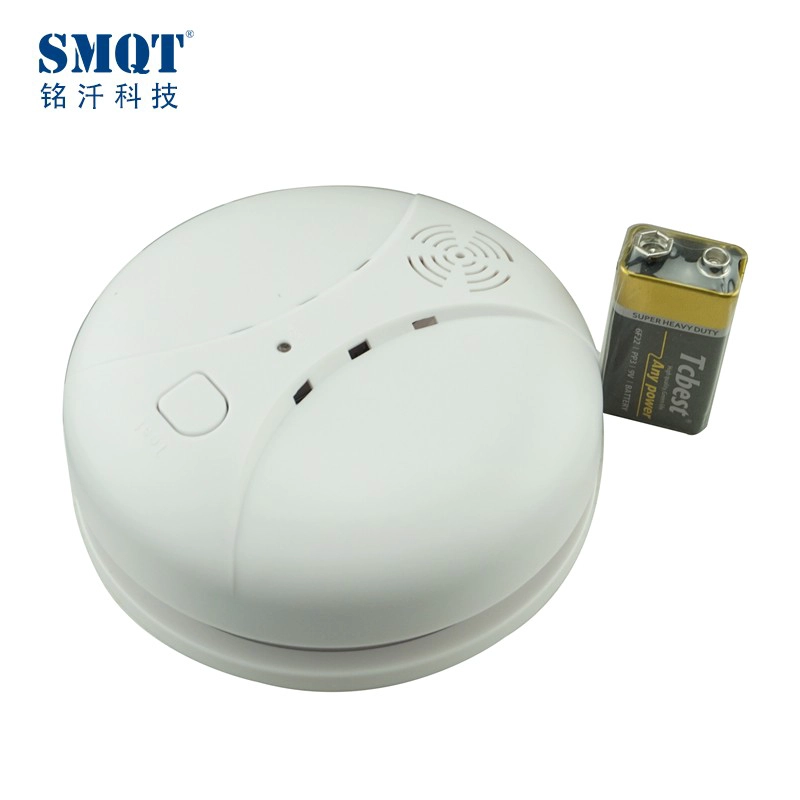

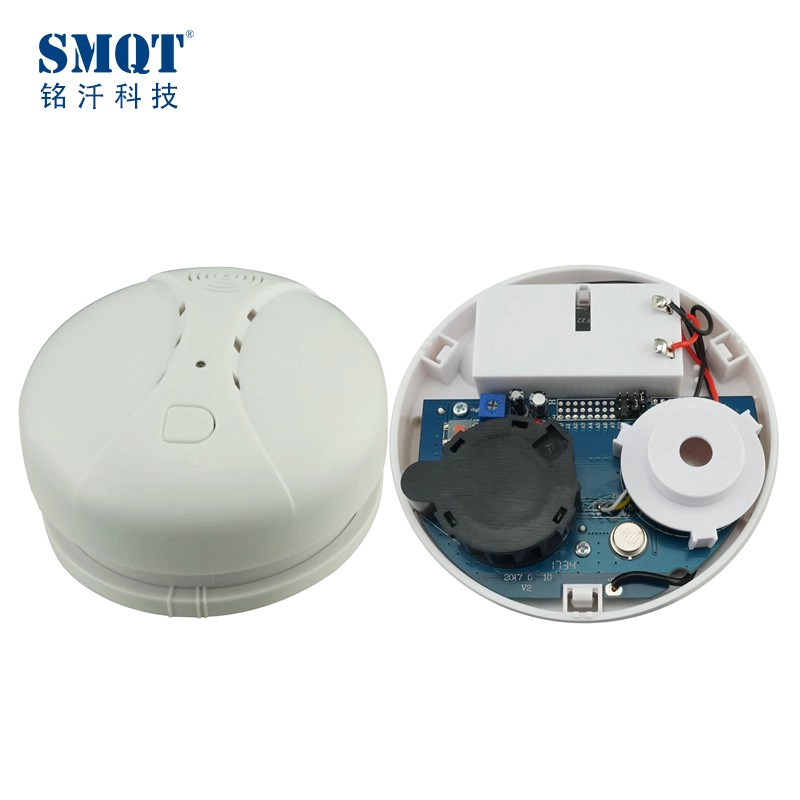

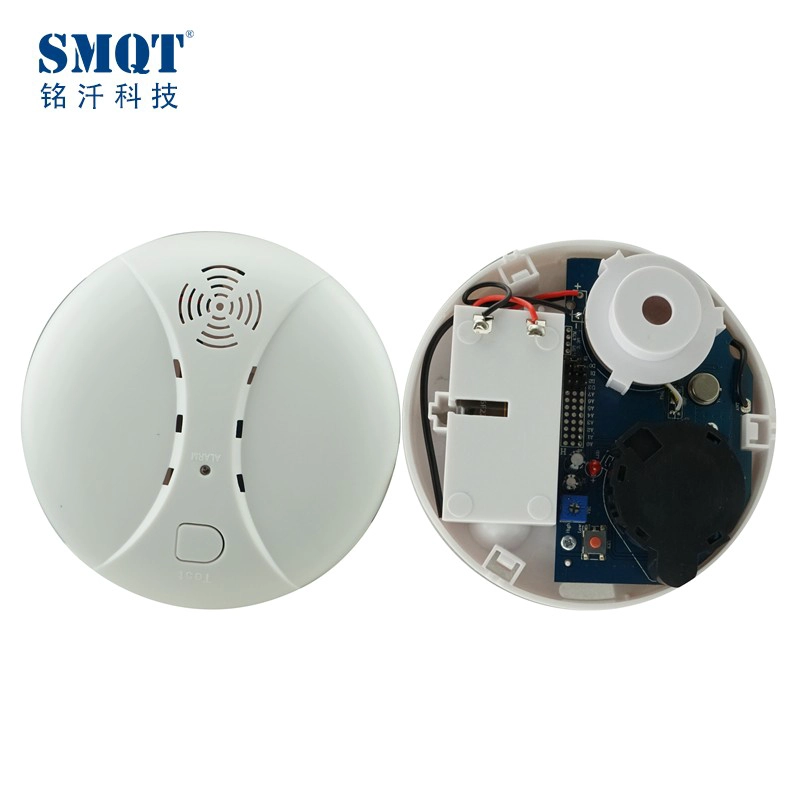

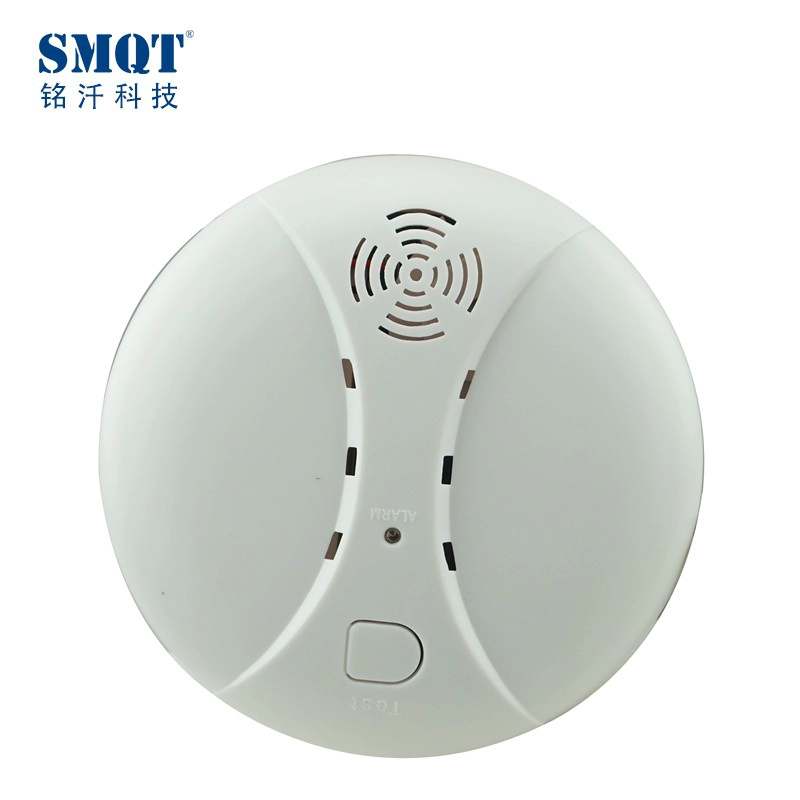

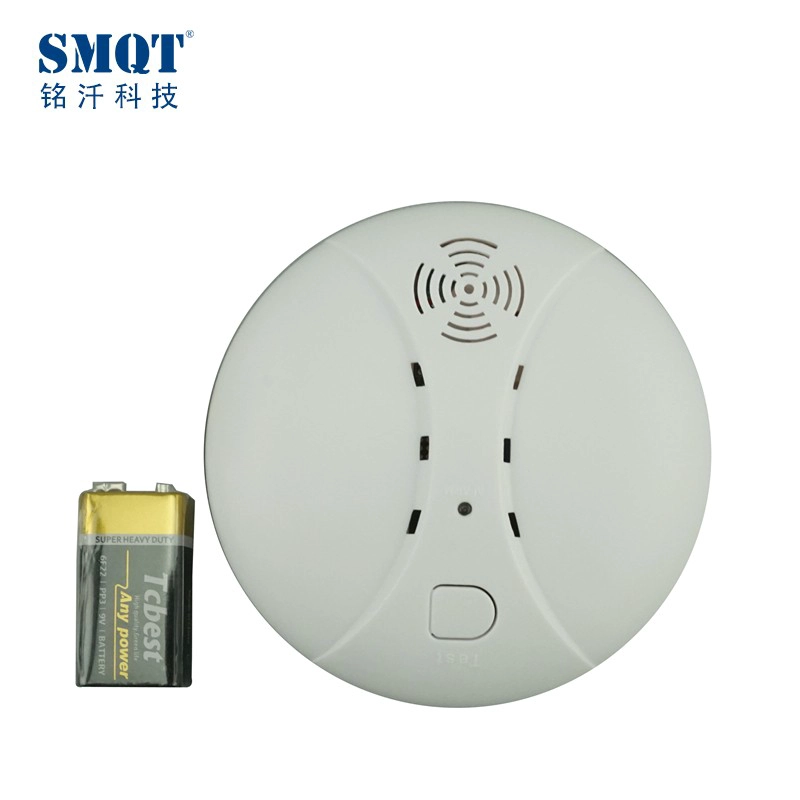

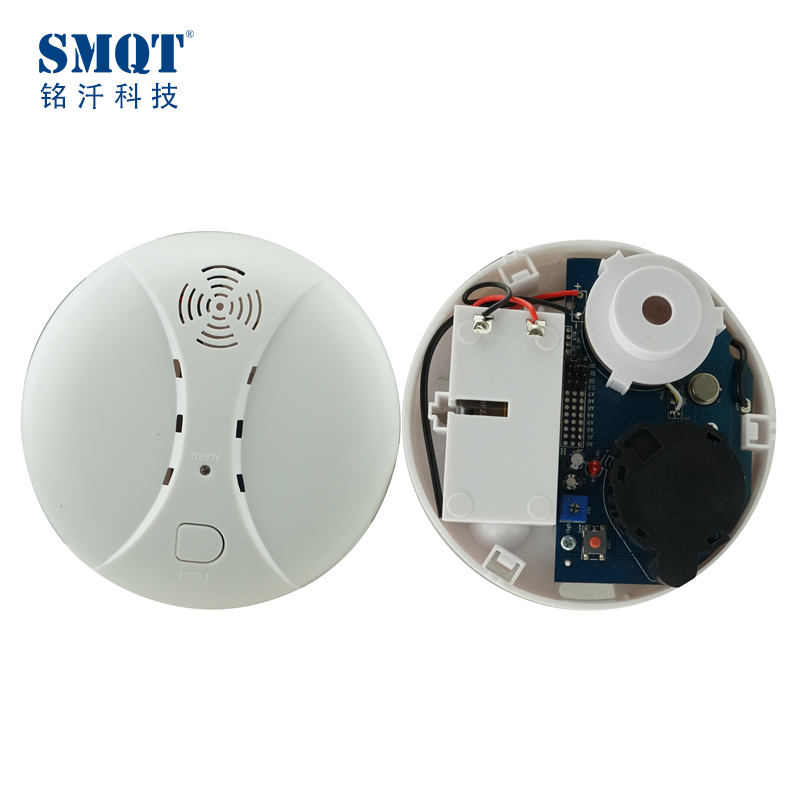

WHAT IS THE EB-117W-1 LOOK LIKE?


HOW ABOUT THE EB-117W-1'S STANDARD PACKGE?


HOW TO USE IT?


EB-117W-1 wireless smoke detector is widely use in home fire alarm, Can prevent fire effectively, keep your home safe.

HOW ABOUT OTHER CHOICE?


HOW ABOUT OUR COMPANY?


CUSTOMER

EXHIBITION





CERTIFICATE


HOW TO COOPERATION?

How to coperation.jpg

FAQ

Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit, the more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
