Two CH 12V/24V 433Mhz/315Mhz wireless universal remote controller
- Model EA-11-2-12, EA-11-2-24
- Size
- Receiver:68*48*20(mm)
- Sender:53*23*10(mm)
- Receiver:68*48*20(mm)
- Sender:53*23*10(mm)
- Working voltage 12V DC 24V DC
- Working Current <6MA
- Power consumption 10mW 10mW
- Max connect remote controller 1 Receiver max match 30 pcs transmitters
- Wireless frequency 315Mhz/433Mhz(optional)
- Communication distance 100m in open air
- Working temperature -20℃~50℃
- Storage temperature -25℃~65℃
- Operating humidity 95%

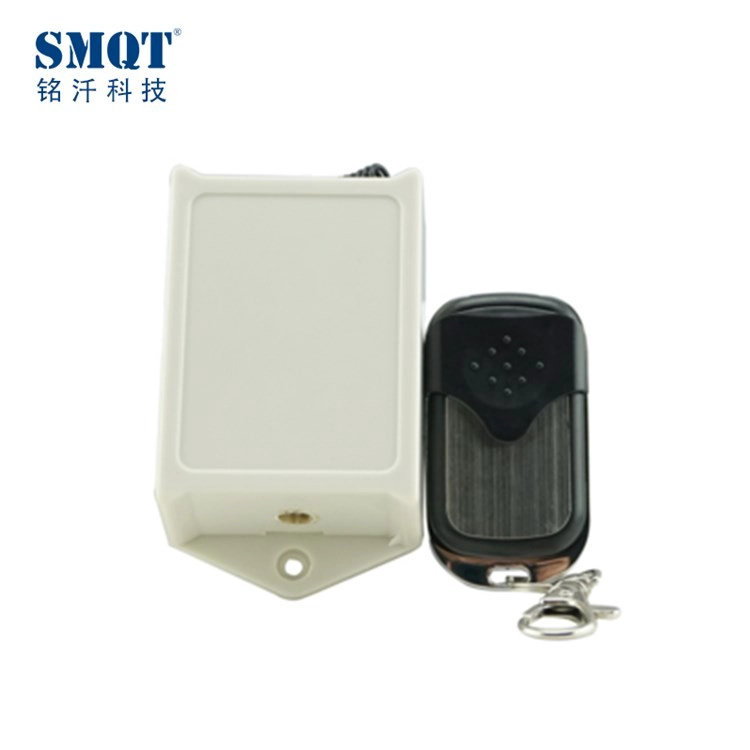

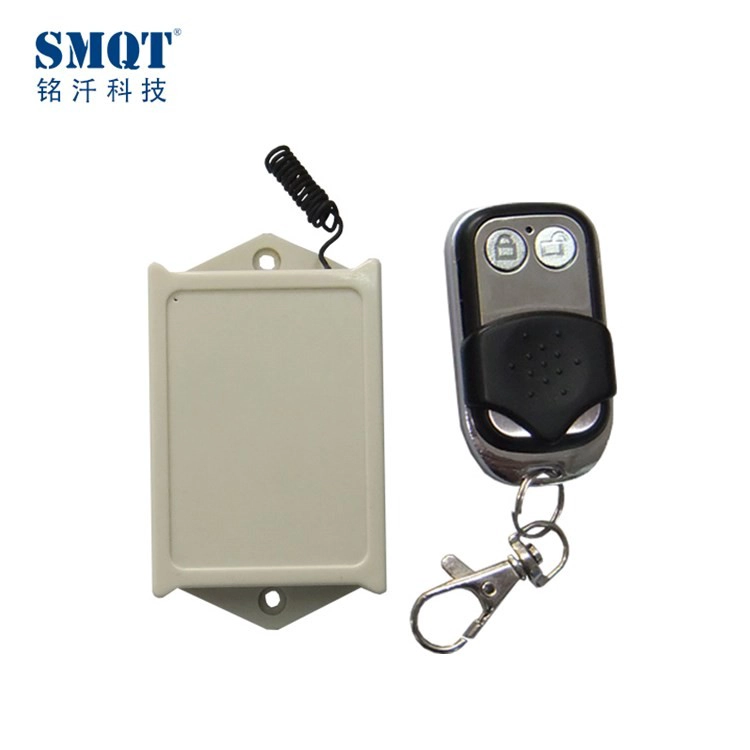

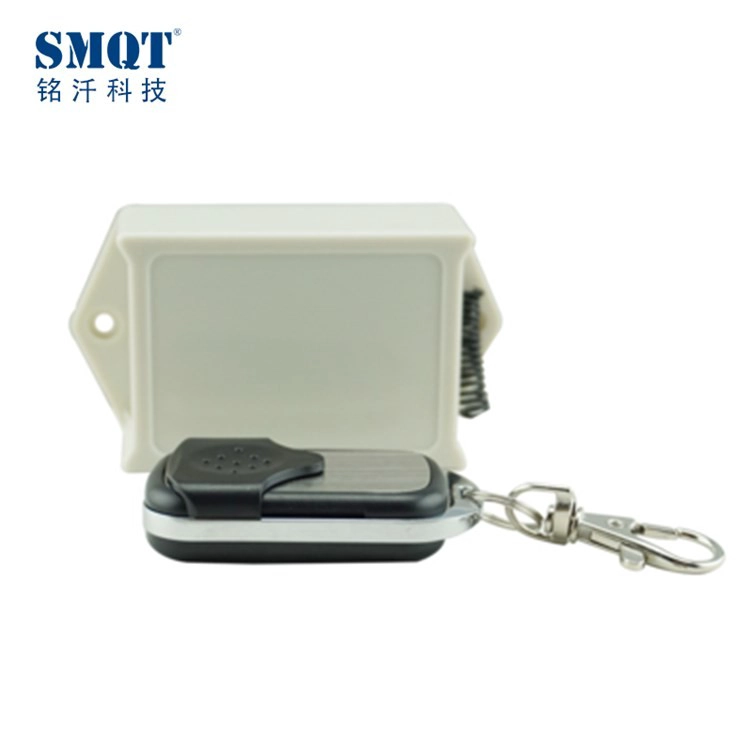

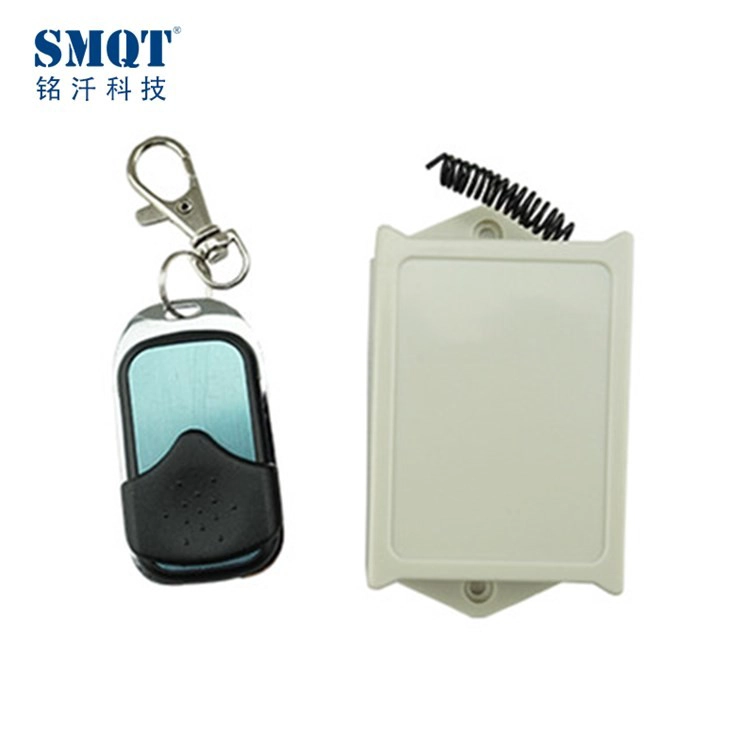

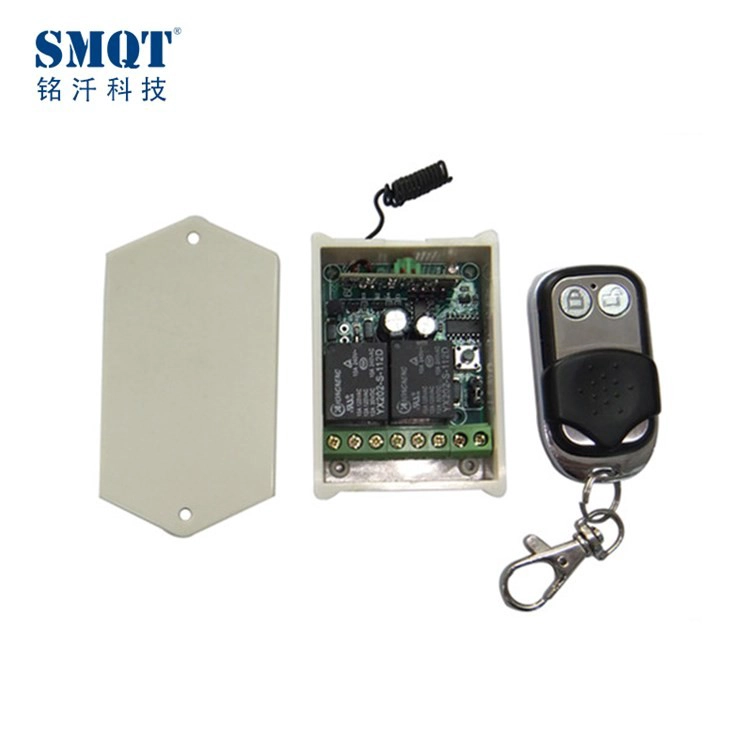

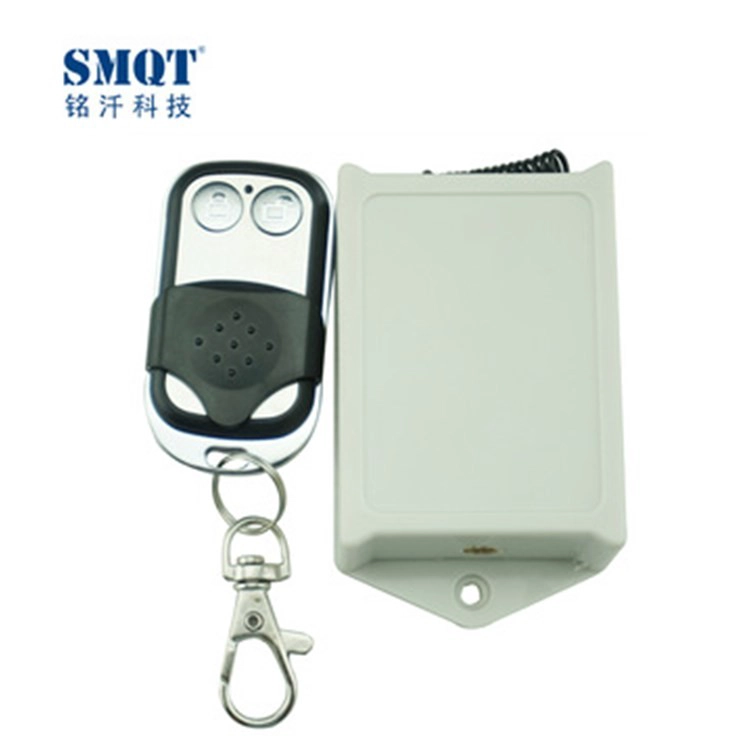

Two CH 12V/24V 433Mhz/315Mhz wireless universal remote controller
Product Introduction
| Specification | ||
| Product name | 2 Channel remote control device ,remote controller for Access control systemcontrol system | |
| Model | EA-11-2-12 | EA-11-2-24 |
| Size |
Receiver:68*48*20(mm) Sender:53*23*10(mm) |
Receiver:68*48*20(mm) Sender:53*23*10(mm) |
| Working voltage | 12V DC | 24V DC |
| Working Current | <6MA | <6MA |
| Power consumption | 10mW | 10mW |
| Max connect remote controller | 1 Receiver max match 30 pcs transmitters | 1 Receiver max match 30 pcs transmitters |
| Wireless frequency | 315Mhz/433Mhz(optional) | 315Mhz/433Mhz(optional) |
| Communication distance | 100m in open air | 100m in open air |
| Working temperature | -20℃~50℃ | -20℃~50℃ |
| Storage temperature | -25℃~65℃ | -25℃~65℃ |
| Operating humidity | 95% | 95% |
| Color | White | White |
| Weight | 85g | 85g |
Product Feature
What"s the features of our Two CH 12V/24V 433Mhz/315Mhz wireless universal remote controller?
Product Display
IN-KIND SHOOTING
Application
APPLICATION
Show Cases
SHOW CASES
Company Information
OFFICE SHOW
CUSTOMERS
EXHIBITION
CERTIFICATION
Our Services
HOW TO COOPERATE
FAQ
FAQ
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit.The more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
How to contact us?
Click the enter send us inquiry below.
