Waterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92KWaterproof keypad ID(125Khz) Access control card reader EA-92K

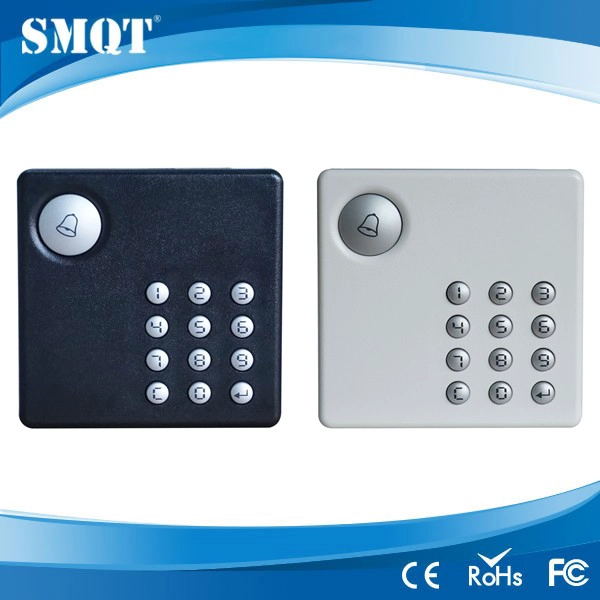

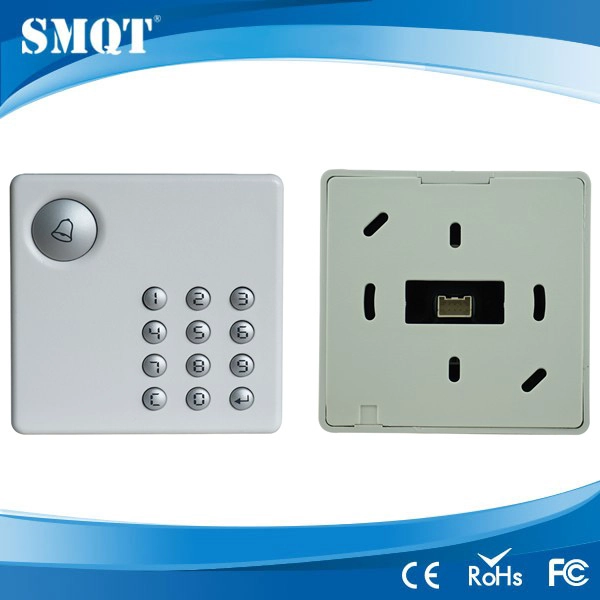

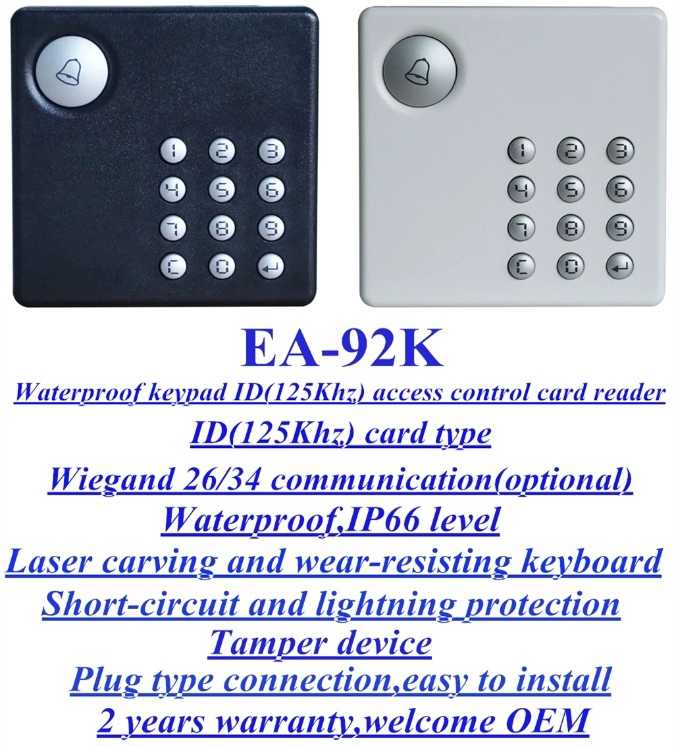

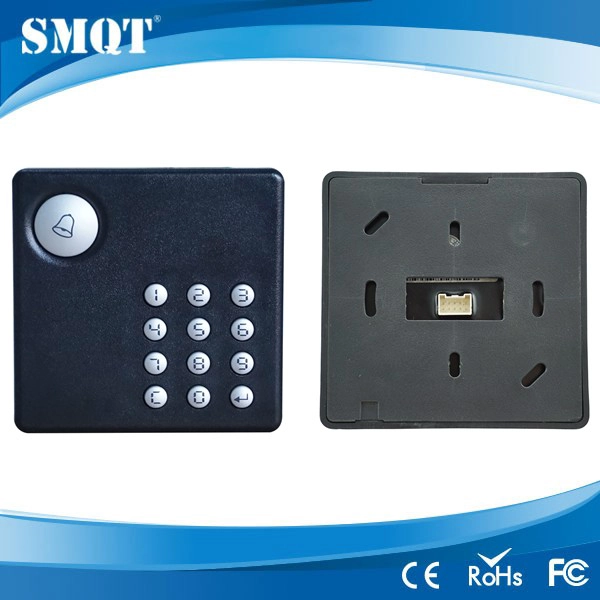

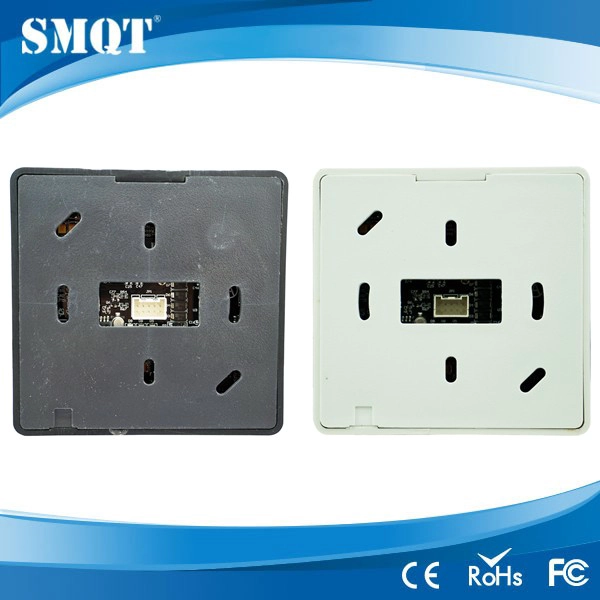

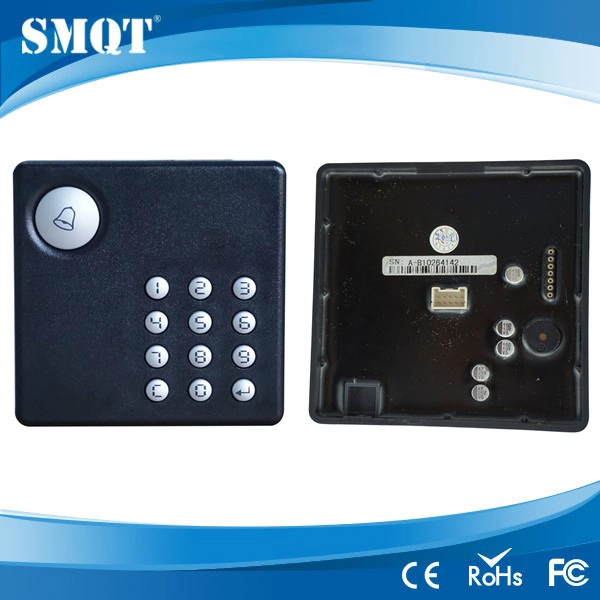

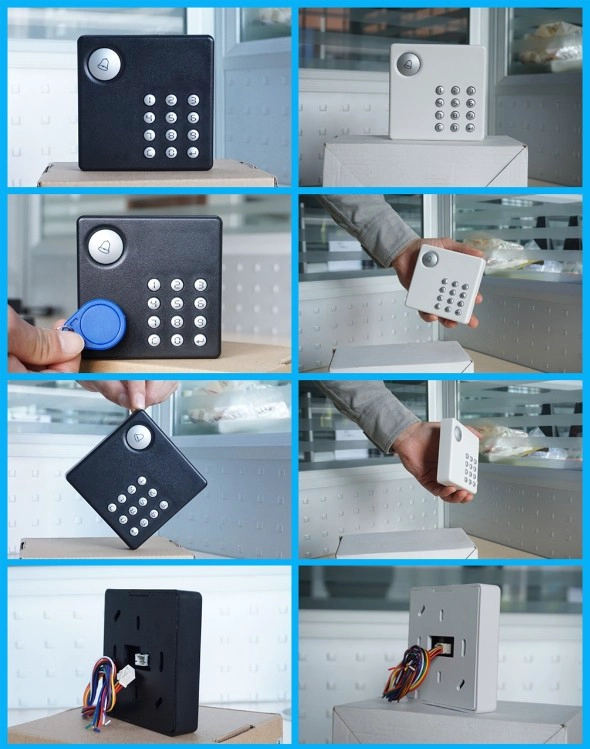

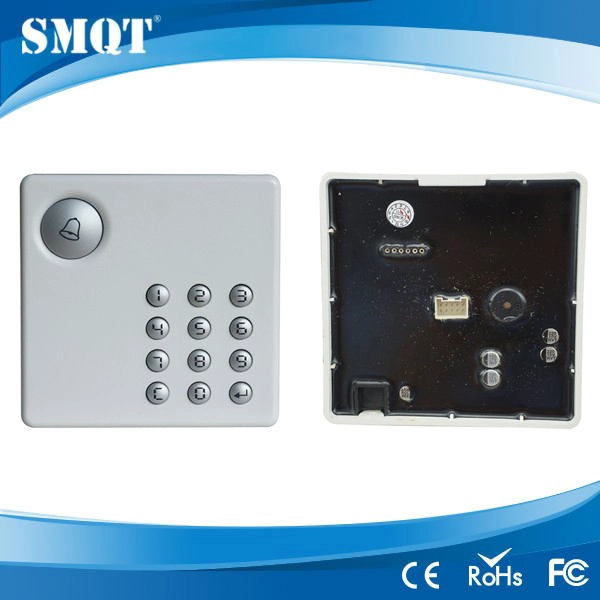

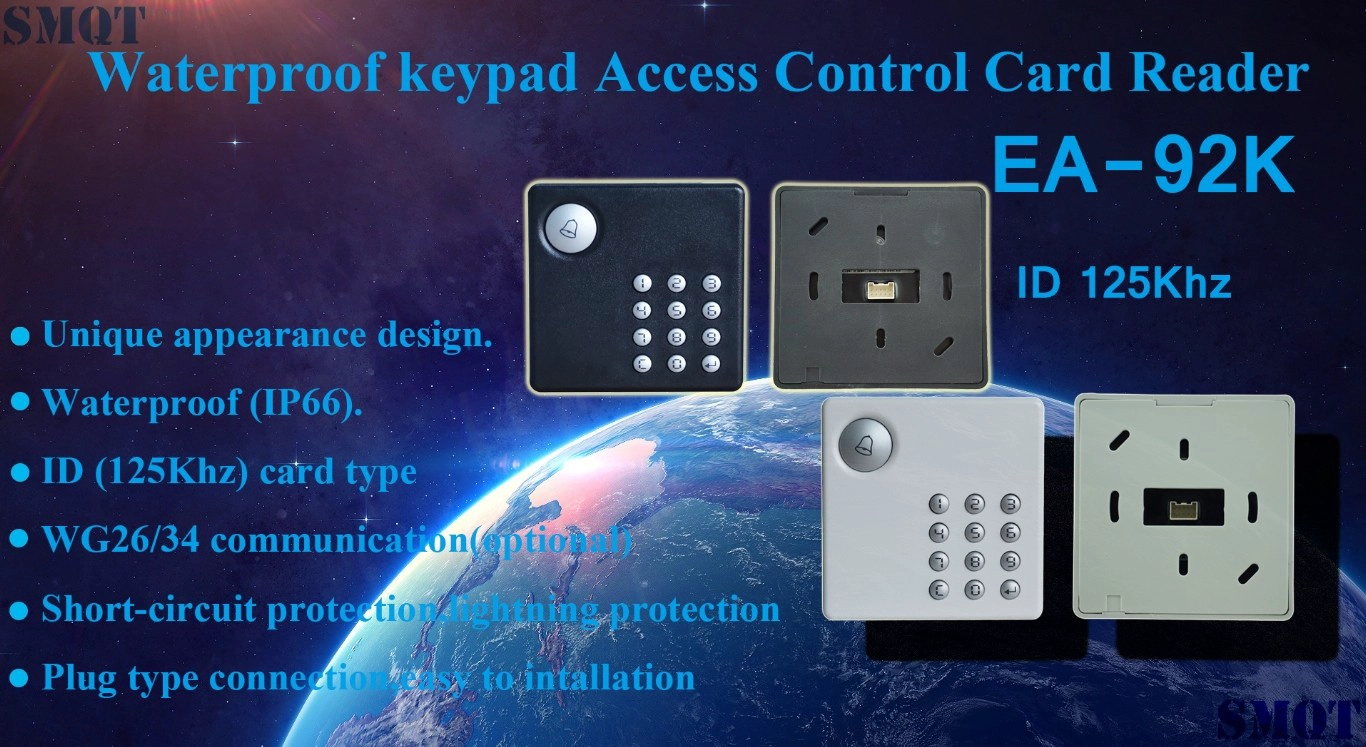

Waterproof keypad ID(125Khz) Access control card reader EA-92K

  • Model:EA-92K
  • Dimension:96×96×22(mm)
  • Working voltage:12V ± 3VDC
  • Wroking power:<1w
  • Card type:125Khz  ID
  • Induction distance:60mm
  • Cable distance:150m
  • Communication format:WG26/WG34(optional)
  • Transmitting rate:1bit/ms
  • Keypad output:4bit/8bit
  • Color:Black/White(optional)
  • Waterproof:IP66
  • Shell material:PC
  • Suit for:home office access control system
  • Environment temperature:-30 ℃~65 ℃
  • Net weight:0.25kg

Waterproof keypad ID(125Khz) Access control card reader EA-92K

 Parameter
Name Waterproof keypad ID(125Khz) Access control card reader
Model EA-92K
Dimension 96×96×22(mm)
Working voltage 12V ± 3VDC
Wroking power <1w
Card type 125Khz  ID
Induction distance 60mm
Cable distance
150m
Communication format WG26/WG34
Transmitting rate 1bit/ms
Keypad output 4bit/8bit
Color  Black/White(optional)
Waterproof IP66
Shell material  PC
Suit for  home office access control system
Environment temperature  -30 ℃~65 ℃
Net weight 0.25kg


Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K

 Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K

 Packaging list
 Product name Waterproof keypad  ID(125Khz) Access control card reader EA-92K
Qty  36 pcs per carton
Carton size  45*32*32(cm)
Weight  10kg
 Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K Waterproof keypad ID(125Khz) Access control card reader EA-92K

Waterproof keypad ID(125Khz) Access control card reader EA-92K

 Waterproof keypad ID(125Khz) Access control card reader EA-92K

FAQ
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.

Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.

Q:What is your MOQ?
A:No MOQ limit.

Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.

Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
