Wireless pir detector alarm 12VWireless pir detector alarm 12VWireless pir detector alarm 12VWireless pir detector alarm 12VWireless pir detector alarm 12VWireless pir detector alarm 12V

Wireless pir detector alarm 12V

  • Product name:Wireless pir detector alarm 12V
  • Model:EB-193
  • Dimension:110*60*45(mm)
  • Power supply:disposable battery/rechargeable lithium  battery 3.7v800mAH
  • Electicity charge:110 ~ 240V AC(USB cable)
  • Static Current:<50uA (when not charging)
  • Alarm Current:<15mA
  • Detecting angle :110° ,10*10m
  • Installation height : 2.2 m
  • Wireless frequency : 433Mhz/868Mhz(optional),1572 chip code
  • Service life of disposable battery: ≤1 years
  • Life of lithium  battery: ≤3 years
  • Battery charge time: 8 hours
  • Working temperature: -10°C~+50°C
  • Wireless Transmission Distance: 100m(open air)
  • Apply for: Wireless Home Alarm system

Wireless pir detector alarm 12V



193



Product name

Wireless pir detector alarm 12V

Model

EB-193

Dimension 110*60*45(mm)
Power supply disposable battery/rechargeable lithium  battery 3.7v800mAH
Electicity charge 110 ~ 240V AC(USB cable)
Static Current  <50uA (when not charging)
Alarm Current <15mA
Detecting angle 110° ,10*10m
Installation height  2.2 m
Wireless frequency  433Mhz/868Mhz(optional),1572 chip code
Service life of disposable battery 1 years
Life of lithium  battery ≤3 years
Battery charge time 8 hours
Working temperature -10°C~+50°C
Wireless Transmission Distance 100m(open air)
Apply for Wireless Home Alarm system





Product Features

What Features of our pir sensor?

 1934

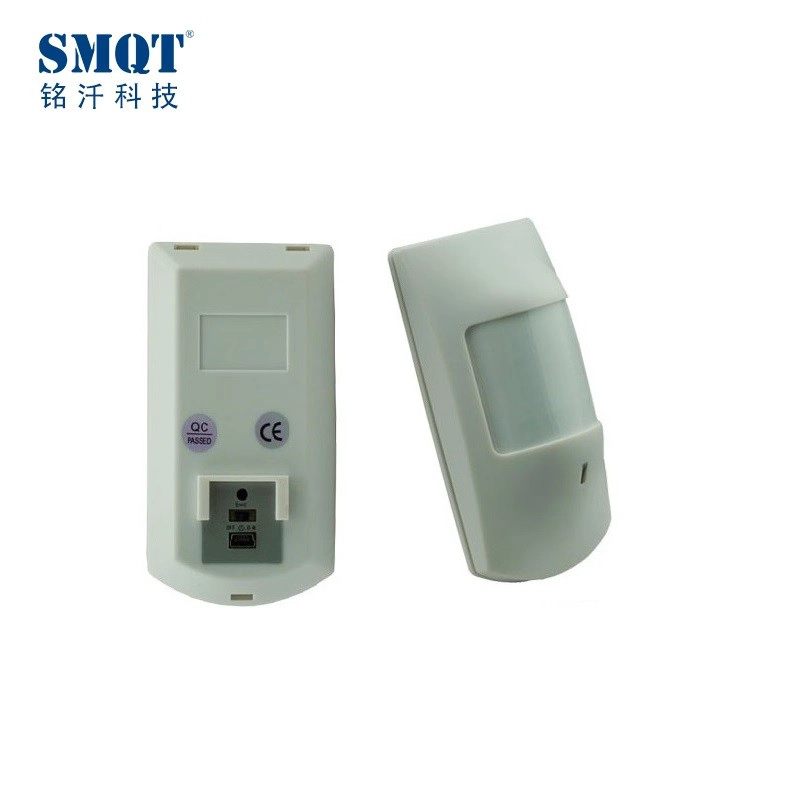

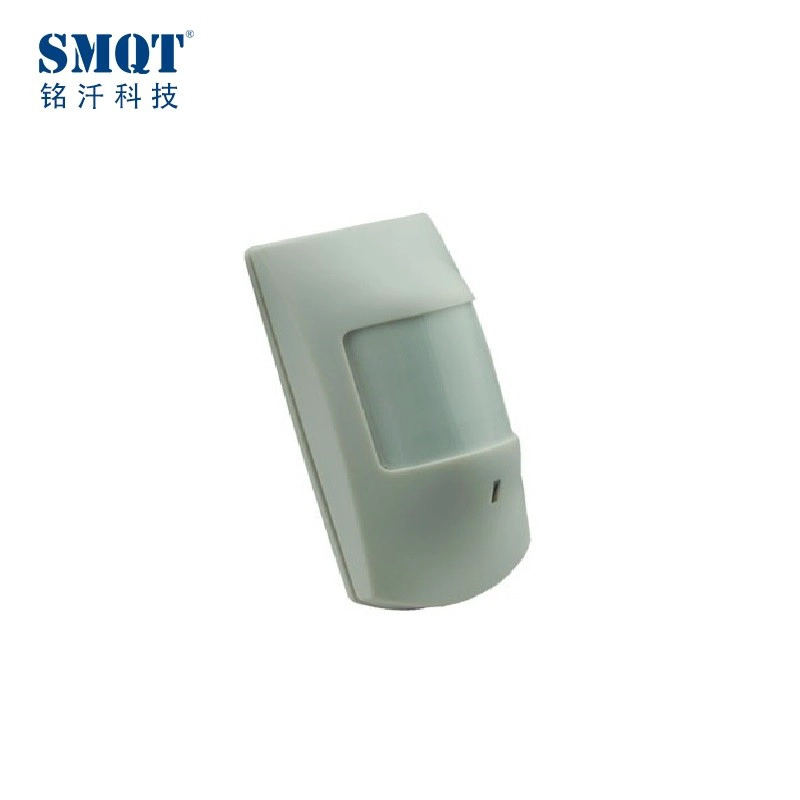

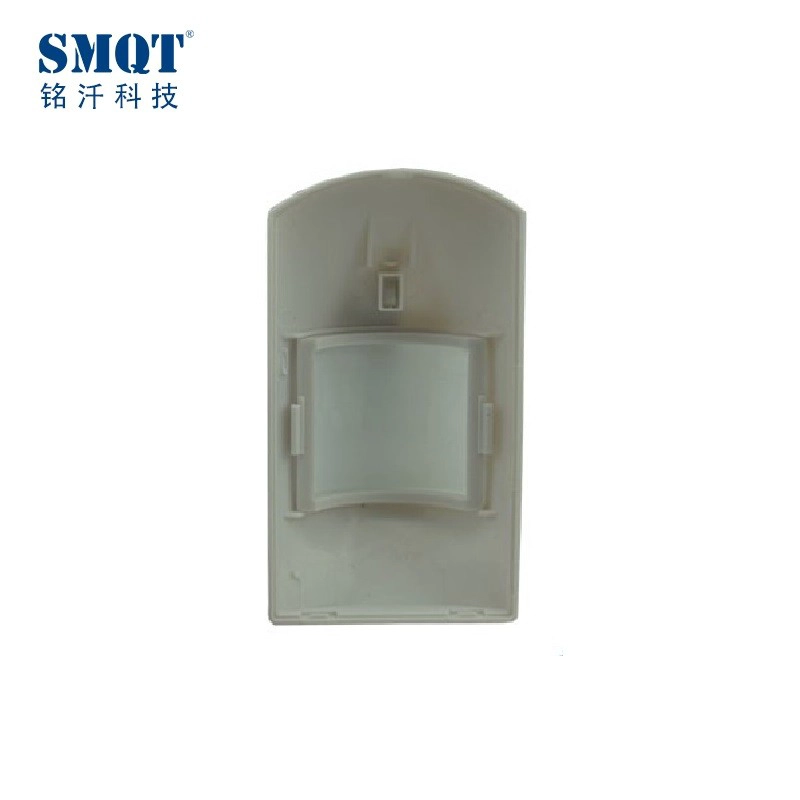

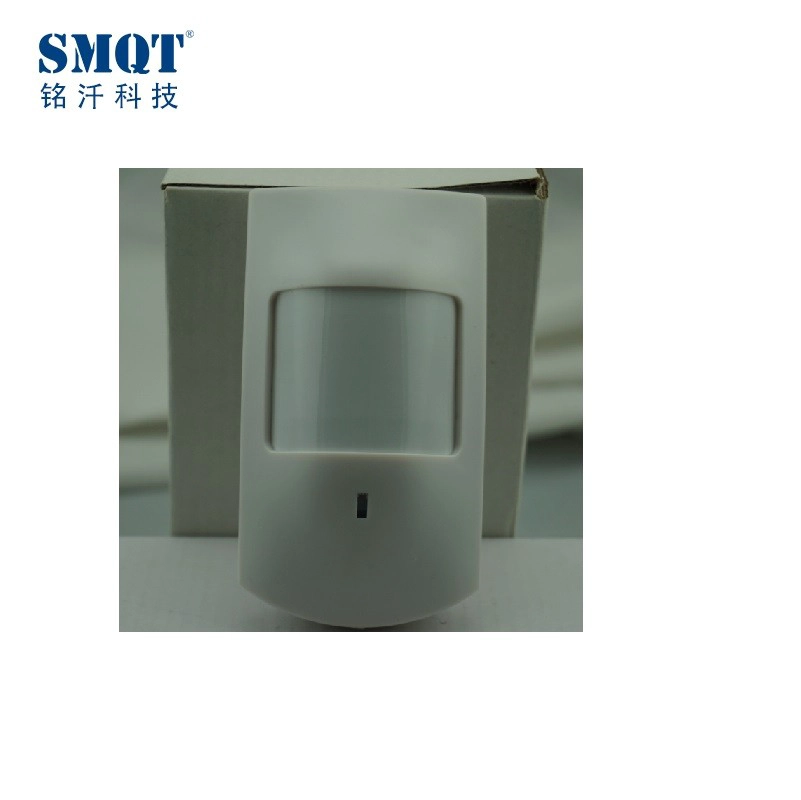

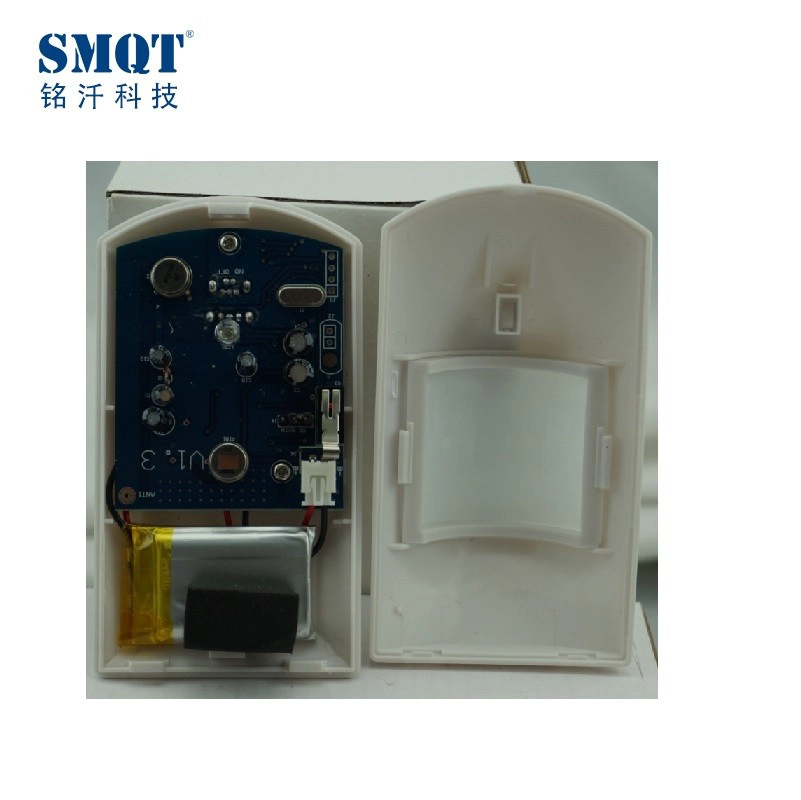

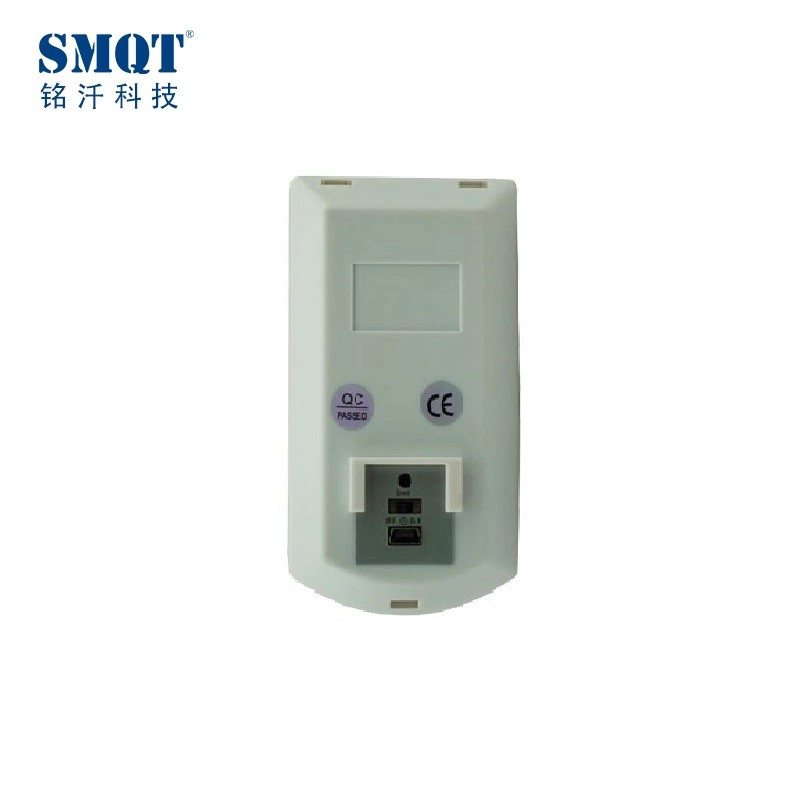

Product Picture

IN-KIND SHOOTING

 SMQT-EB-193 pir sensor (2).jpg









APPLICATION

photobank (4).jpg

Related Items

SHOW CASE

photobank (5).jpg

Company Information

OFFICE SHOW

1zong

CUSTOMER

photobank (4)

EXHIBITION

4zong

CERTIFICATE

2

HOW TO COOPERATION

How to coperation

FAQ

FAQ

Q:Can I have a sample order?

A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.



Q: What is the lead time?

A:Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 5000pcs.



Q: Do you have any MOQ limit?

A:EXW MOQ is 100pcs under blank box.



Q: How do you ship the goods and how long does it take arrive?

A:The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time depends on the shipping service.



Q:How will we proceed the order if I have logo to print?

A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.



Q: Does alarm panel work with any sensor?

A:The alarm panel can work with all dry contact wired detectors and wireless detector, including almost all

of the wireless sensors from Chinese manufacturers. The wireless encode and decode is EV1527 or our wireless sensors.
