bairier ABB infrared beambairier ABB infrared beambairier ABB infrared beam

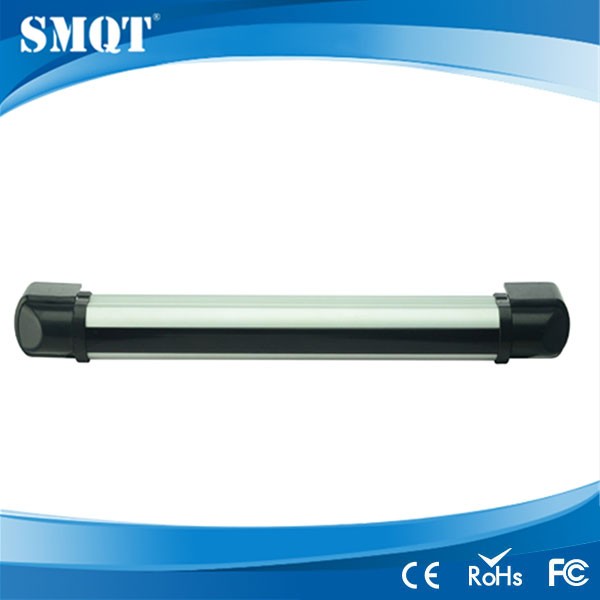

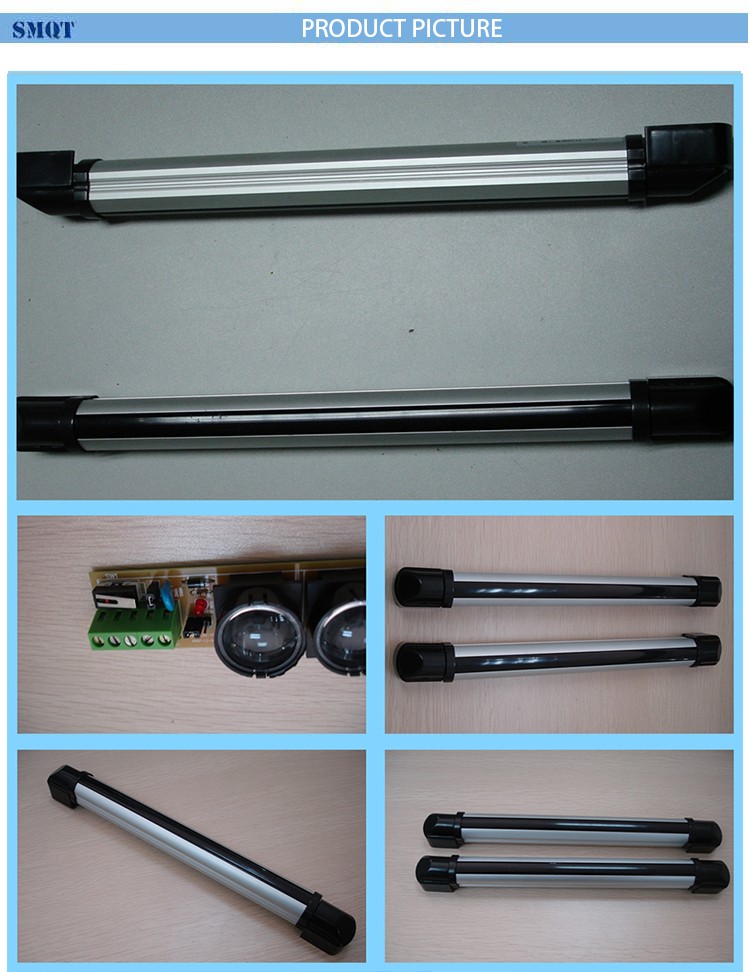

bairier ABB infrared beam

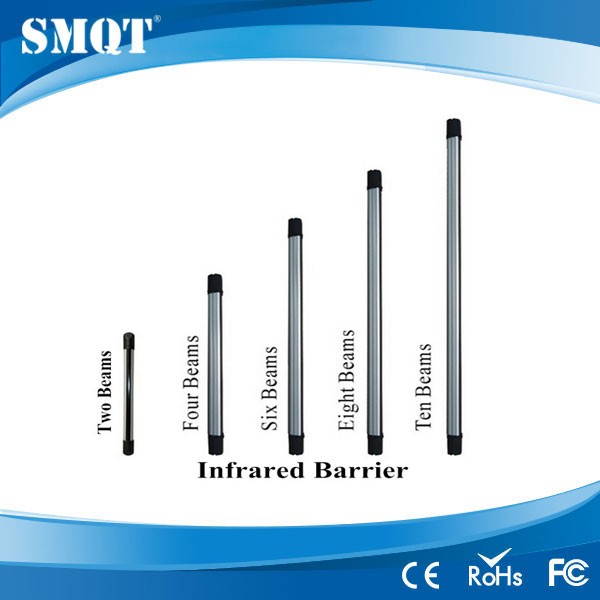

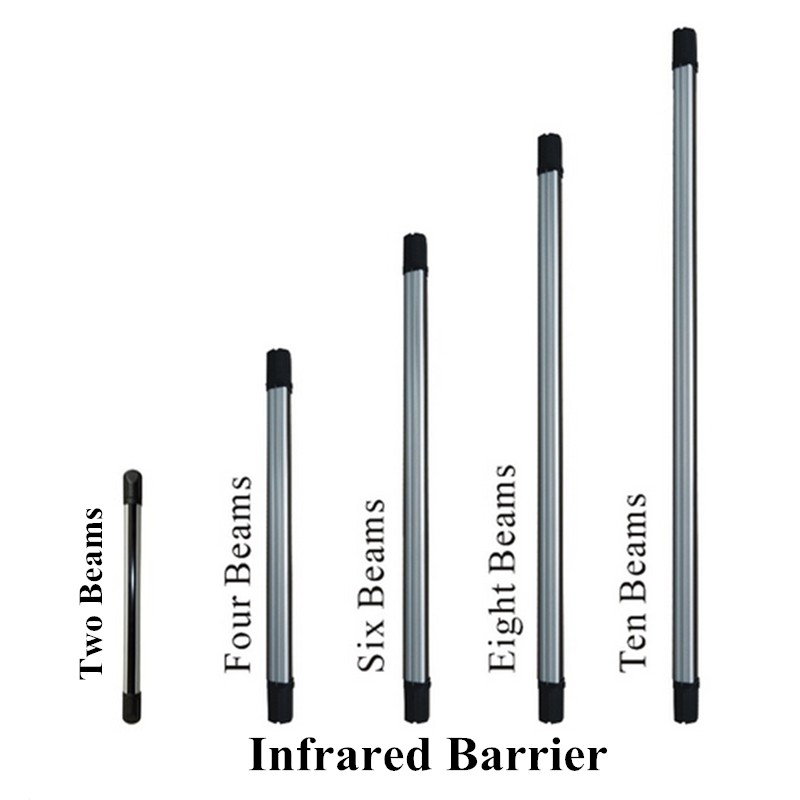

  • The number of rays: 2/4/6/8/10
  • Distance (indoor): 5m / 10m / 20m / 30m / 40m / 60m
  • Detector Height: 37/72/125/167 / 209 cm
  • Working Current: 30mA ~ 80mA
  • Operating voltage: DC12V ~ DC18V
  • Time Responses: <1.5ass
  • relay contact: 3A, AC120V / DC24V
  • Adjust the angle: 180º ± 90º
  • Ambient temperature: -35 ℃ ~ 55 ℃




The number of rays  2/4/6/8/10
Distance (indoor)  5m / 10m / 20m / 30m / 40m / 60m
height detector 37/72/125/167 / 209 cm
operating current  30mA ~ 80mA
Operating Voltage  DC12V ~ DC18V
time feedback & Amp; lt; 1.5ass
relay contact  3A, AC120V / DC24V
Adjust the angle  180º ± 90º
Room temperature  -35 ℃ ~ 55 ℃

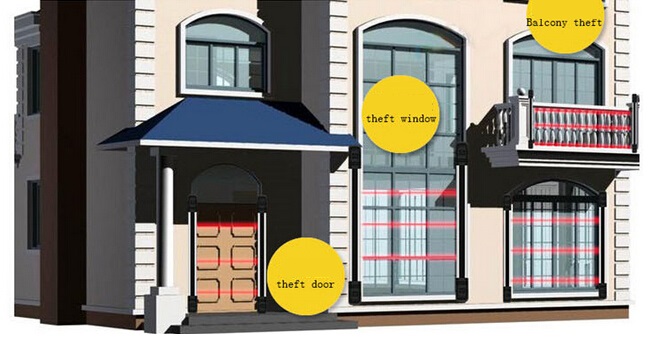

The movement detector curtain dual infrared beam is used with window, door with the alarm system.
The beam sensor as the work sensor laser fence.

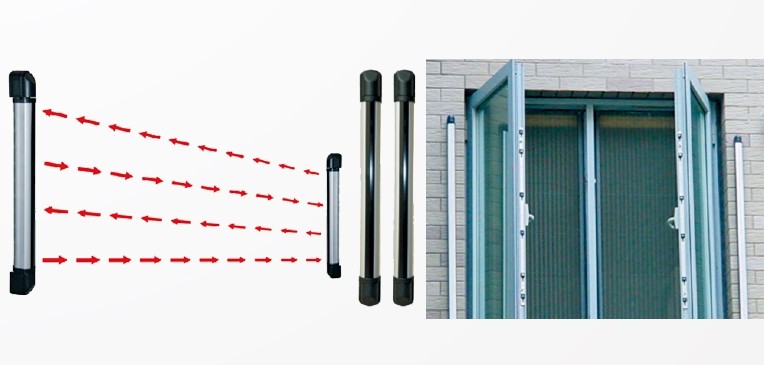

infrared fences (also called "infrared" railings) is a kind of active infrared shooting, using multi-beam
Infrared light of the radio transmitter to the receiver to "low frequency transmitter, Time Division Detection"
mode emits infrared light, once the person or the object that blocks any adjacent light beams in two or more issued by
the transmitter exceeds 30ms, the receiver output alarm signal immediately when there are small animals or small
objects away from where a ray of sunshine, the alarm will not be output alarm signal.
