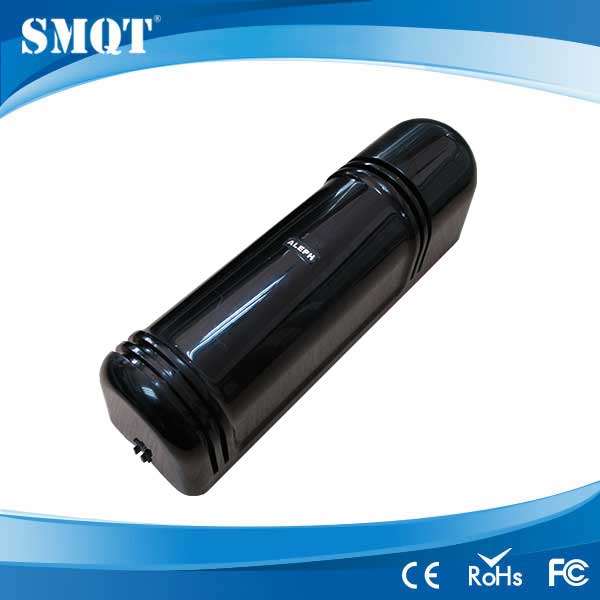

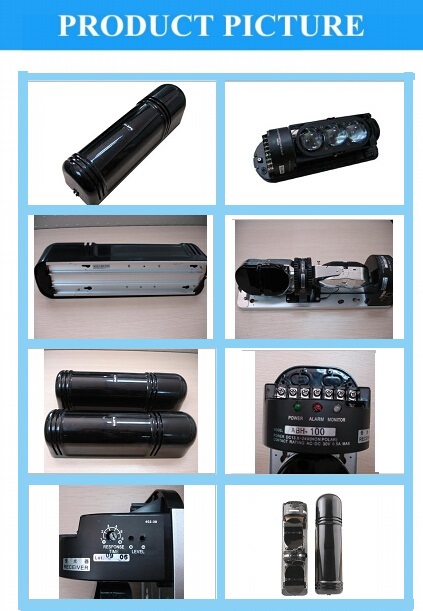

ABH Outdoor 4 Beams Infrared barrier sensor
- ABH-50, ABH-100, ABH-150, ABH-200, ABH-250
- Distance: 50m 100m 150m 200m 250m(outdoor)
- 150m 300m 450m 600m 750m(indoor)
- Operating voltage:13.8~24VDC 11~28VAC
- Operating Current: 40-65mA
- Induction speed:50~700m/sec
- Anti-demolition output:NC
- Environment temp:-20°C~+50°C
- Alarm output:NO/NC
- Level adjustment:180°±90°
- Vertical adjustment:±10°
- Material:PC resin
- The infrared security photoelectric laser fence beam sensor is used outdoor and waterproof infrared sensor switch.
| Product name | Digital Beams Active Infrared Detector |
|
Model |
ABH |
|
Detecting distance |
Indoor :150m 300m 450m 600m 750m Outdoor:50m 100m 150m 200m 250m(optional) |
|
Operating voltage |
13.8~24VDC 11~28VAC |
|
Operating current |
40-65mA |
|
Indication speed |
50~700m/sec |
|
Anti-demolition output |
NC |
|
Environment temperature |
-20℃~+50℃ |
|
Alarm output |
NO/NC |
|
Level adjustment |
180°±90° |
|
Vertical adjustment |
±10° |
|
Color |
Black |
|
Material |
PC resin |
The infrared security photoelectric laser fence beam sensor is used outdoor and waterproof infrared sensor switch.

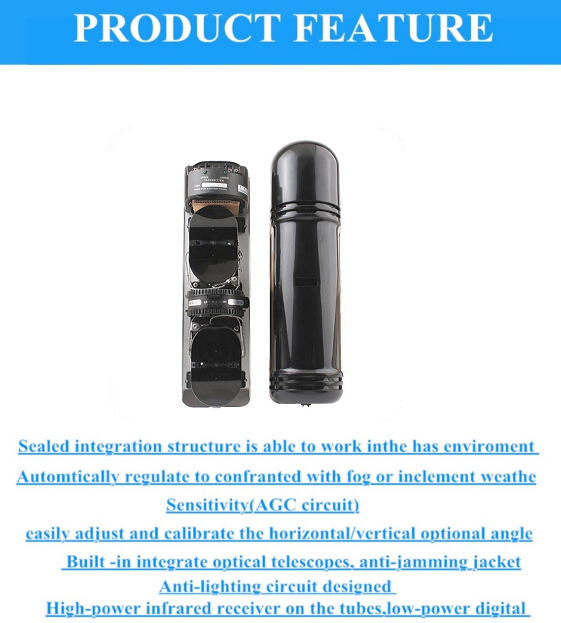

1.Sealed integration structure is able to working in the hash environment.
2.Confronted with fog or inclement weather, the detectors will automatically regulate the sensitivity(AGC circuit).

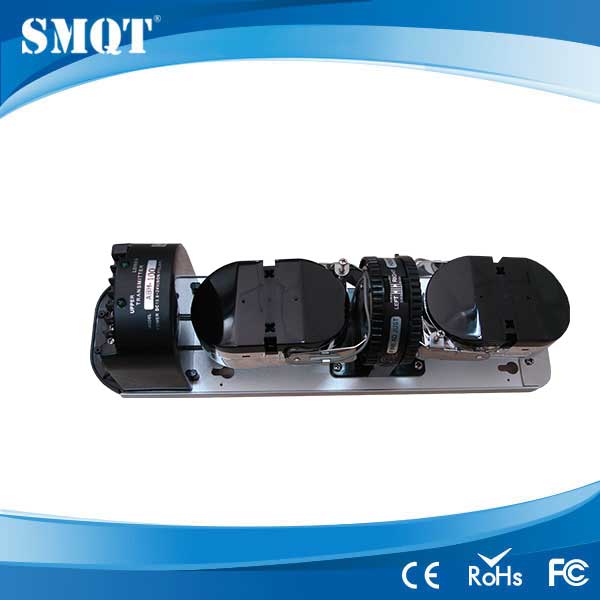

3.Easily adjust and calibrate the horizontal/vertical optical angle.

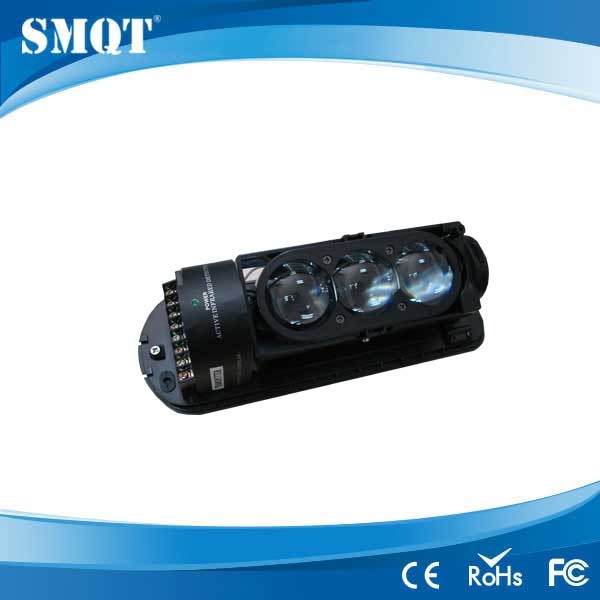

4.Built-in integrated optical telescopes, use the professional anti-jamming jacket.
5.Anti-lightning circuit designed.
6.High-power infrared receiver on the tubes, low-power digital.
