EA-82 Waterproof Single door ID(125Khz) Access control KeypadEA-82 Waterproof Single door ID(125Khz) Access control KeypadEA-82 Waterproof Single door ID(125Khz) Access control KeypadEA-82 Waterproof Single door ID(125Khz) Access control KeypadEA-82 Waterproof Single door ID(125Khz) Access control KeypadEA-82 Waterproof Single door ID(125Khz) Access control Keypad

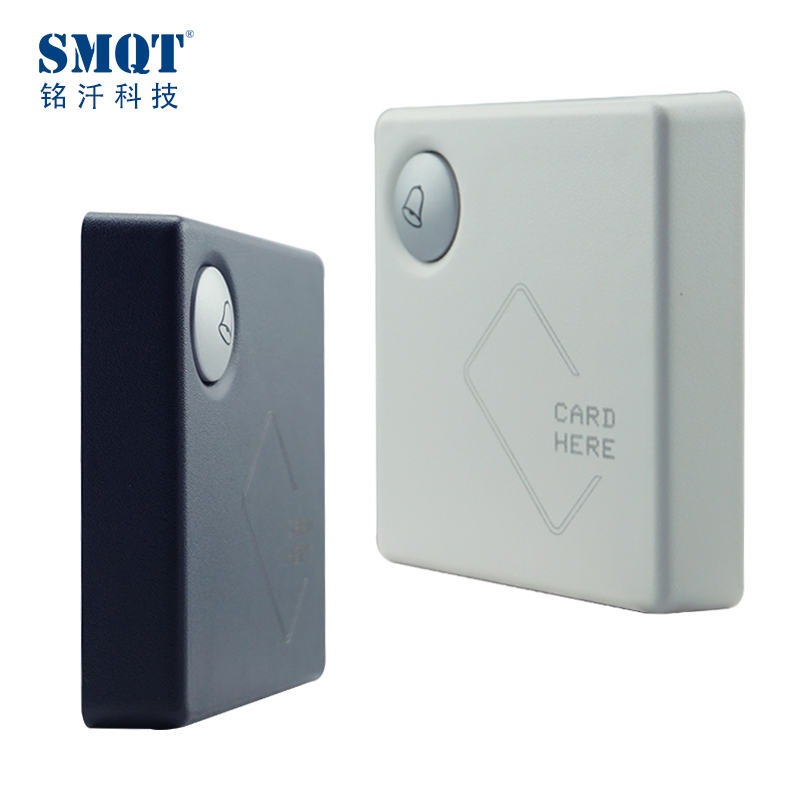

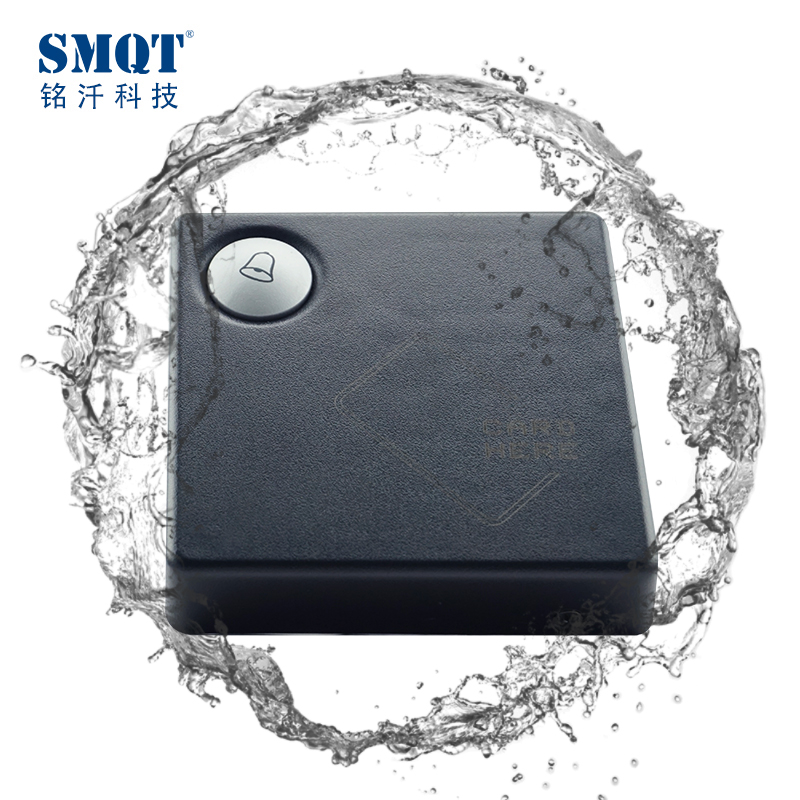

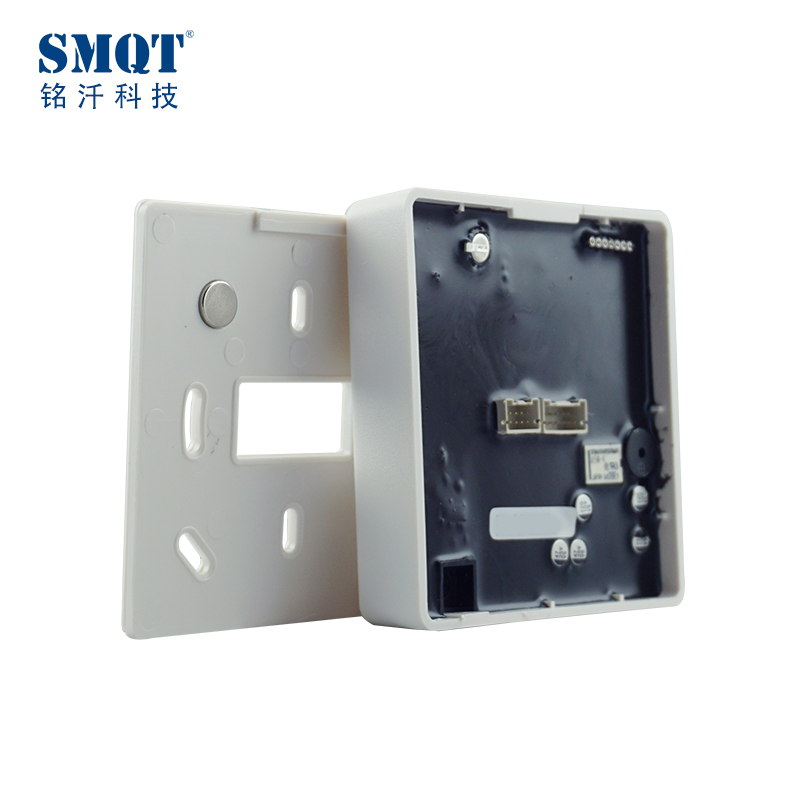

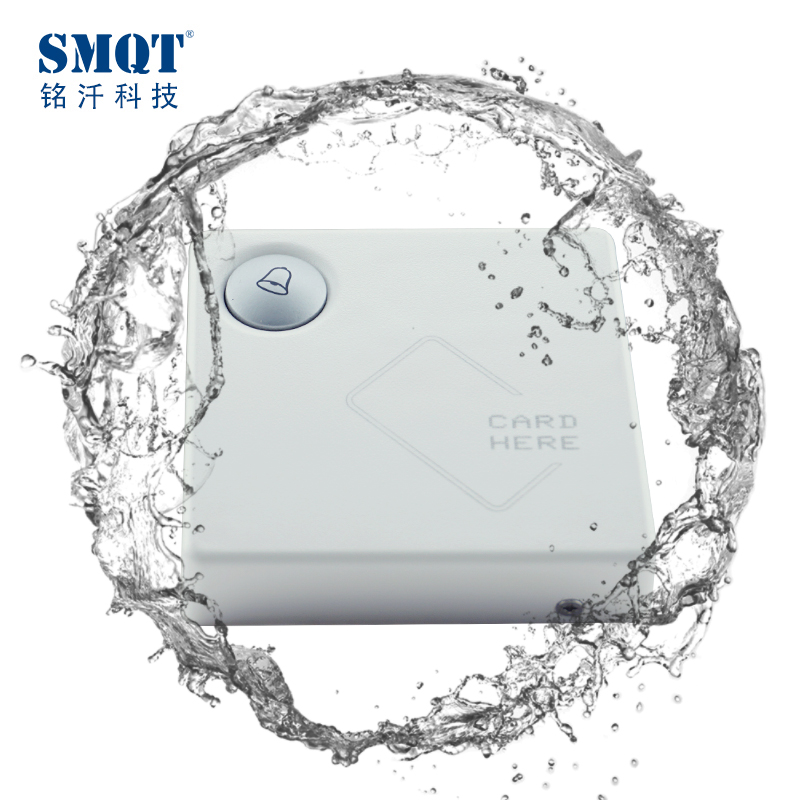

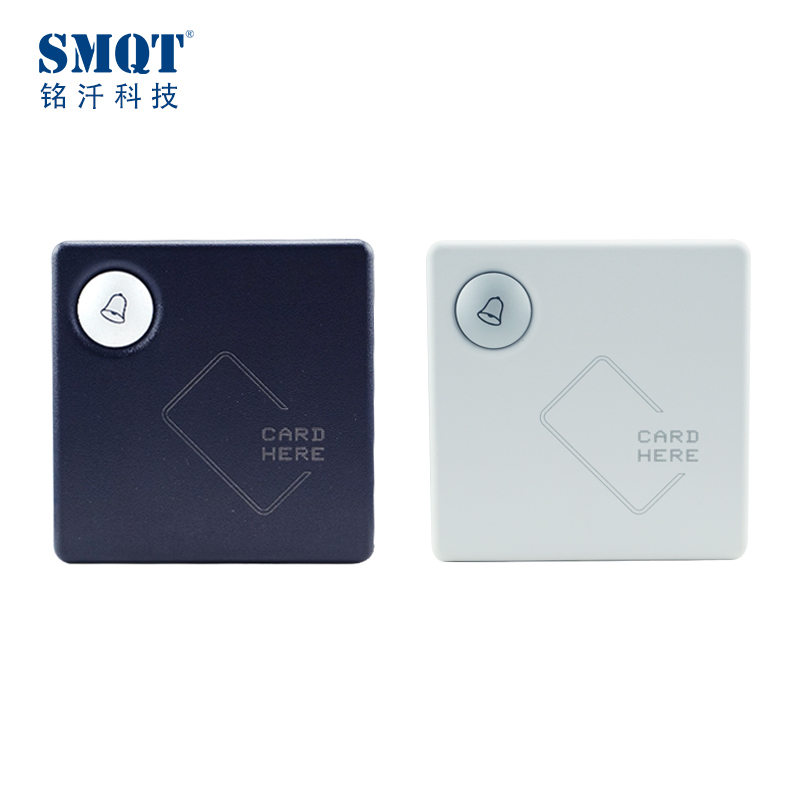

EA-82 Waterproof Single door ID(125Khz) Access control Keypad

  • Waterproof Single door ID(125Khz) Access control Keypad
  • Model: EA-82(Black/White color is optional)
  • Workingvoltage: DC12V±DC3V
  • Workingpower: <2w
  • Card type: IC 125KHZ ID
  • Induction distance: 60mm
  • Capacity of records 10000
  • Capacity of user: 10000
  • Communication format: RS485
  • Transmitting rate: 9600bps(N,8,1)
  • Data storage: 4M bits FLASH Memory
  • Dimensions: 96L×96W×22H
  • Shell material: PC
  • Environment temprature: -30℃~ +65℃
  • Open mode: Card

RS485 network single door access control keypad

82 .jpg

 EB-82's MAIN PARAMETER

Parameter
Name RS485 network single door access control keypad
Model EA-82
Working voltage DC12V±DC3V
Working power <2W
Type of Card EM 4100 chip 125KHz
Induction distance Max 90mm
Capacity of records 10000
Capacity of users 10000
Waterproof IP66
Communication format RS485
Transmit rate 9600bps(N,8,1)
Data storage 4M bits FLASH Memory
Dimensions 96L×96W×22H(mm)
Color Black/White(optiona)
Material ABS+PCB board
Environment temp -30°C to +60°C
Open mode Card
Weight 260g

1.  Appearance of special design, with beautiful energy-saving background light, and more fashionable.

2.  Use imported PC materials, impact-resistant, heat-resistant, corrosion-oriented.

3.  Use the advanced flash memory storage technology. Even if the power is off, the access log can be stored for 10 years.

4.  With the Laser carving technology, the numbers of the keypad are wear-resistant. After a long time use the number isn't fallen.

5.  With 100 sets of time zone regulations, control when and how to open the door. Set on the device directly when use it as a standalone.

6.  Register the user cards via the manager card on the kaypad (used as standalone), and also via the software.

7.  With  anti-stress functions input reverse personal passwords and open the door, immediately the alarm output signals is transmited to the alarm center.

8.   A variety of passwords, flexible use. Super passwords isn't limited from access system; personal passwords can be set up directly on the keypad.

9.  High safety performance, with tamper function.

10. Free green software, with  basic and simple functions, easy to operate.

11.  With a reverse current protection, lightning protection, anti-crash design, self-detection.

 821 (2).jpg

822 (2).jpg
