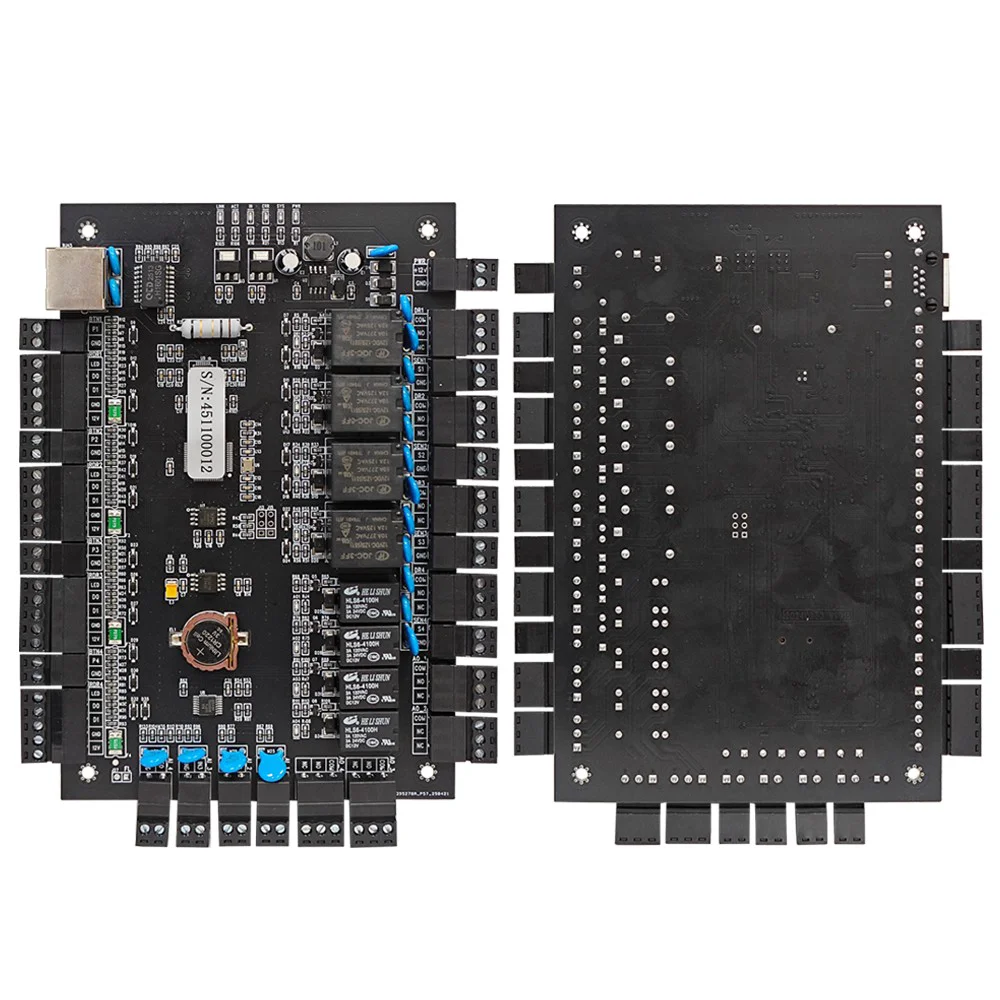

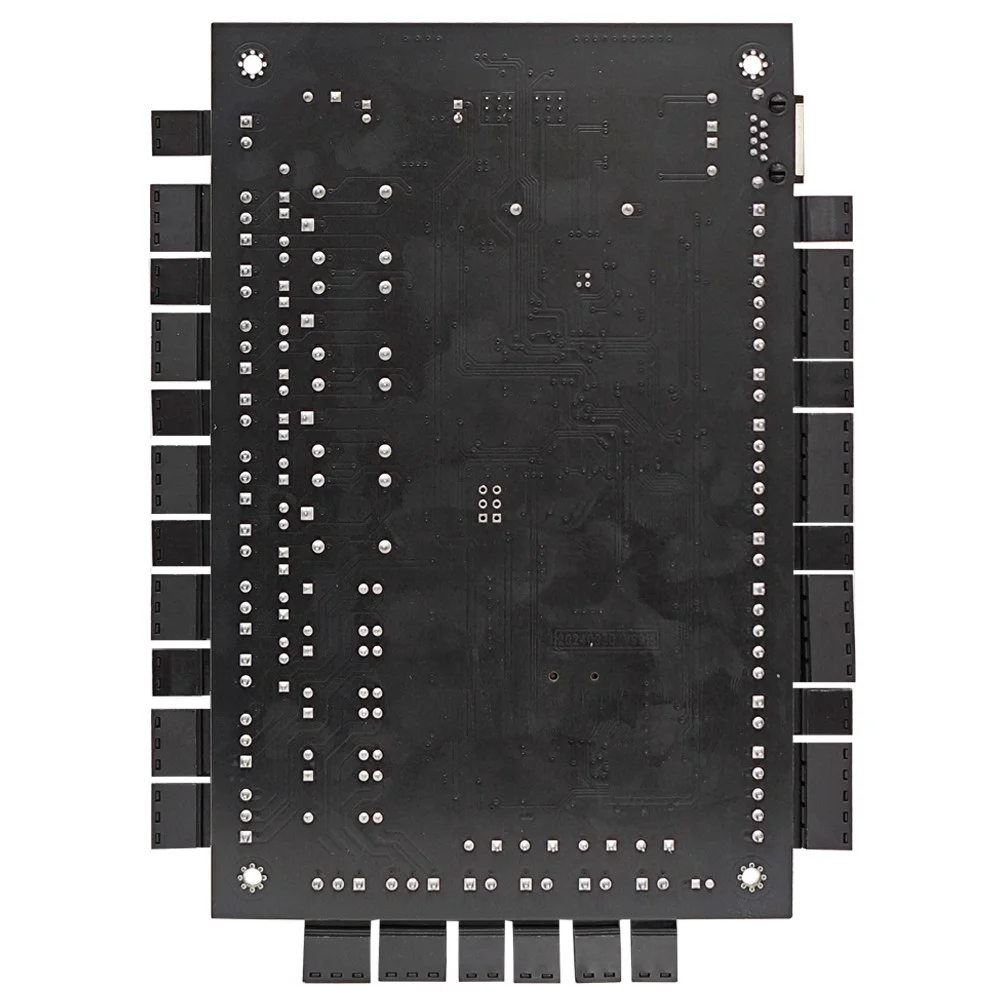

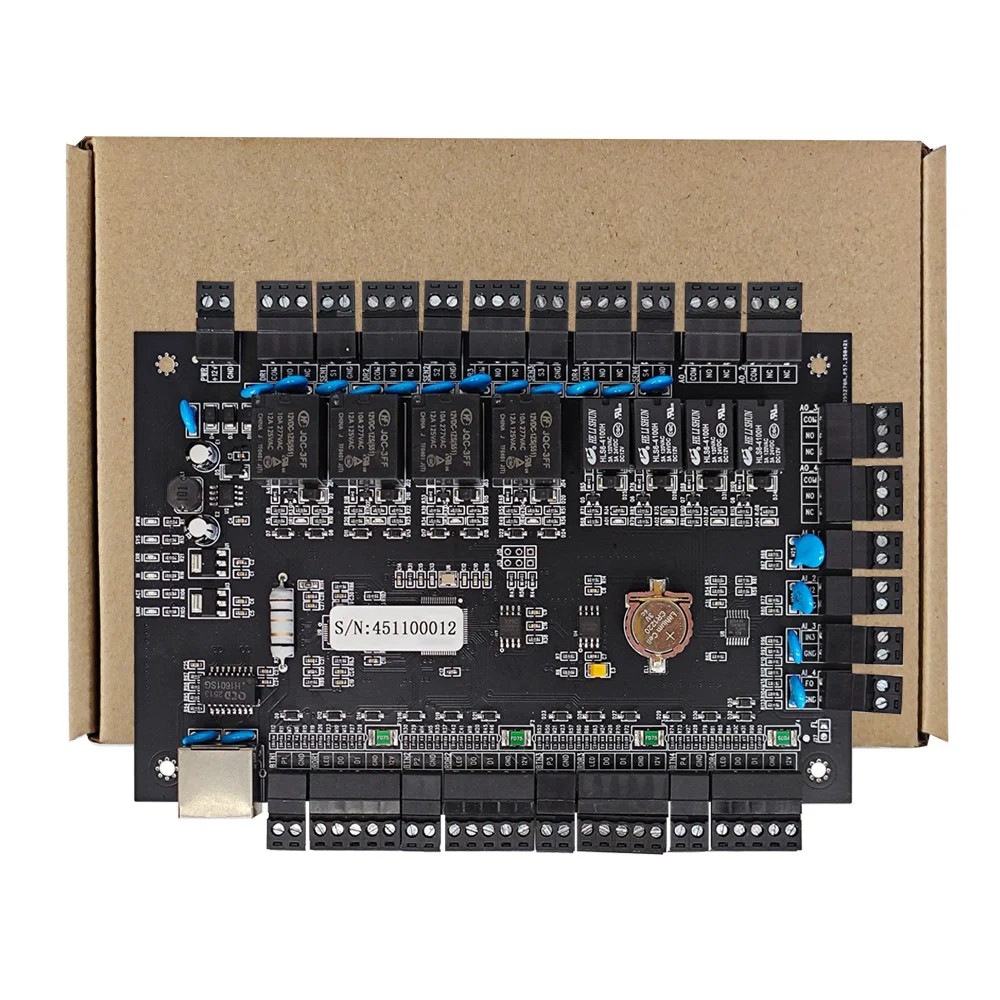

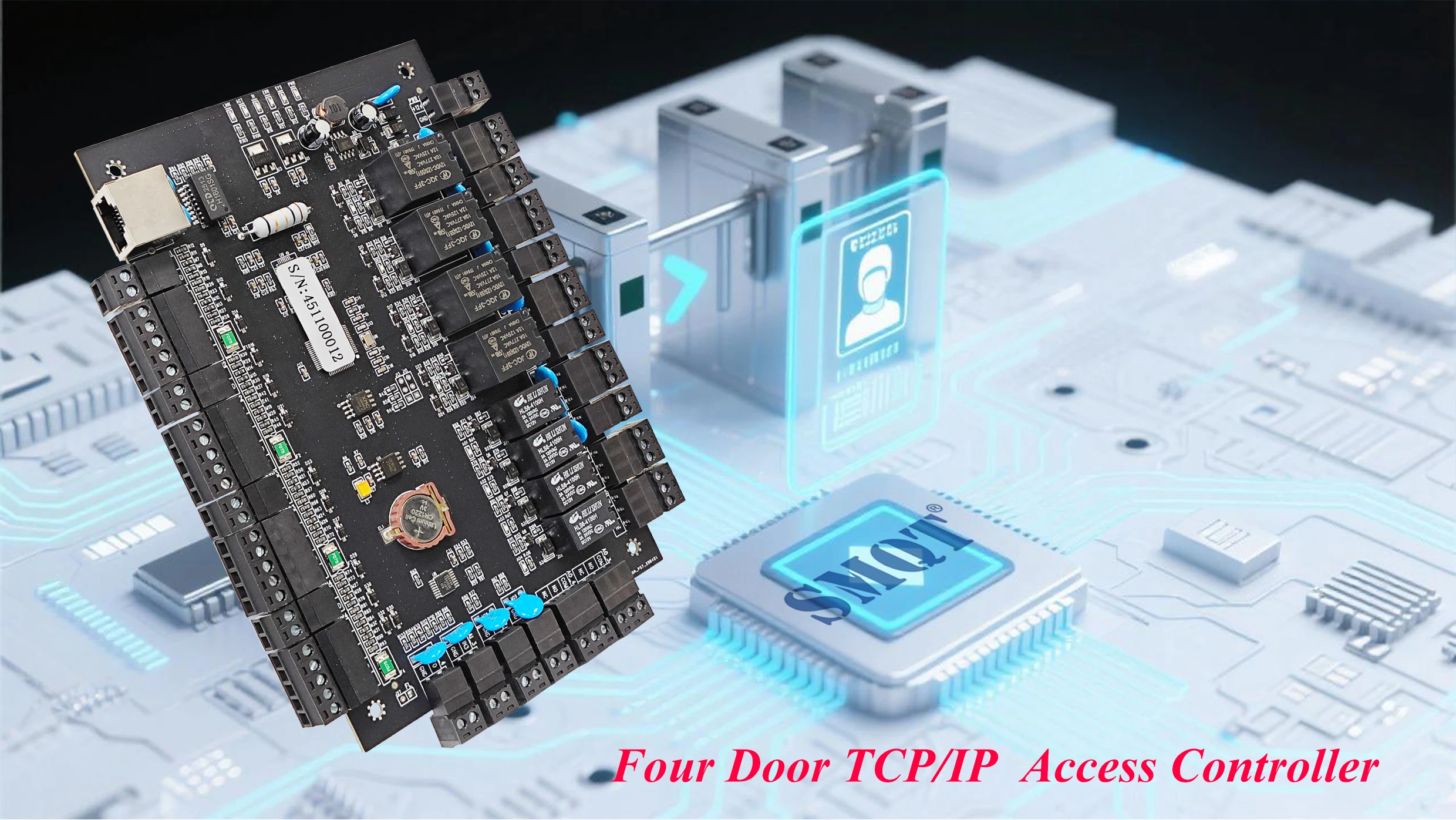

Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864
- Model number:MQ-864
- Power supply: DC12V
- Working current:100 mA(Without laod)
- Manange doors:4 door
- User capacity: 40000
- Event record capacity:100000
- Relay:4 Door realy+4 Auxiliary relay
- TCP/IP interface:1 PCS(100M)
- Reader communication distance:Depending on the network coverage,theoretically there is no distance limit.
- Sofware manage device quanity:No limit
- Door relay ouput load:Max 10A
- Door relay time dealy setting: 1~600s seconds adjustable
- Dimension:173mm*128mm(Error+0.5mm)
- Suitable for:Four Door access control
- Material: PCB board
- Working temperature:-40°C to +70°C(Recommanded :-35°C to +65°C)
- Working humidity:10~90% RH, No condensation
- Weight:0.18kg
- Warranty: 1 years warranty
- OEM:Welcome OEM

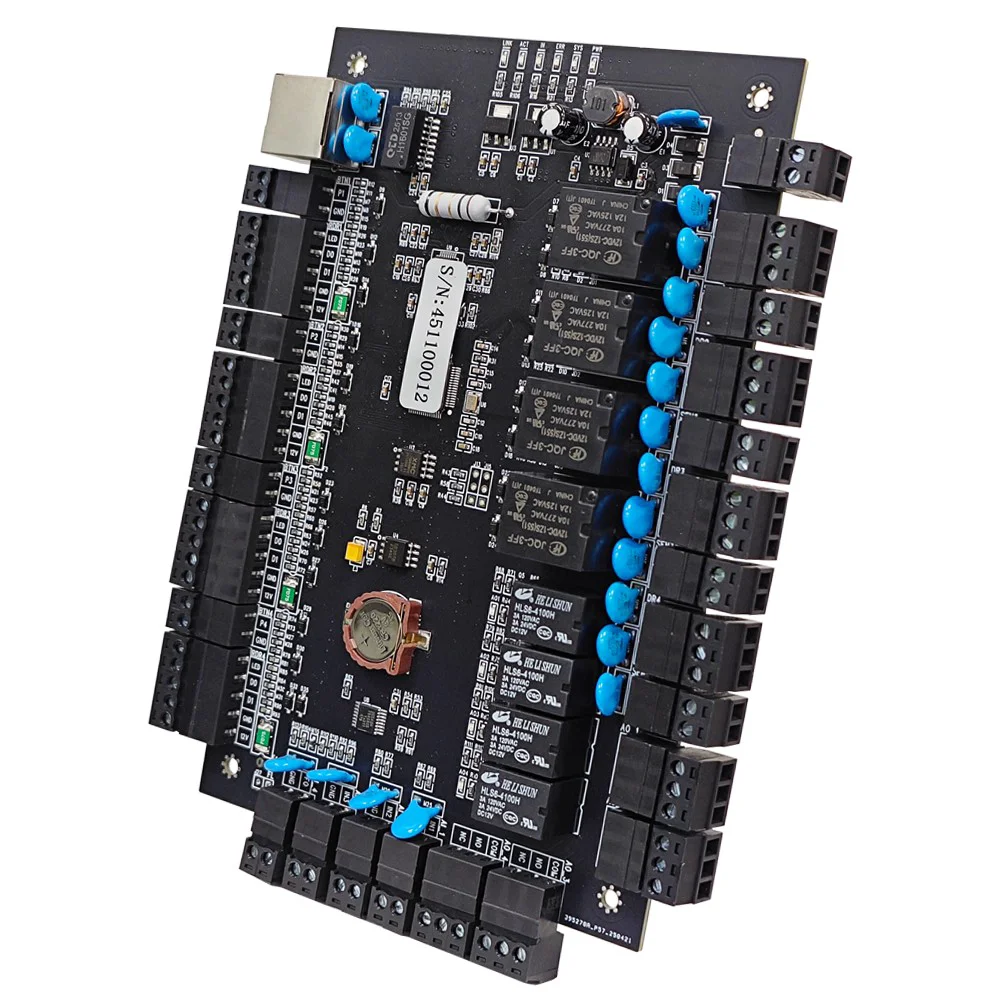

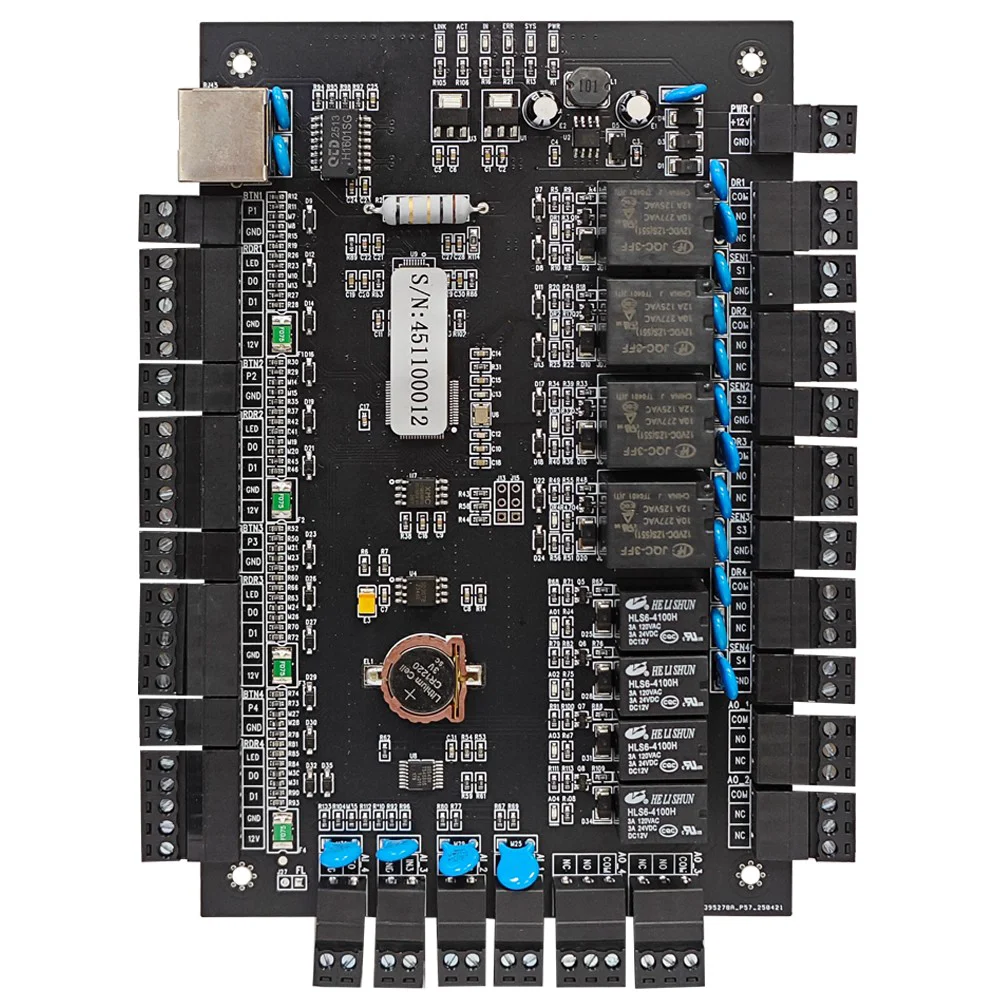

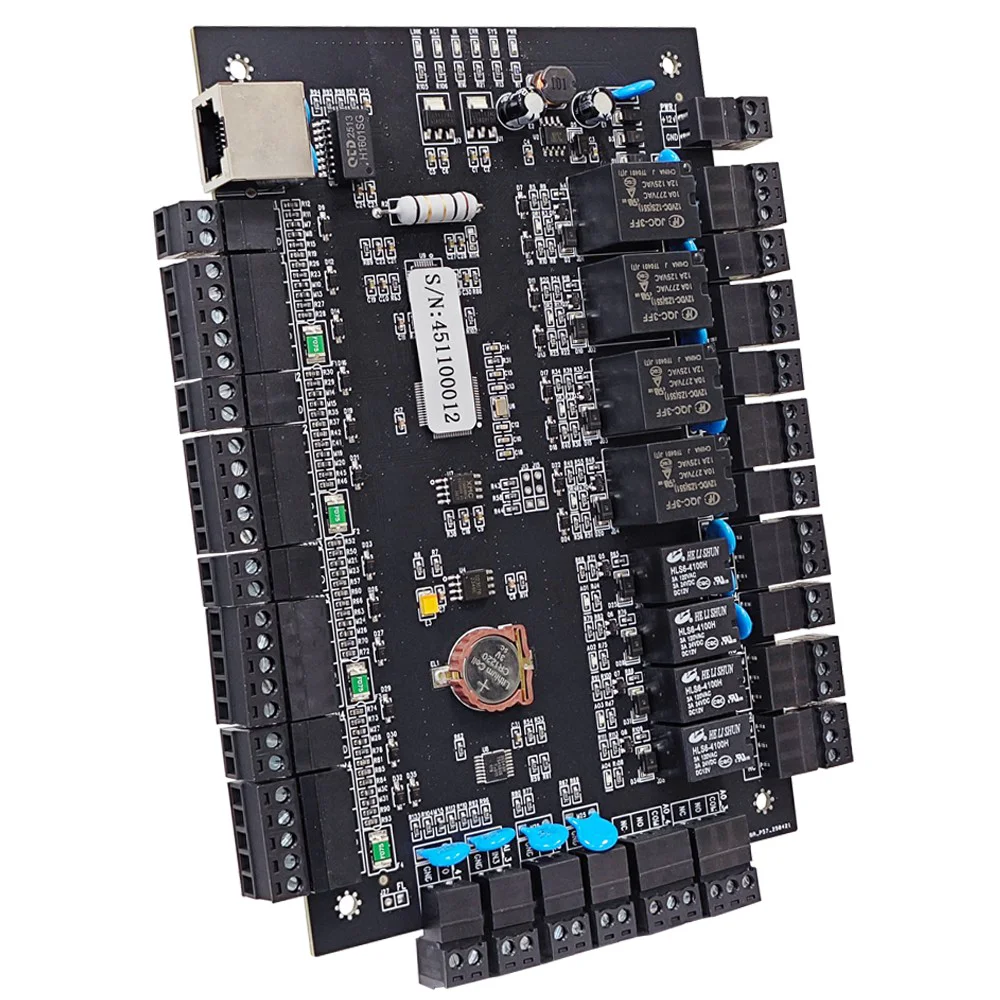

Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864
MQ-864's main parameter
| Product Name: | Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864 |
| Model number: | MQ-864 |
| Power supply: | DC12V |
| Working current: | 100 mA(Without laod) |
| Manange doors: | 4 door |
| User capacity: | 40000 |
| Event record capacity: | 100000 |
| Relay: | 4 Door realy+4 Auxiliary relay |

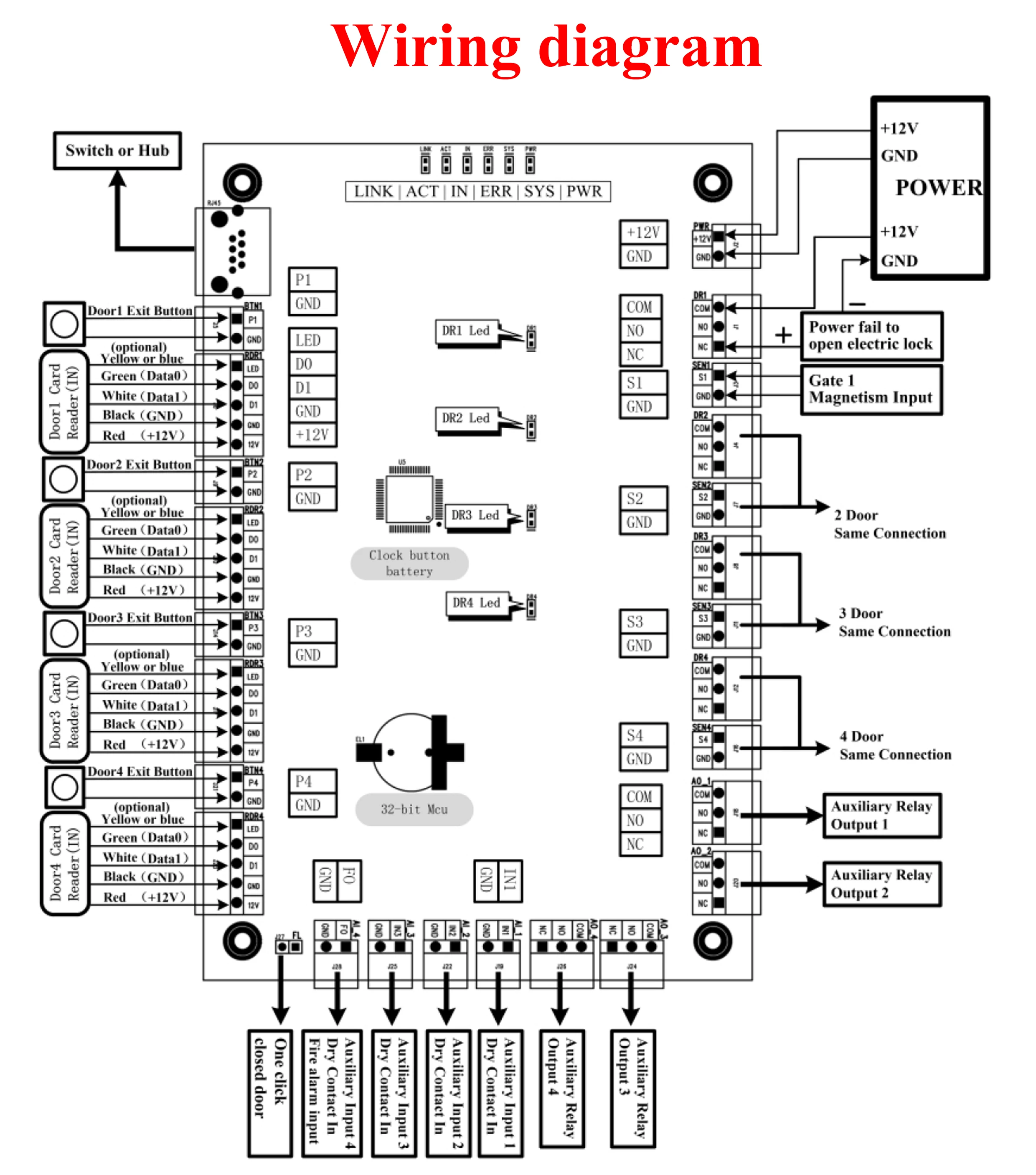

| List of door access accessories that can be integrated: |
Card reader(WG26~40 format× 4 PCS Door release button ×4 PCS Door sensor× 4PCS Electric lock× 4PCS |
| TCP/IP interface: | 1 PCS(100M) |

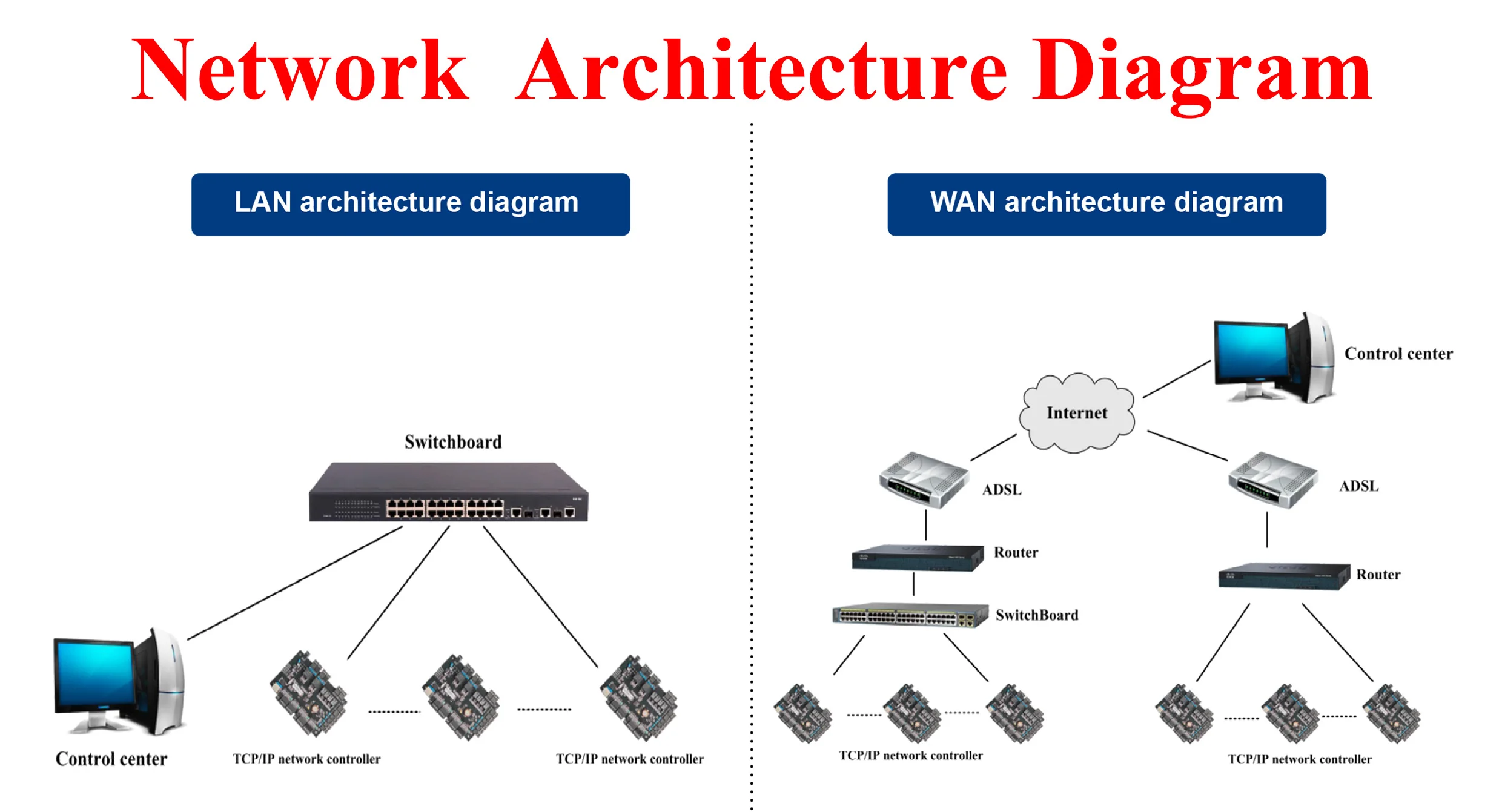

| Reader communication distance: | Depending on the network coverage,theoretically there is no distance limit. |
| Sofware manage device quanity: | No limit |
| Door relay ouput load: | Max 10A |
| Door relay time dealy setting: | 1~600s seconds adjustable |
| Dimension: | 173mm*128mm(Error+0.5mm) |
| Suitable for: | Four Door access control |
| Material: | PCB board |
| Working temperature: |
-40°C to +70°C (Recommanded :-35°C to +65°C) |
| Working humidity: |
10~90% RH, No condensation |
| Weight: | 0.18kg |
| Warranty: | 1 years warranty |
| OEM: | Welcome OEM |
What features MQ-864 have?

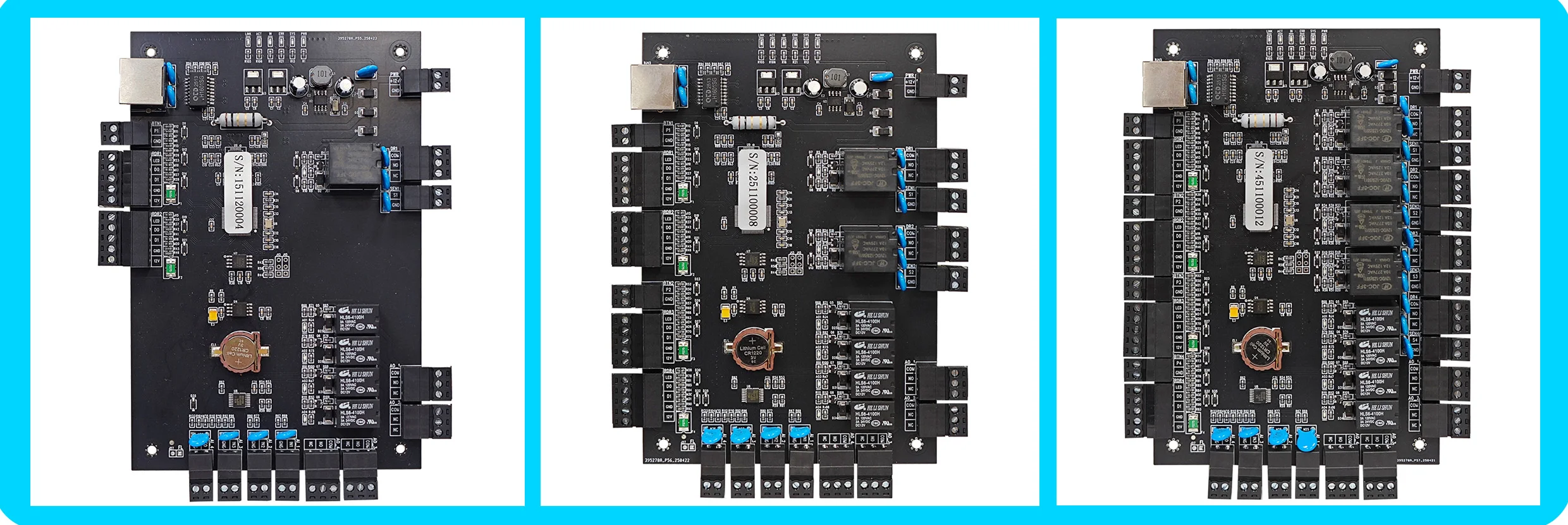

How about other choice?
Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864
Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864
Wholesaler Price Access Control System 4 Doors TCP/IP Network Panel Wiegand Gate Access Controller MQ-864
