Emergency Infrared No touch LED Indicator EXIT button for Home SafetyEmergency Infrared No touch LED Indicator EXIT button for Home SafetyEmergency Infrared No touch LED Indicator EXIT button for Home SafetyEmergency Infrared No touch LED Indicator EXIT button for Home SafetyEmergency Infrared No touch LED Indicator EXIT button for Home SafetyEmergency Infrared No touch LED Indicator EXIT button for Home Safety

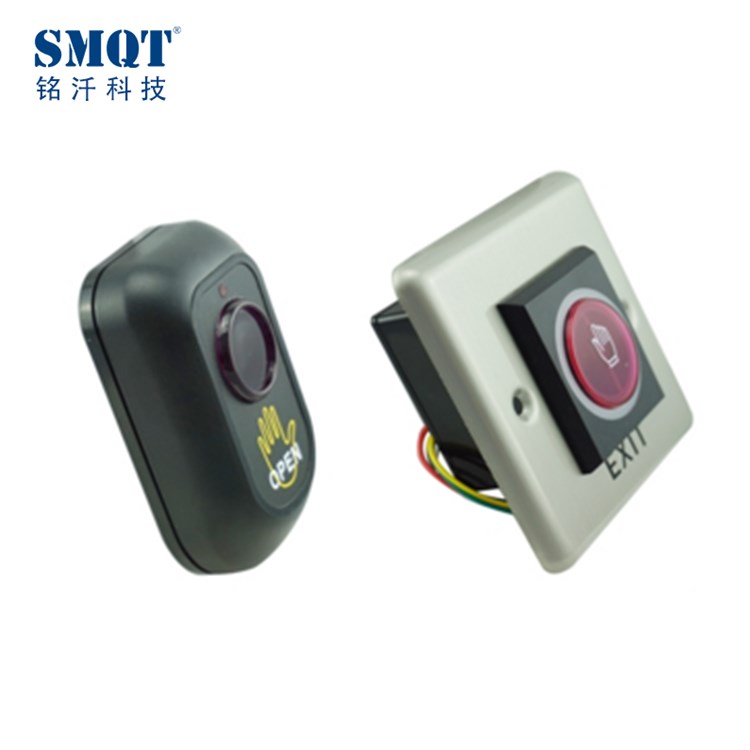

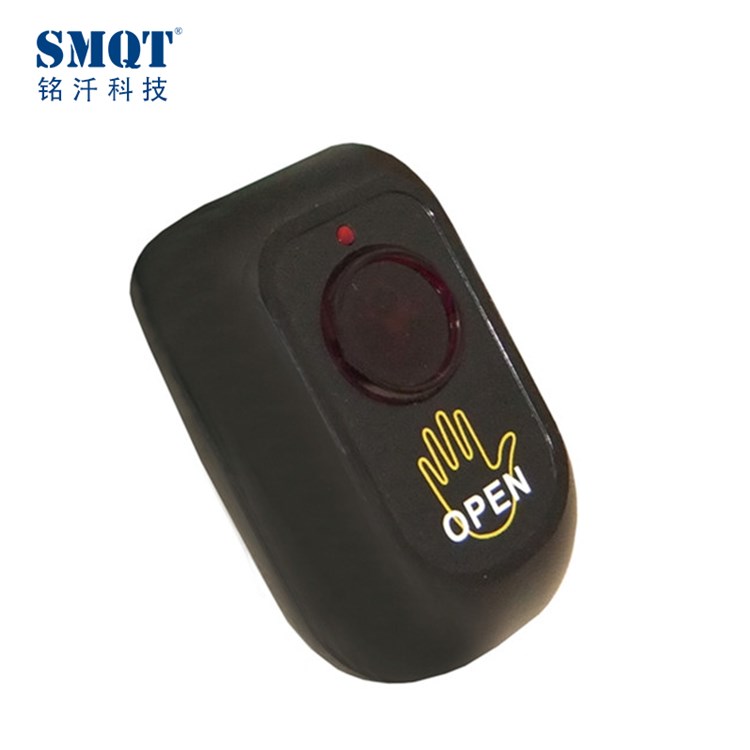

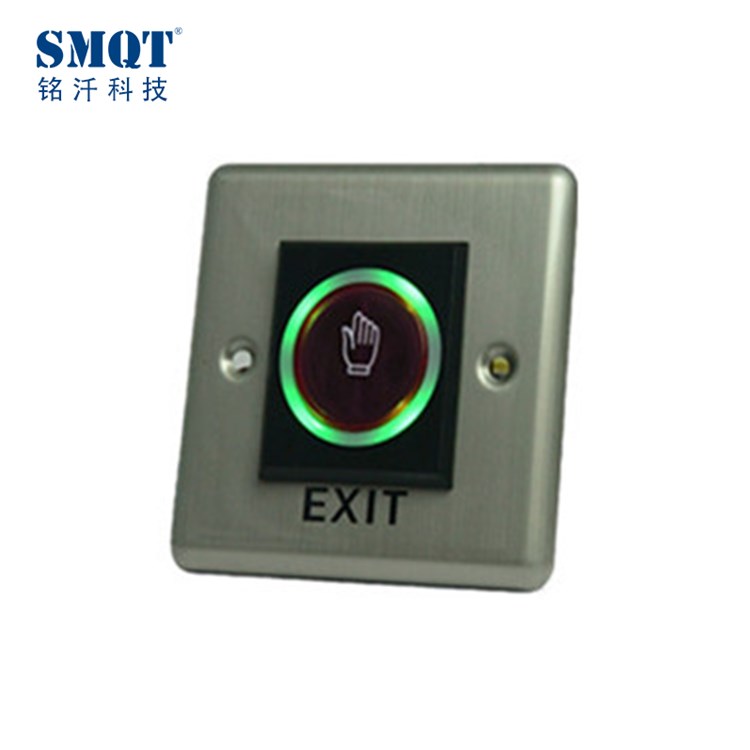

Emergency Infrared No touch LED Indicator EXIT button for Home Safety

  • Parameter
  • Product name:Infrared induction no touch door switch button
  • Model:EA-21A / EA-21B
  • Dimension:EA-21A:85×52×25(mm) EA-21B:86×86×39(mm)
  • Input voltage:DC 12V
  • Induction Angle:<115°
  • Capacity of power:<4W
  • Induction Distance:10 cm

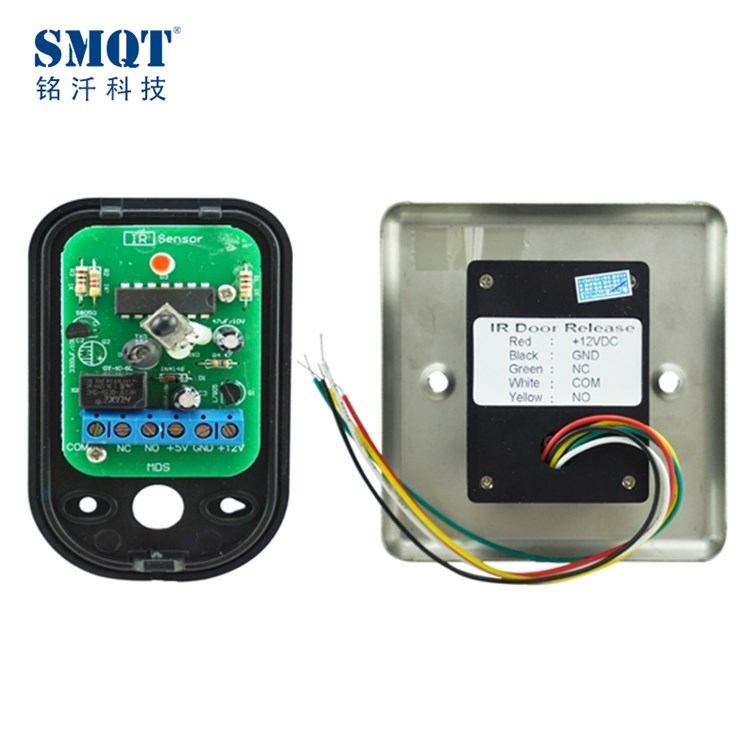

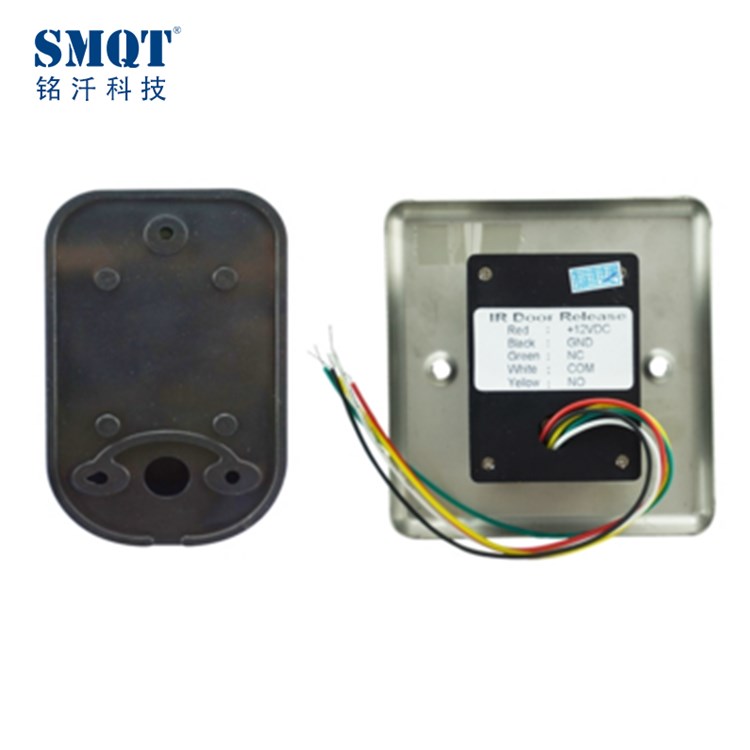

  • Contact output:NO/NC/COM
  • Mechanical test
  • 500.000 times test
  • Suitable range
  • Hollow Door
  • Color grey
  • Usage Access control sysetm and doorphone system
  • Relative Humidity 0~95%
  • Environment temprature -20 ℃-50 ℃
  • Net weight EA-21A:0.046kg    EA-21B:0.106kg

Emergency Infrared No touch LED Indicator EXIT button for Home Safety

Product Introduction




Parameter
Product name Infrared induction no touch door switch button
Model EA-21A / EA-21B
Dimension

 EA-21A:85×52×25(mm) EA-21B:86×86×39(mm)

Input voltage

DC 12V

Induction Angle

<115°

Capacity of power

<4W

Induction Distance

10 cm

Contact output

NO/NC/COM

Mechanical test

500.000 times test

Suitable range

Hollow Door

Usage Access control sysetm and doorphone system
Relative Humidity  0~95%
Environment temprature  -20 ℃-50 ℃
Net weight EA-21A:0.046kg    EA-21B:0.106kg
Product Feature

What features of our Emergency Infrared No touch LED Indicator EXIT button?

photobank (8).jpg

Product Display

IN-KIND SHOOTING

photobank (9).jpg

Application

APPLICATION

QQ20161107155321

Show Cases

SHOW CASE

22

Company Information

OFFICE SHOW

1zong

CUSTOMERS

3zong

EXHIBITION

4zong

CERTIFICATION

2

Our Services

HOW TO COOPERATE

1(5)

FAQ

FAQ

Q:Can I have a sample order?

A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.

Q:What is the lead time?

A:Sample needs 1-3 working days, mass production time needs 10-15 working days.

Q:What is your MOQ?

A:No MOQ limit.The more quantity the more discounts.

Q:How do you ship the goods and how long does it take arrive?

A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.

Q:How will we proceed the order if I have logo to print?

A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
