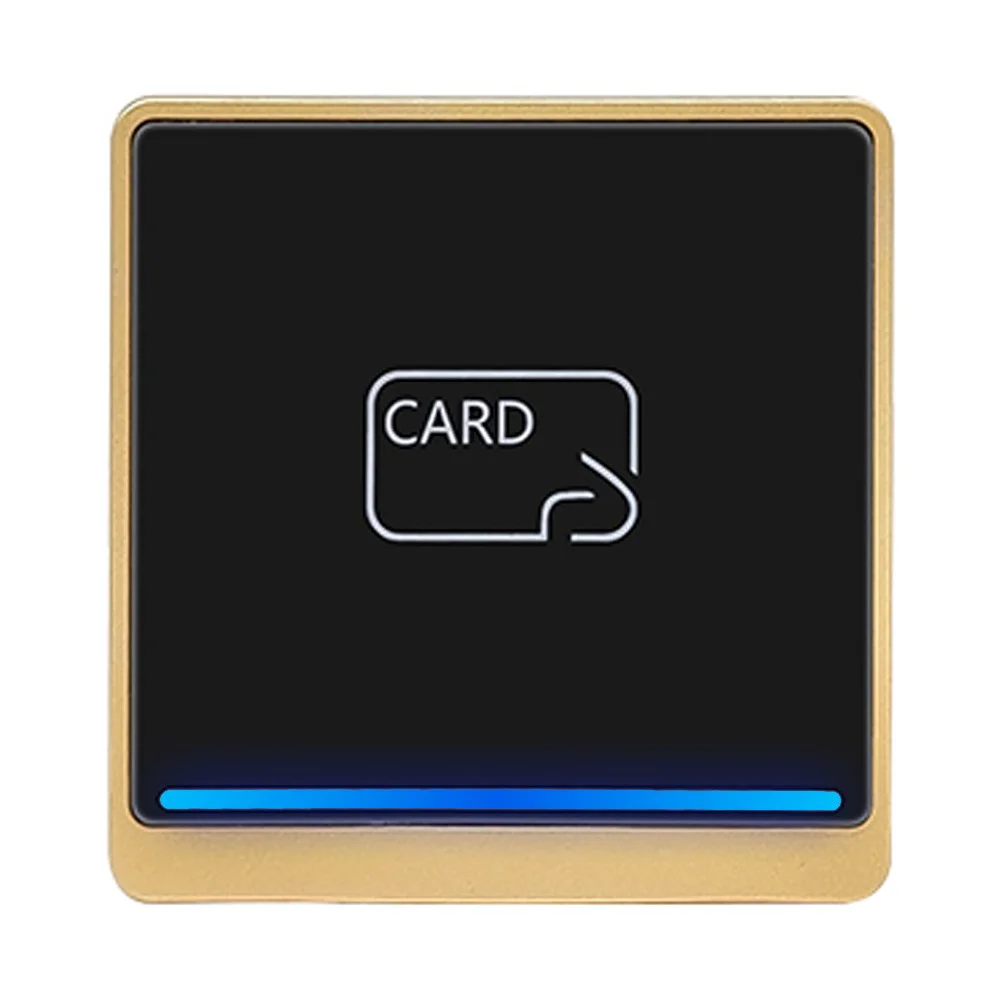

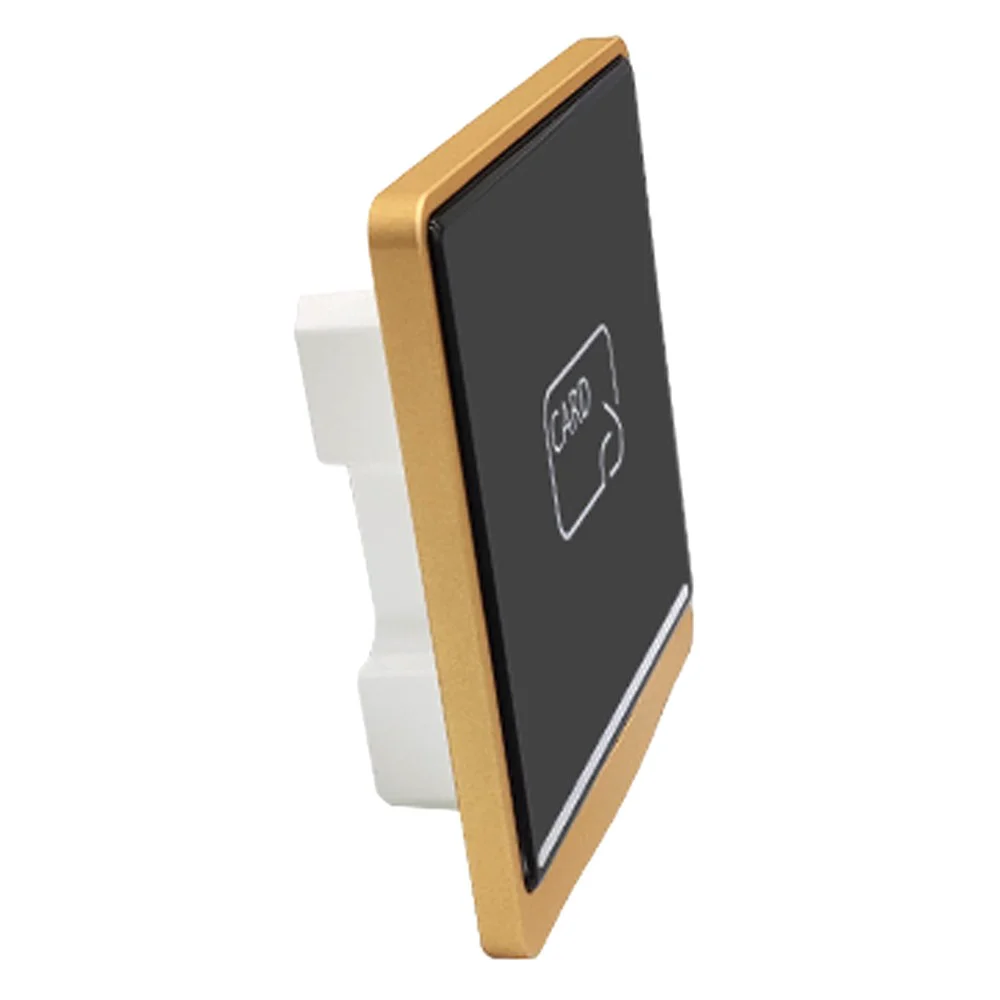

125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G
- Model number:MQ-714G
- Card type:ID Card (125Khz)&IC card(13.56MHz)
- Power supply: DC12V
- Working current:<200mA
- Protocol: ISO / IEC14443A, ISO / IEC14443B,
- WG output format: WG34/26 adjustable
- Compatible card type:IC13.56MHz card ,ID 125KHz card
- Reading distance:0-5CM
- Communication distance:<80m(between card reader and controller)
- Dimension:90mm*90mm*20.8mm(Error+0.5mm)
- Wires ports:7 wires
125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G
MQ-714G's main parameter
| Product Name: | 125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G |
| Model number: | MQ-714G |
| Card type: | ID Card (125Khz)&IC card(13.56MHz) |
| Power supply: | DC12V |
| Working current: | <200mA |
| Protocol: | ISO / IEC14443A, ISO / IEC14443B, |
| WG output format: | WG34/26 adjustable |

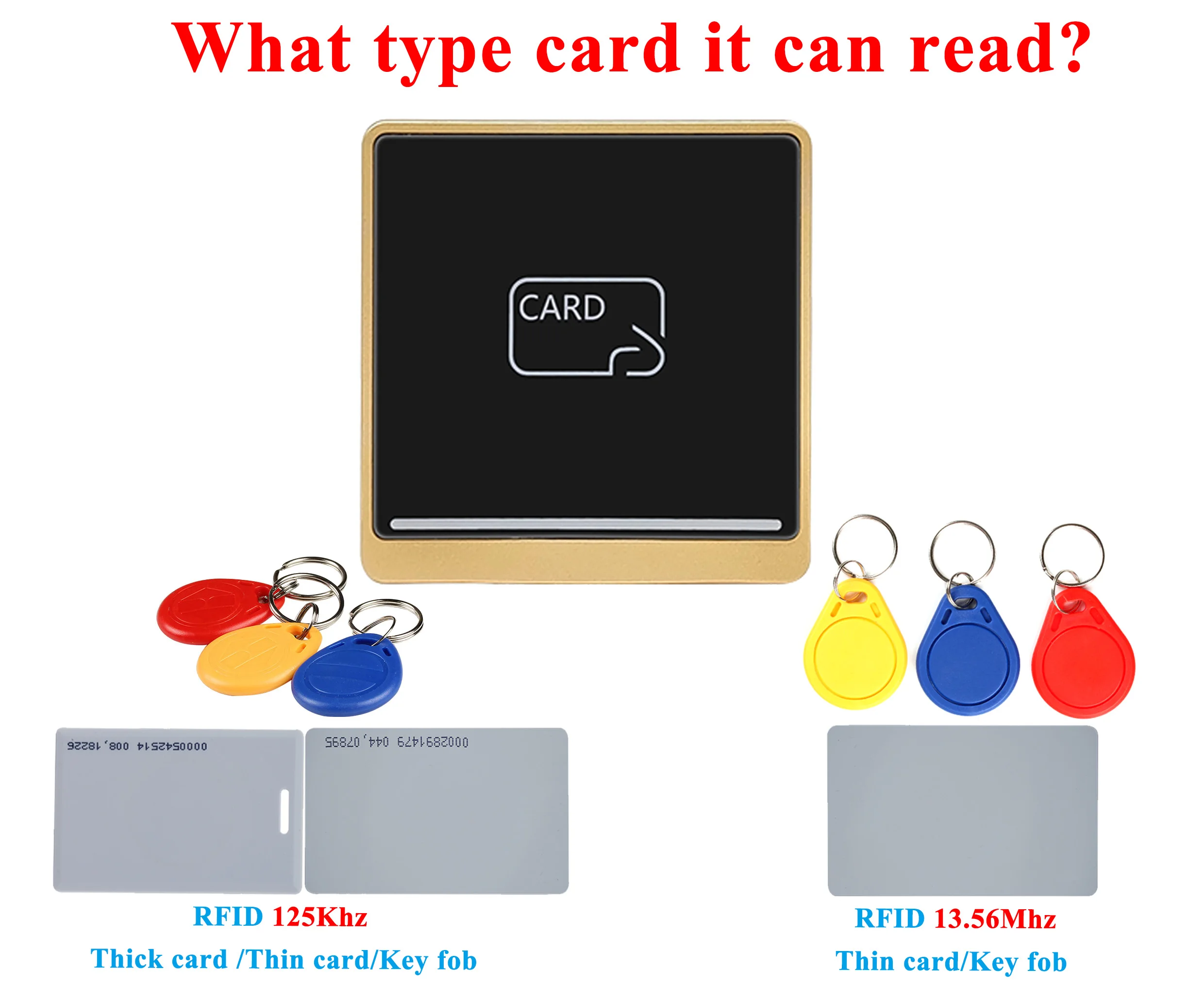

| Compatible card type: | IC13.56MHz card ,ID 125KHz card |
| Reading distance: | 0-5CM |
| Communication distance: | <80m(between card reader and controller) |

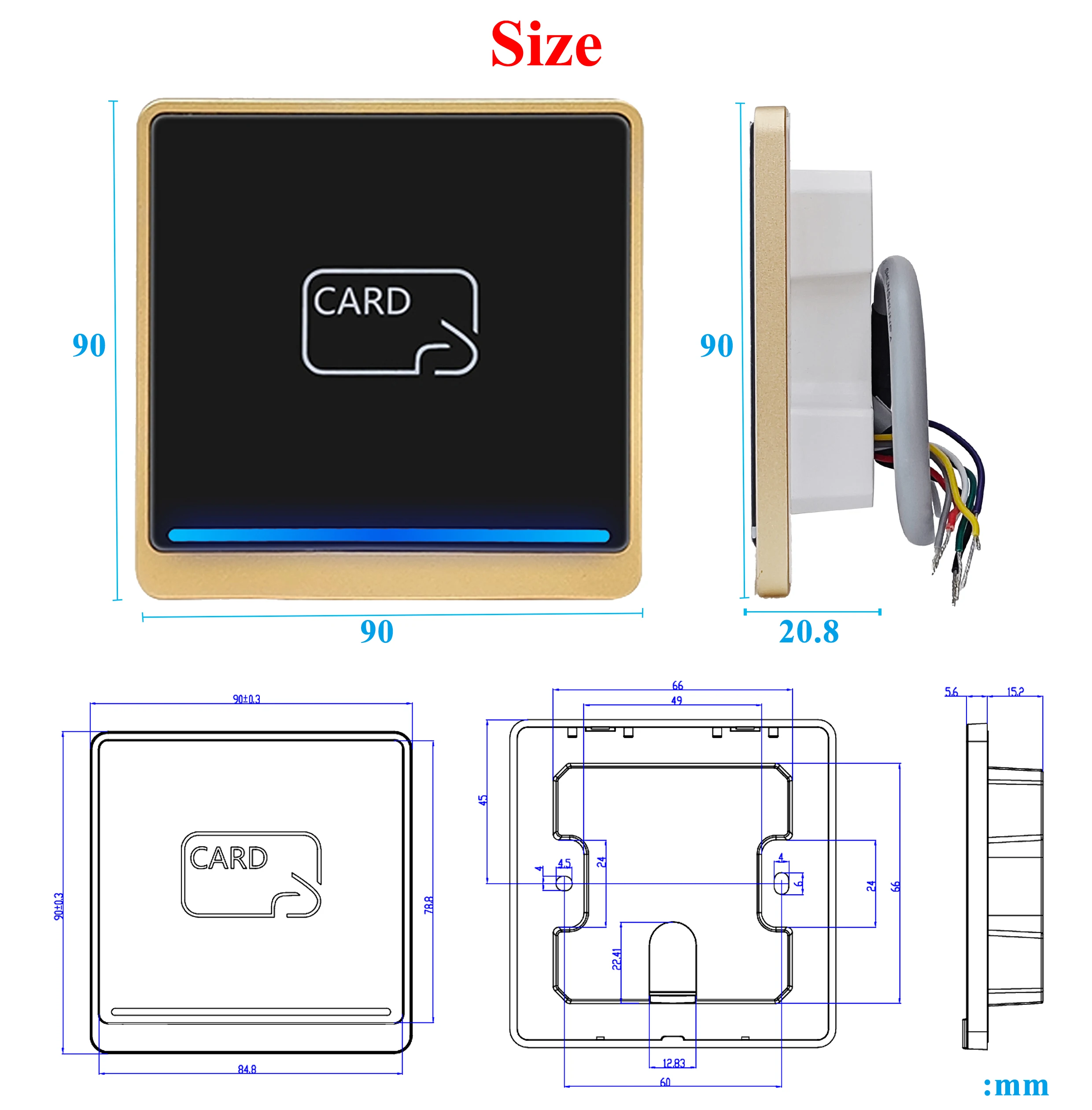

| Dimension: | 90mm*90mm*20.8mm(Error+0.5mm) |
| Wires ports: | 7 wires |

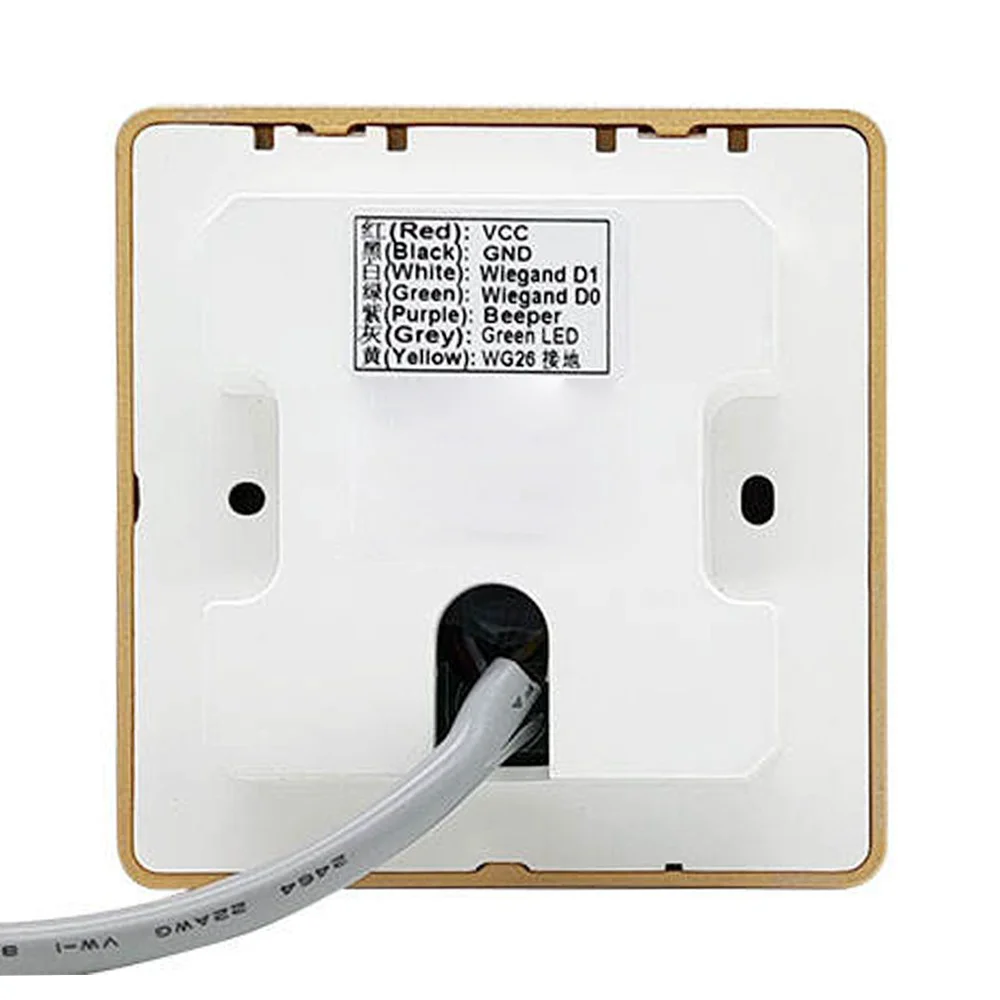

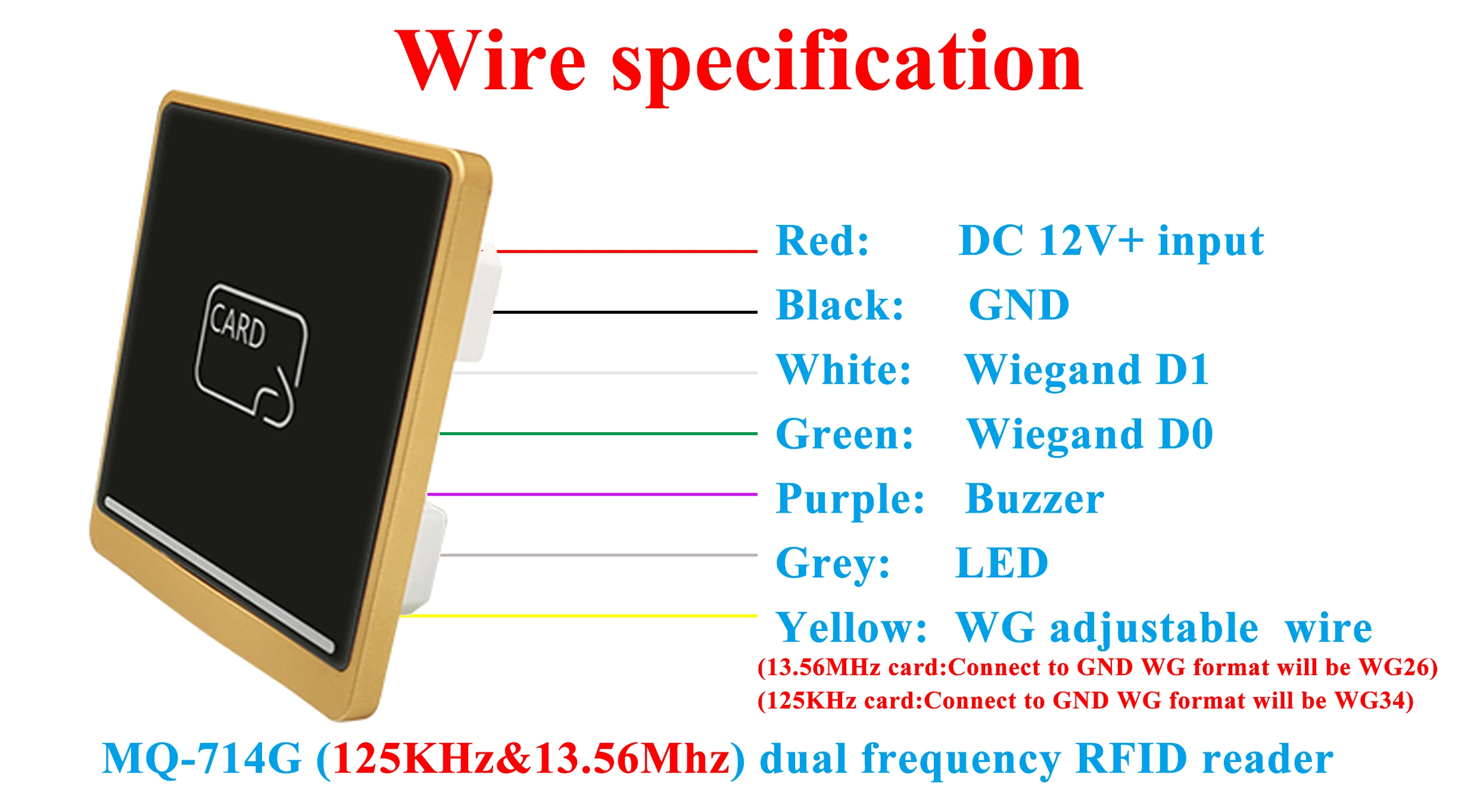

| Contact output: |
12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White) Buzzer(Purple)/Beeper(Grey)WG 26(Yellow) |
| Suitable for: | Door access control system |
| Material: | Metal housing+ PCB board |
| Housing color: | Golden frame+ Black panel |
| Working temperature: | -20°C~+60°C |
| Weight: | 0.2kg |
| Warranty: | 1 years warranty |
| OEM: | Welcome OEM |
What features MQ-714G have?
How about other choice?
125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G
125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G
125Khz 13.56MHz Wigand Access Control Card Wg26 Wg34 Adjustable Rfid Access Control Card Reader MQ-714G
