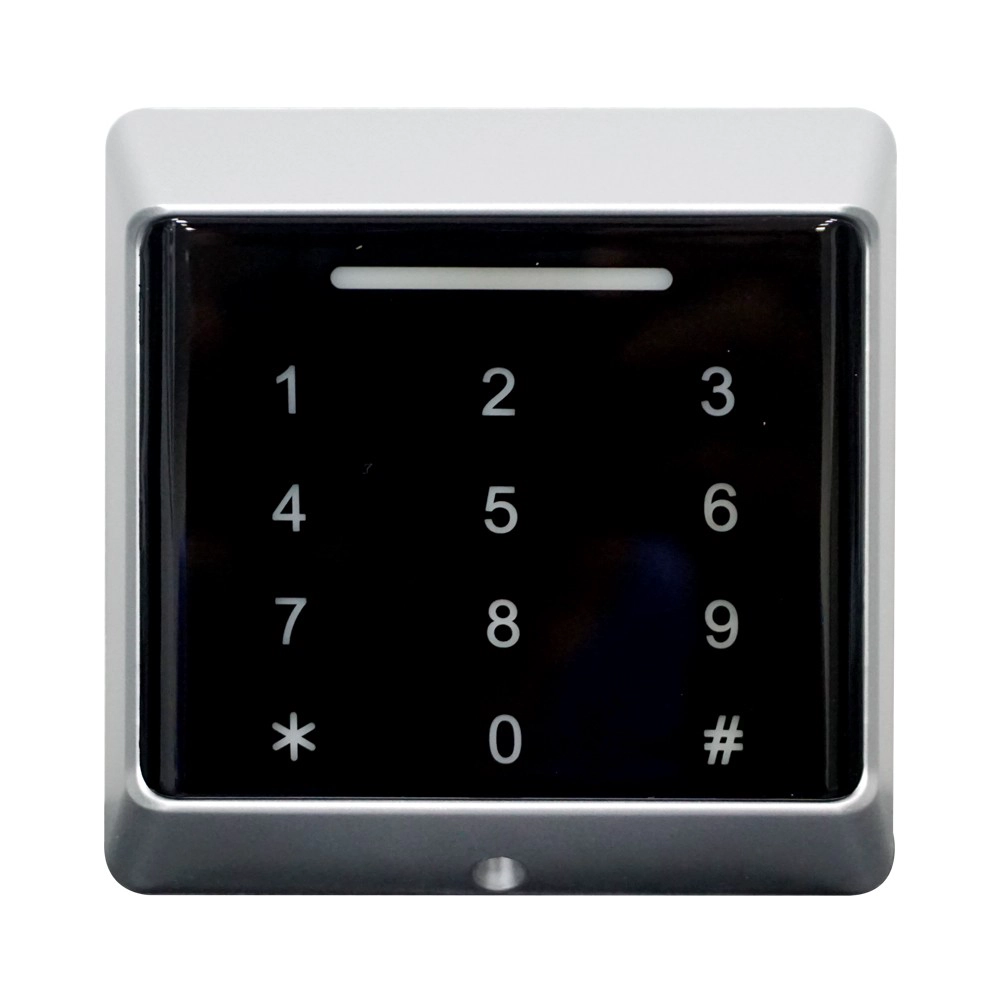

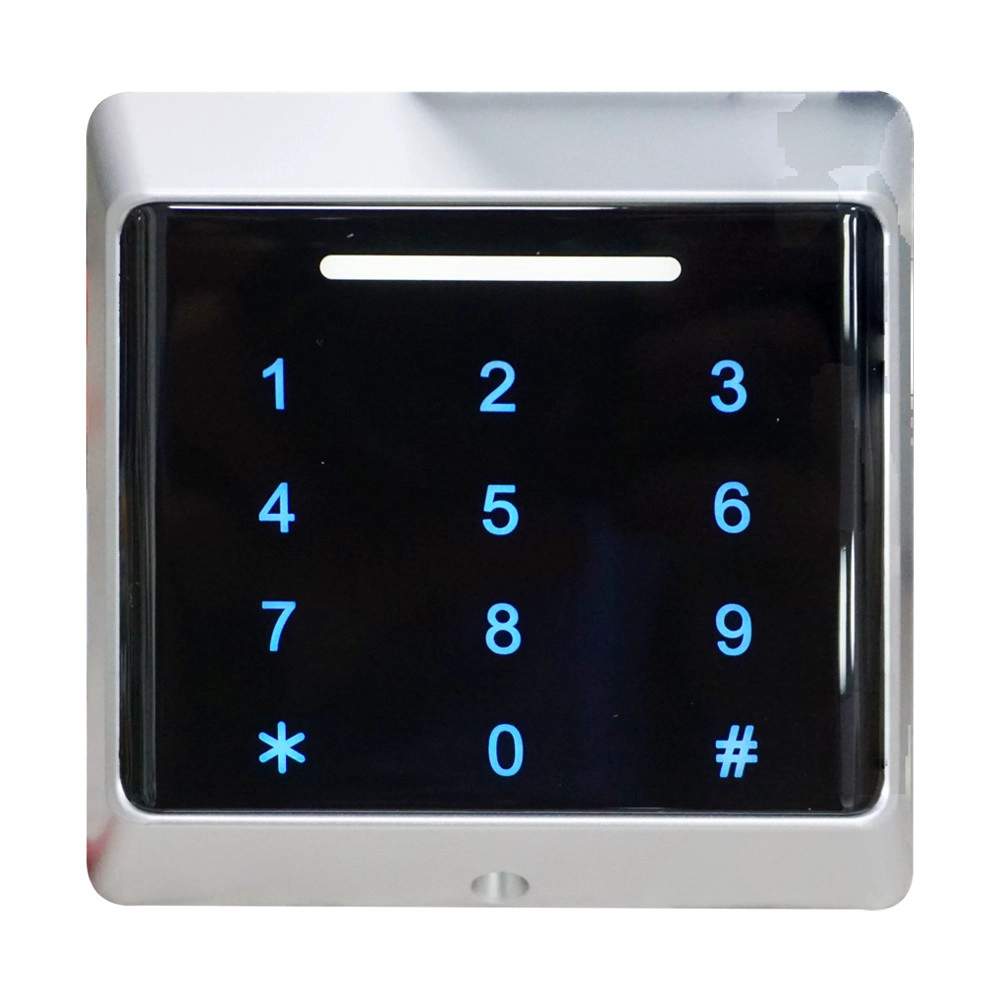

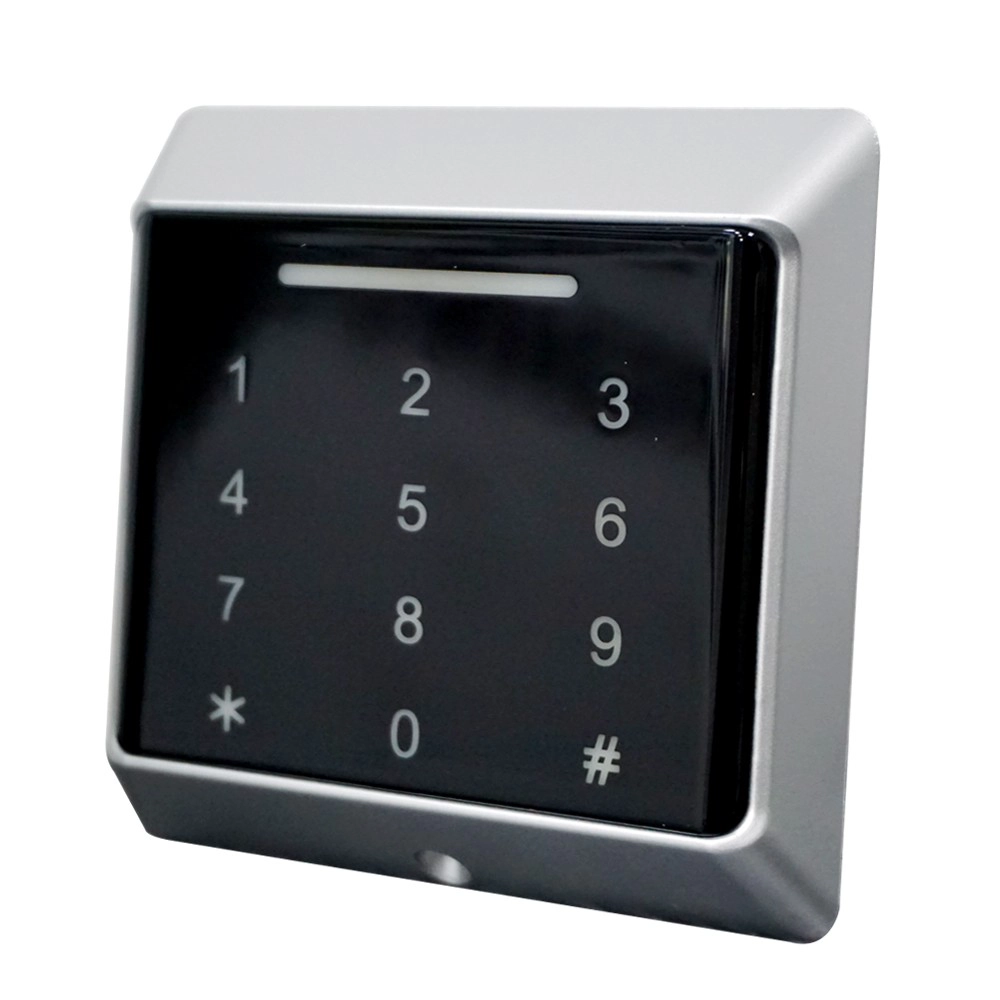

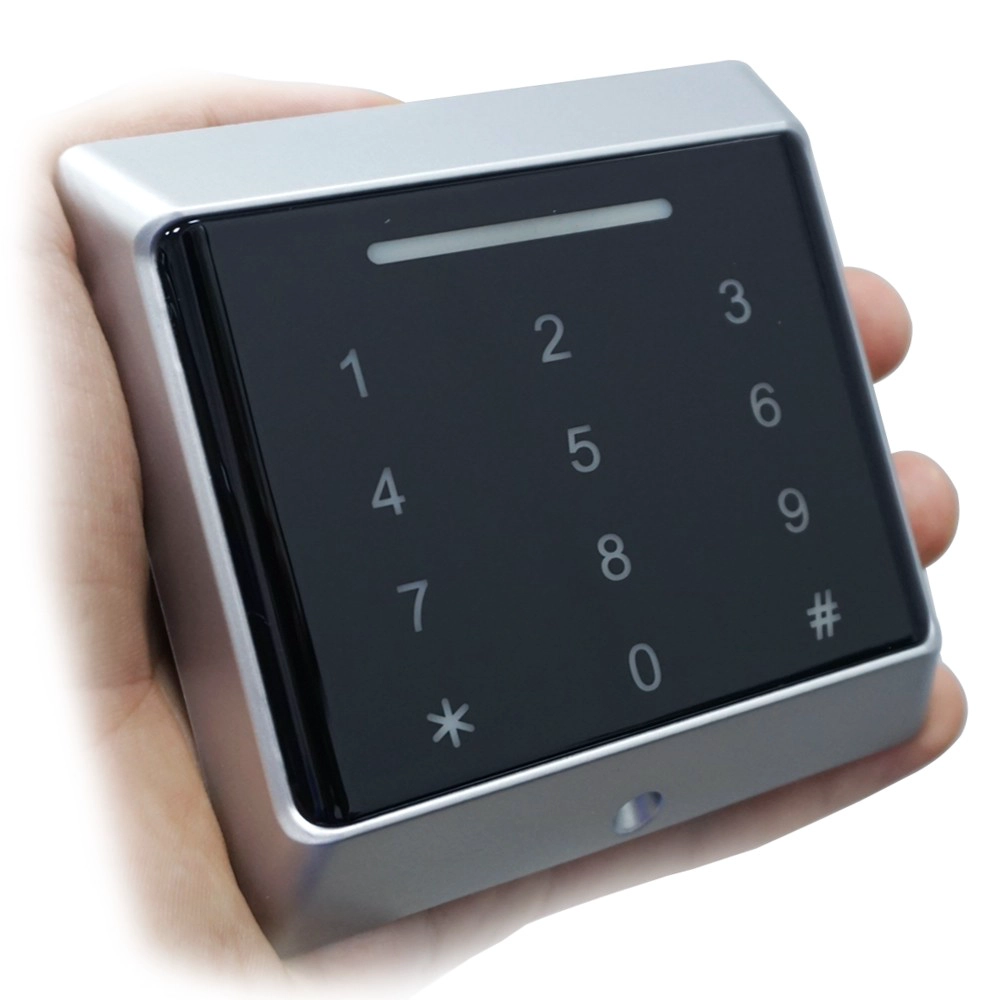

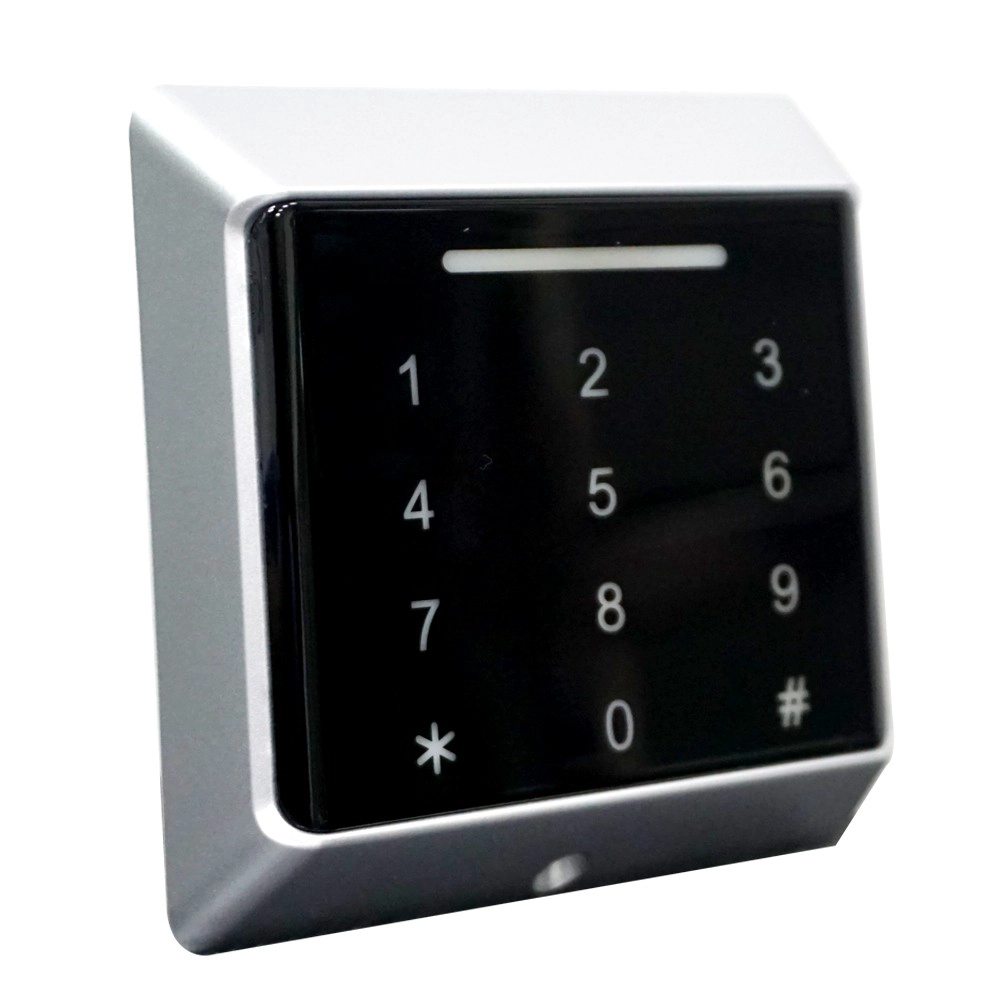

Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output
- Model number:MQ-713K
- Card type:IC card(13.56MHz)
- Power supply: DC12V(±5%)
- Working current:<200mA
- Protocol: ISO / IEC14443A, ISO / IEC14443B
- WG output format: WG34/26 adjustable
- Compatible card type:13.56MHz
- Reading distance:0-5CM
- Communication distance:<80m(between card reader and controller)
- Dimension:89.5mm*89.5mm*16.3mm(Error+0.5mm)
- Wires ports:7 wires

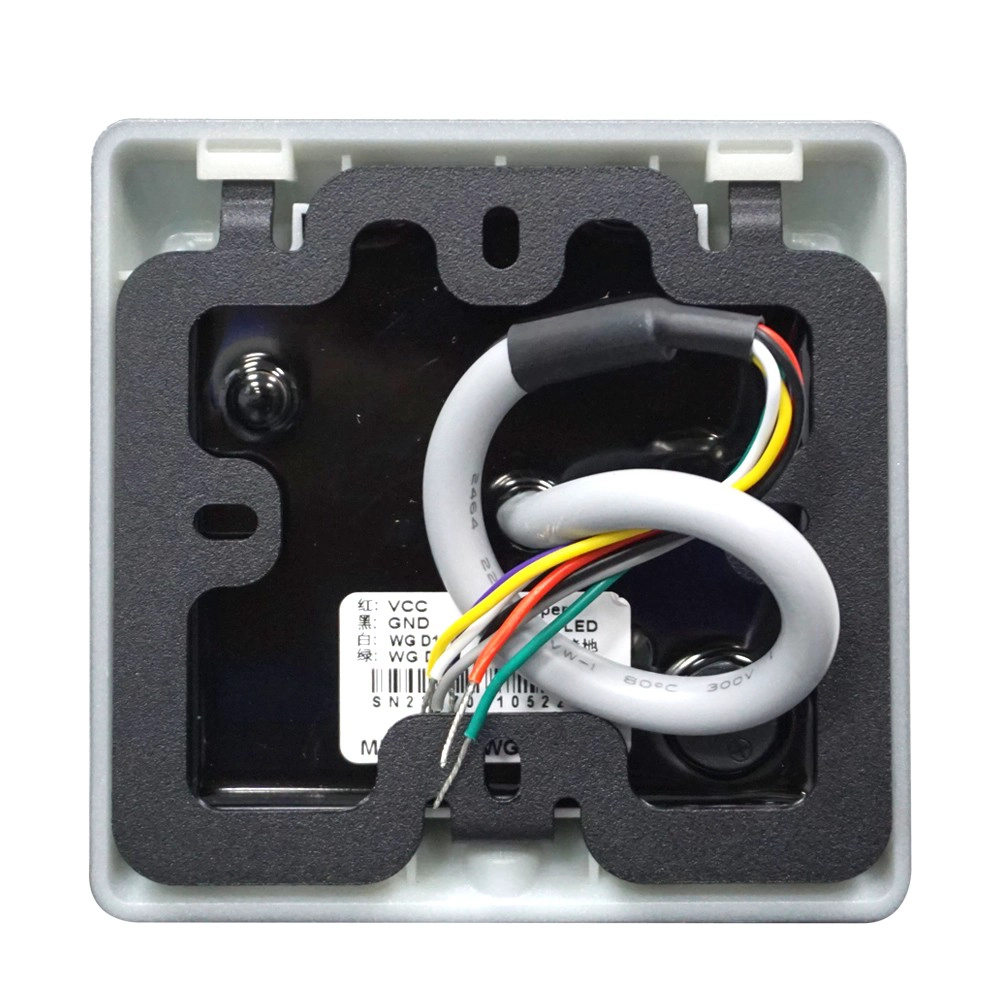

- Contact output:12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White)Buzzer(Purple)/Beeper(Grey)WG 26(Yellow)
- Suitable for:Door access control system
Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output
MQ-713K's main parameter
| Product Name: | Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output |
| Model number: | MQ-713K |
| Card type: | IC card(13.56MHz) |
| Power supply: | DC12V(±5%) |
| Working current: | <200mA |
| Protocol: | ISO / IEC14443A, ISO / IEC14443B |
| WG output format: | WG34/26 adjustable |
| Compatible card type: | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE PluS S/X , MIFAREUltralight/Ultralight C/Ultralight EV1, NTAG2xx card |
| Reading distance: | 0-5CM |
| Communication distance: | <80m(between card reader and controller) |
| Dimension: | 89.5mm*89.5mm*16.3mm(Error+0.5mm) |
| Wires ports: | 7 wires |
| Contact output: |
12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White) Buzzer(Purple)/Beeper(Grey)WG 26(Yellow) |
| Suitable for: | Door access control system |
| Material: | ABS resin housing+ PCB board |
| Housing color: | Sliver frame+ Black panel |
| Working temperature: | -10°C~+60°C |
| Storage temperature: | -20°C~+80°C |
| Working humidity: | 15%~90% |
| Weight: | 0.2kg |
| Warranty: | 1 years warranty |
| OEM: | Welcome OEM |
What features MQ-713K have?
How about other choice?
Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output
Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output
Rfid 13.56MHz Access Control Reader MQ-713K With Touch Keypad for Pin Code Input With Wg26/34 Data Output
