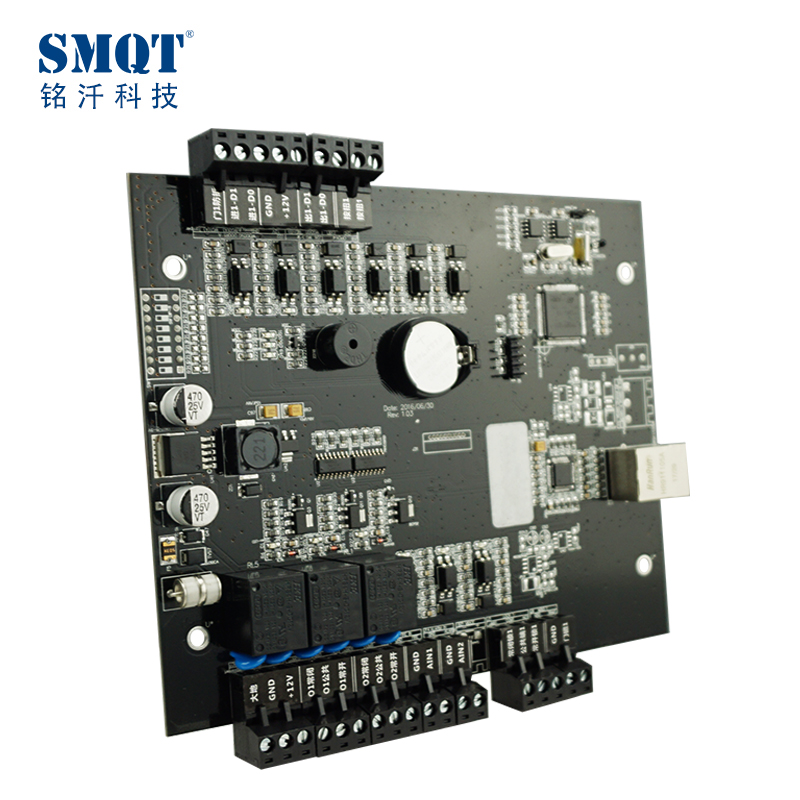

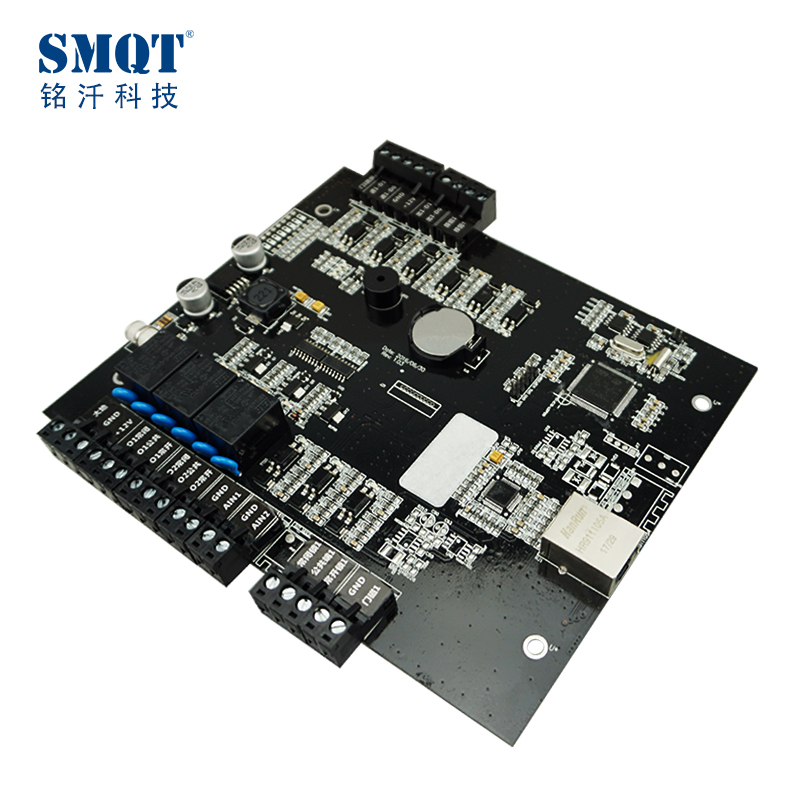

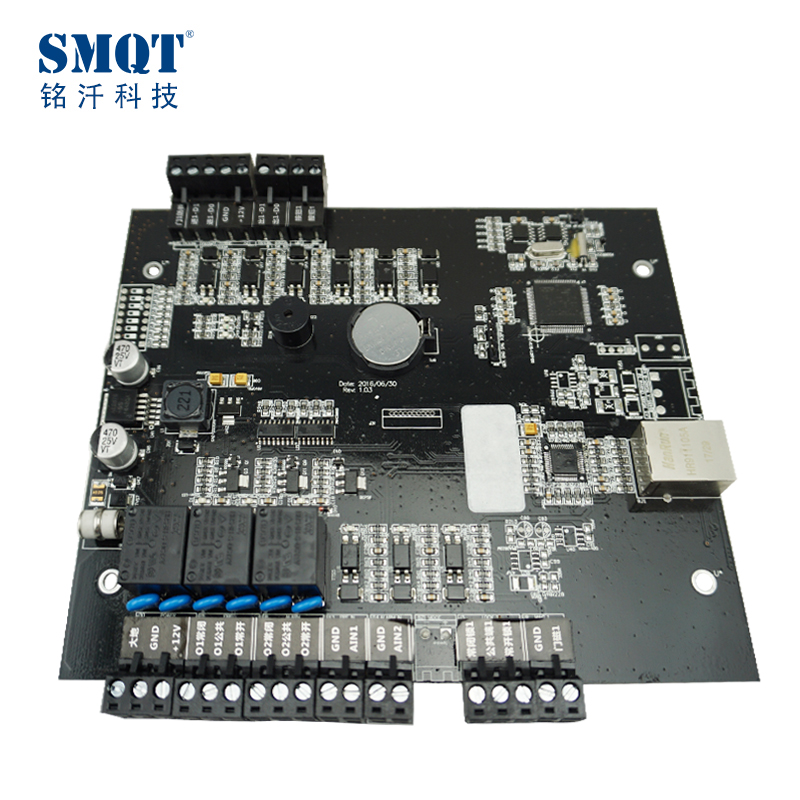

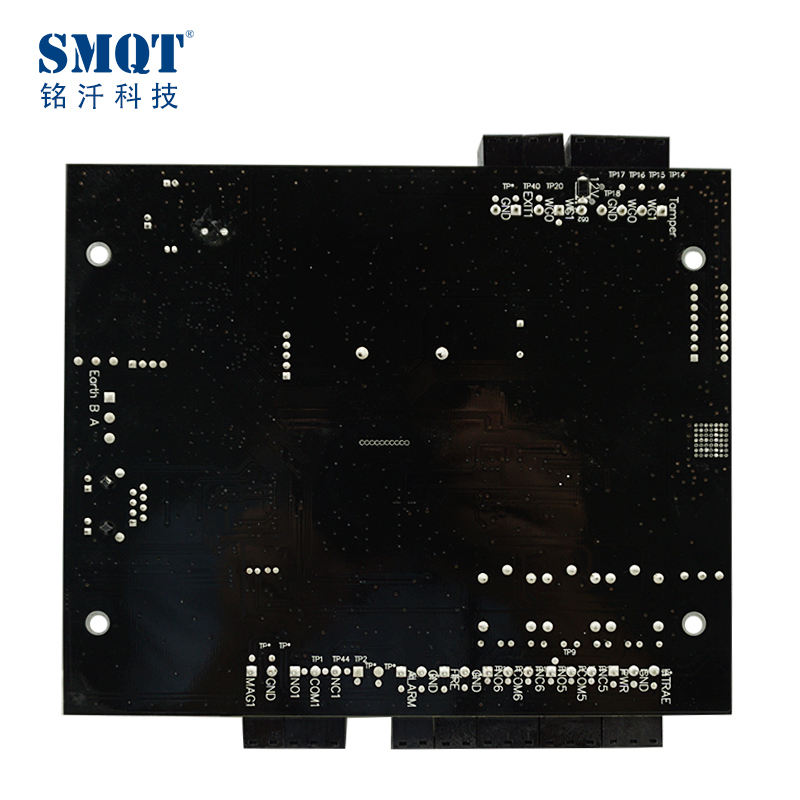

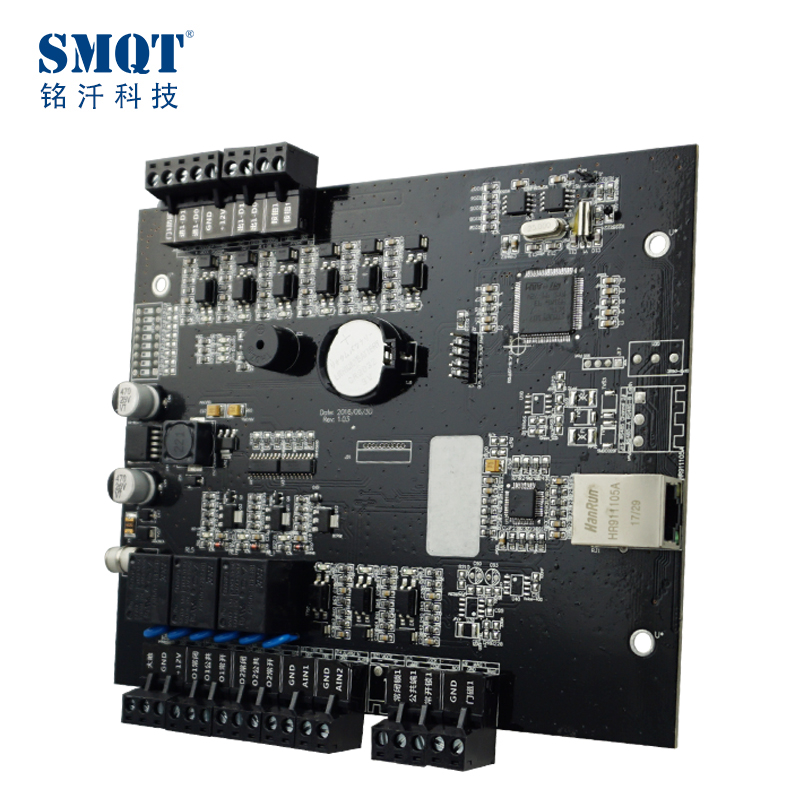

TCP/IP Single door access controller with free PC software
- Model number:EA-811
- Working voltage:9~14V DC
- Working current:<350mA
- User capacity:20000 user capcity
- Record capacity:1000,000 event records (can record card, alarm, exit switch, door magnet, system action information, etc.)
- Interface:Card reader×2 pcs(WG26 or WG 34)
- Lock×1pcs
- Door release button×1pcs
- Door sensor ×1 pcs
- Alarm relay×1 pcs
- RS485×2 pcs(optional)
- TCP/IP×1 pcs
- Communication way:TCP/IP / Rs485 optional
- Software:Free PC software
- Size:170*155*17mm
- Suitable for:Access control system /Burglar alarm system/Fire alarm system
- Material:PCB board
- Color:Black
- Weight:0.7kg
- Optional accessories:Metal box power supply
- Warranty:2 years warranty
- OEM:Welcome OEM
TCP/IP Single door access controller with free PC software
EA-811'S MAIN PARAMETER
| Product Name: | TCP/IP Single door access controller with free PC software |
| Model number: | EA-811 |
| Working voltage: | 9~14V DC |
| Working current: | <350mA |
| User capacity: | 20000 user capcity |
| Record capacity: | 1000,000 event records (can record card, alarm, exit switch, door magnet, system action information, etc.) |
| Interface: |
Card reader×2 pcs(WG26 or WG 34) Lock×1pcs Door release button×1pcs Door sensor ×1 pcs Alarm relay×1 pcs RS485×2 pcs(optional) TCP/IP×1 pcs |
| Communication way: |
TCP/IP / Rs485 optional |
| Software: |
Free PC software |
| Size: |
170*155*17mm |
| Suitable for: | Access control system /Burglar alarm system/Fire alarm system |
| Material: | PCB board |
| Color: | Black |
| Weight: |
0.7kg |
| Optional accessories: |
Metal box power supply |
| Warranty: | 2 years warranty |
| OEM: | Welcome OEM |
WHAT FEATURES EA-811 HAVE?
HOW ABOUT OTHER CHOICE?
TCP/IP Single door access controller with free PC software
TCP/IP Single door access controller with free PC software
TCP/IP Single door access controller with free PC software
