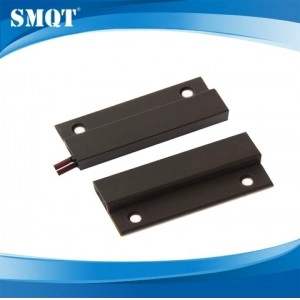

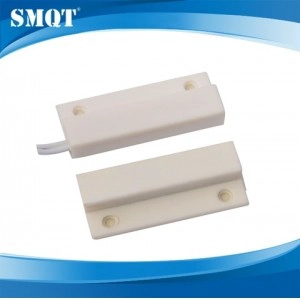

EB-132 Magnetic ContactEB-132 Magnetic Contact

EB-132 Magnetic Contact

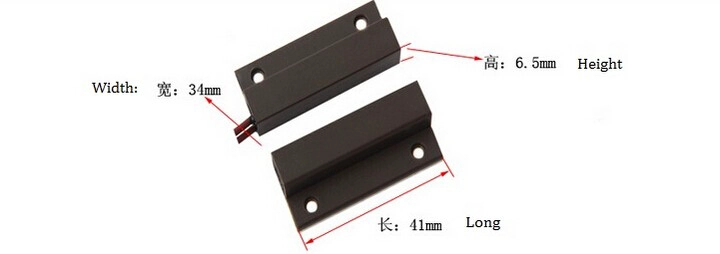

  • Dimensions: 41L * 34W * 6.5H (mm)
  • Connection : NC / NO
  • Operating distance : 20 ± 5 (mm)
  • Maximum durability : ≤100VDC
  • Load current: ≤500mA
  • Working Power: ≤10W
  • Housing Material : ABS fireproof material shape
  • Colour: Brown / White
  • Scope: Non-ferrous door or window
  • product weight: 14g

Dimensions 41L * 34W * 6.5H (mm)
Connection  NC / NO
Operating distance  20 ± 5 (mm)
Maximum durability  ≤100VDC
Load current  ≤500mA
Working Power  ≤10W
Housing Material  ABS fireproof material shape
Colour  Brown / White
Scope  Non-ferrous door or window
product weight 14g

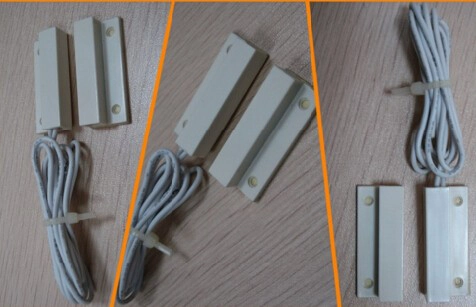

The magnetic contact sensor with wired and wireless mode.This model is wired magnetic door contact switch
used in alarm security.Back of adhesive tape to provide easily installed in the door or window. Ideal security
office, home, shops, entrance.When someone illegally open door or window it immediately send an alarm signal,
the control panel receives the alarm signal immediately,the 120-decibel alarm sound.

The door magnetic contact sensor is used for door security system.The automatic door sensor is wired alarm door sensor.
