EB-117 Photoelectric Smoke DetectorEB-117 Photoelectric Smoke DetectorEB-117 Photoelectric Smoke DetectorEB-117 Photoelectric Smoke DetectorEB-117 Photoelectric Smoke DetectorEB-117 Photoelectric Smoke Detector

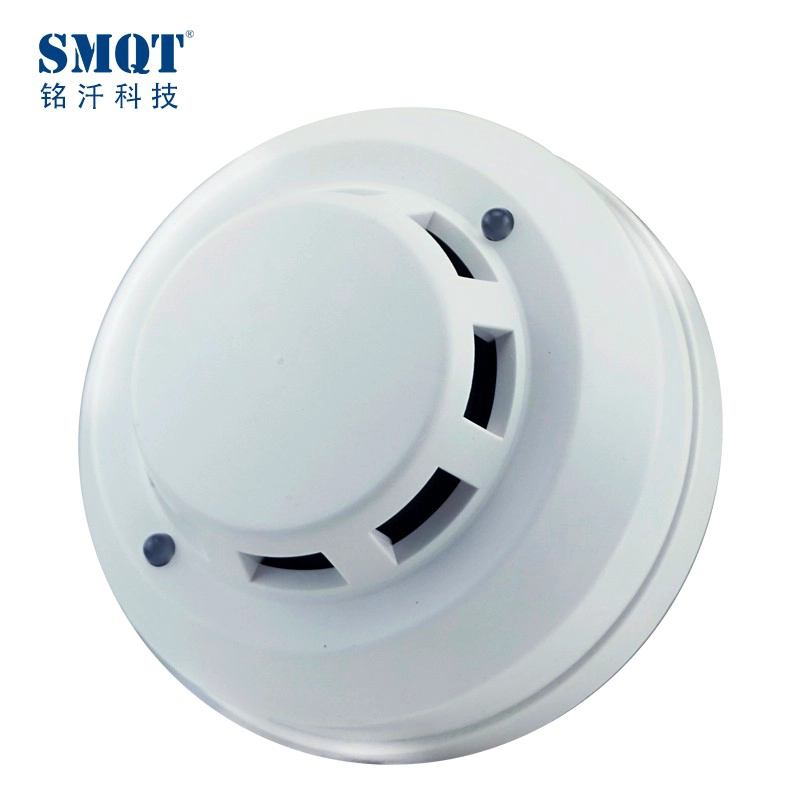

EB-117 Photoelectric Smoke Detector

  • EB-117 Photoelectric Smoke Detector
  • Dimension : Φ104×51 mm
  • Operating Voltage : DC 12v
  • Static Current : ≤2mA
  • Alarm Current : ≤15mA
  • Environment Temperature :
  • -10°C~+50°C
  • Alarm Output : NO/NC
  • Humidity : ≤90%
  • Alarm Mode : LED indication
  • network output
  • Detection Range : 20sqm
  • Reset Mode : auto/power off reset
  • Weight : 222g
Photoelectric Smoke detector
 Specification
Product name Photoelectric Smoke detector
Product model  EB-117
Operating temperature  -10 ℃ ~ + 50 ℃
Alarm concentration  0.65 ~ 15.5% FT
Working humidity  10 to 90%
Power supply DC12 / DC9V
Signal output  NC / NO
Mounting  Ceiling
shell  Retardant resin

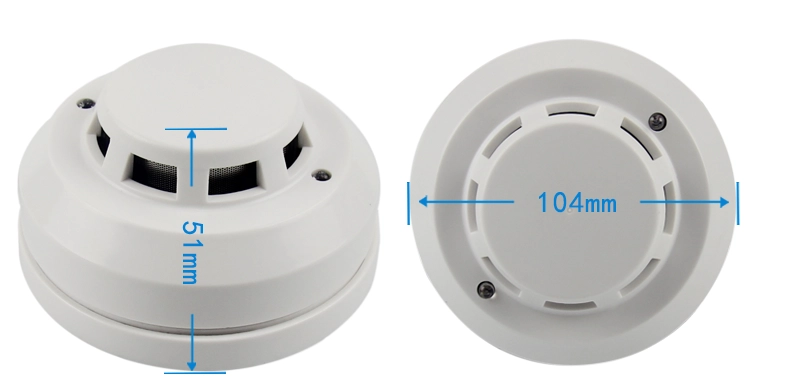

Product Size  Φ104 * 51 (mm)
Photoelectric Smoke detector

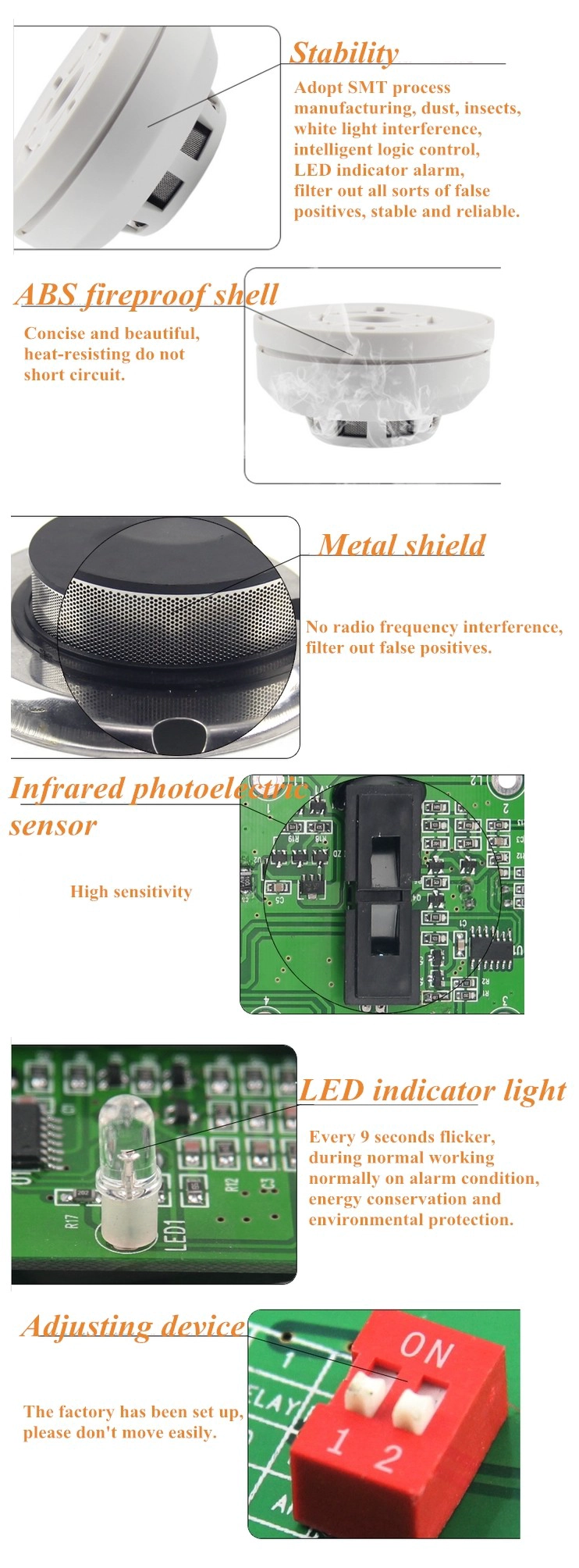

1.This product is non-coding type smoke detectors, and having a pair of switch output contacts, according to the actual need to select the normally open or normally closed output. During normal operation, the indicator flashes once every nine seconds, alarm, indicator light, and alarm output contacts operation.
2.Power reset / automatic reset optional
3.Promise of Power Input
4.Alarm output NCOptional
5.Network output / LED indicates an alarm

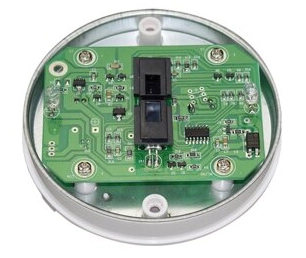

6.SMT process, strong stability
7.Dustproof, anti-mosquito, anti-white light interference design
8.Metal shielding, RFI (20V / m-1GHz)
Photoelectric Smoke detector
Photoelectric Smoke detector




Photoelectric Smoke detector


Photoelectric Smoke detector


Photoelectric Smoke detector

Photoelectric Smoke detector
Packaging list
Product name Photoelectric Smoke detector
Qty  108 / box
Packing Specifications  56 * 47 * 35 (cm)
Packing weight  25Kg
            Photoelectric Smoke detector
Photoelectric Smoke detector
Photoelectric Smoke detector

Photoelectric Smoke detector
