Fire alarm system accessories wired temperature change detecting heat detector EB-118Fire alarm system accessories wired temperature change detecting heat detector EB-118Fire alarm system accessories wired temperature change detecting heat detector EB-118Fire alarm system accessories wired temperature change detecting heat detector EB-118Fire alarm system accessories wired temperature change detecting heat detector EB-118Fire alarm system accessories wired temperature change detecting heat detector EB-118

Fire alarm system accessories wired temperature change detecting heat detector EB-118

  • Model:EB-118
  • Size:105Ø*50(mm)
  • Working voltage:9~12V DC
  • Current:Static current 10uA ;Alarming current 20~50mA
  • Alarm temperature:70℃(Standard) accept OEM
  • Working humidity:10%~90%
  • Install Height:2.2~3.6m
  • Storage temperature:-25℃~65℃
  • Sensitivity :Adjustable
  • Alarm indicator:Red LED Light
  • Alarm output:NC,28V DC,0.15A
  • Anti-tamper switch:NC,28V DC,0.15A
  • Operating humidity:10%~95%
  • Color:White
  • Weight:0.1kg


Specification
Product name Fire alarm system accessories wired temperature change detecting heat detector
Model EB-118
Size 105Ø*50(mm)
Working voltage 9~12V DC
Current Static current 10uA  Alarming current 20~50mA
Alarm temperature 70℃(Standard) accept OEM
Working humidity  10%~90%
Install Height  2.2~3.6m
Storage temperature  -25℃~65℃
Sensitivity  Adjustable
Alarm indicator  Red LED Light(close if need)
Alarm output NC,28V DC,0.15A
Anti-tamper switch NC,28V DC,0.15A
Operating humidity 95%
Color  White
Weight  0.1kg

Features

1.This product is particularly suitable for the occurrence of fire when there is a sharp temperature rise of the place, with the smoke detector with the use of more reliable detection of fire, reduce losses.
2.The detector is novel in structure, beautiful in appearance, stable in performance and resistant to moisture. It is suitable for hotels, restaurants, office buildings, teaching buildings, banks, warehouses, libraries, computer rooms, power distribution rooms and ships..

What features of Fire alarm system accessories wired temperature change detecting heat detector EB-118?

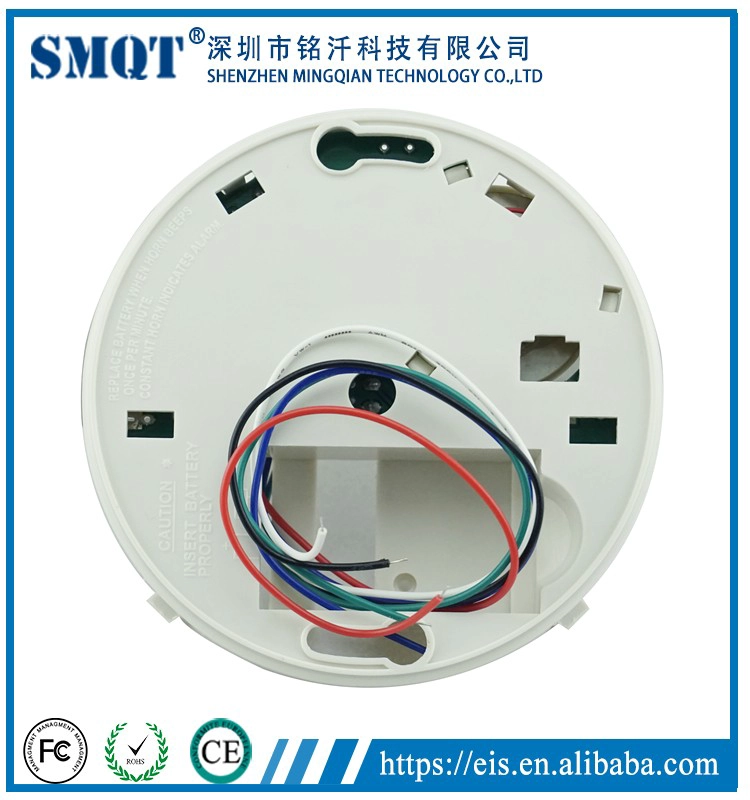

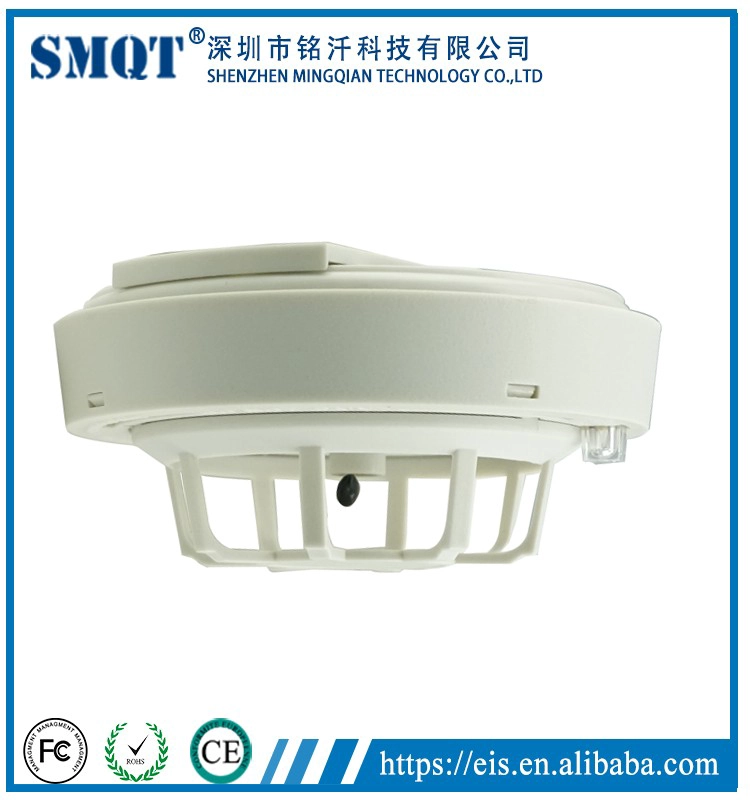

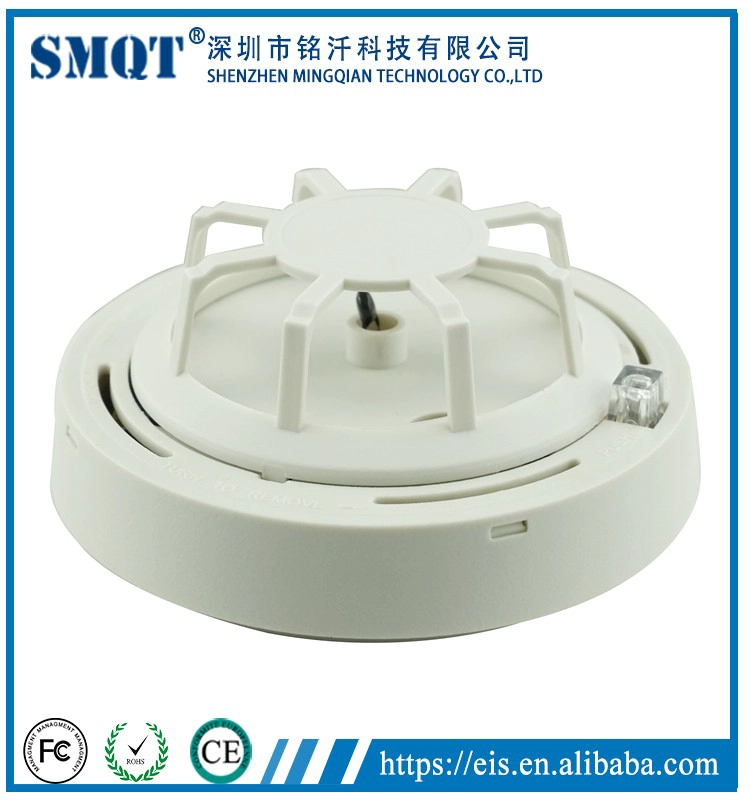

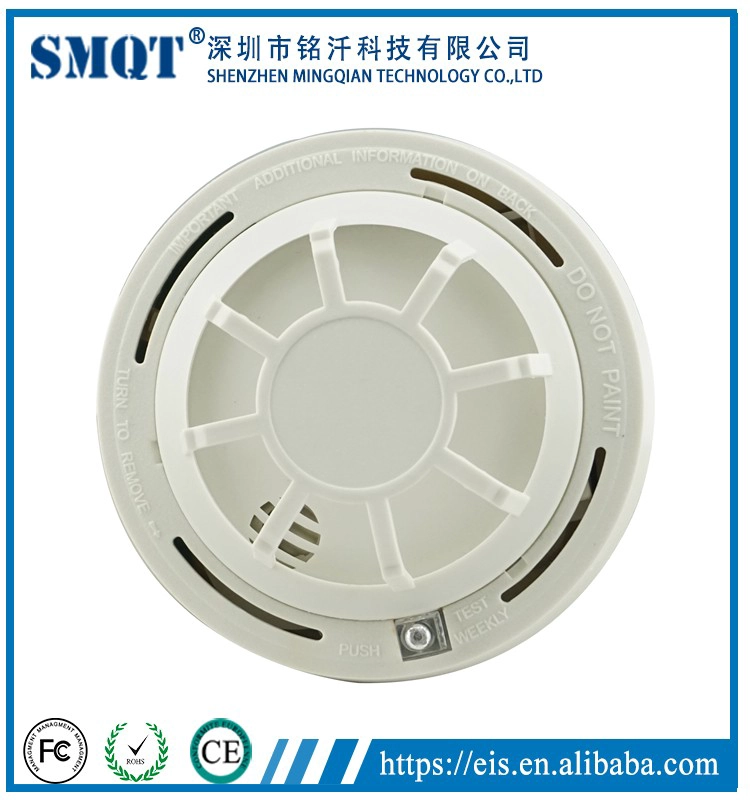

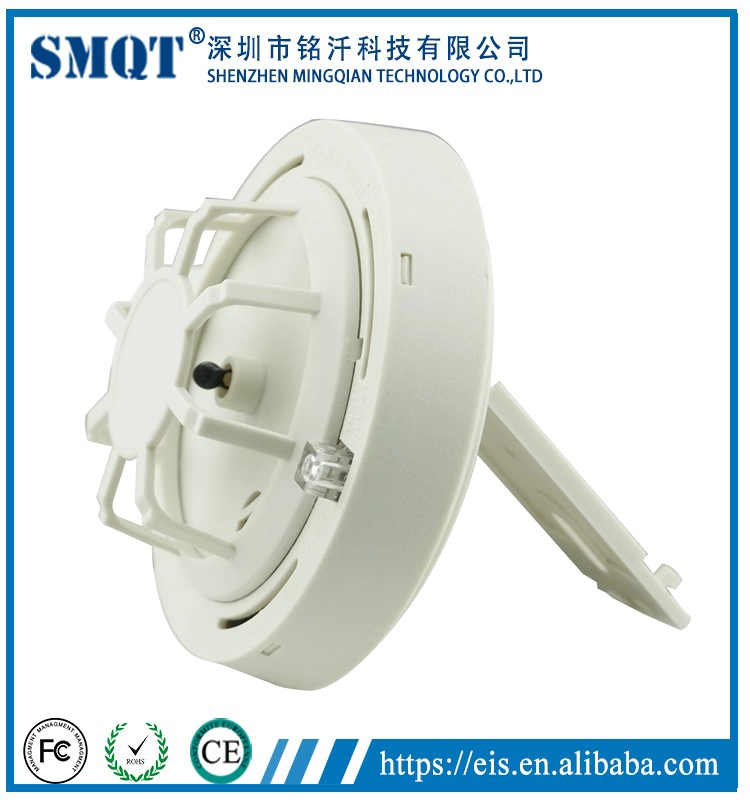

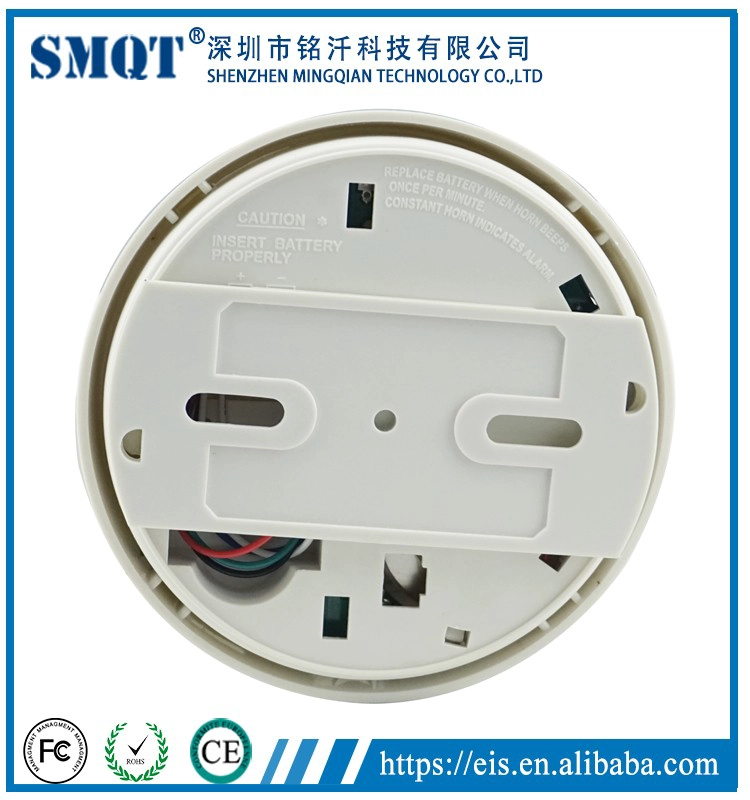

WHAT IS THE EB-118 LOOK LIKE?


HOW TO USE EB-118?



HOW ABOUT OTHER CHOICE?


HOW ABOUT OUR COMPANY?


CUSTOMER


EXHIBITION




CERTIFICATE


HOW TO COPERATION?


FAQ

Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples areacceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit, the more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your
second confirmation before mass production.
